GA-25S is paired with the DR high-precision pneumatic rotary spindle integration.

The clamping repeatability accuracy is within 0.05mm. It has high flexibility in operation and the auxiliary jaws can be quickly replaced. It is specifically designed for automated high-precision equipment.

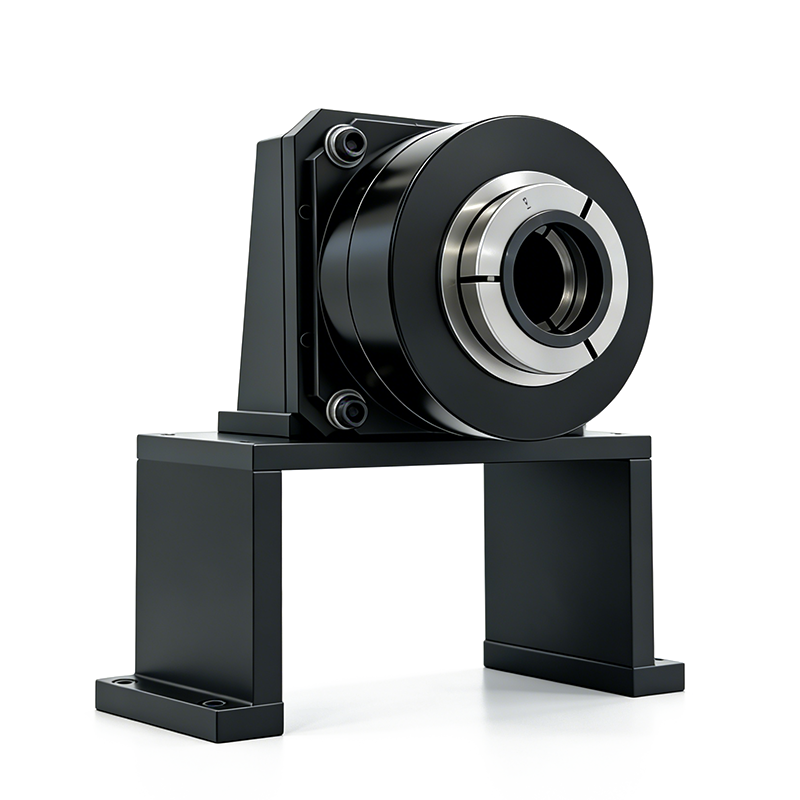

JAC-E is paired with the DR pneumatic internal expansion spindle integration.

The clamping accuracy can be selected within the range of 0.015mm to 0.005mm. It can be used for both internal expansion and external clamping. It features high rotational speed and high precision.

JAC-E is paired with the DR pneumatic internal expansion rotary chuck.

The clamping accuracy can be selected within the range of 0.015mm to 0.005mm. It can be used for both internal expansion and external clamping. It features high rotational speed and high precision.

GAL is paired with the DR pneumatic rotary chuck spindle assembly.

There are models available with clamping accuracy ranging from 0.01mm to 0.002mm. It is specifically designed for automated high-precision equipment. It features high rigidity and high-precision clamping.

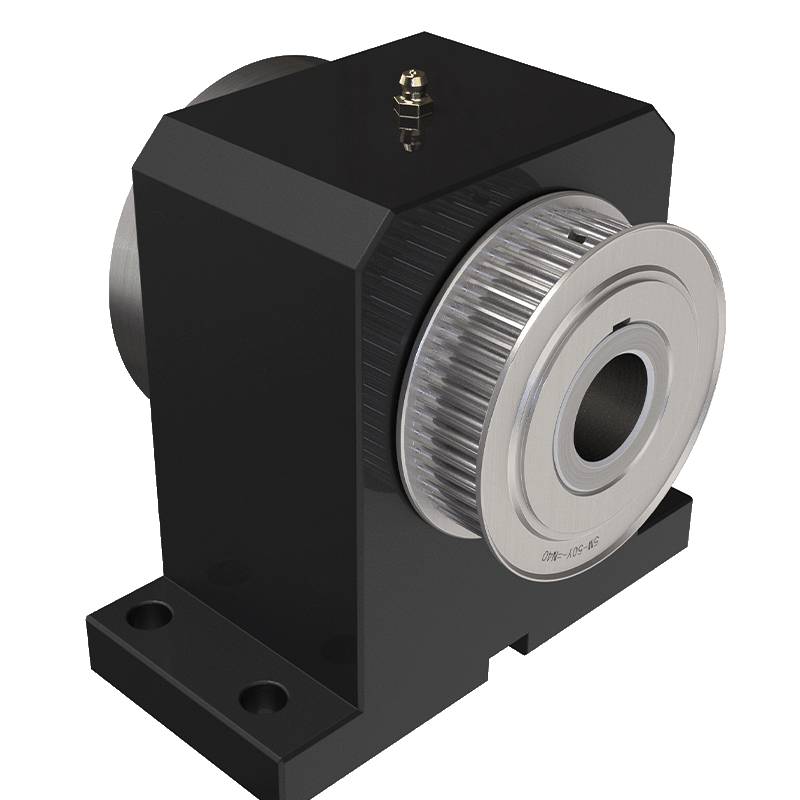

GAL is paired with the DR-25 high-precision spindle integration.

The clamping repeatability accuracy can be selected within the range of 0.01mm to 0.005mm. Either direct connection to the motor or being driven by the synchronous pulley is acceptable. There is a central through hole, and it is dustproof, waterproof

Integrated spindle of pneumatic three-jaw chuck - front-mounted.

The clamping repeatability accuracy can be selected within the range of 0.025mm to 0.005mm. Both direct connection with the motor and being driven by the synchronous pulley are available. Special machine platform for automated equipment.

SA is paired with the DRS vertical internal expansion chuck spindle assembly.

The clamping accuracy can be selected within the range of 0.01mm to 0.002mm. The inner diameter collet can be customized according to the workpiece. There is no need for additional installation of a rotary cylinder.

GAL is paired with the S30 small high-speed spindle base.

High-precision clamping with an accuracy of 0.03mm. There is no displacement when pushing forward for clamping. Large through hole.

GAL-25 is paired with DR-25L spindle integration.

The clamping repeatability accuracy can be selected within the range of 0.01mm to 0.002mm. Both direct connection with the motor and driving by the synchronous pulley are available. Central through hole.

High-precision double-taper internal expansion chuck.

The clamping accuracy can be selected within the range of 0.015mm to 0.002mm. The internal expansion diameter ranges from 12mm to 300mm, and larger sizes are supported for customization. It is often equipped with stock items or semi-finished products

KQ Front-mounted Pneumatic Three-jaw Chuck

Just replace the soft jaws. Design with a large through hole.

Large-stroke internal expansion chuck.

The maximum stroke is 50mm. Multiple models are available for selection. Customization is supported.
