JAC-E Small Pneumatic Internal Expansion Rotary Chuck

The internal expansion range is from 6mm to 45mm, and it can be customized according to the workpiece.

JAC Small Vertical Spindle Integration

The maximum rotational speed is 1,000 revolutions per minute. The clamping repeatability accuracy is within 0.03mm. The maximum diameter of the through hole is 25mm. Different collets can be replaced for different workpieces.

JAC-15 is paired with the DR-25 spindle integration with direct connection to the motor.

The precision can be selected within the range of 0.025mm to 0.005mm. It is dustproof, waterproof and has a high rotational speed. It is designed with a central through hole.

GHL High-precision Hydraulic Rotary Chuck - Rear-pull Type

It has a small outer diameter for installation and a large through hole (with a diameter of 20mm).

GR high-precision spindle clamping seat.

The collet is clamped by rear pull, and the clamping repeatability accuracy is within 0.01mm. The maximum diameter of the through hole is 25mm.

Elastic collets such as YB-15, YB-255C and 16C.

The accuracy can be selected within the range of 0.015mm to 0.002mm. Square holes, round holes, special-shaped holes and so on can all be manufactured. There are multiple specifications available for selection.

The auxiliary claws in sizes of 20, 40, 70, 90 and 120 can be customized with square holes, round holes or special-shaped holes.

Customize various chucks for automatic lathes. There are multiple types of chucks available for selection. High-precision clamping.

JD high-precision diaphragm gripper.

The clamping accuracy is 0.005mm. It can be customized according to the workpiece and can be used for internal expansion or external clamping. Extra allowance can be reserved for precisely finishing the gripper jaws.

GA/GH/DZ/GXL Pneumatic chuck spindle integration with auxiliary jaws.

Fixtures for automated equipment such as laser cutting and sealing machines. The maximum diameter of the through hole that can be manufactured is 500mm. Either pneumatic or hydraulic pressure can be chosen. No additional installation of a rotary cyli

SA is paired with the DR pneumatic internal expansion chuck spindle assembly.

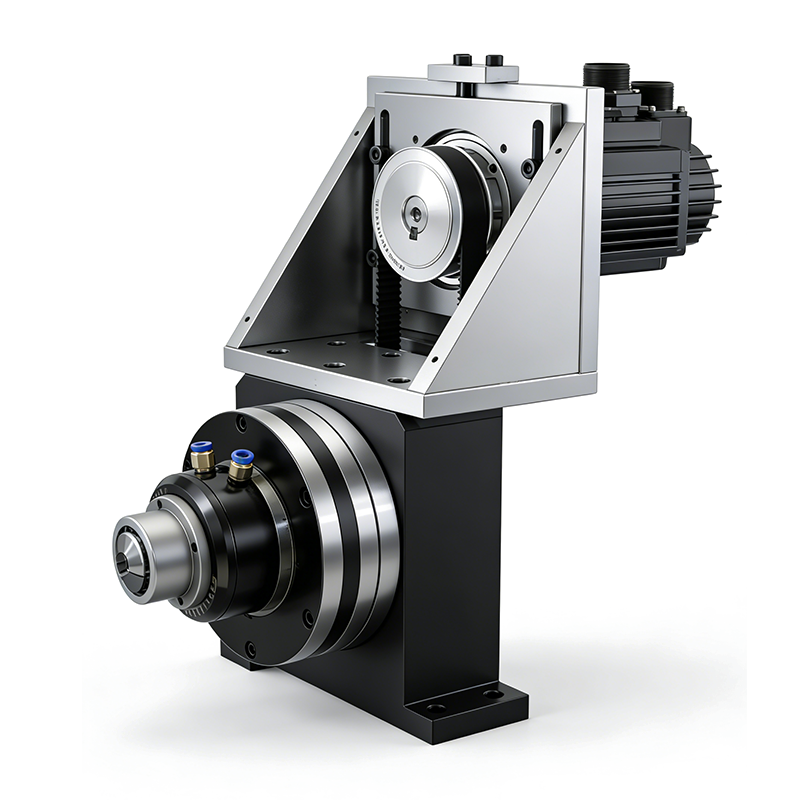

The clamping repeatability accuracy can be selected within the range of 0.01mm to 0.002mm. Either direct connection to the motor or being driven by the synchronous pulley is available. The inner diameter collet can be manufactured according to the wo

SA is paired with the DR pneumatic internal expansion chuck spindle assembly.

The clamping repeatability accuracy can be selected within the range of 0.01mm to 0.002mm. Either direct connection to the motor or being driven by the synchronous pulley is acceptable. The inner diameter collet can be manufactured according to the w

GA-25S is paired with the DR high-precision pneumatic rotary spindle integration.

The clamping repeatability accuracy is within 0.05mm. It has high flexibility in operation and the auxiliary jaws can be quickly replaced. It is specifically designed for automated high-precision equipment.
