JAC Spindle Series

Return to List

OVERVIEW

GALLERY
VIDEO

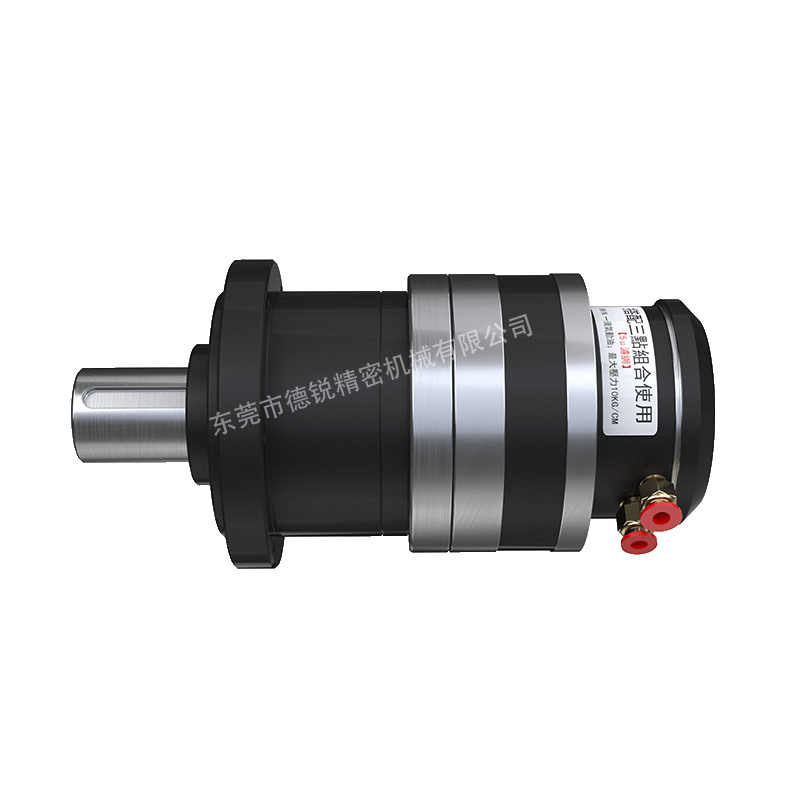

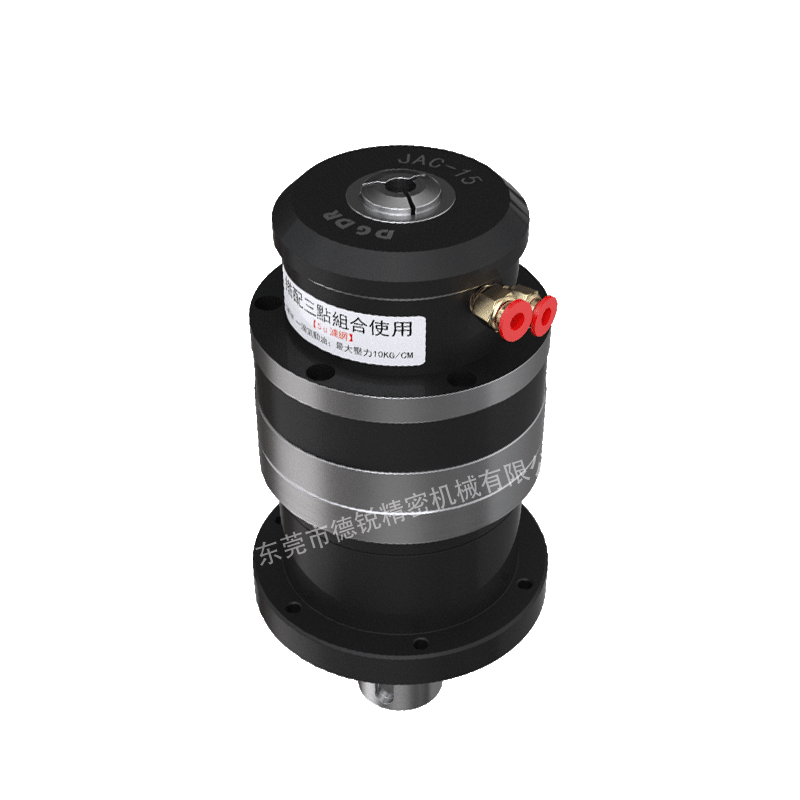

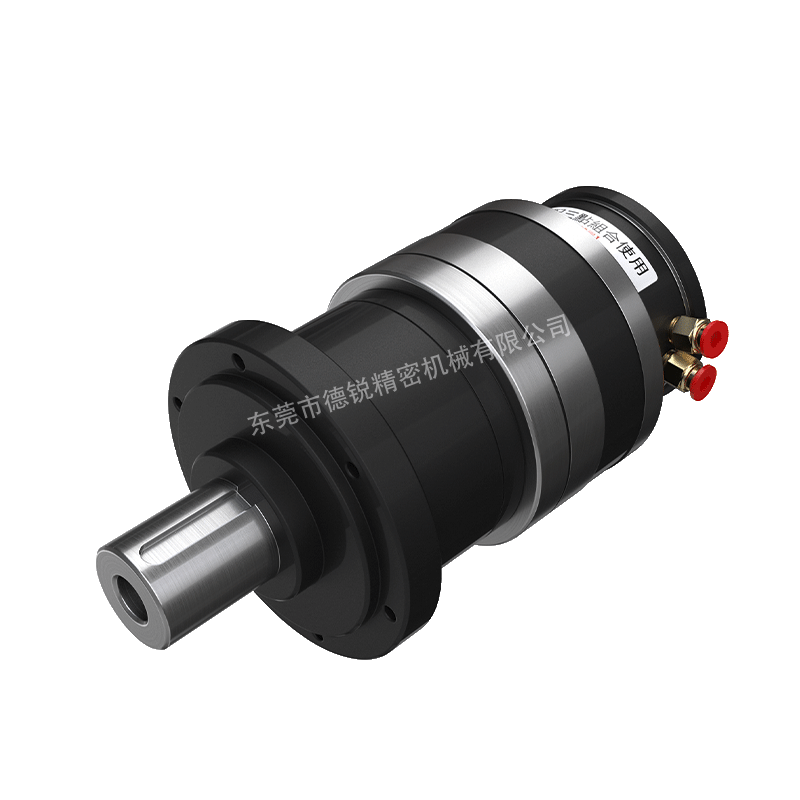

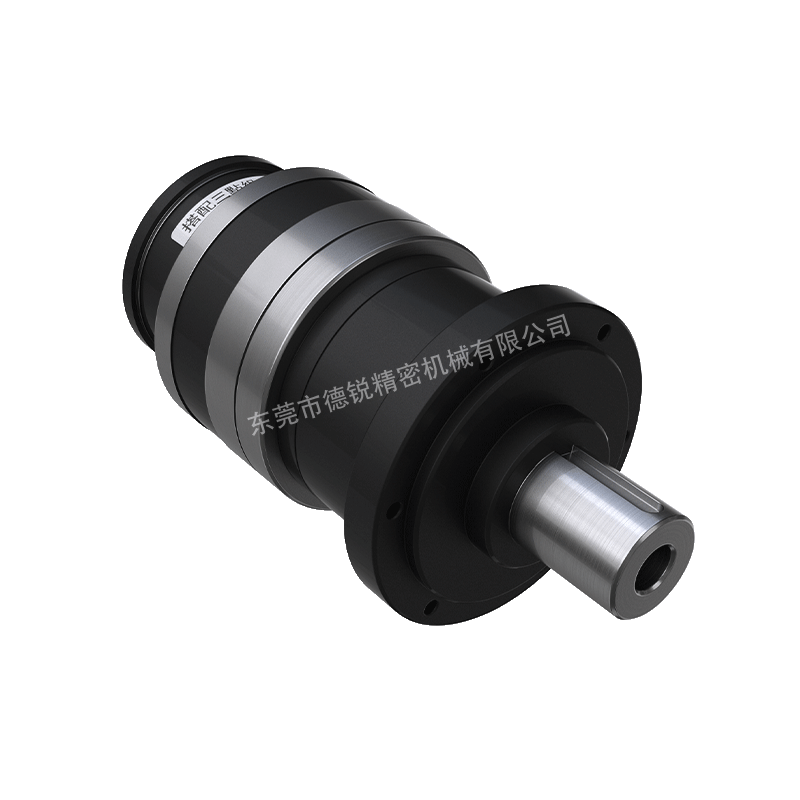

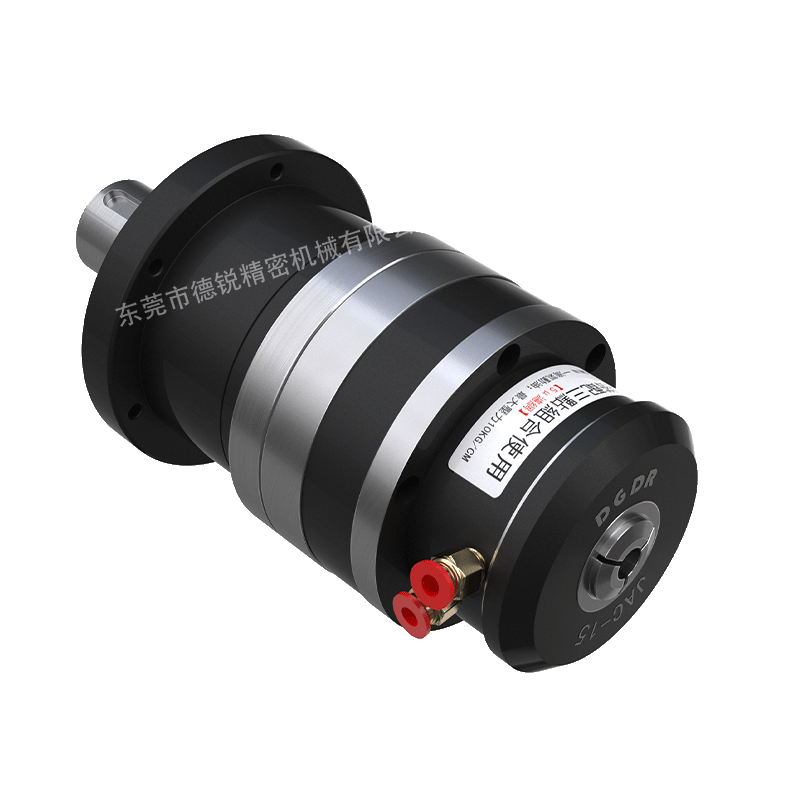

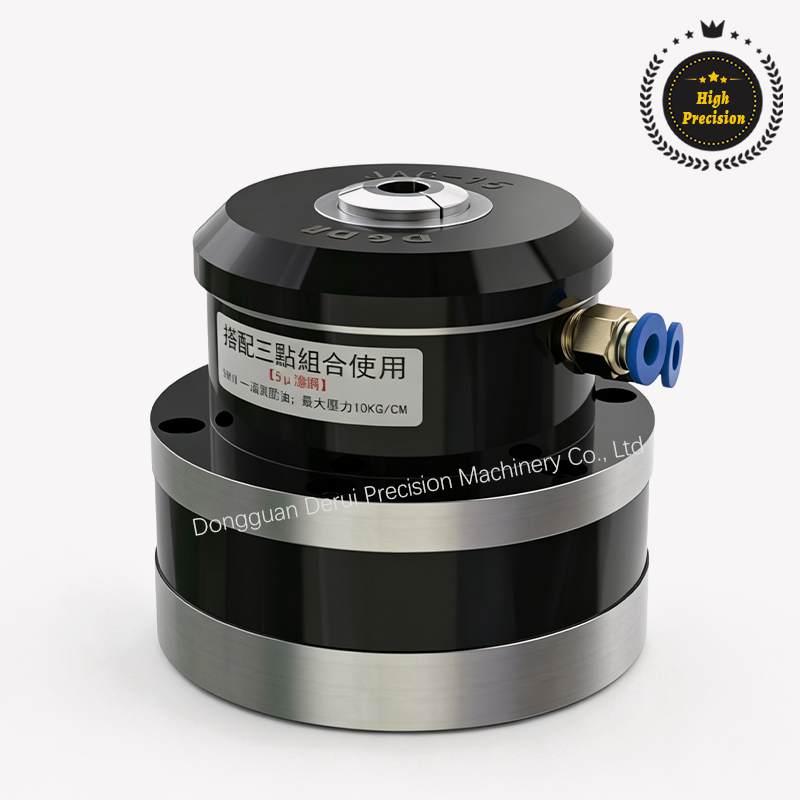

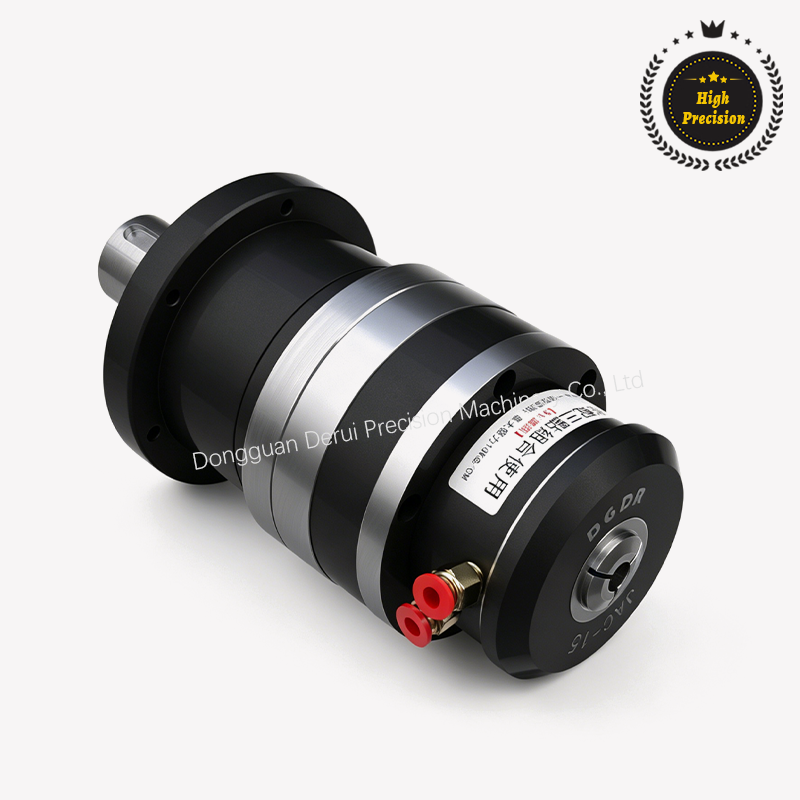

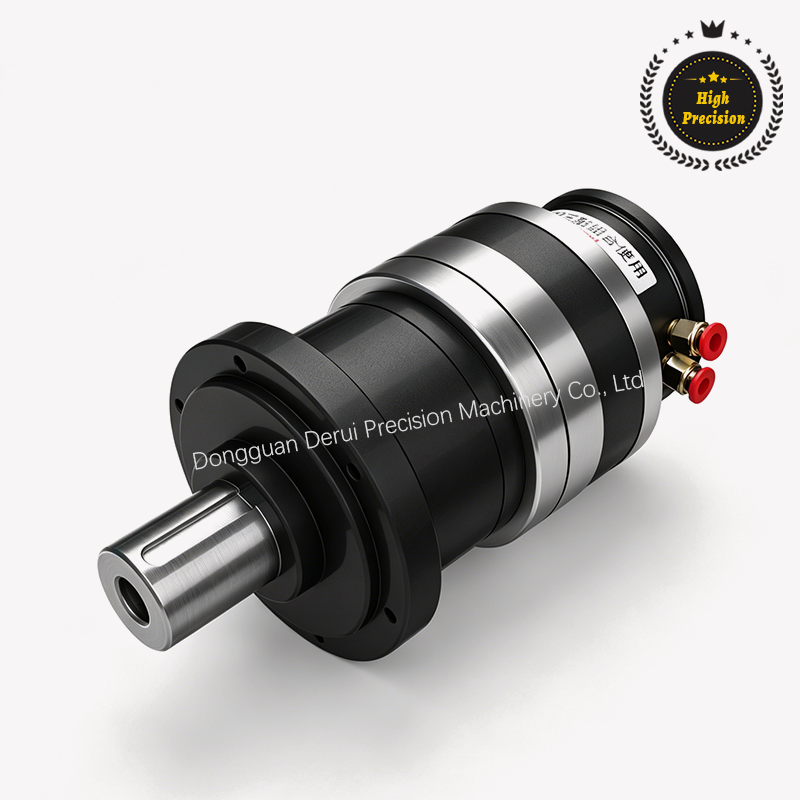

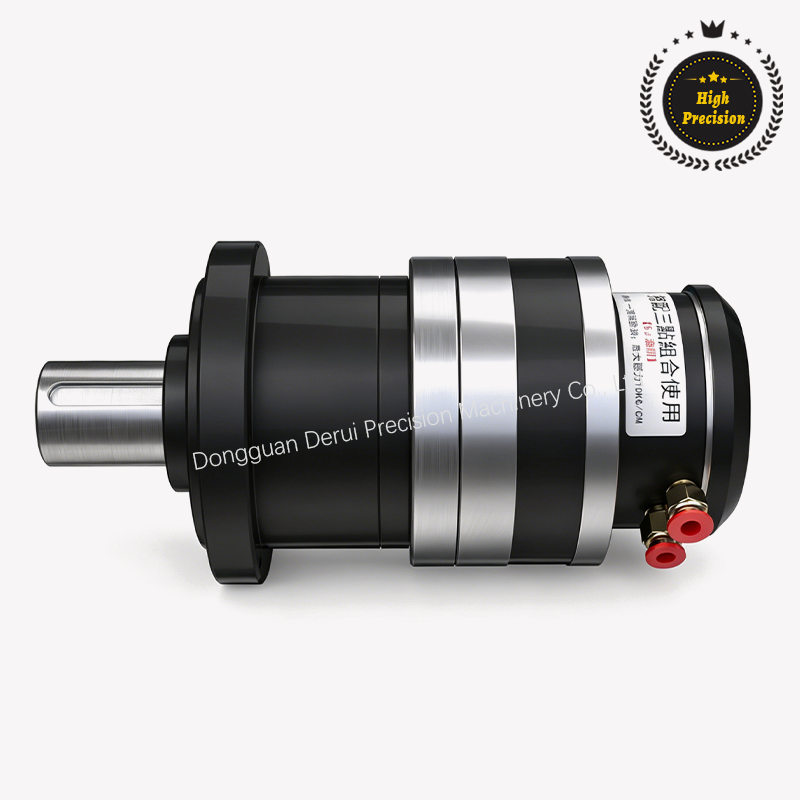

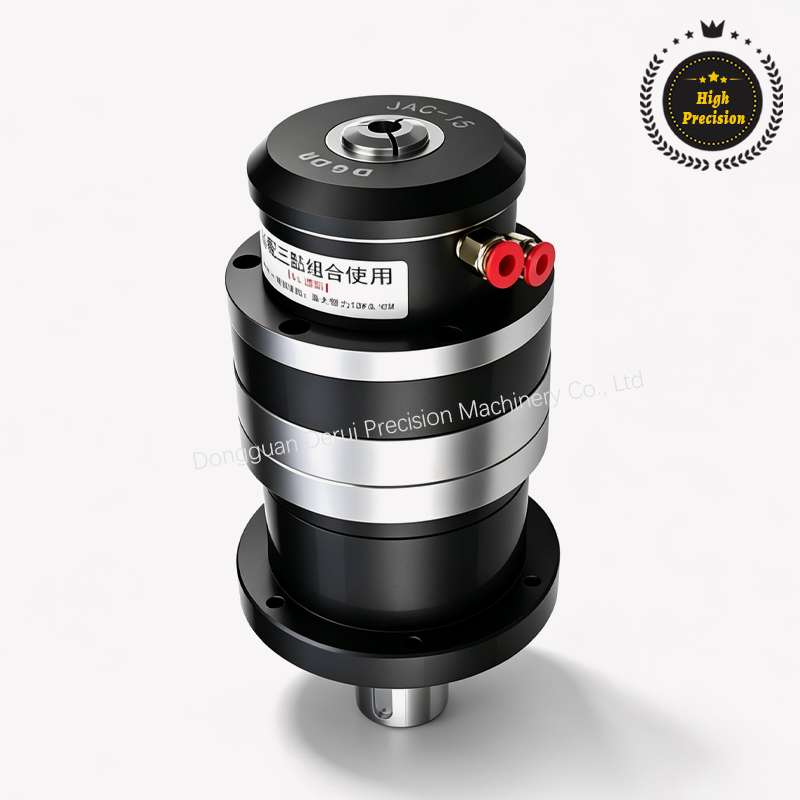

Vertical Spindle Integration

Product characteristics

Steel collet body, offering a long service life.

No Additional Rotary Cylinder Installation Required

Clamping repeatability within 0.03 mm

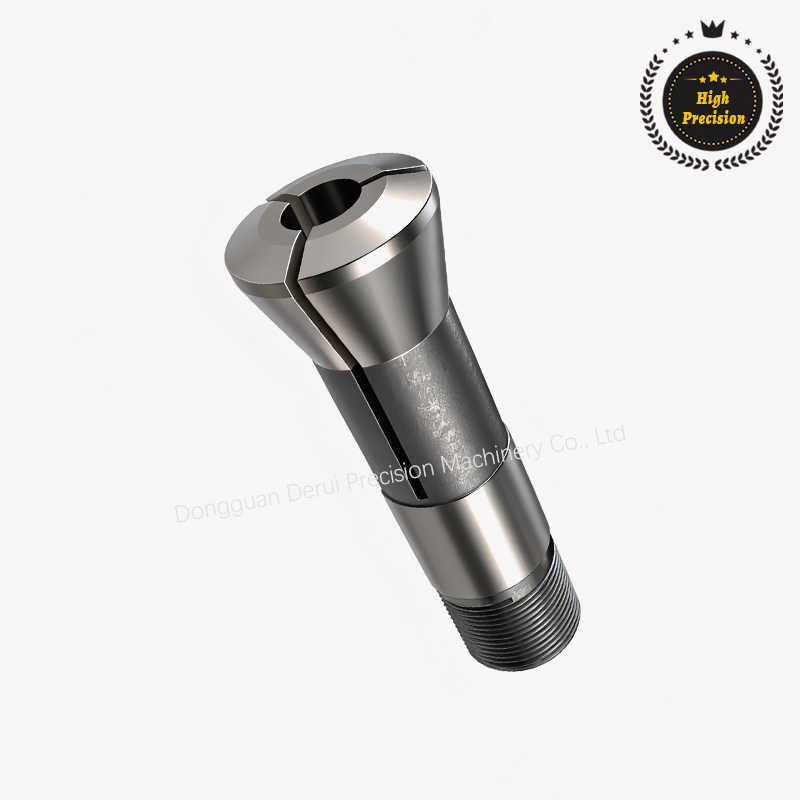

Through-hole chuck; collet can be interchanged
for different workpieces
Maximum speed 1000 rpm/min
Air pressure: 3-8 kg/cm2; dustproof and waterproof

Product advantages

Built with a durable steel body, this cylinder-free spindle offers 0.03mm clamping repeatability, interchangeable collets for different workpieces, and a dustproof/waterproof design for reliable vertical precision machining applications.

Business Consulting

Plan

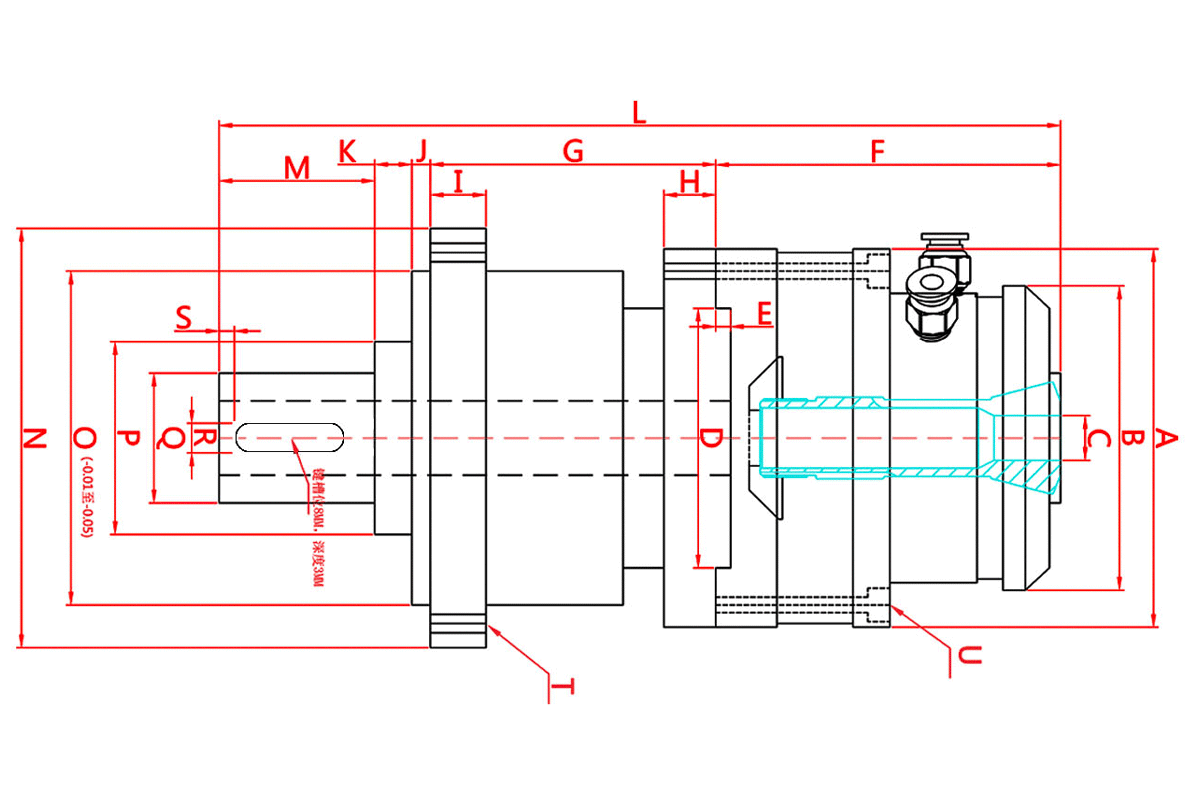

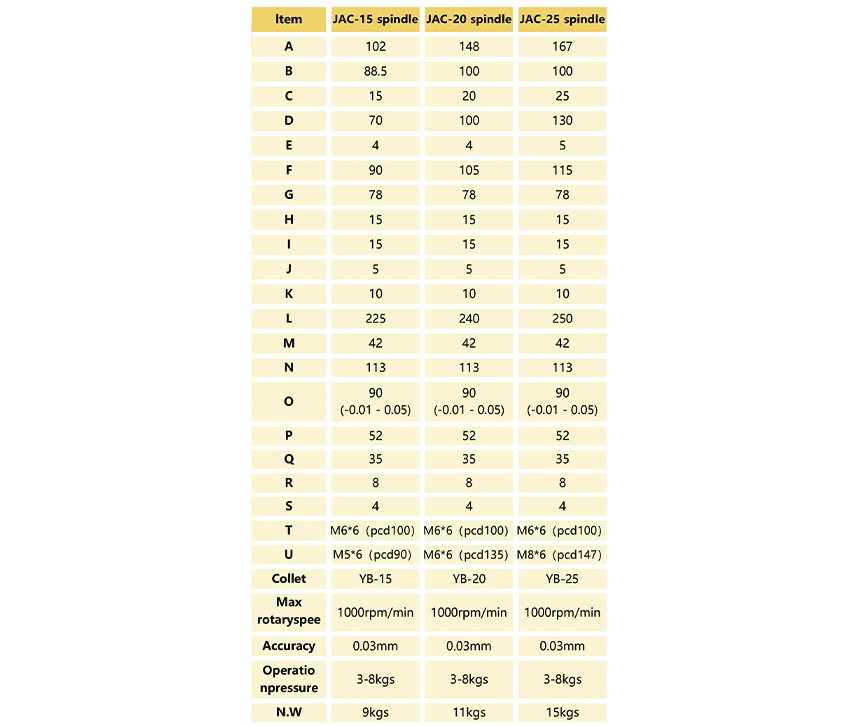

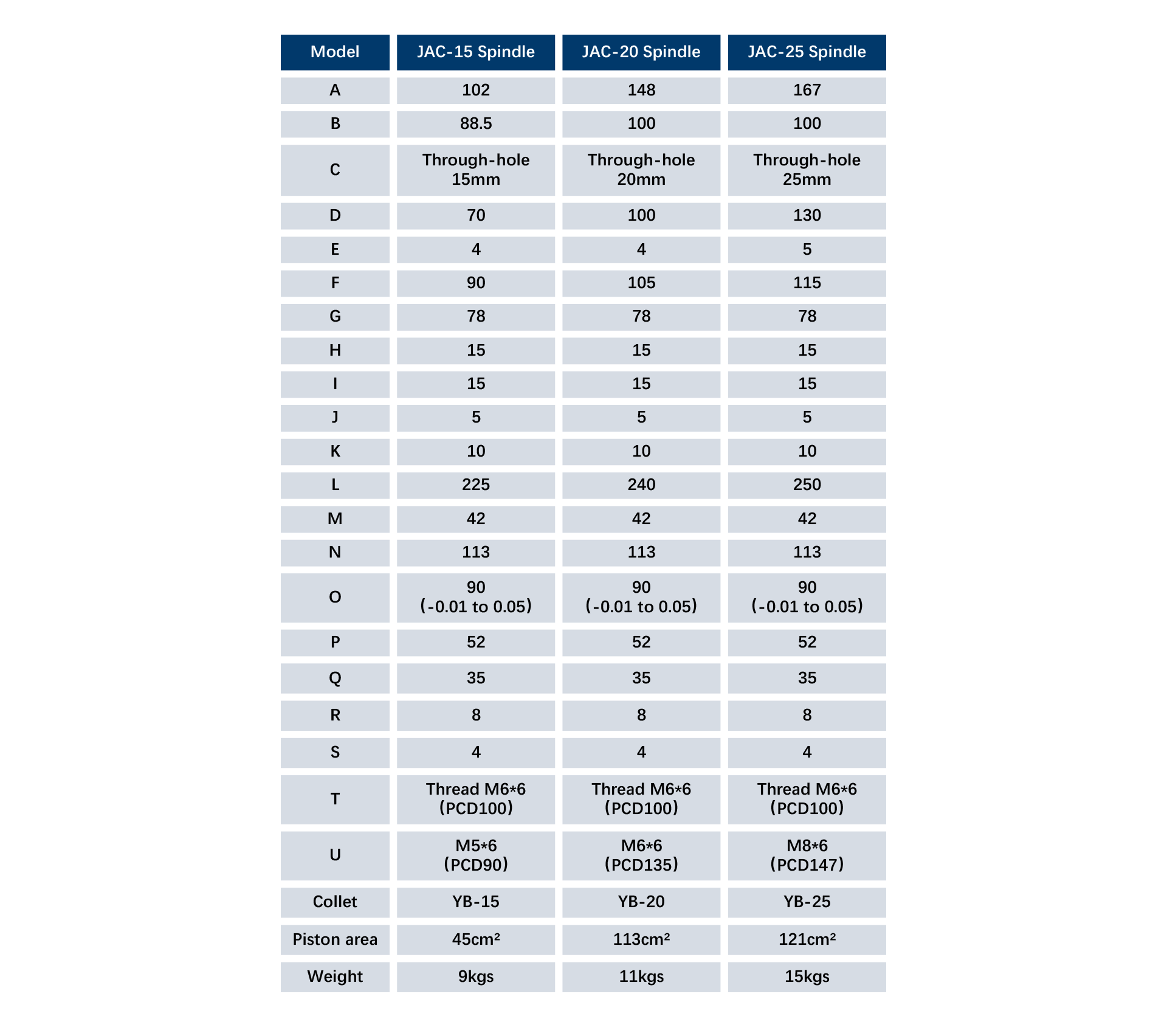

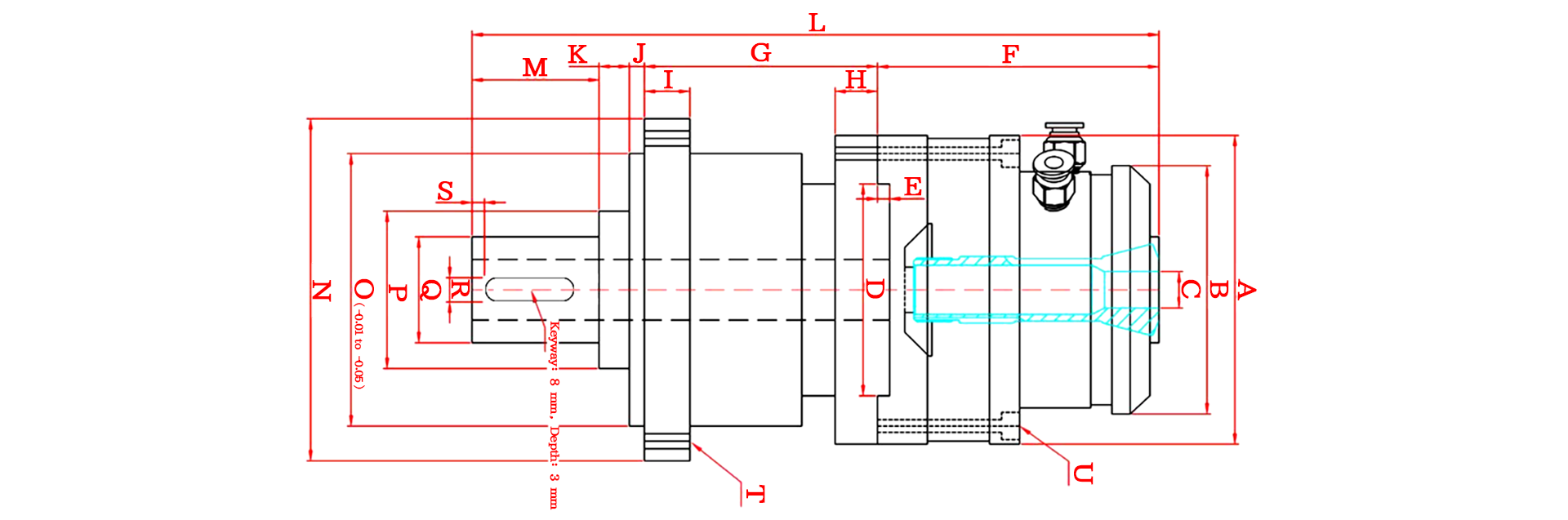

Specification and size
