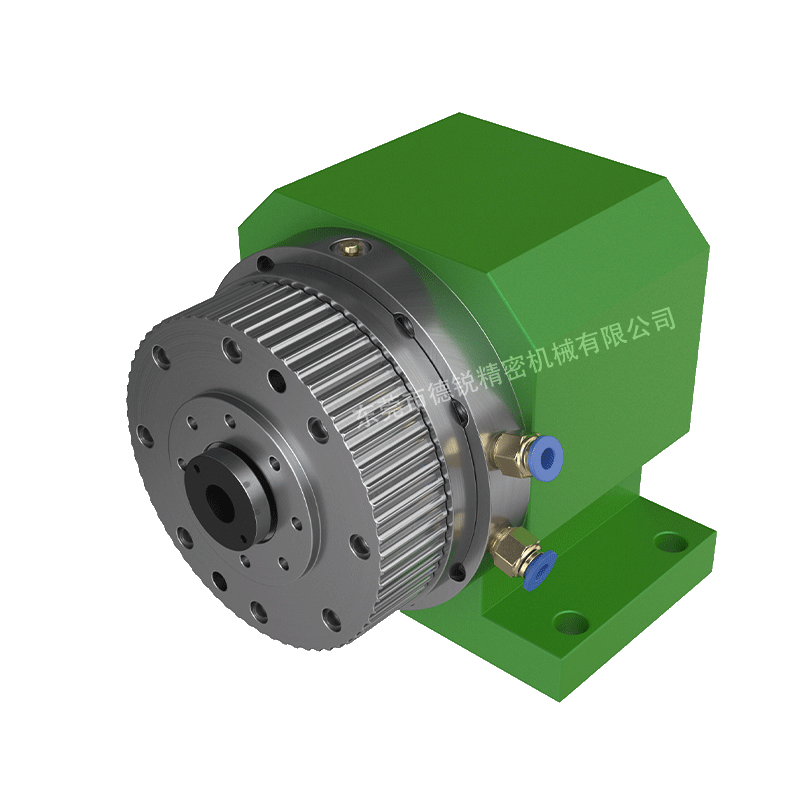

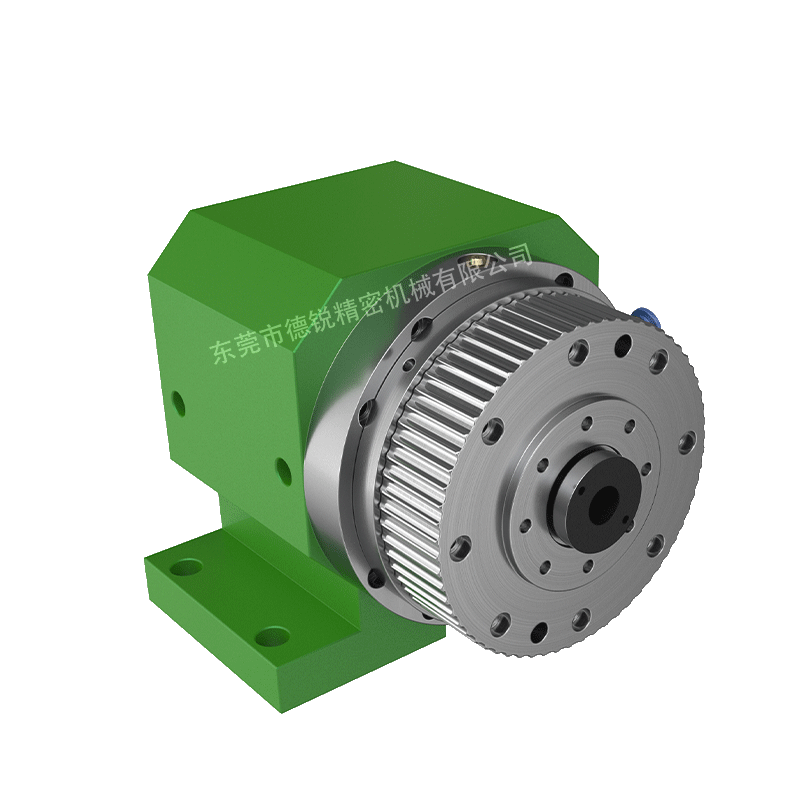

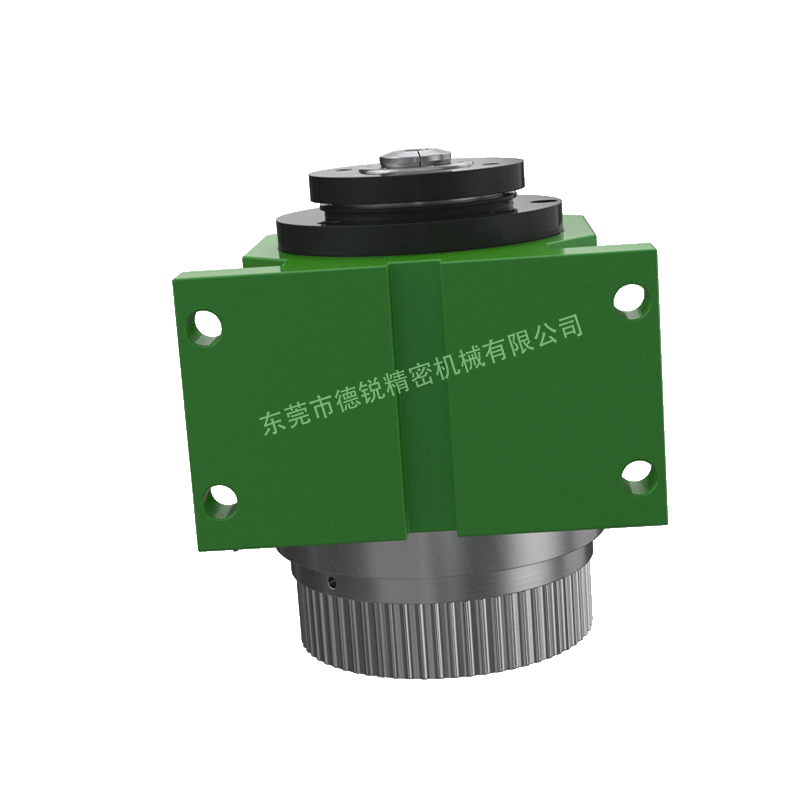

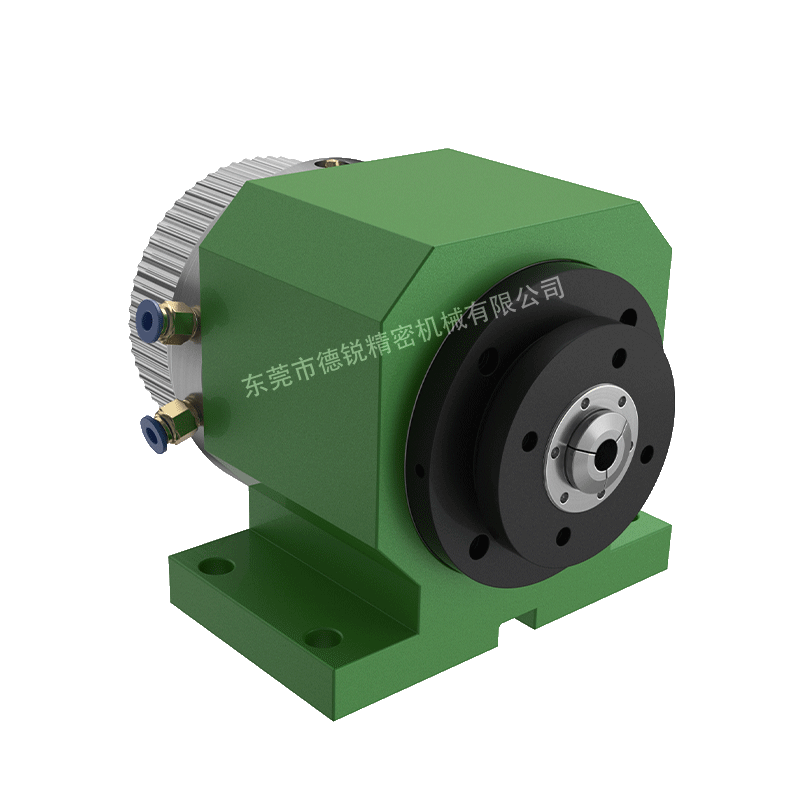

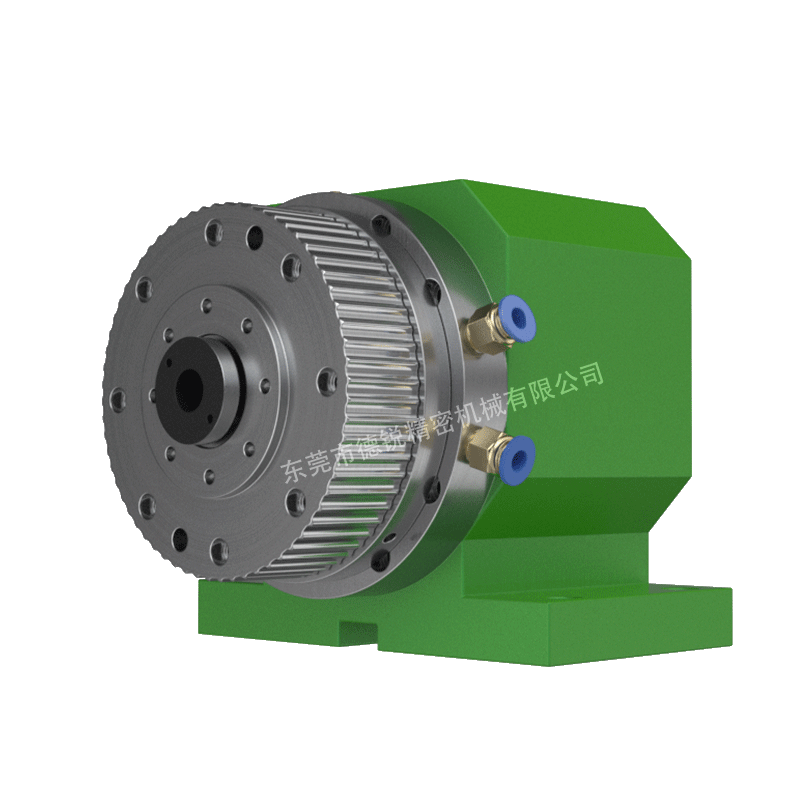

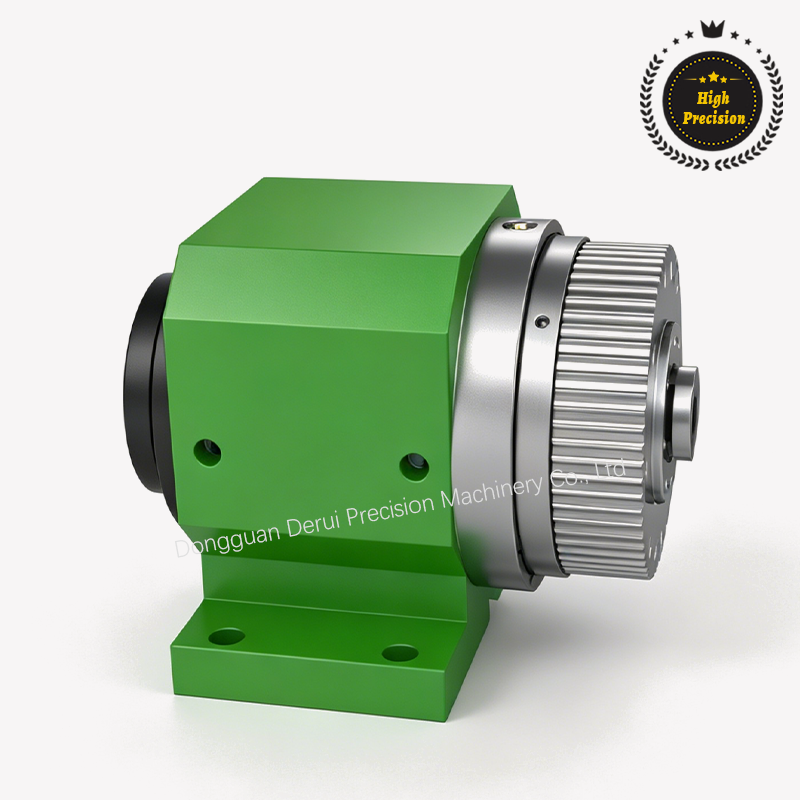

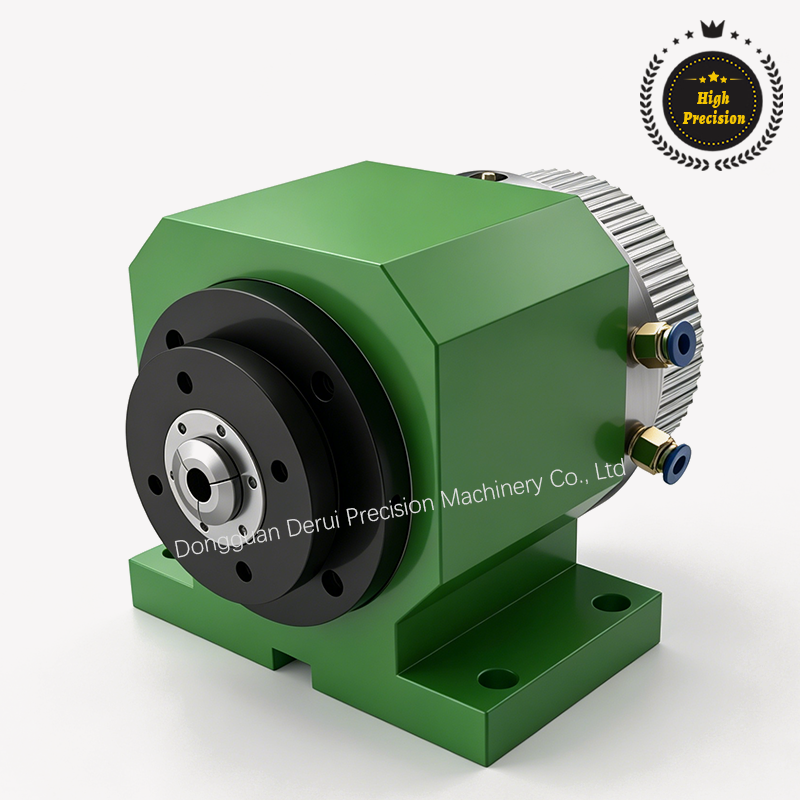

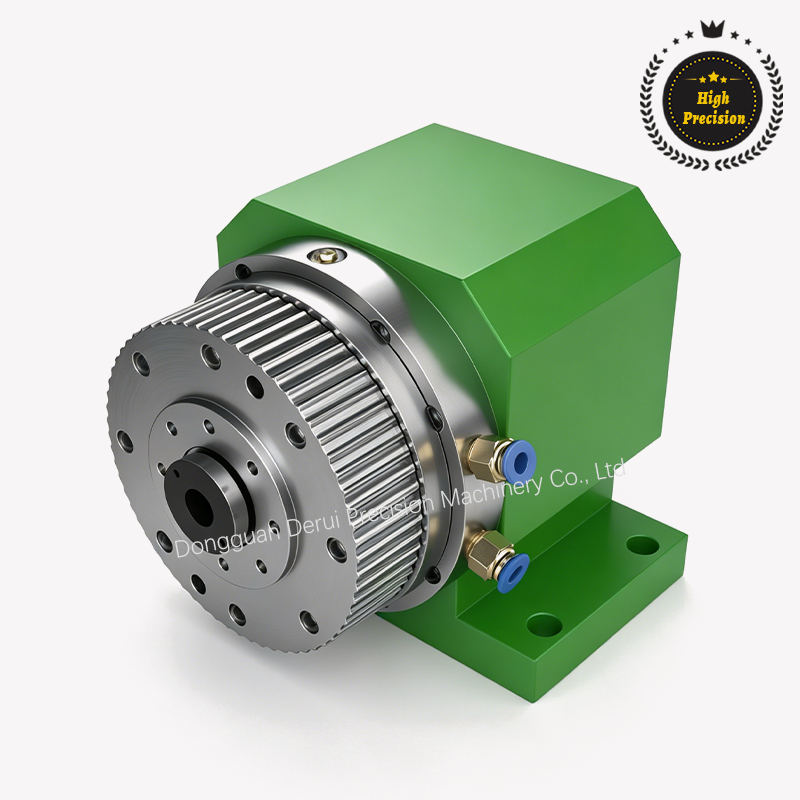

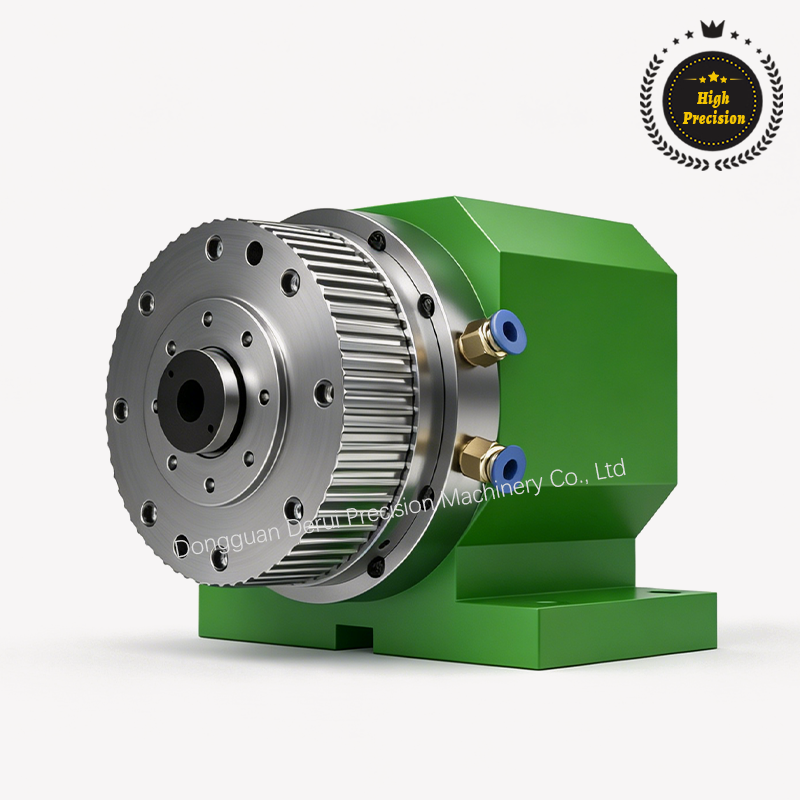

Pneumatic Spindle Integration
-

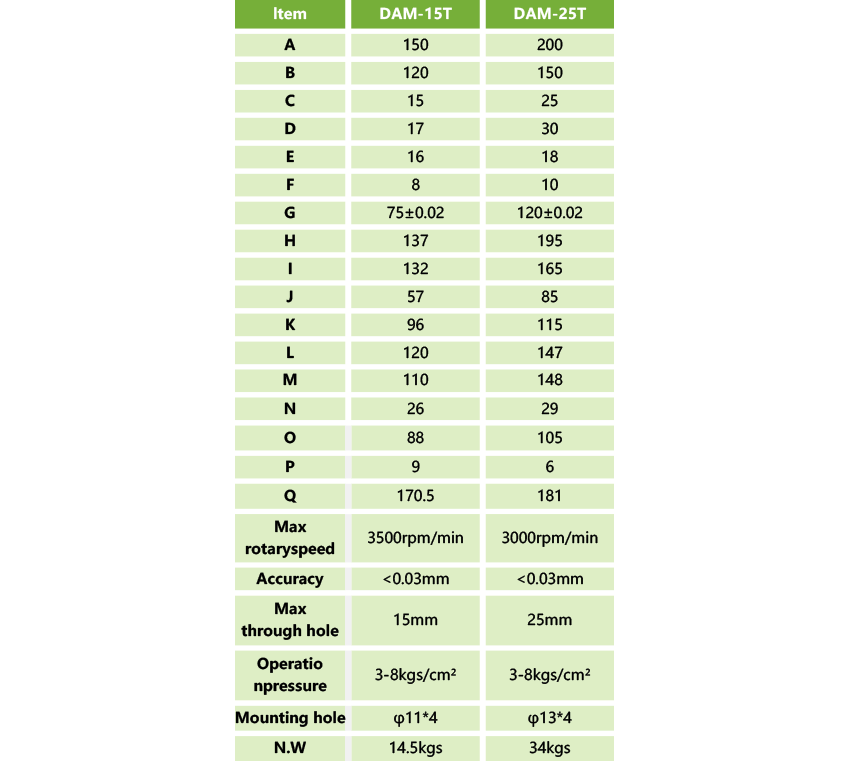

Product characteristics
Maximum Through-Hole Capacity: 25 mm
Maximum Spindle Speed: 3500 rpm
Clamping Accuracy: Within 0.03 mm
Rear-Pull Collet Clamping for Stable Performance
Suitable for various small-scale lathe operations
-
Product advantages
The DAM Series delivers stable rear-pull collet clamping with accuracy within 0.03mm, supporting through-hole capacities up to 25mm and speeds up to 3500 rpm — ideal for compact lathe operations requiring reliable, consistent performance.
