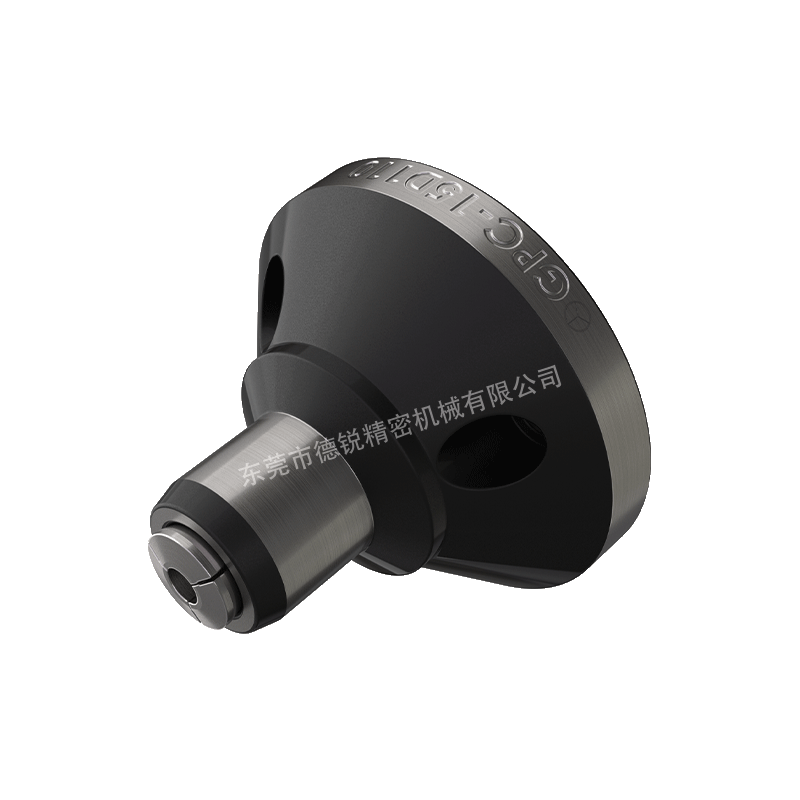

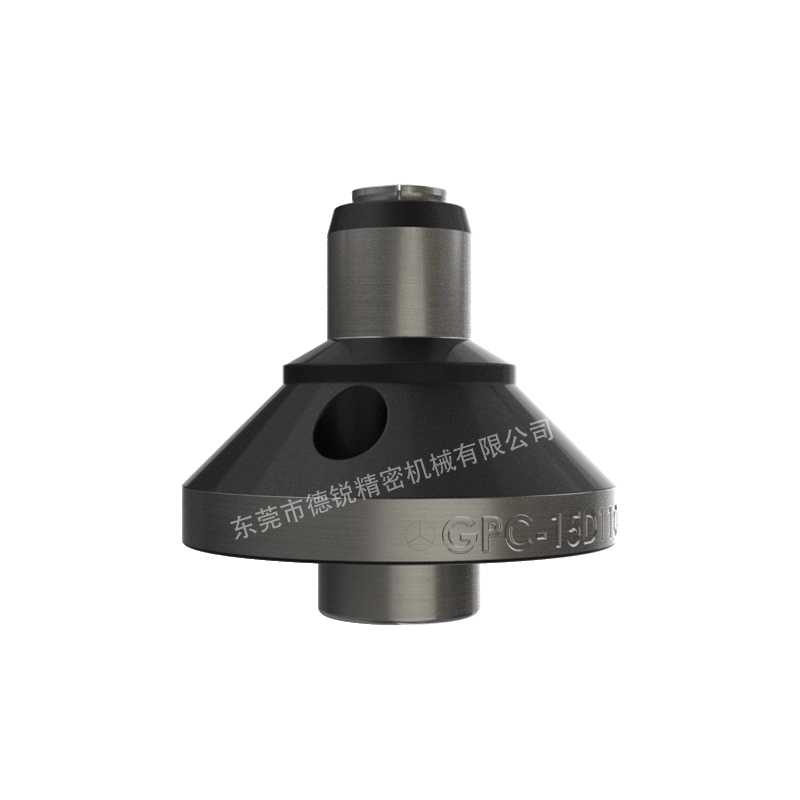

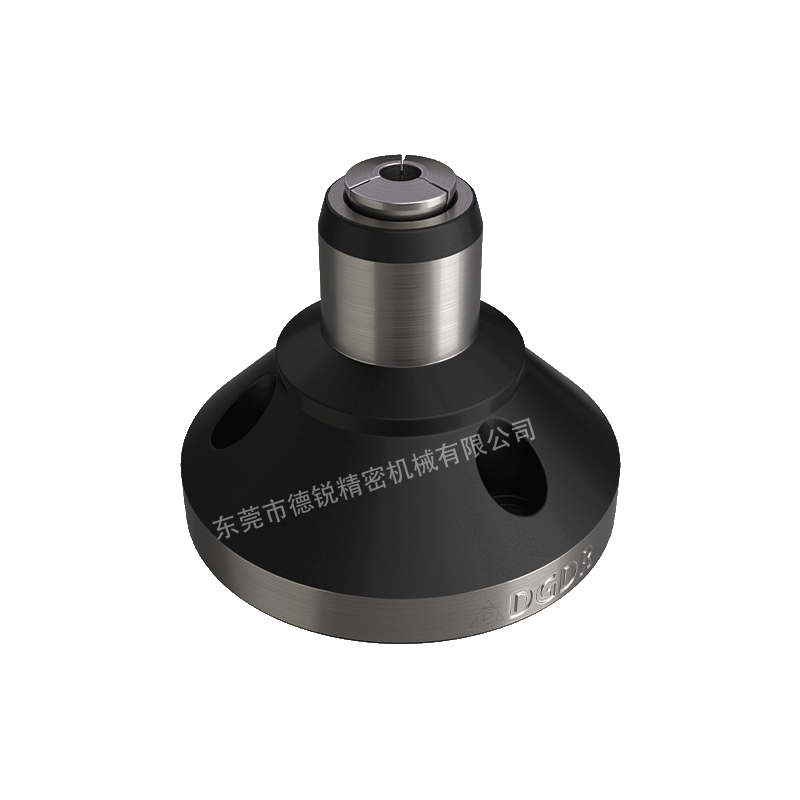

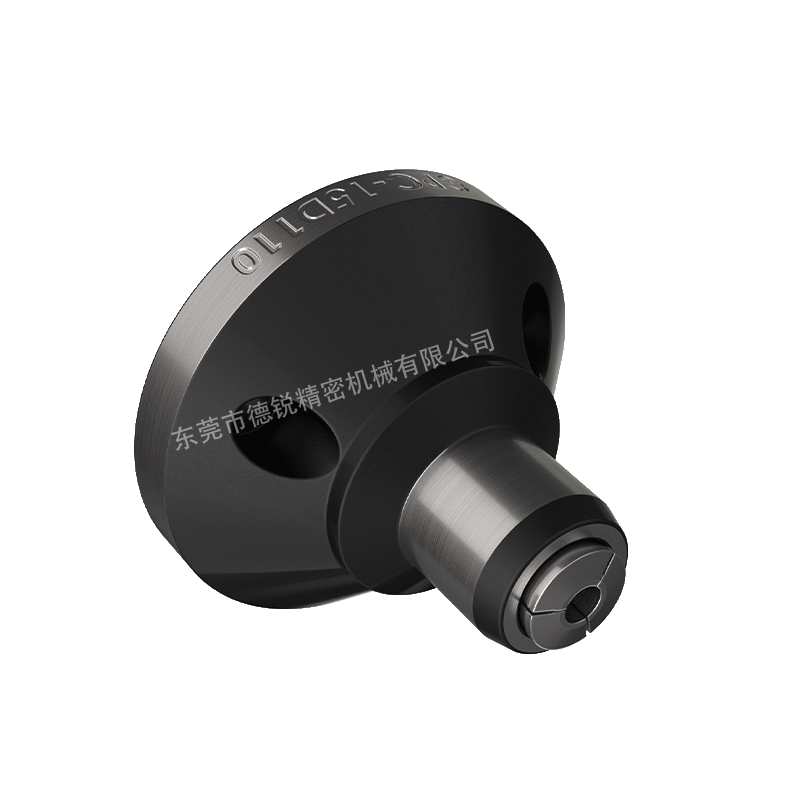

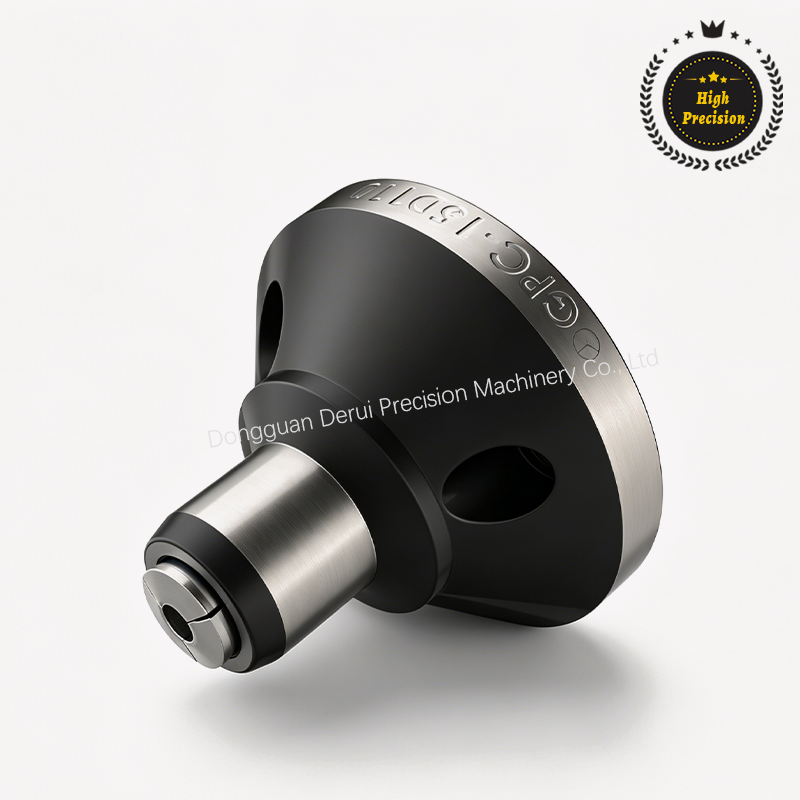

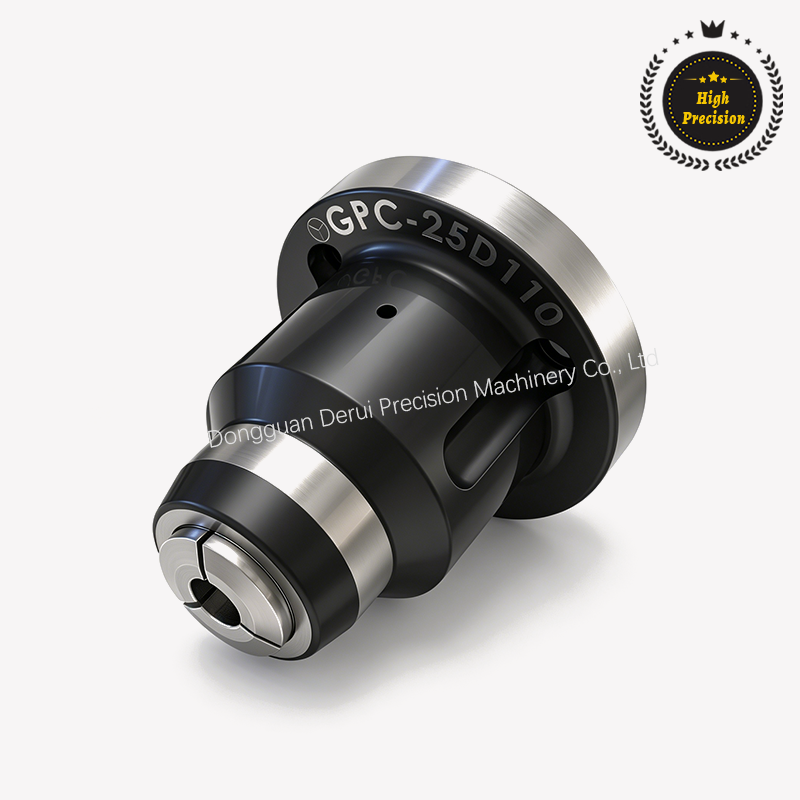

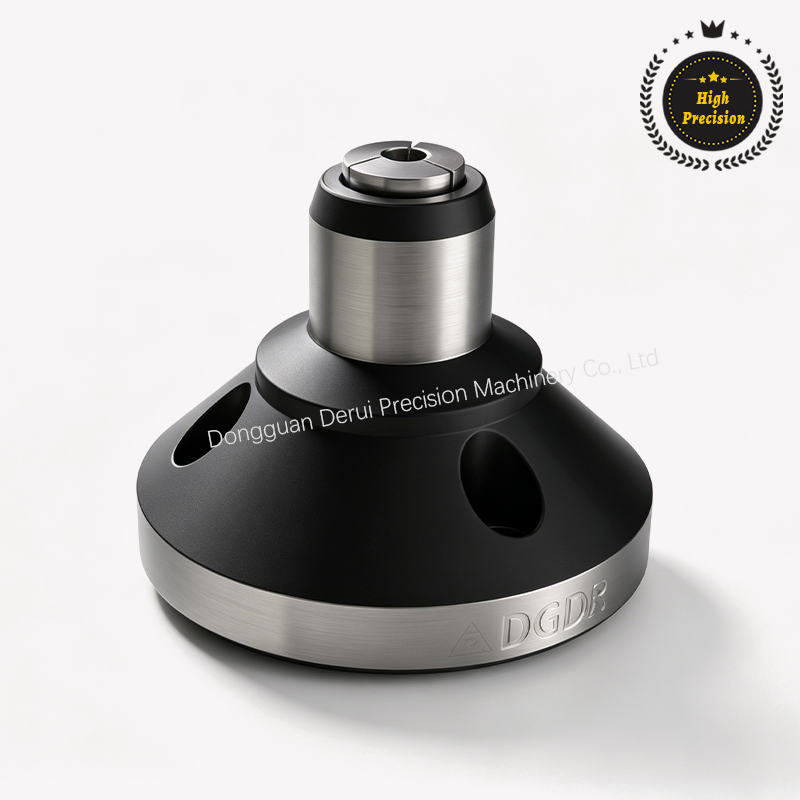

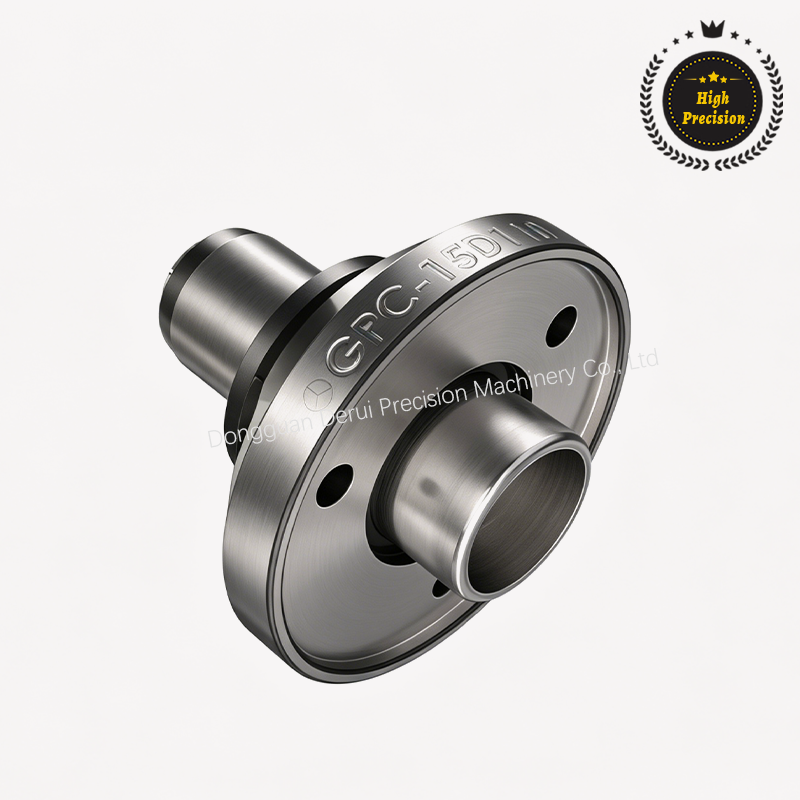

Passive high-precision chuck (pull-back type)

Product characteristics

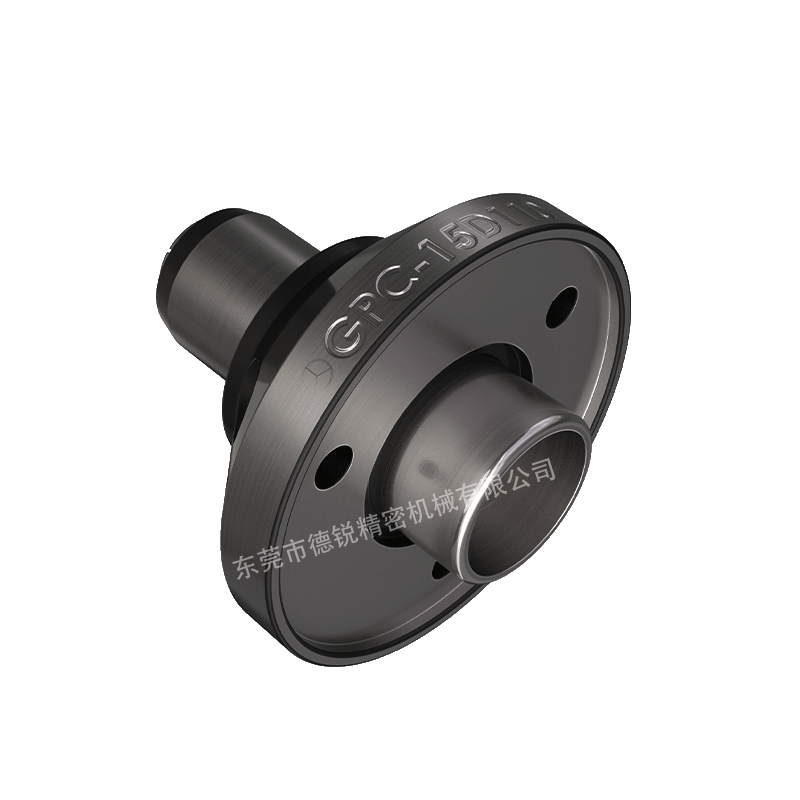

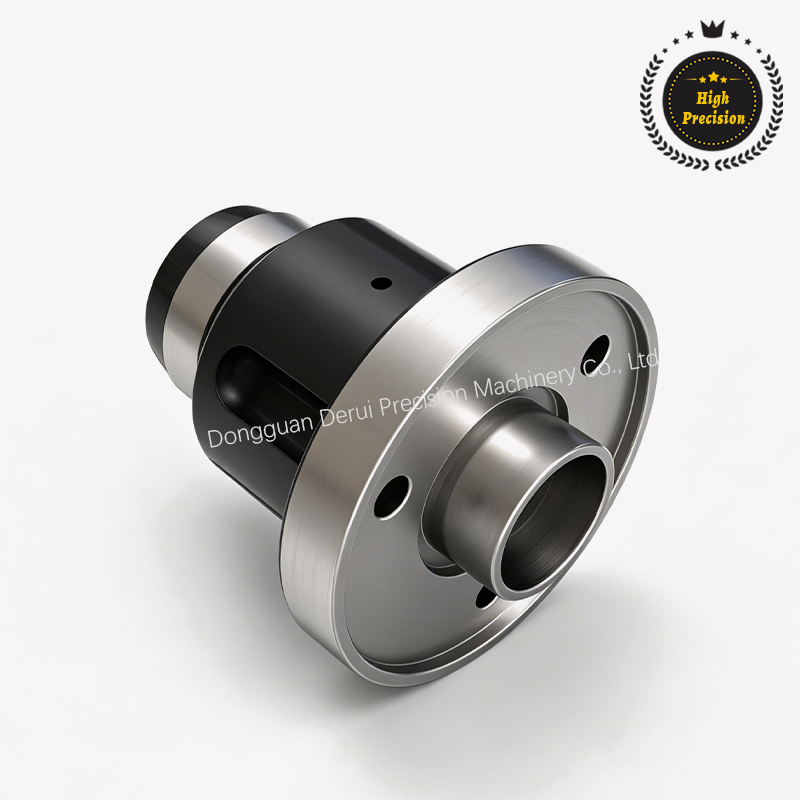

Rotation speed 6000 rpm. The bottom is mounted to the front of the spindle via a flange

It can be used with both internal and external collet for different workpieces, with a clamping

repeatability of 0.015mm. The flange and adapter nut are custom-made according to the spindle nose size

The drive system can be hydraulic or pneumatic with pneumatic pressure ranging from 3-8 kgs

It is suitable for machining on various CNC lathes

Product advantages

With a max speed of 6000 rpm, this flange-mounted chuck works with both internal and external collets, offering 0.015mm clamping repeatability. It supports hydraulic or pneumatic drive and is customisable to spindle nose sizes, making it ideal for CNC lathe applications.

Business Consulting

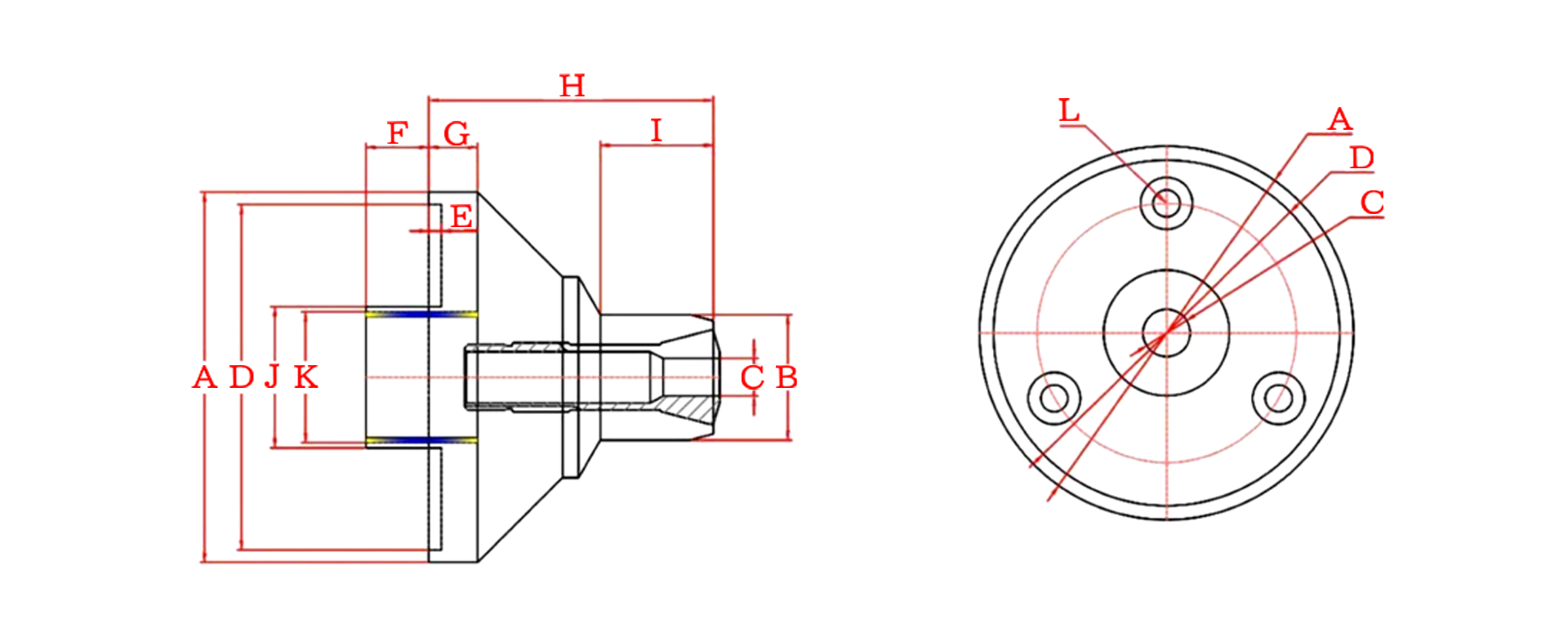

Plan

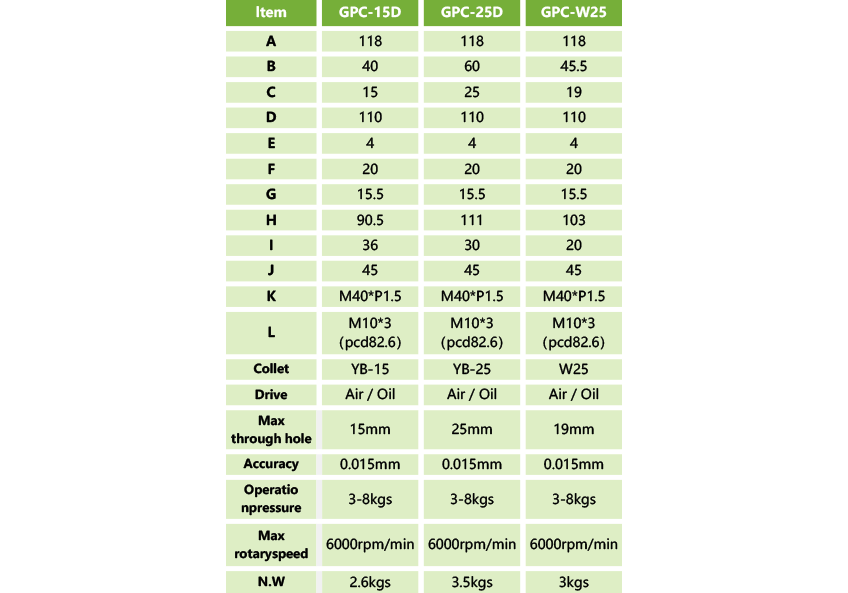

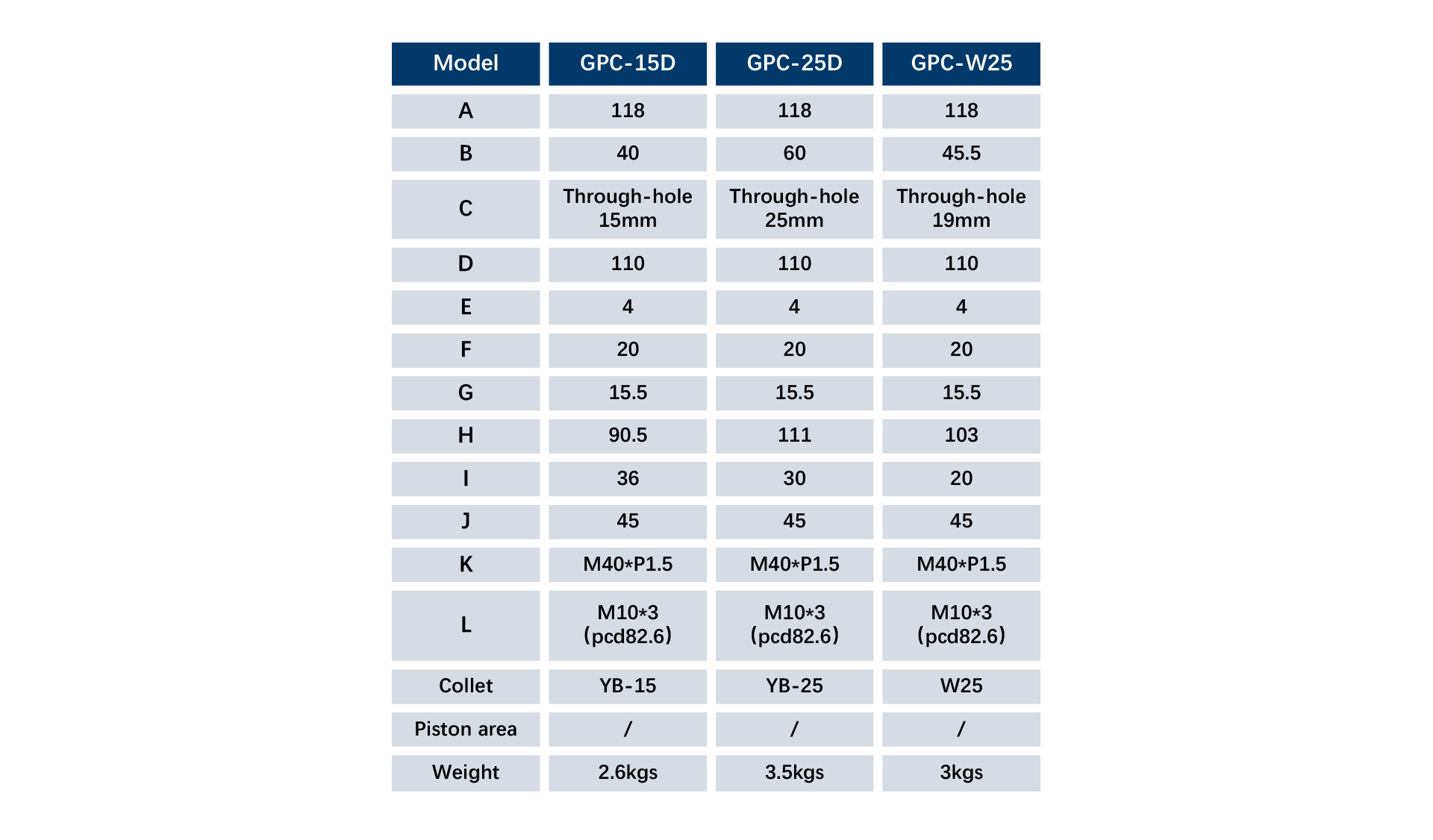

Specification and size
