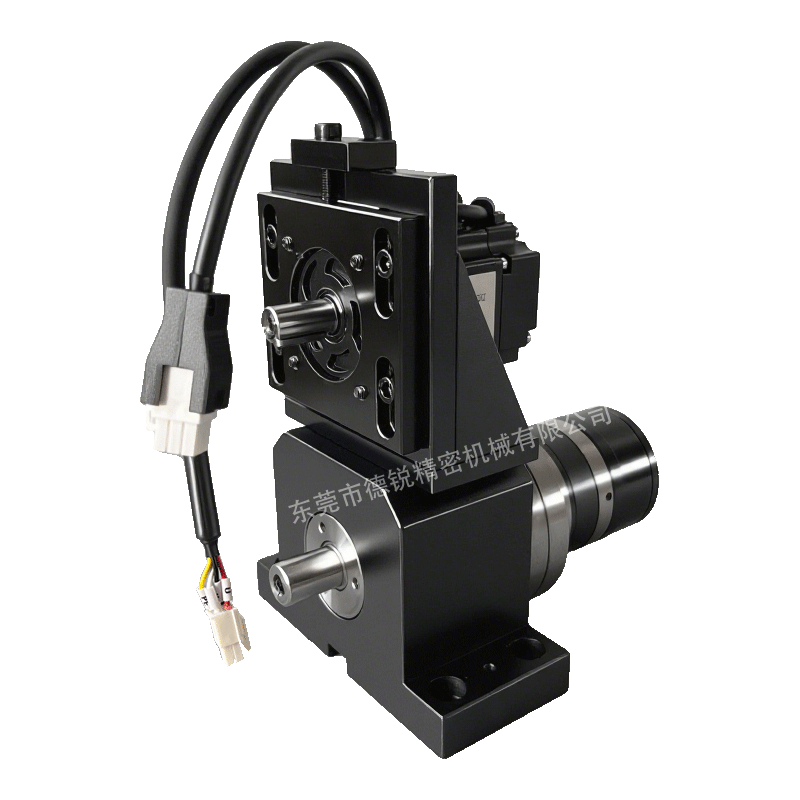

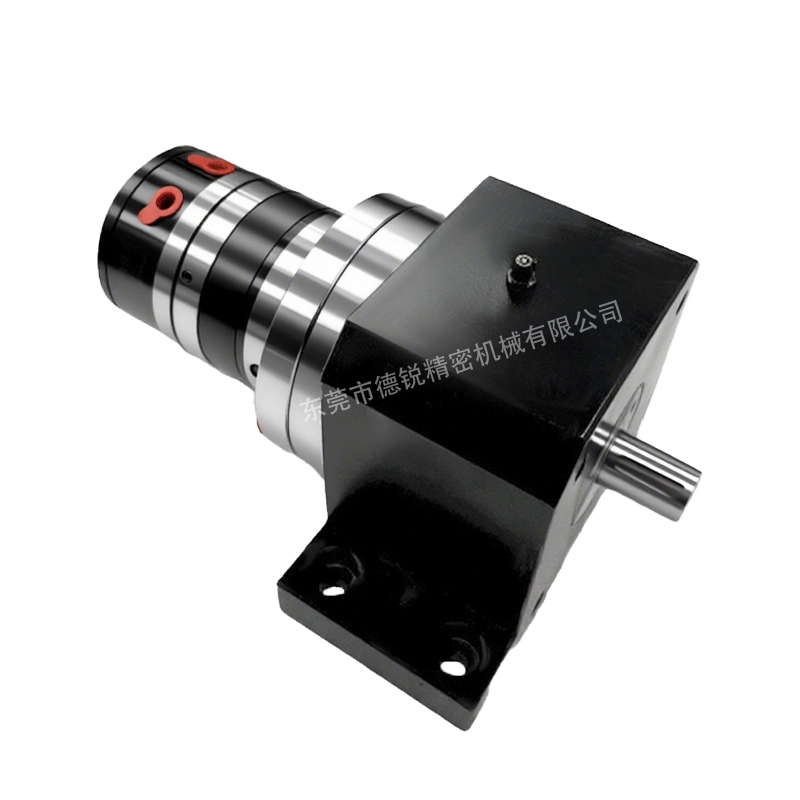

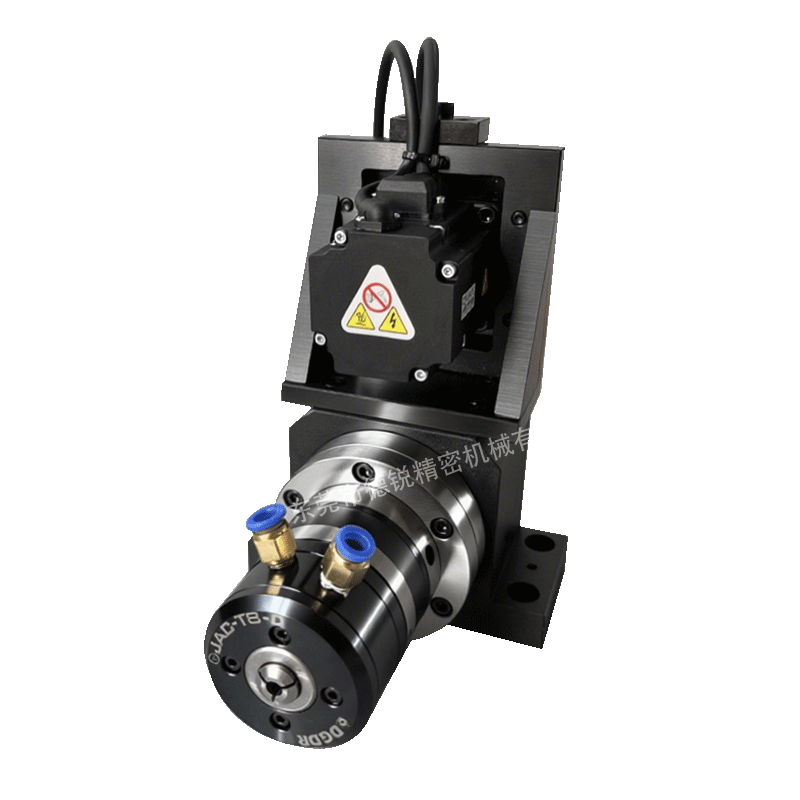

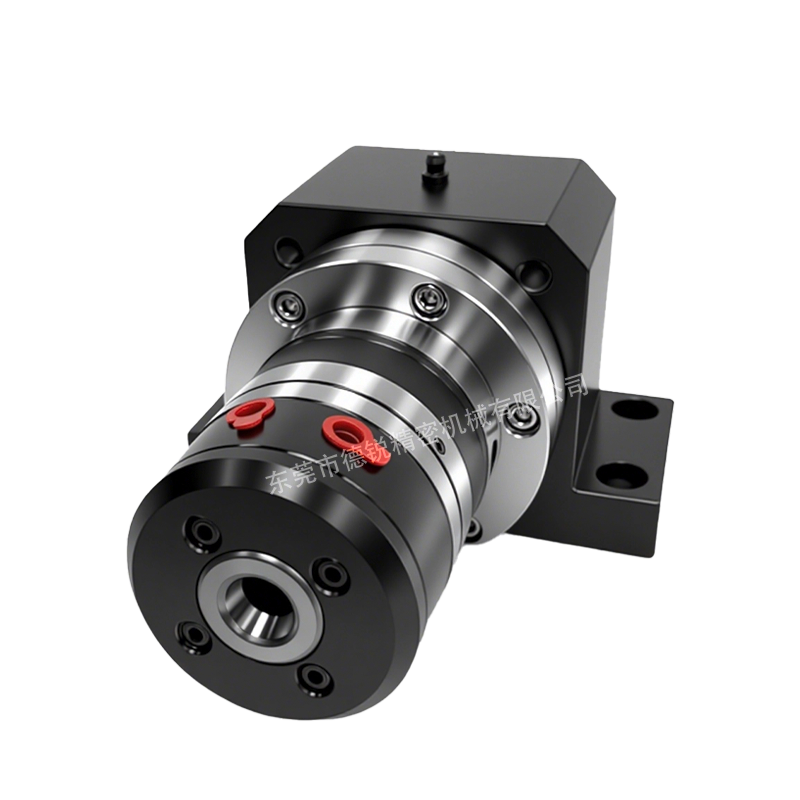

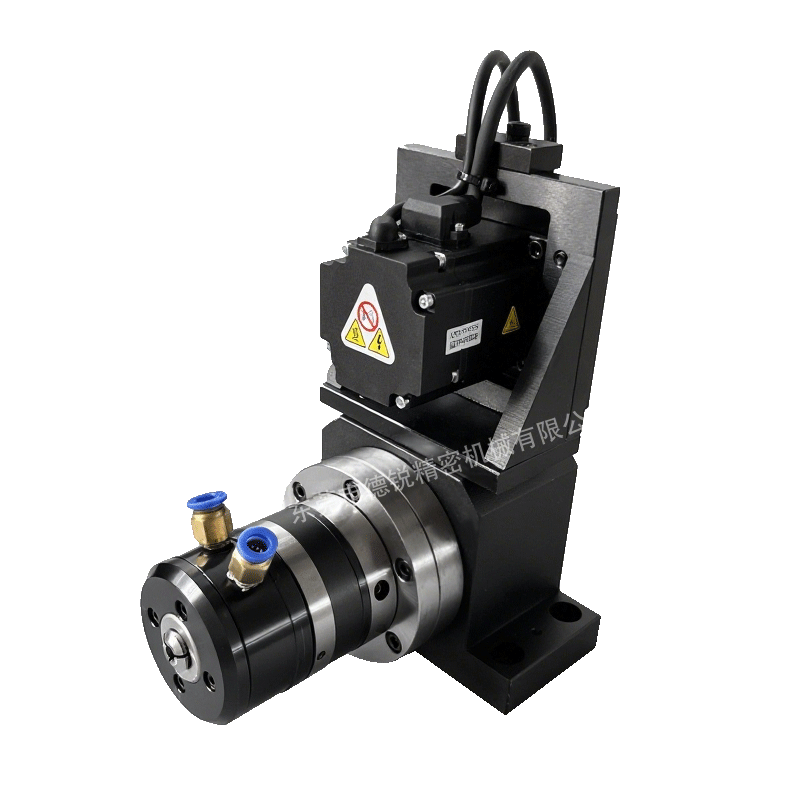

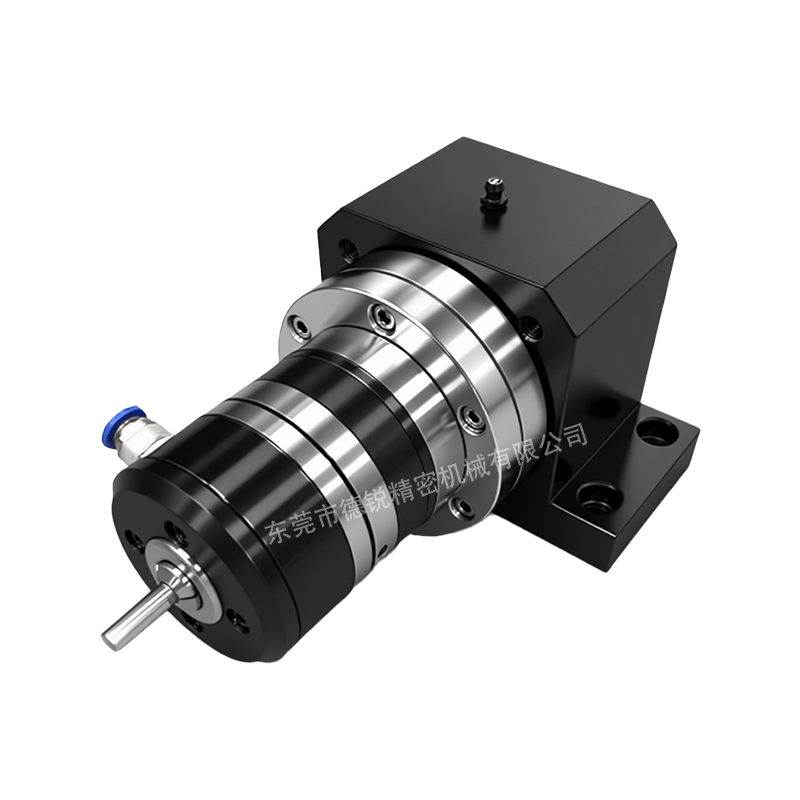

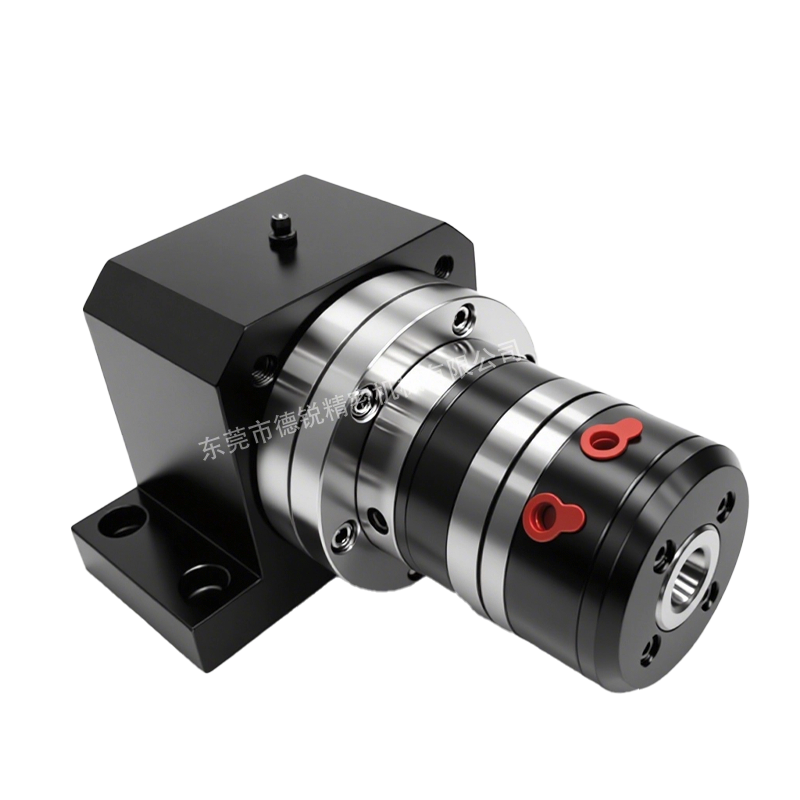

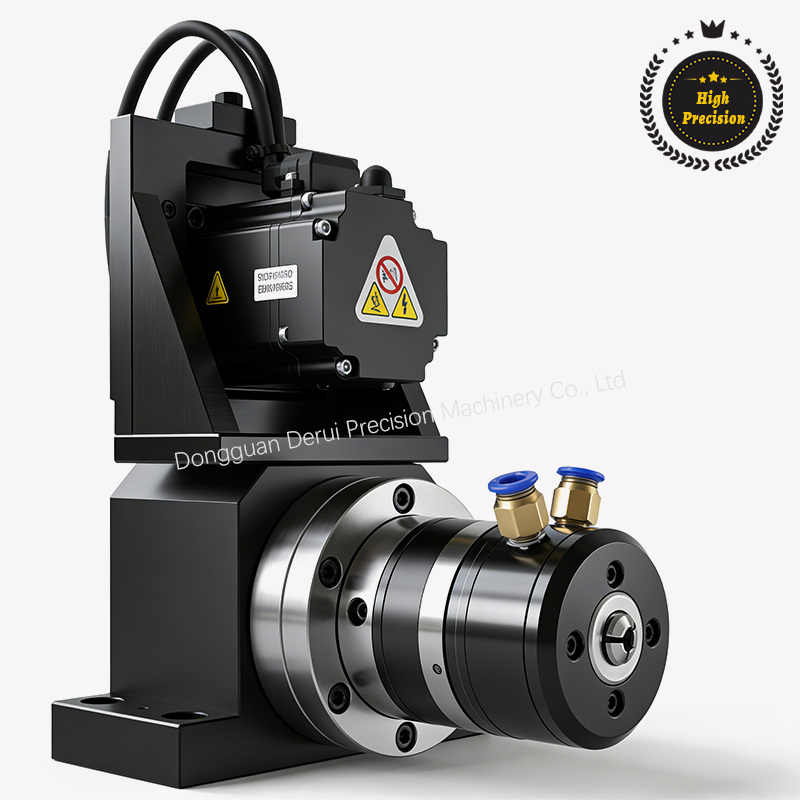

The installation outer diameter of the pneumatic chuck is small, and it has a steel chuck body.The maximum rotational speed is 3,500 revolutions per minute.The accuracy of the pneumatic chuck body is within 0.01mm.The repeated clamping accuracy is within 0.002mm.There is a built-in rotary cylinder inside the chuck.There is no need to install an additional rotary hydraulic cylinder or pneumatic cylinder.It can hold workpieces with a maximum through-hole diameter of 25mm, and collets can be changed for different workpieces.It has a dustproof and waterproof design (under the inflated state).It is widely used in various specialized automatic machines.
Product advantages
Customization is supported.One-year quality warranty is provided.Made in Taiwan, China.It's of the DGDR brand.There are multiple models available for selection, including JAC-T8-D, JAC-5C-D, JAC-25-D and JAC-30-D.

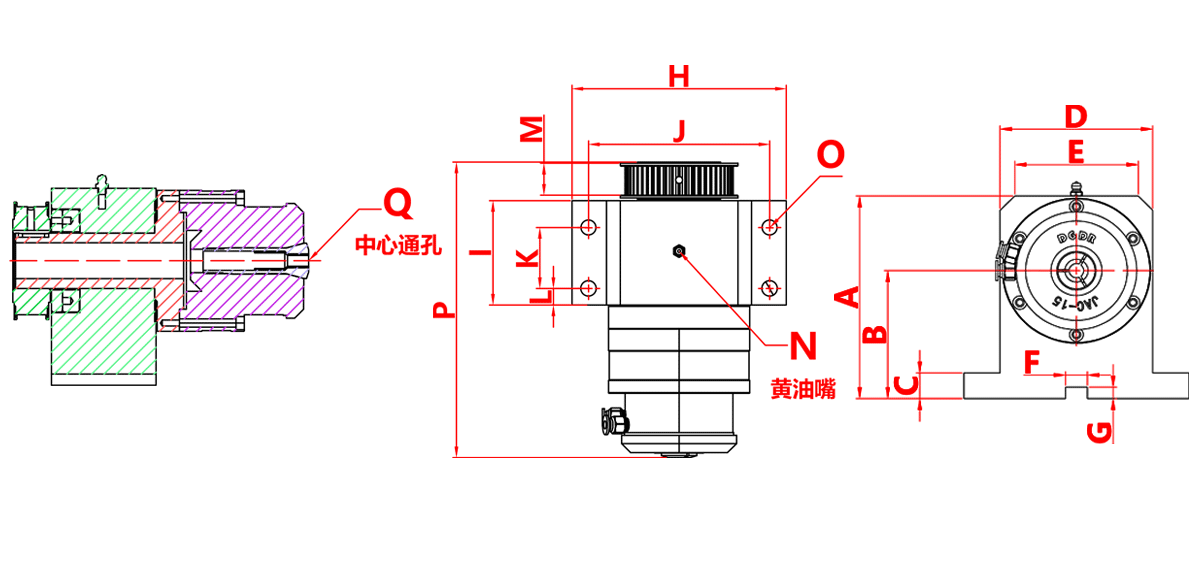

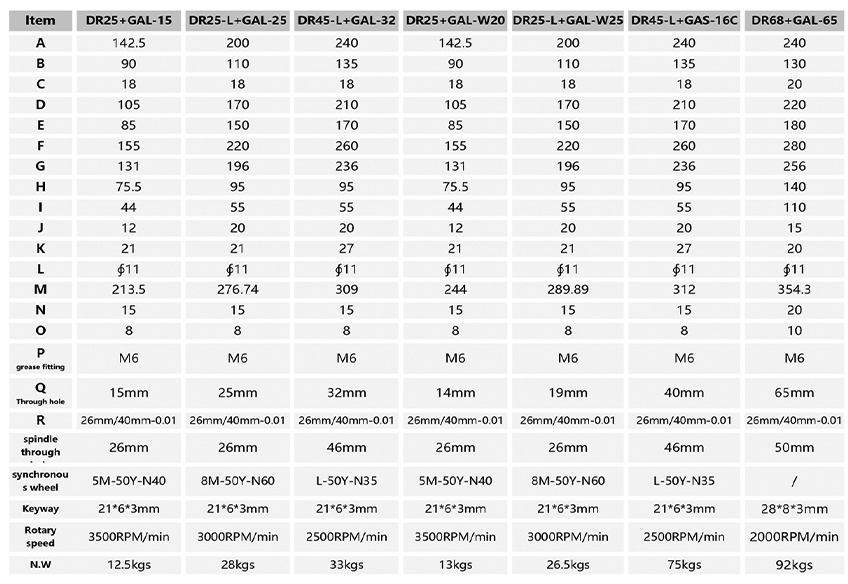

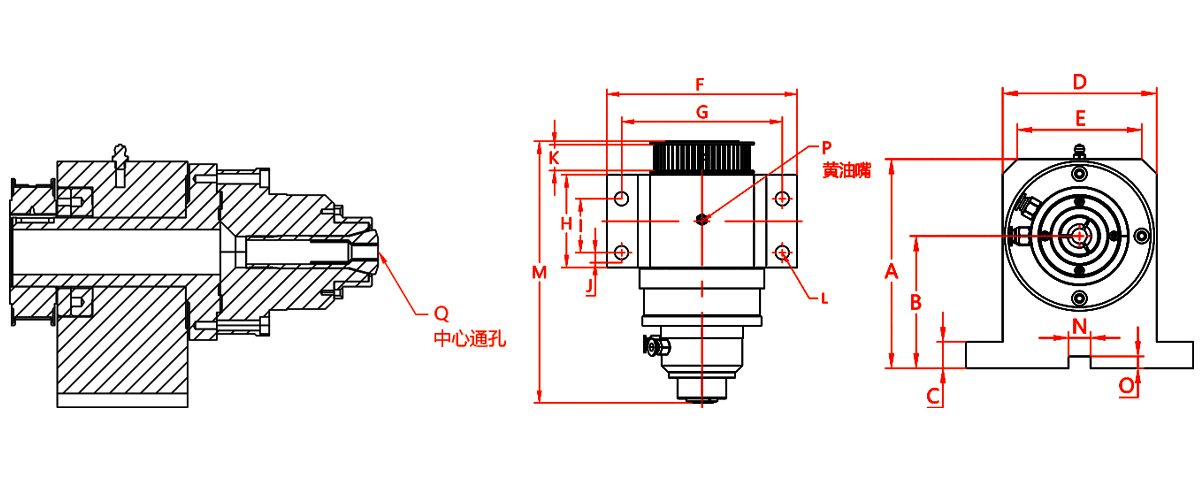

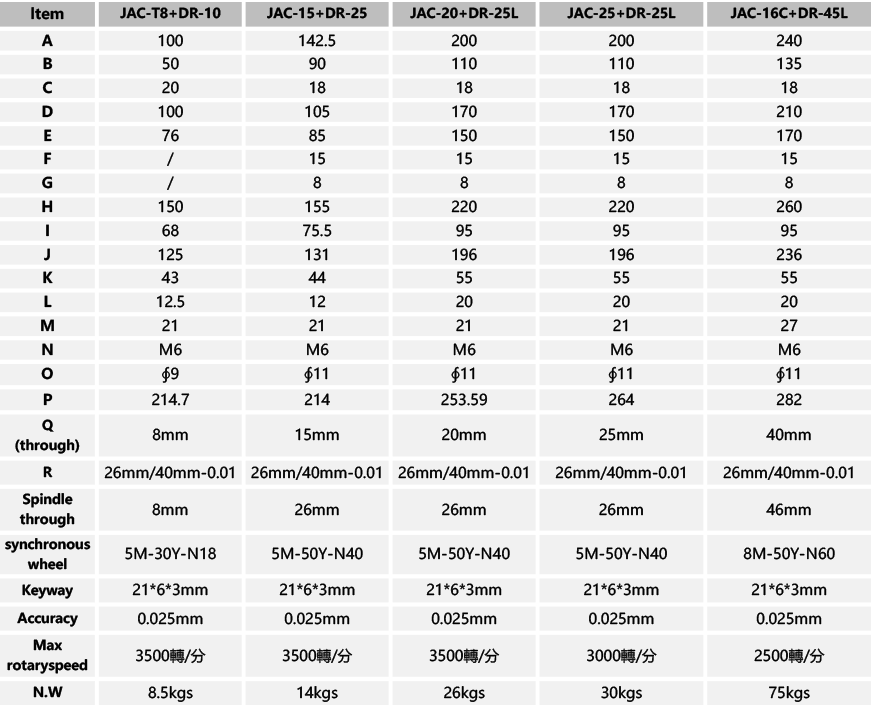

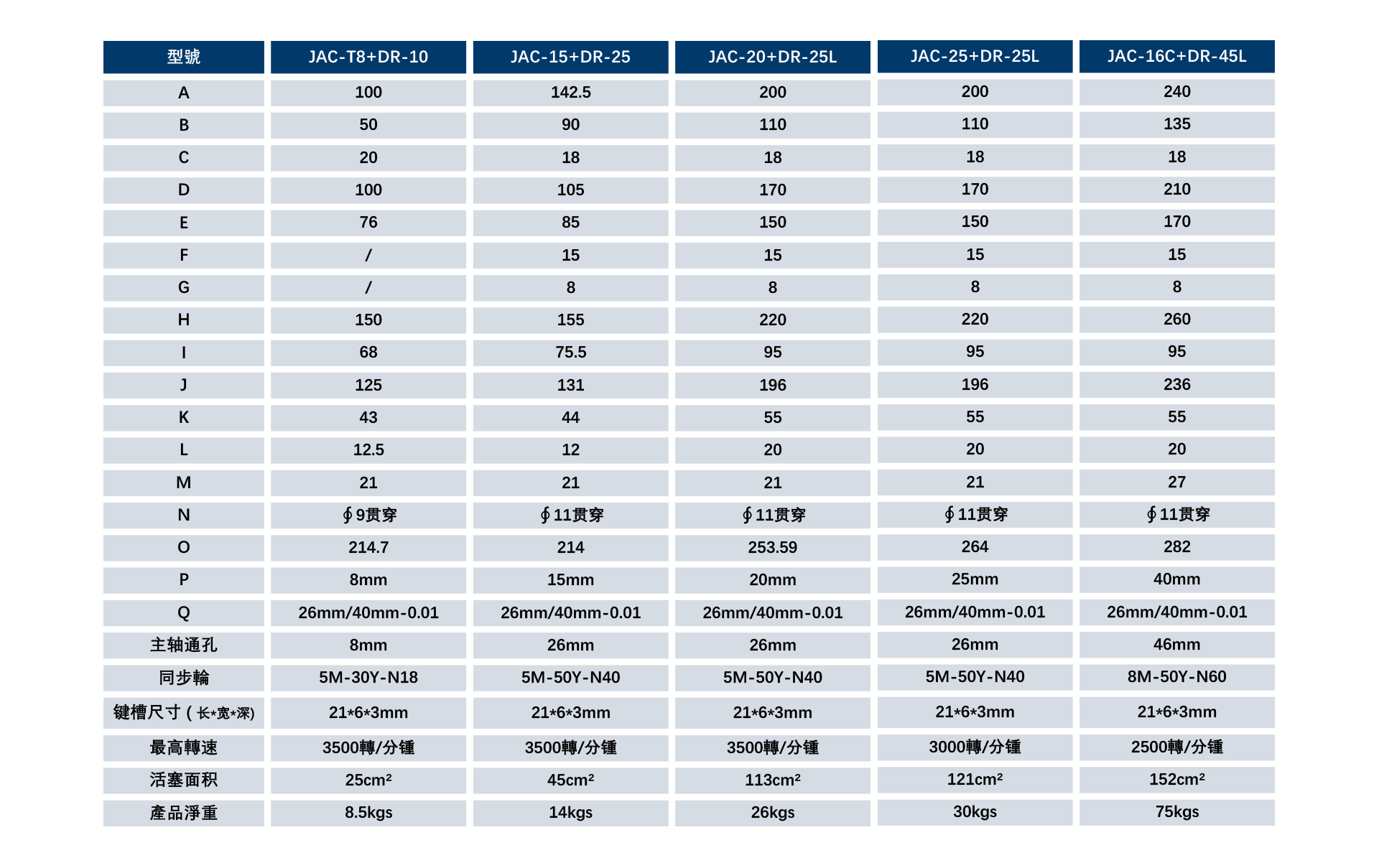

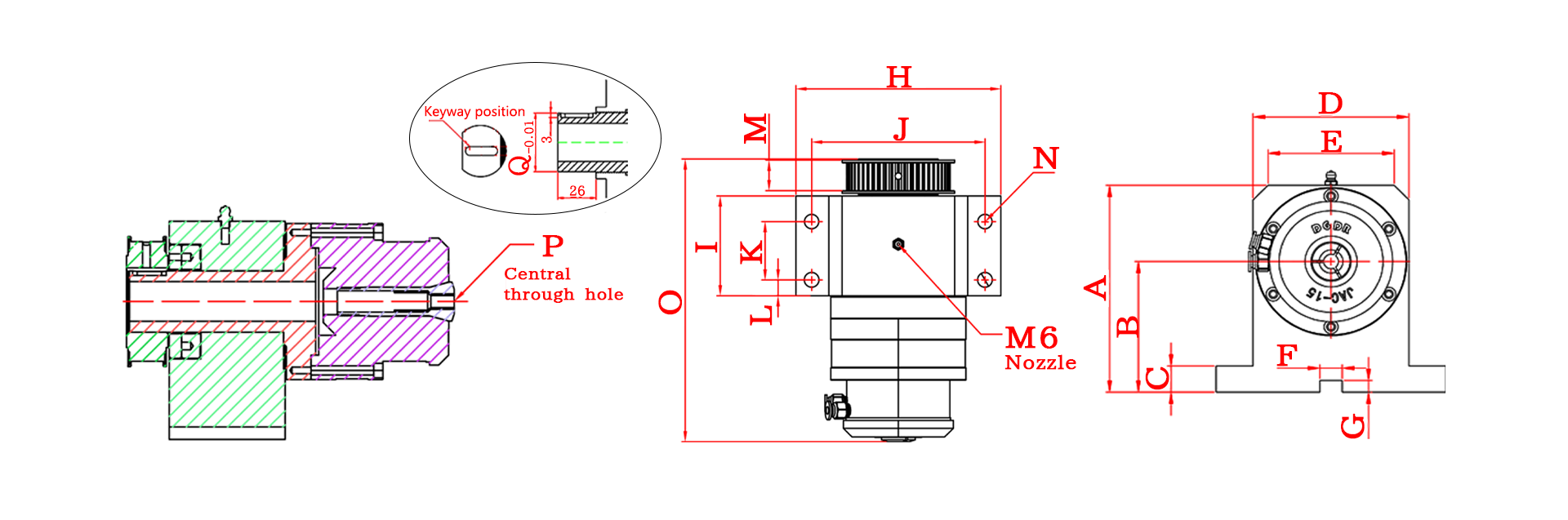

Specifications dimensions drawing 2
