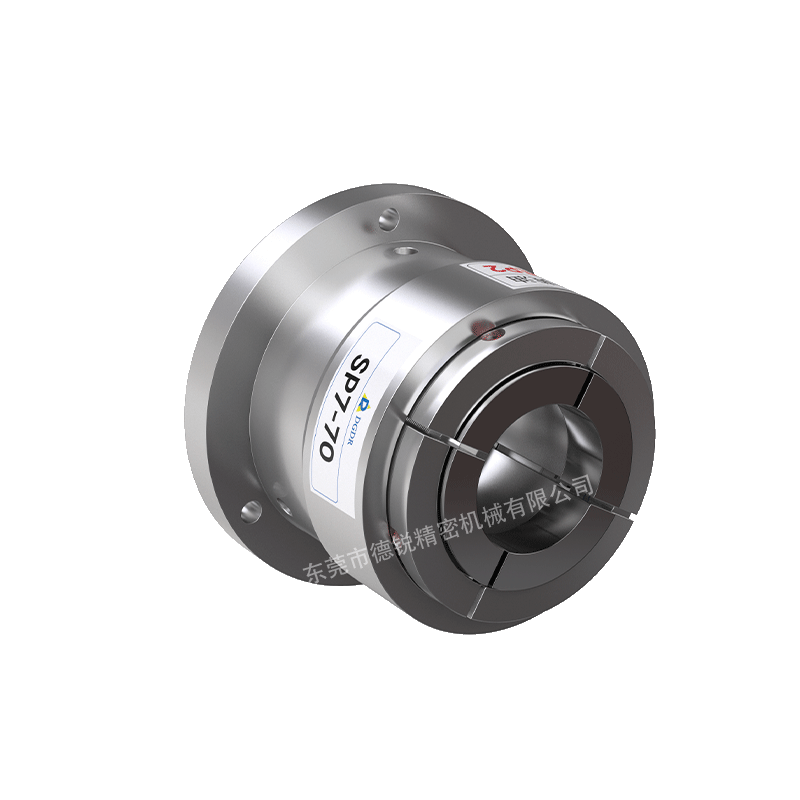

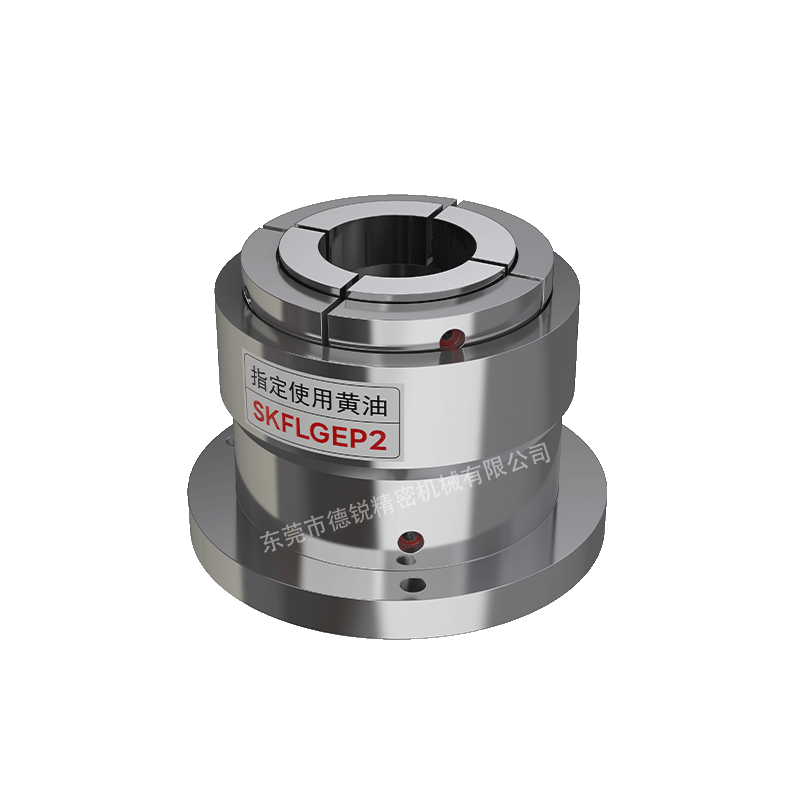

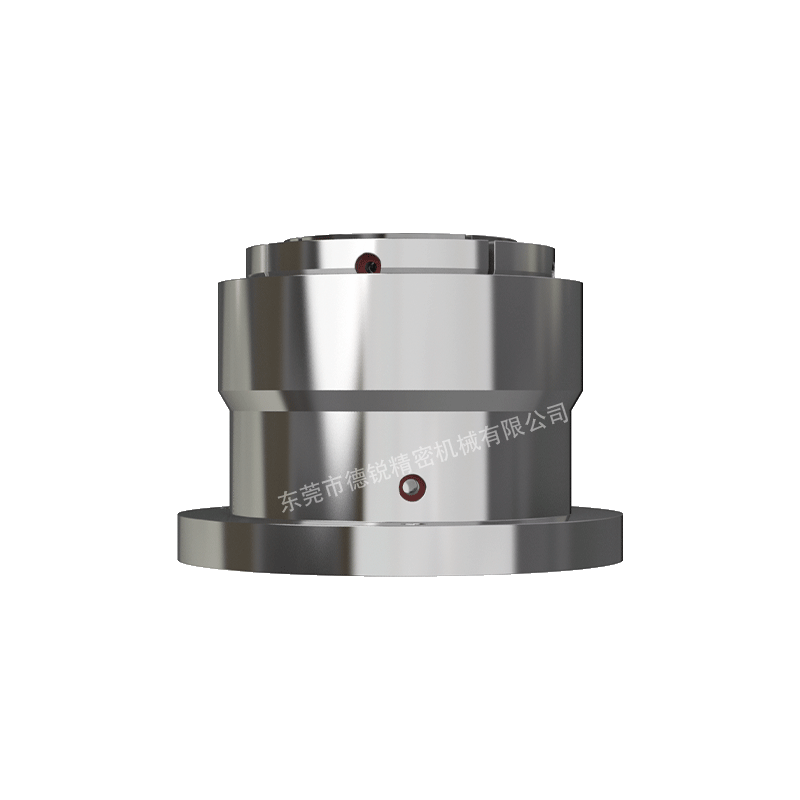

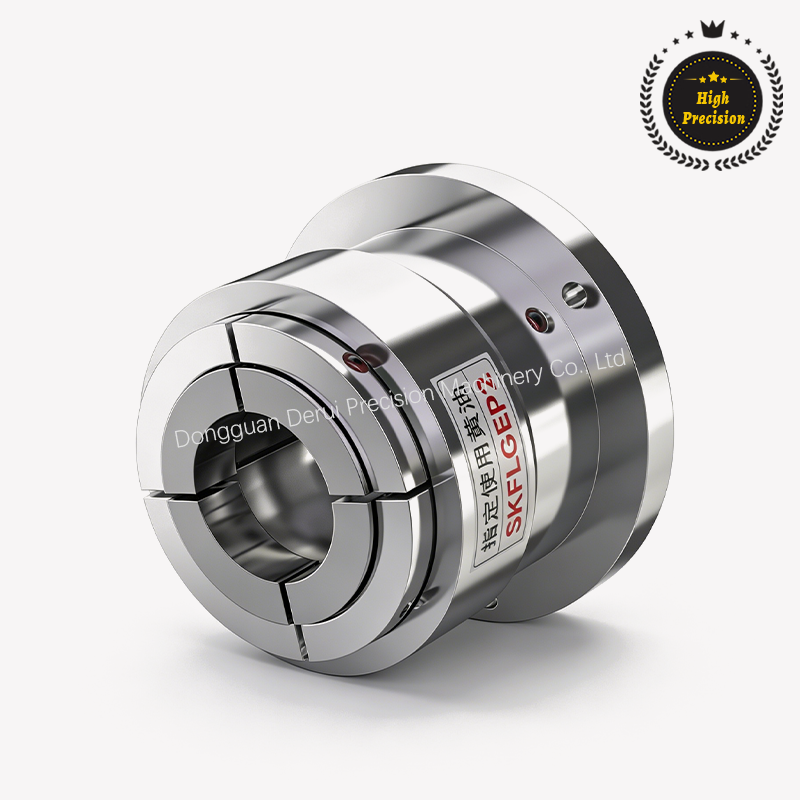

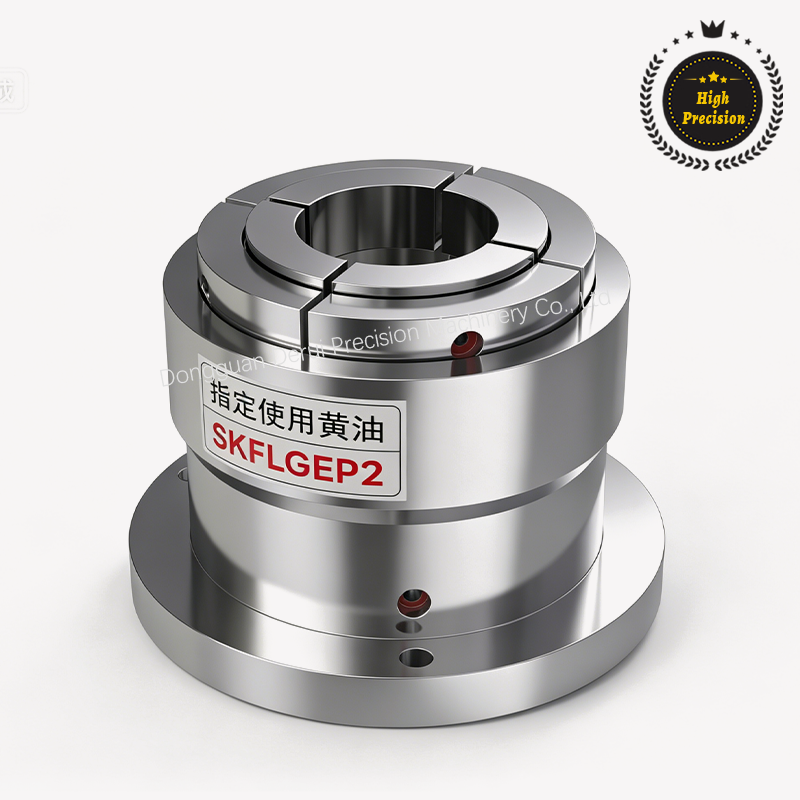

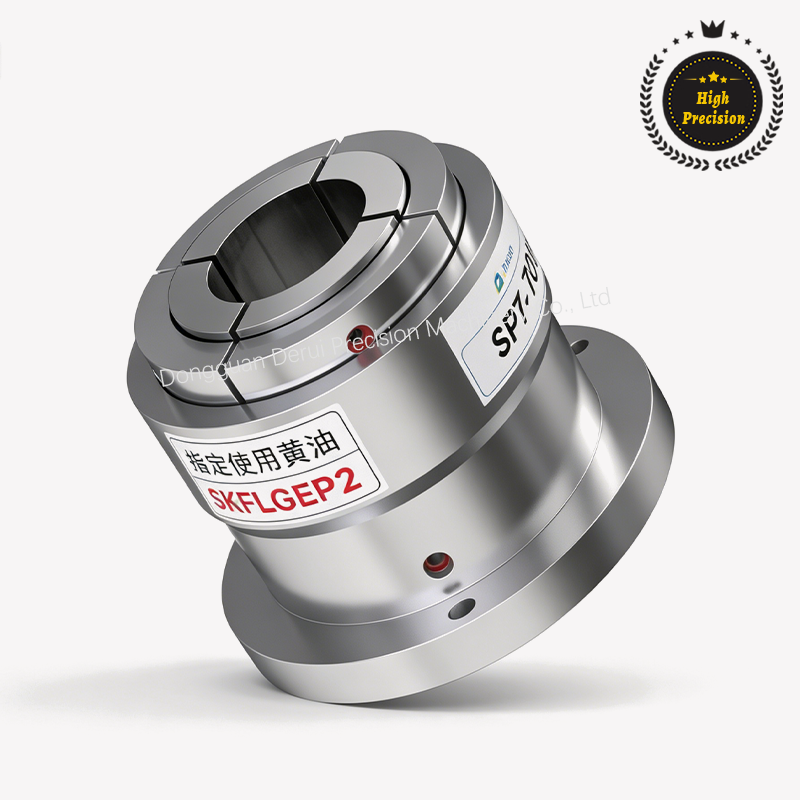

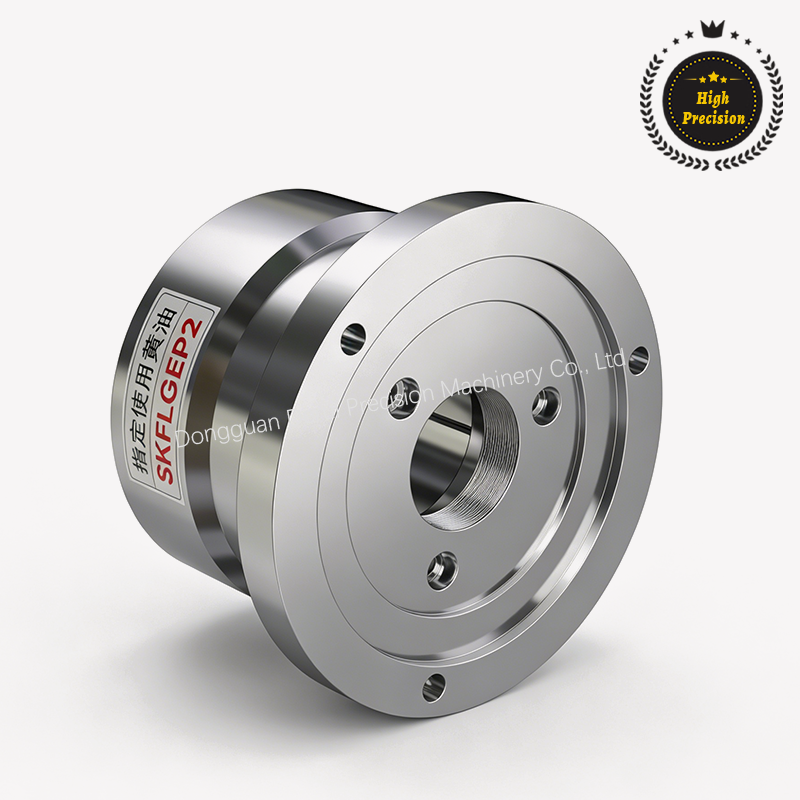

Hollow Rotary Spindle Chuck
-
Product characteristics
-

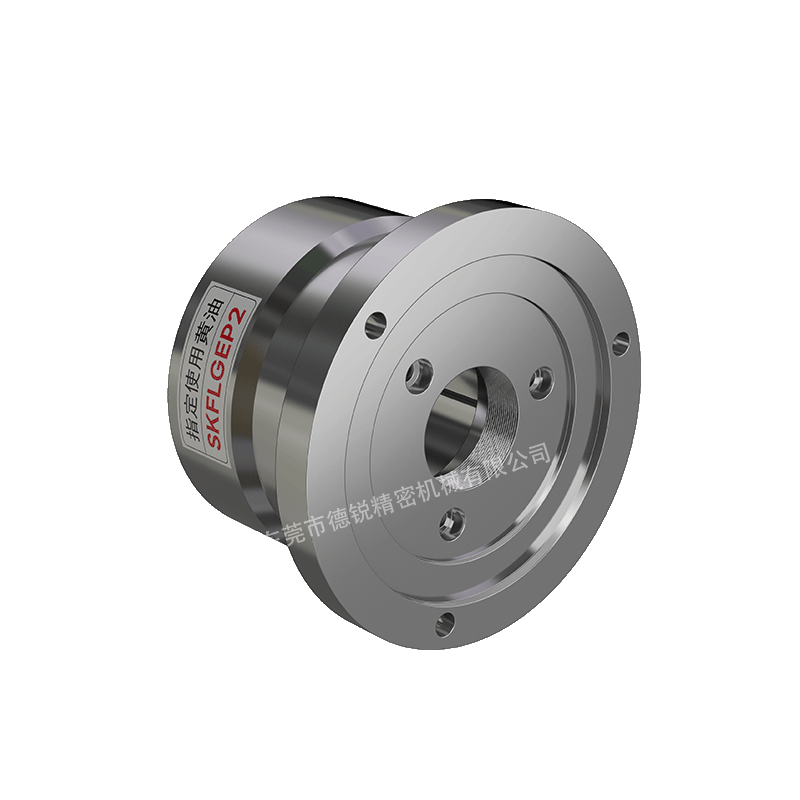

Rear clamping with hydraulic/pneumatic cylinders
-

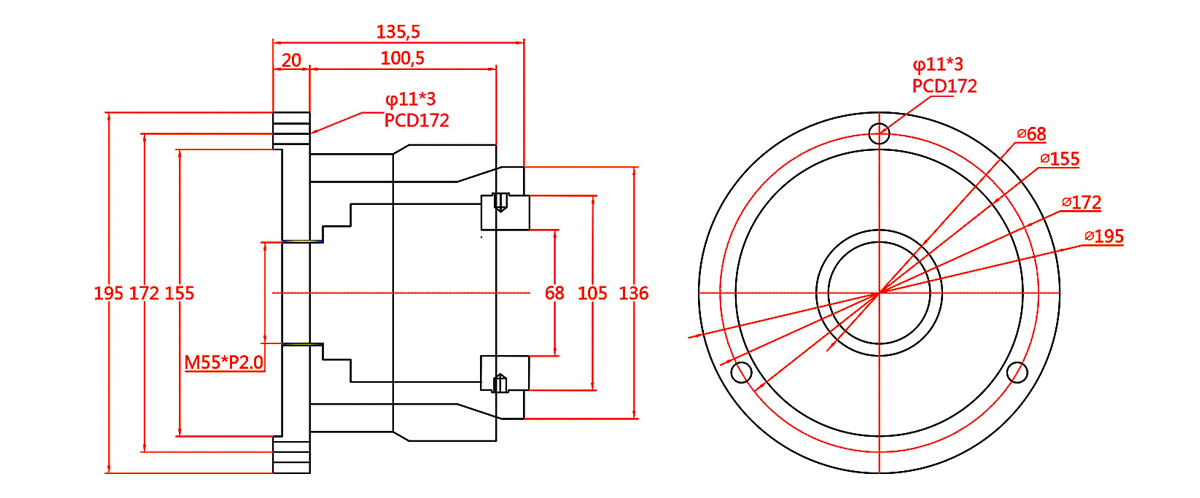

Large through hole, maximum through hole size 54mm
-
Changing the secondary jaws for different workpieces
-
Applied to various CNC lathes, special machines, etc
-

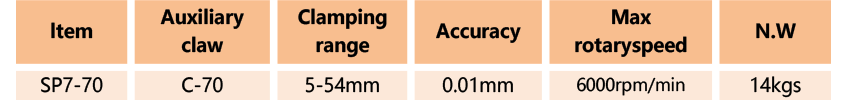

Clamping repeatability within 0.01mm
-
Product advantages
This pull-back chuck is rear-clamped via hydraulic or pneumatic cylinders, featuring a large through-hole (max 54mm) and interchangeable secondary jaws for diverse workpieces. With a clamping repeatability within 0.01mm, it delivers high precision for use on CNC lathes and special-purpose machines. It is backed by ISO 9001 certification, a 12-month warranty, and lifetime maintenance.
