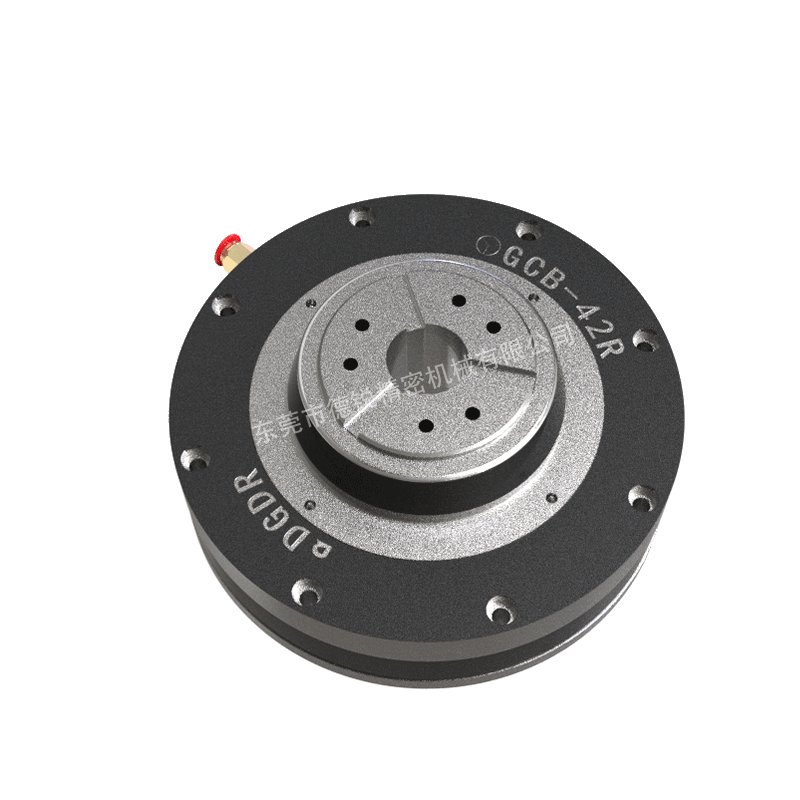

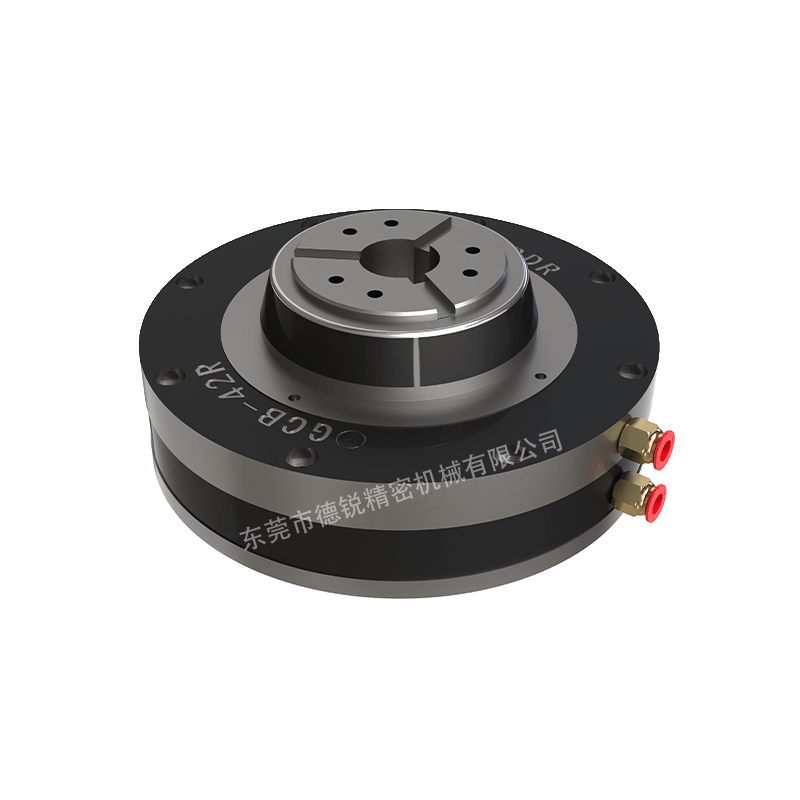

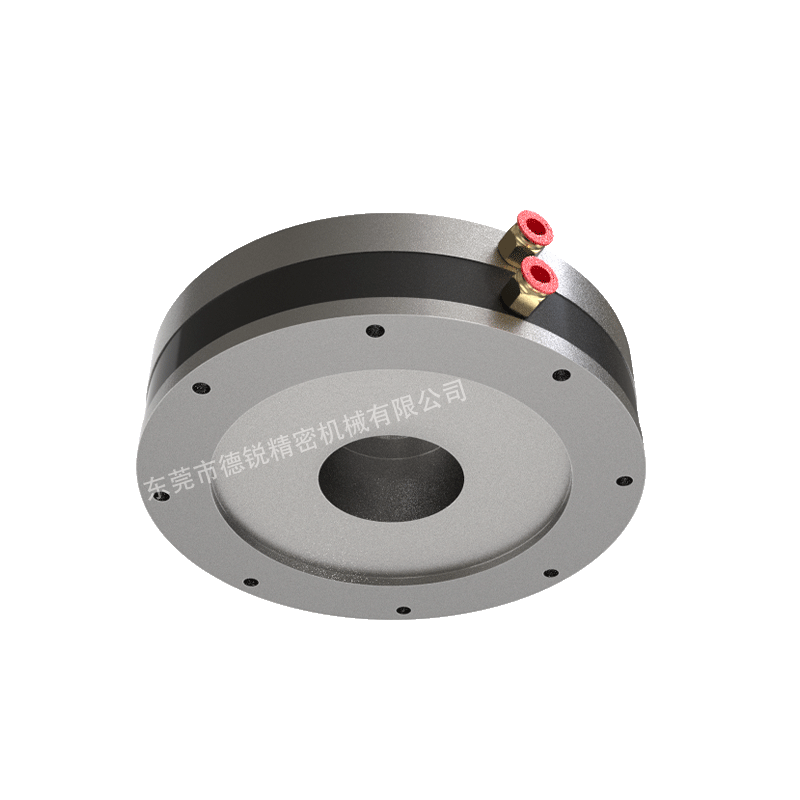

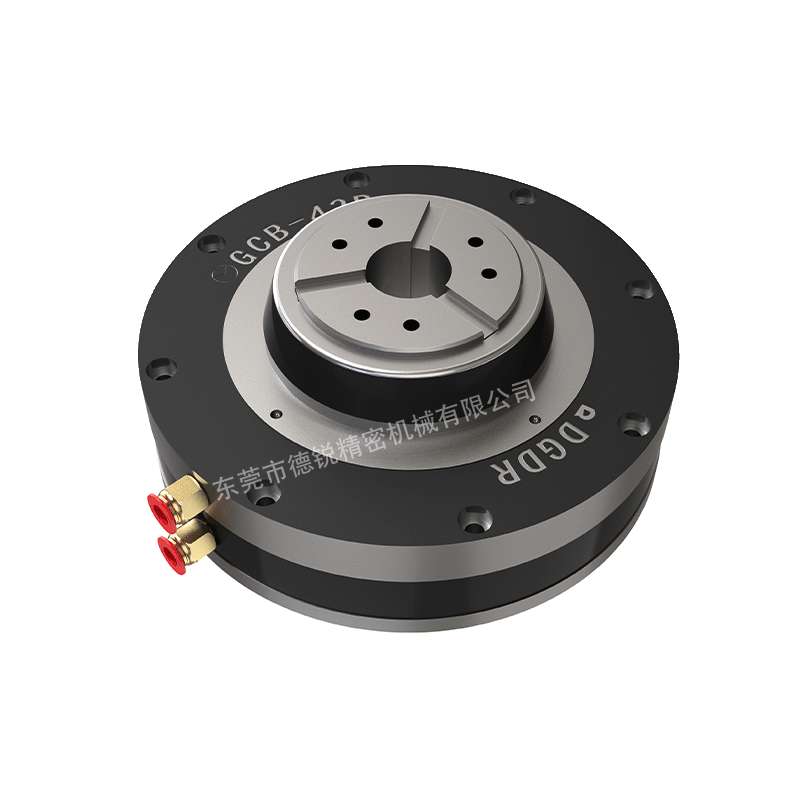

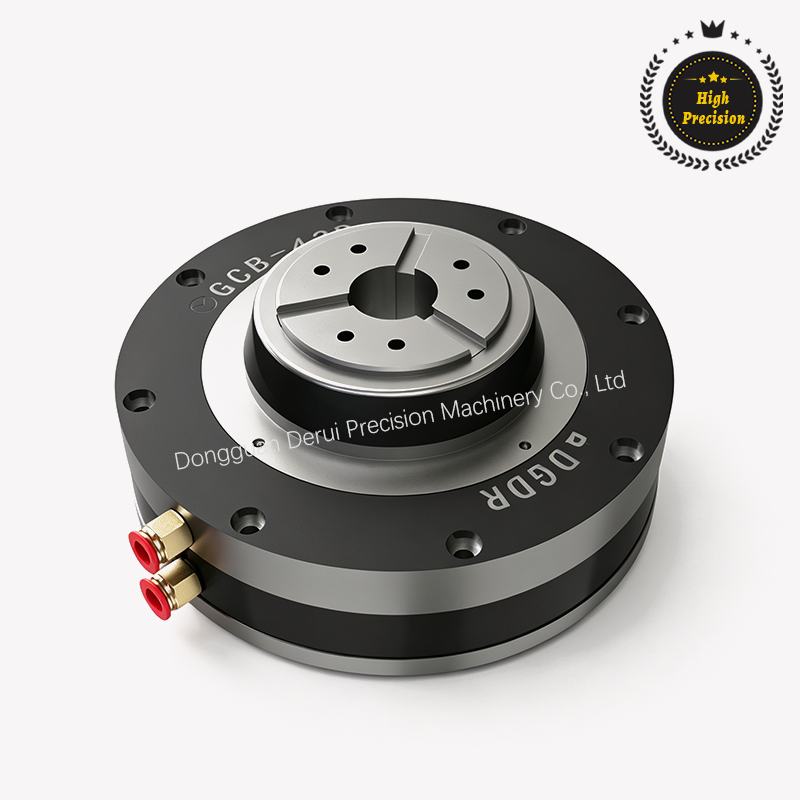

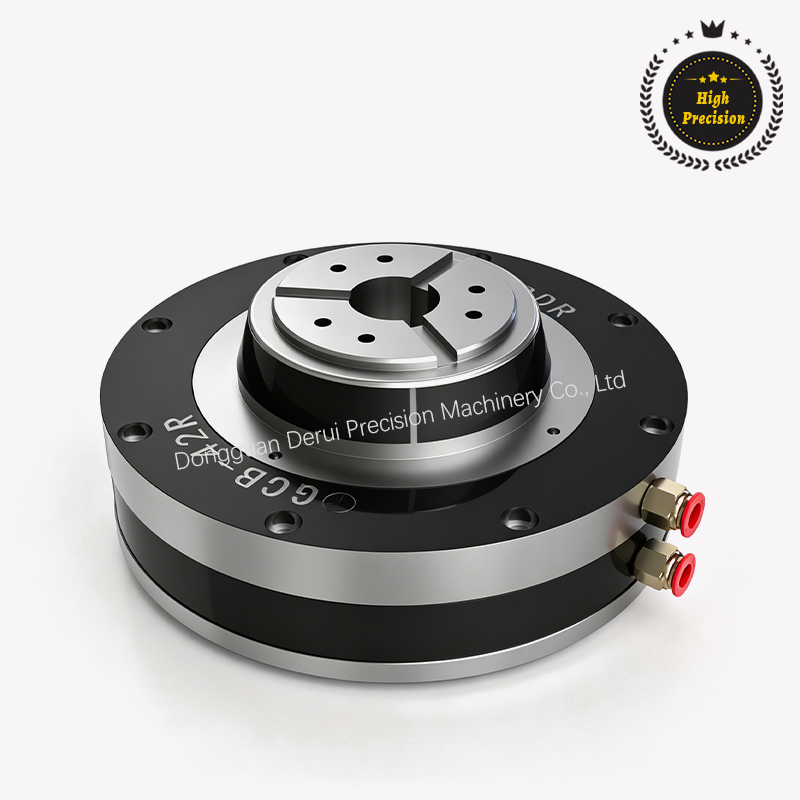

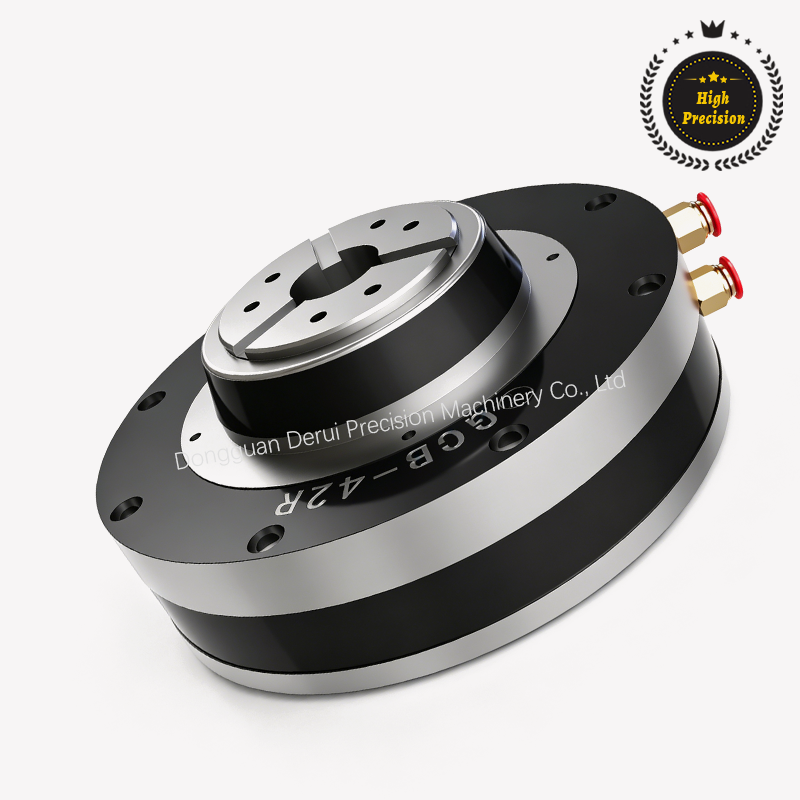

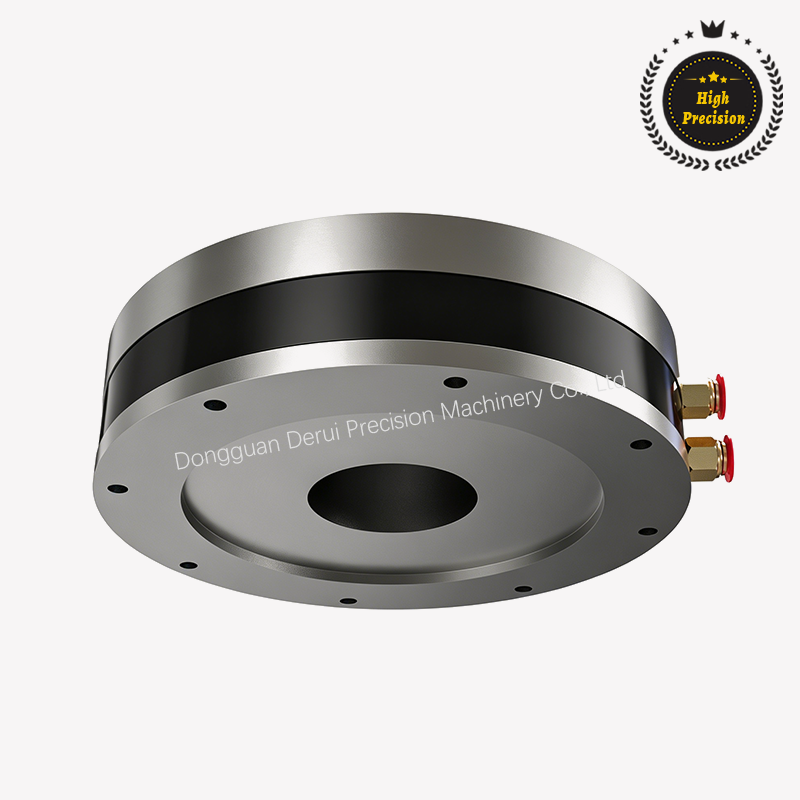

Fixed Pneumatic Chuck
Product characteristics

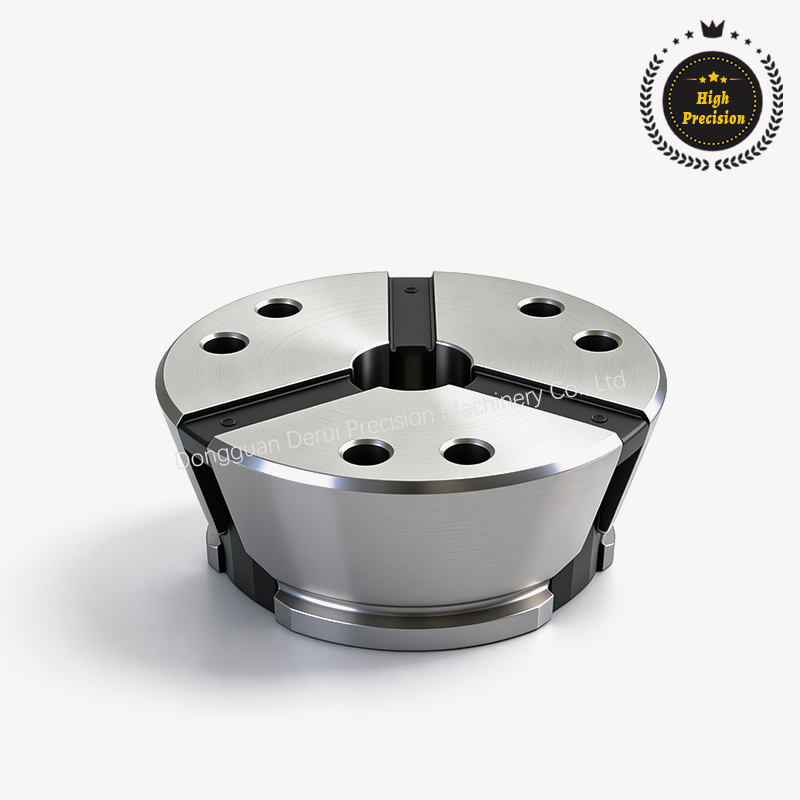

Original German-manufactured rubber collet ensure workpiece clamping without deformation
offering a clamping repeatability of 0.005 mm
Collets are interchangeable to accommodate different workpieces. Operating air pressure 3–7 kg/cm².
Dustproof and waterproof (when pressurized).Suitable for use with a wide range of high-precision
machining equipment including machining centers, 4-axis and 5-axis machines
drilling and tapping units, and other automated systems
Product advantages

· DGDR Independent Brand, Dongguan Source Manufacturer

· Custom Non-standard Sizes & Special Jaws Available

· Original Core Components from Taiwan Province for Consistent Precision

· One-year Warranty on Chucks with After-sales Technical Support

· Complete Range of Models Compatible with All Types of Machine Tools

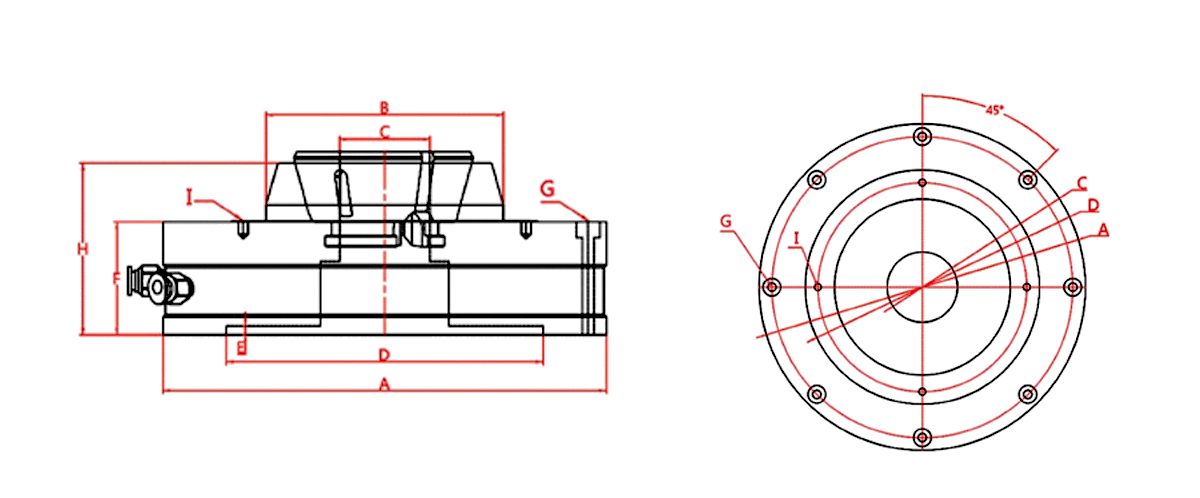

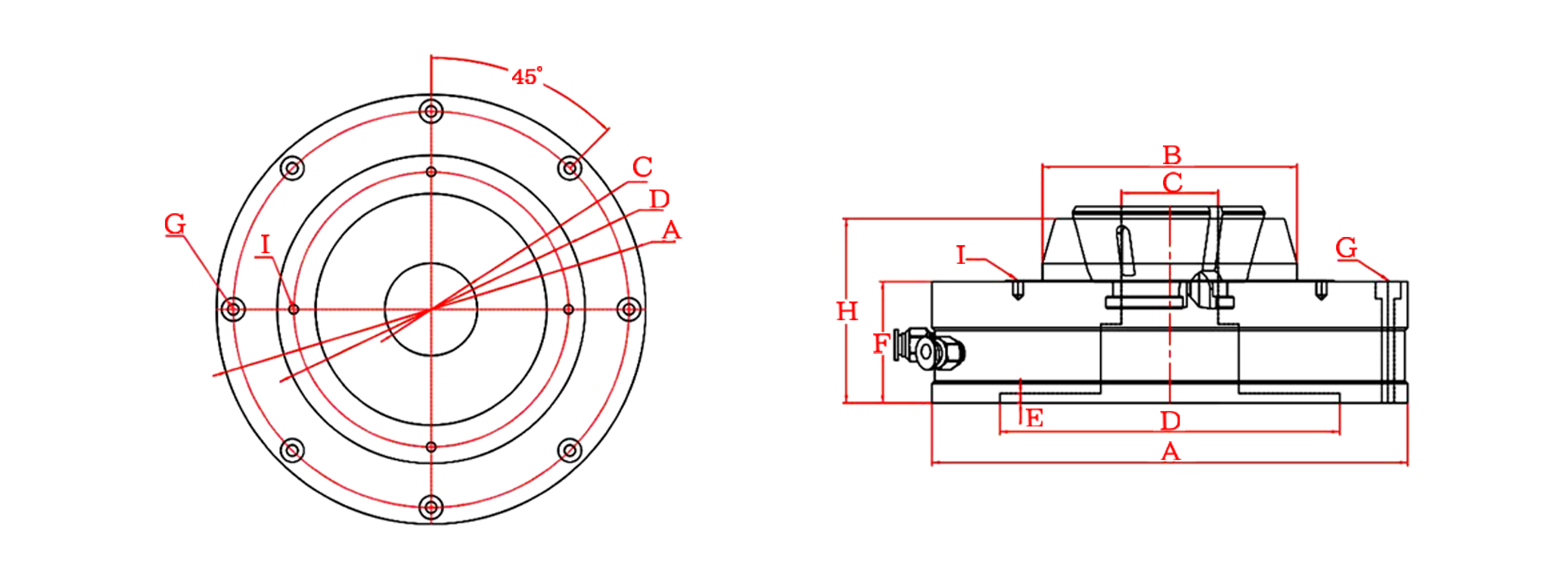

Plan

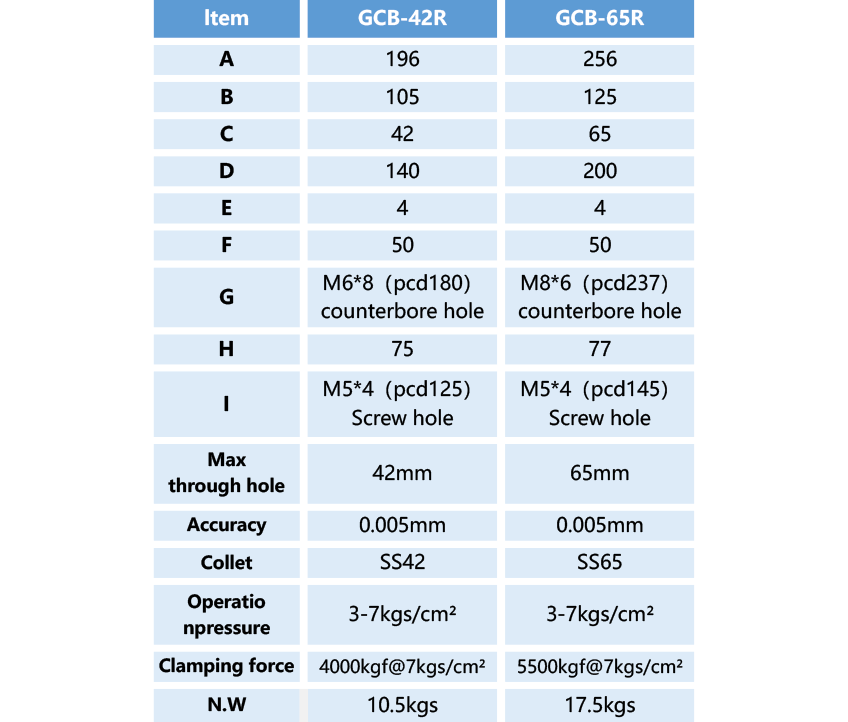

Specification and size

Related products

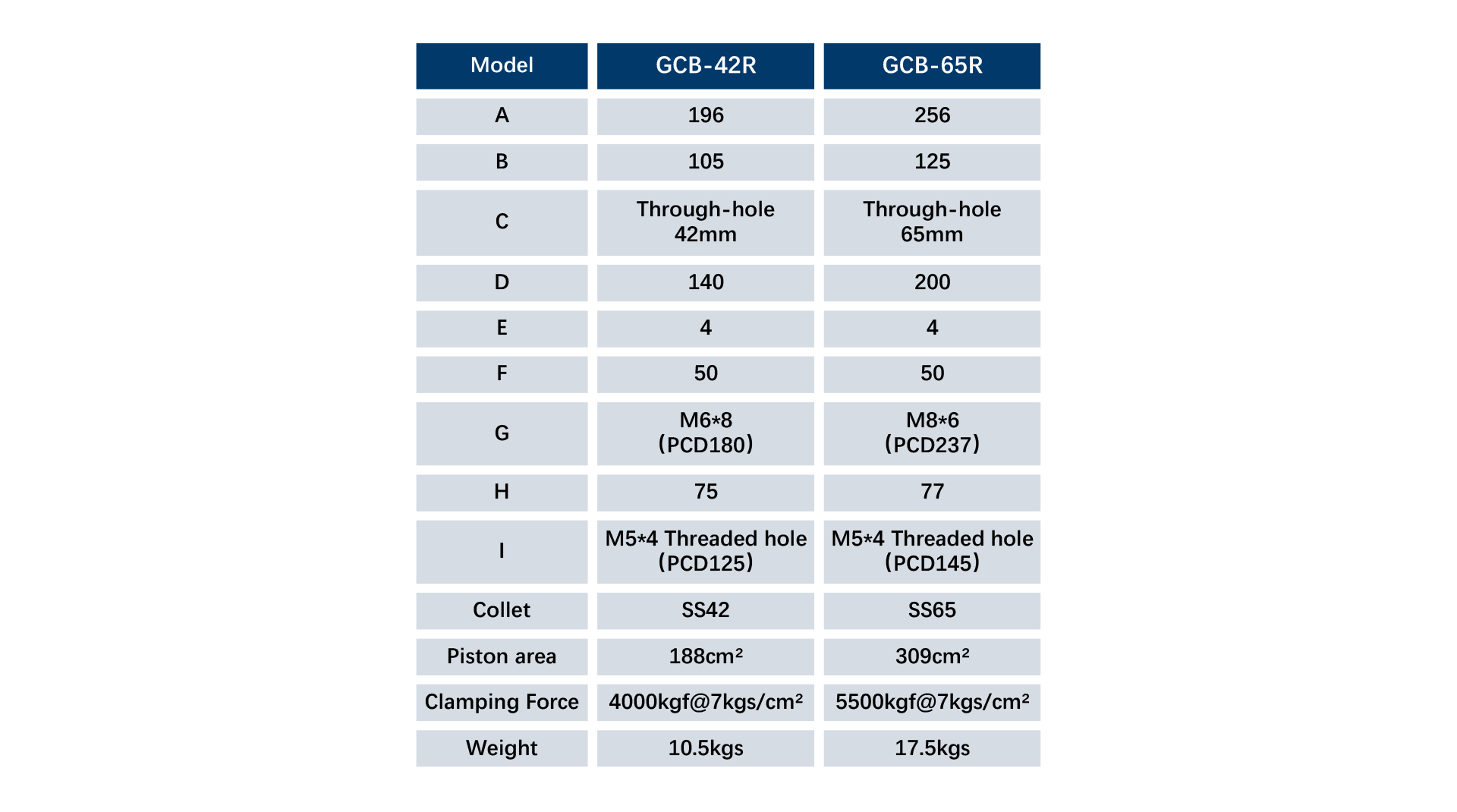

Specification
Three-dimensional model
💬
