DCR series

Return to List

OVERVIEW

GALLERY
VIDEO

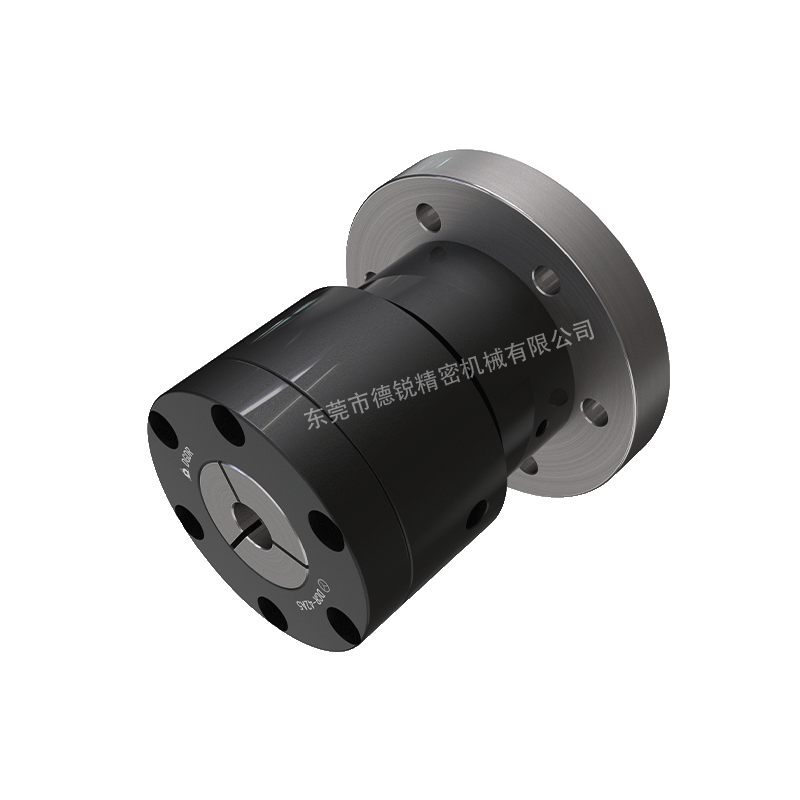

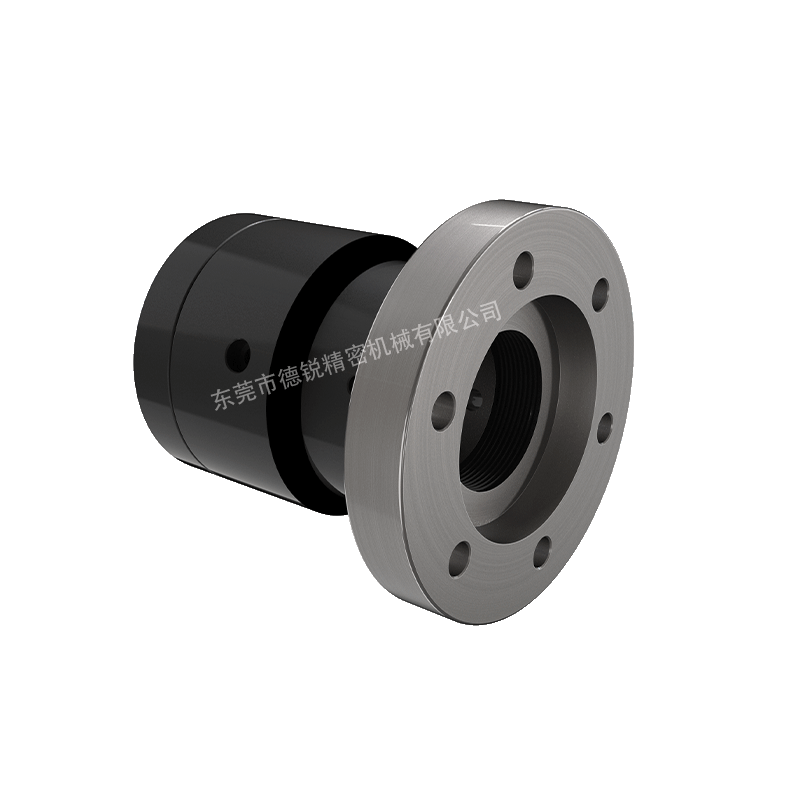

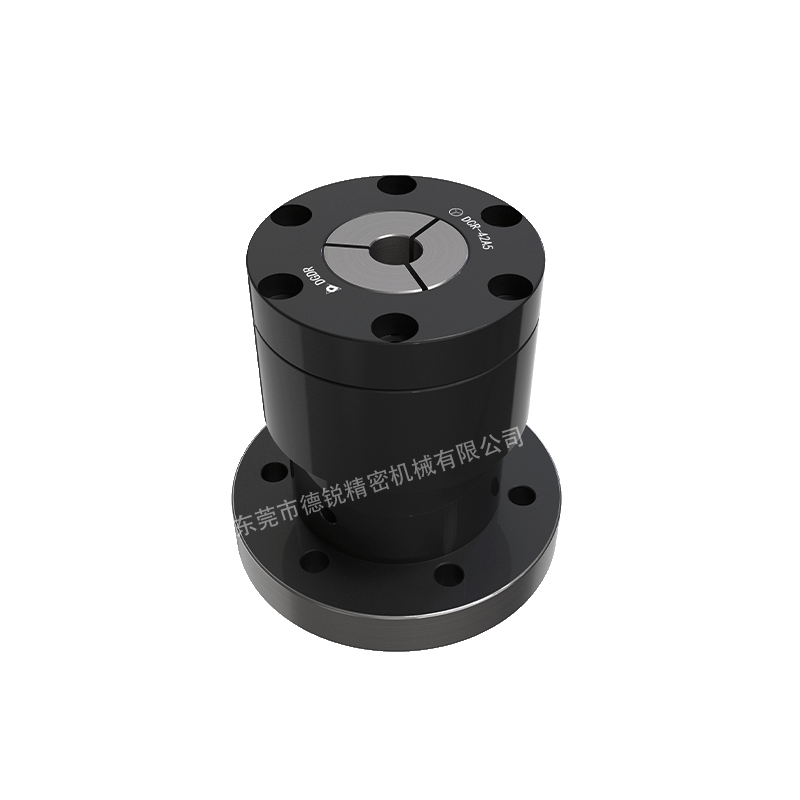

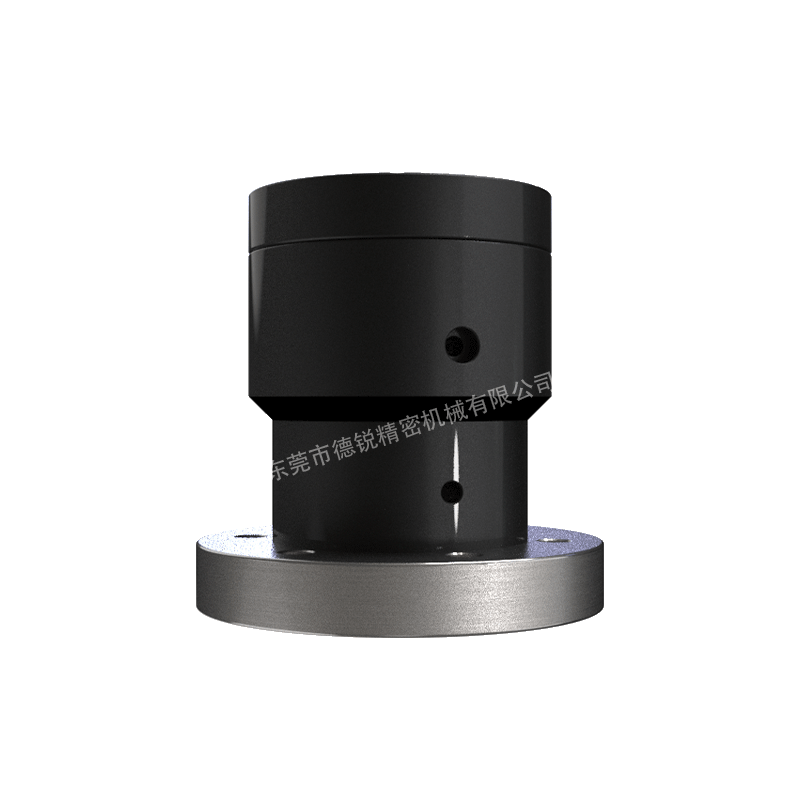

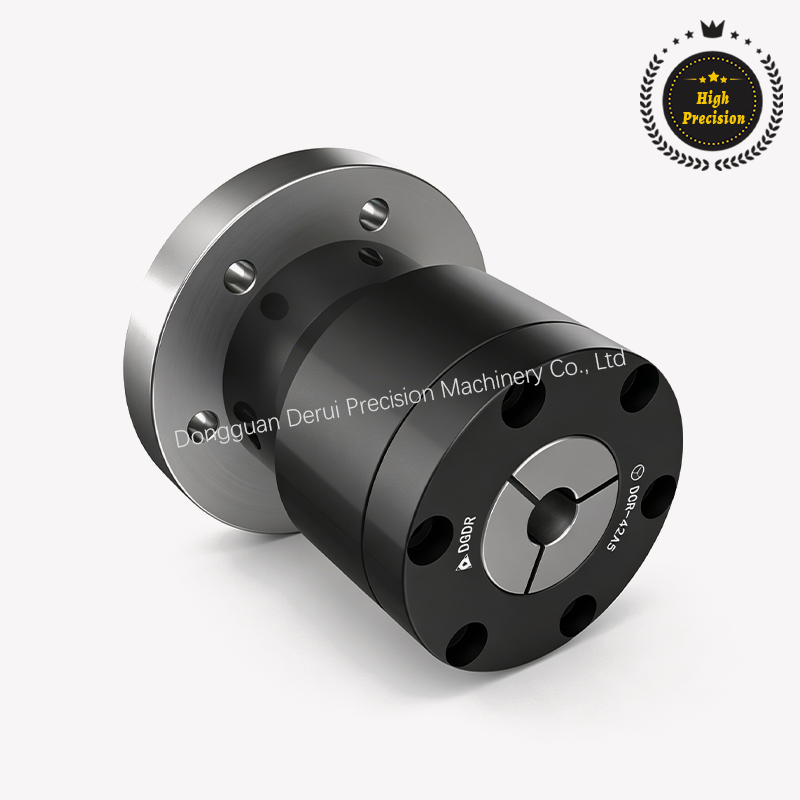

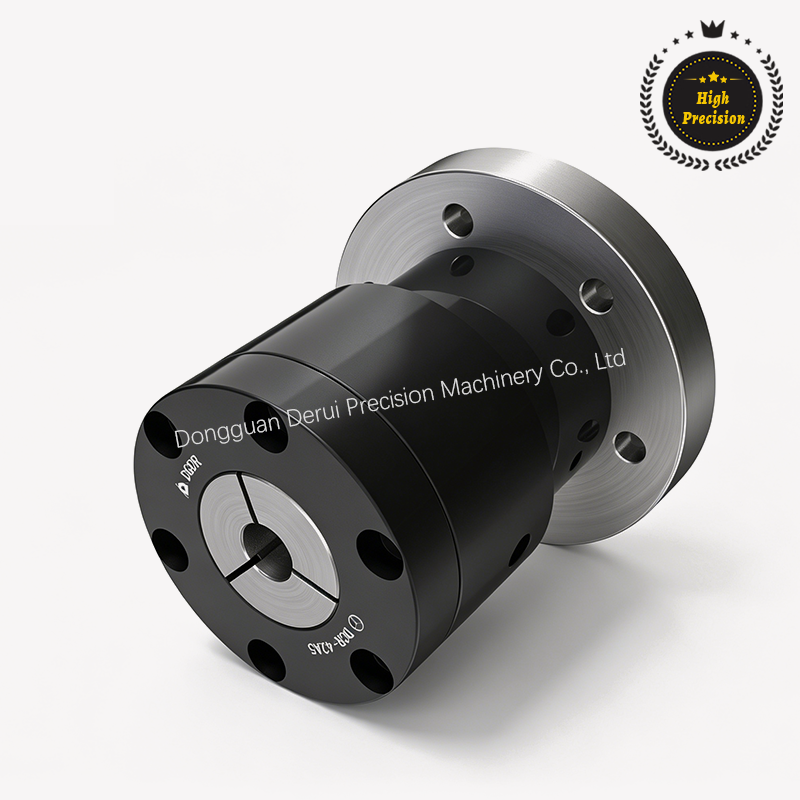

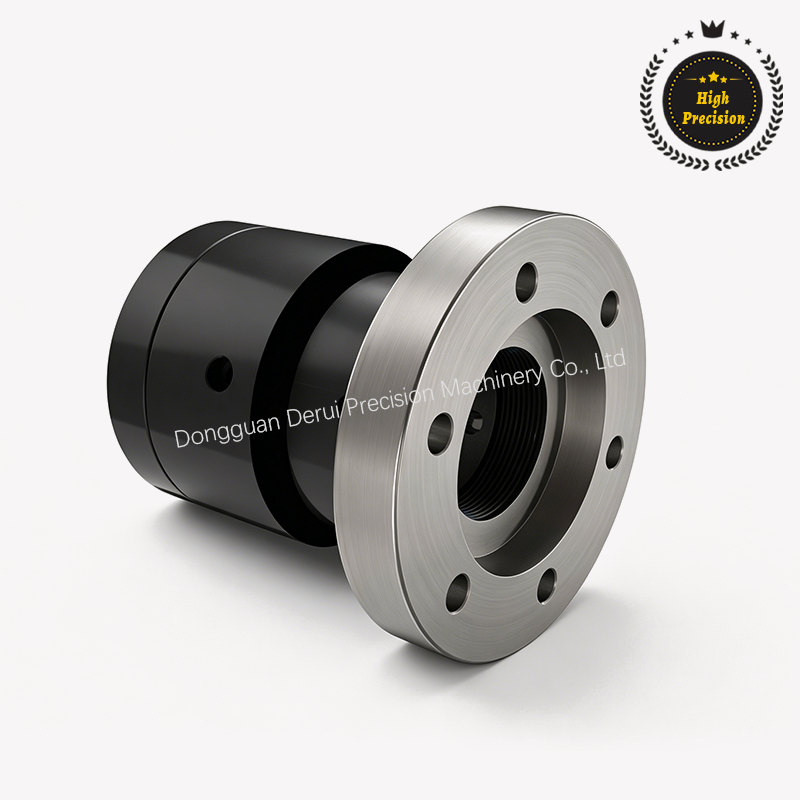

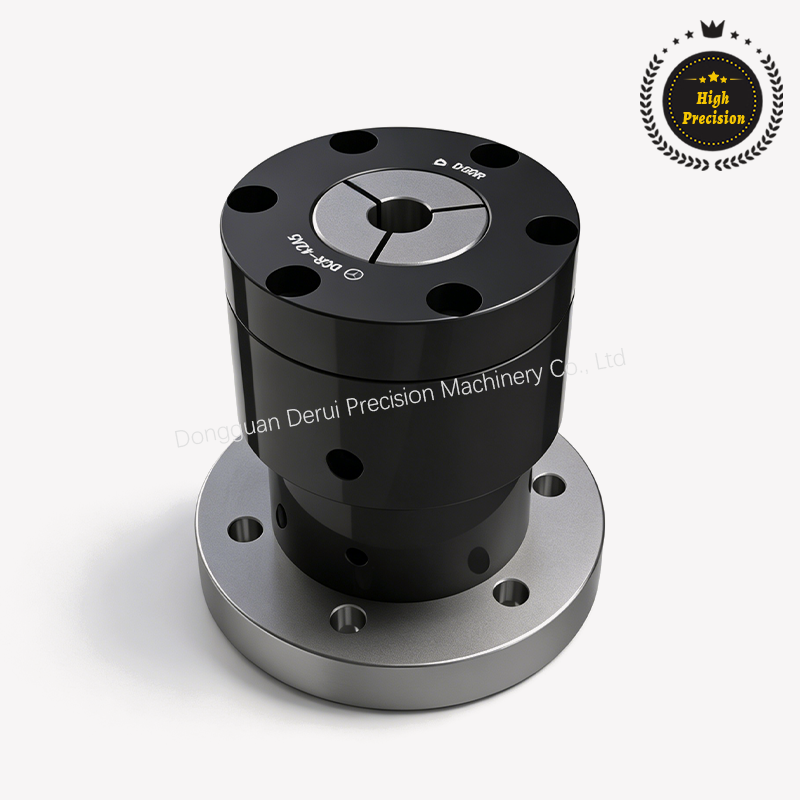

Front-push power collet chuck

Product characteristics

Clamping repeatability 0.02mm, center through hole, internal and external

clamping options, sliding sleeve axial travel 4.5mm, rear-mounted hydraulic

or pneumatic cylinder, air pressure 3-8kgs, suitable for

machining on various precision lathes, can be installed on CNC lathes,

grinding machines or various specialized machines

Product advantages

This chuck delivers 0.02mm clamping repeatability with a center through-hole, supports both internal and external clamping, and features a rear-mounted cylinder design. Ideal for precision lathes, CNC lathes, and grinding machines, it offers versatile installation options for high-precision machining applications.

Business Consulting

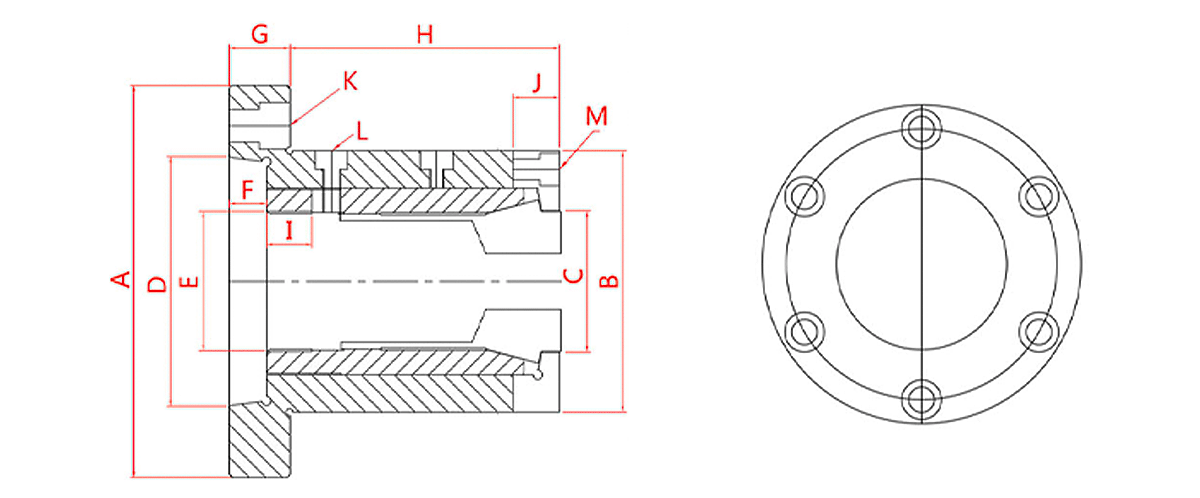

Plan

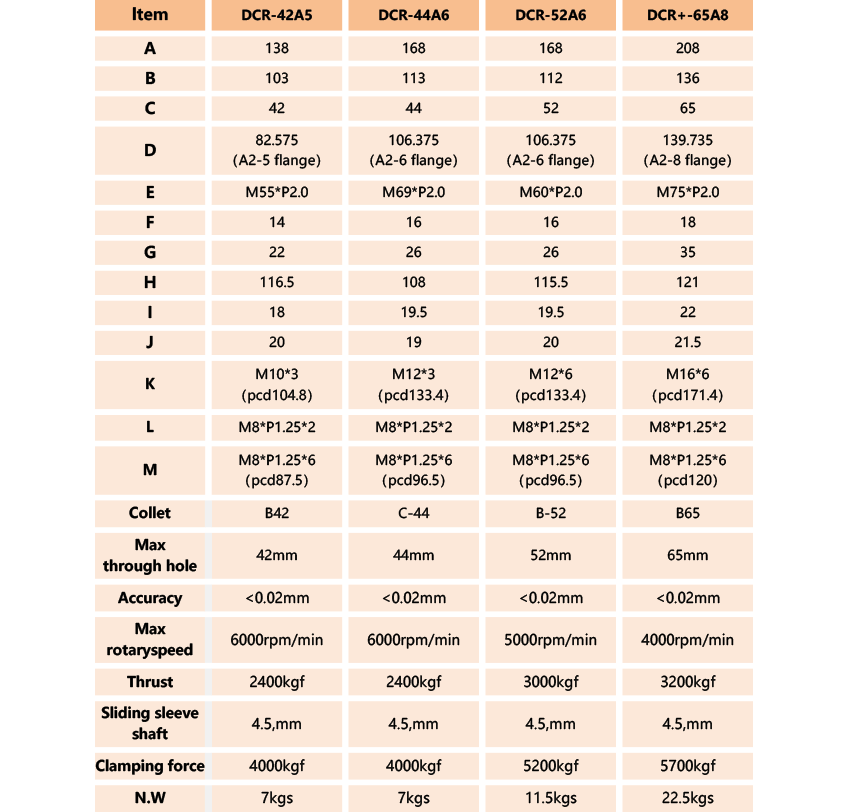

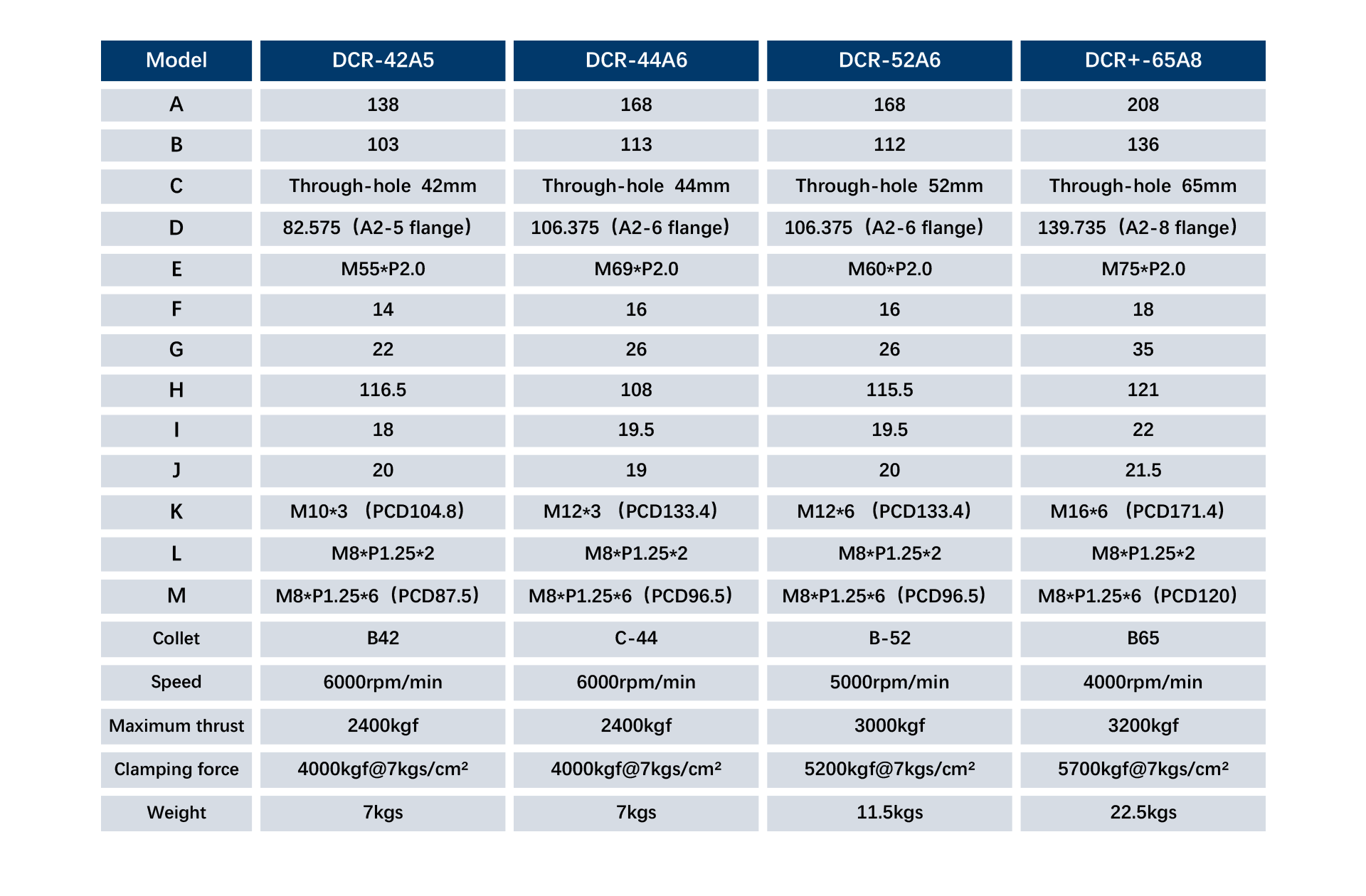

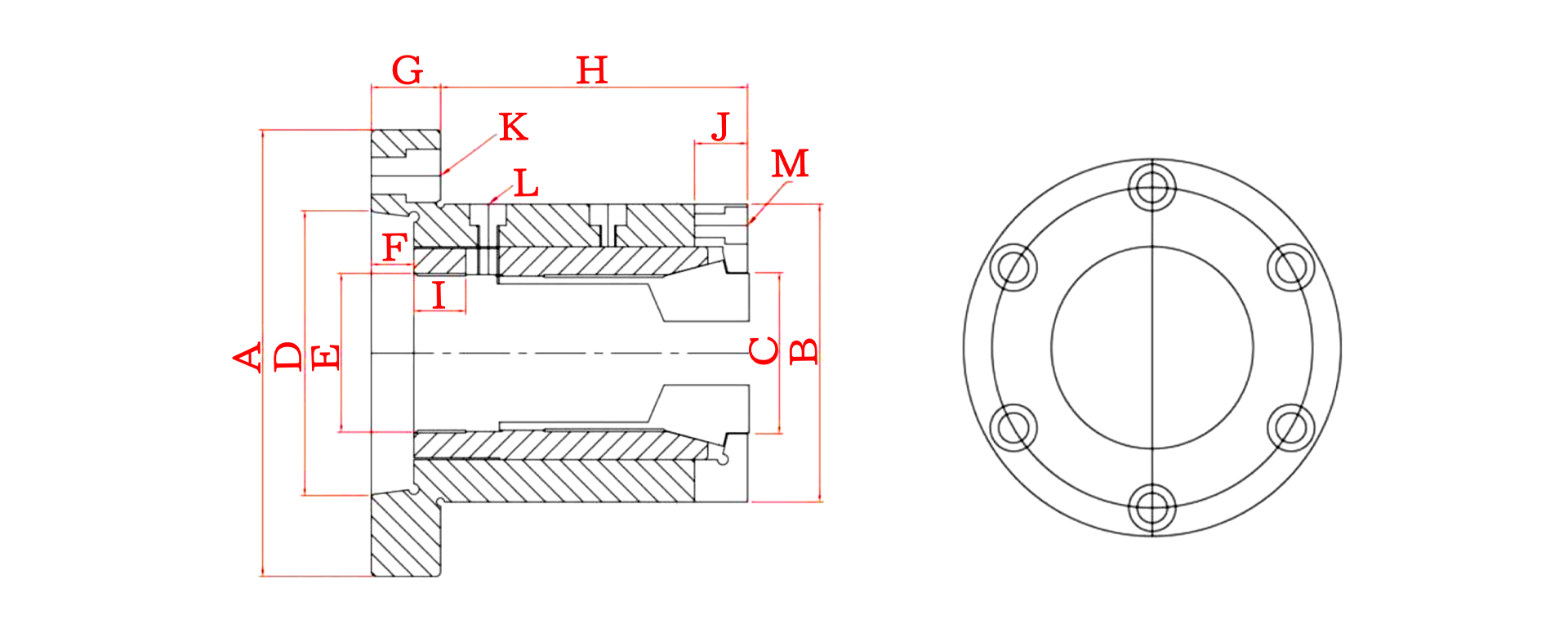

Specification and size
