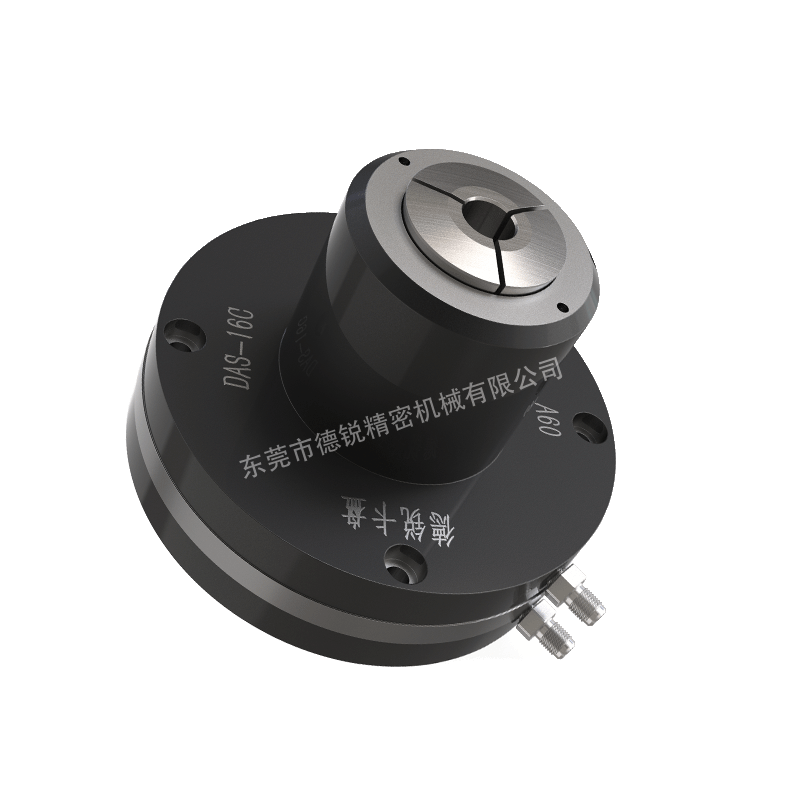

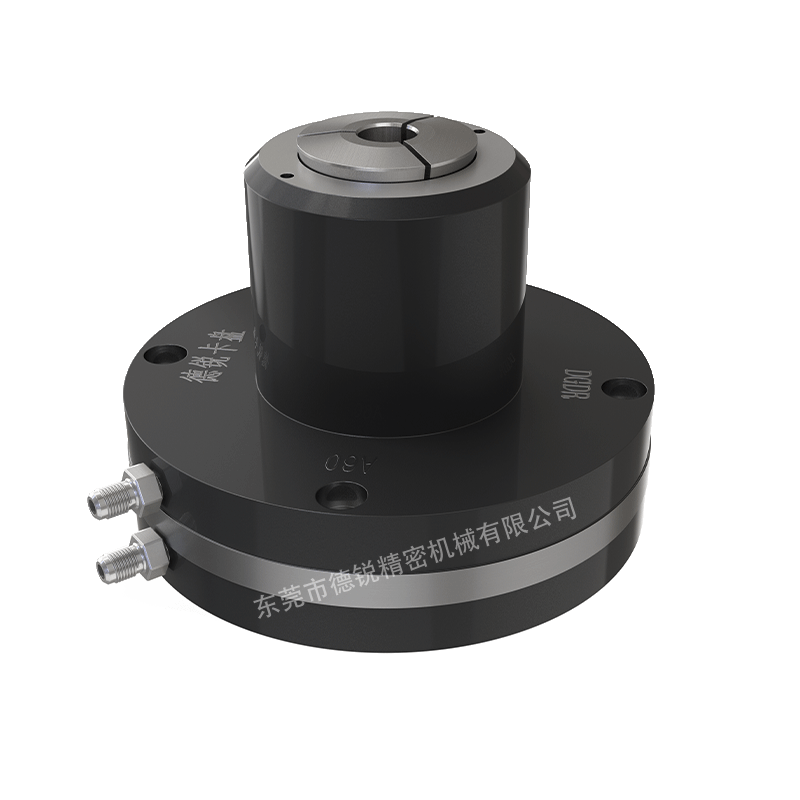

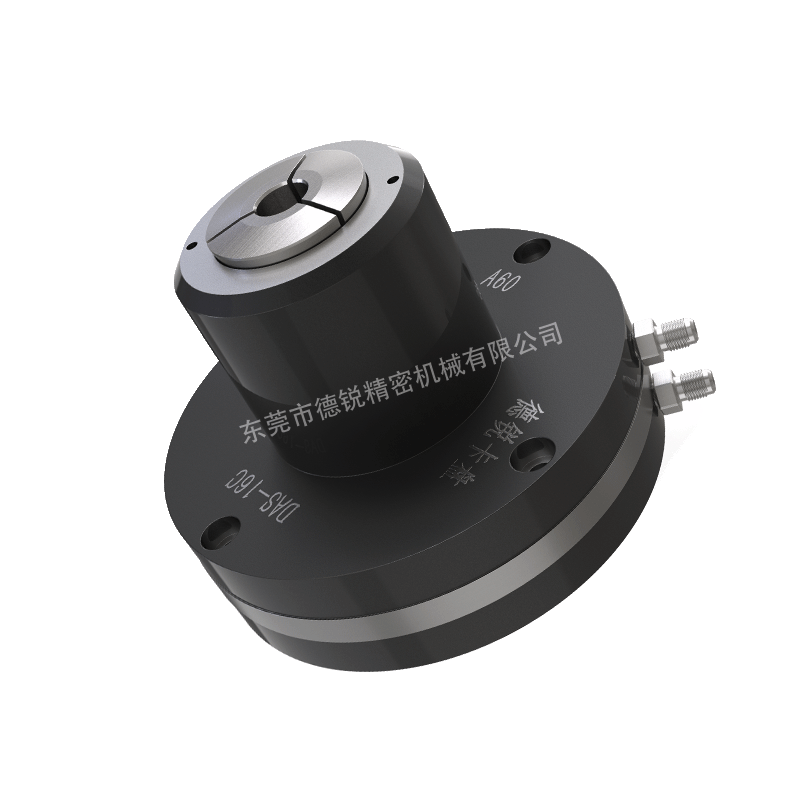

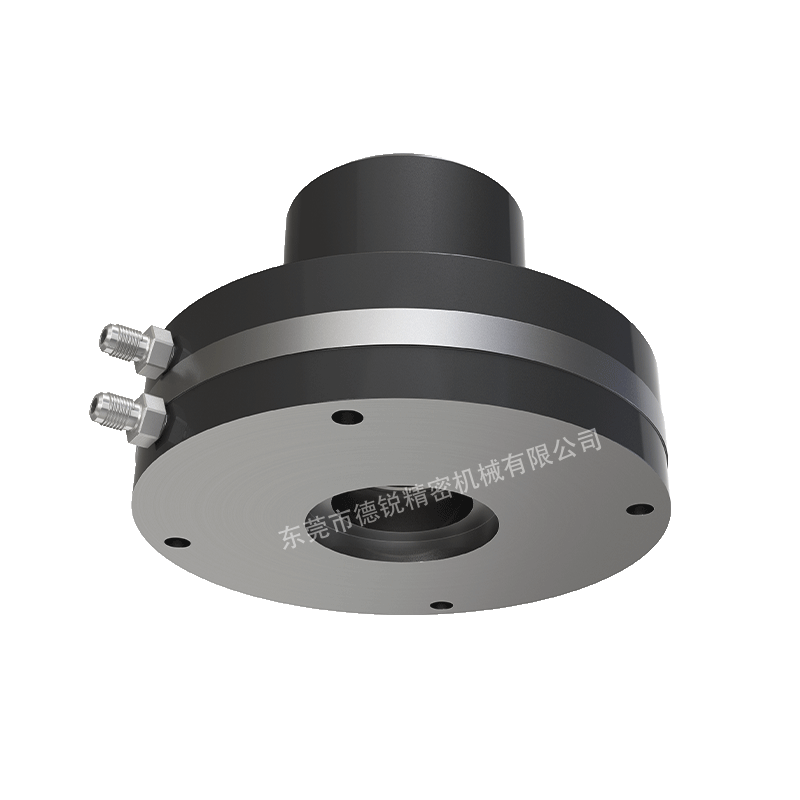

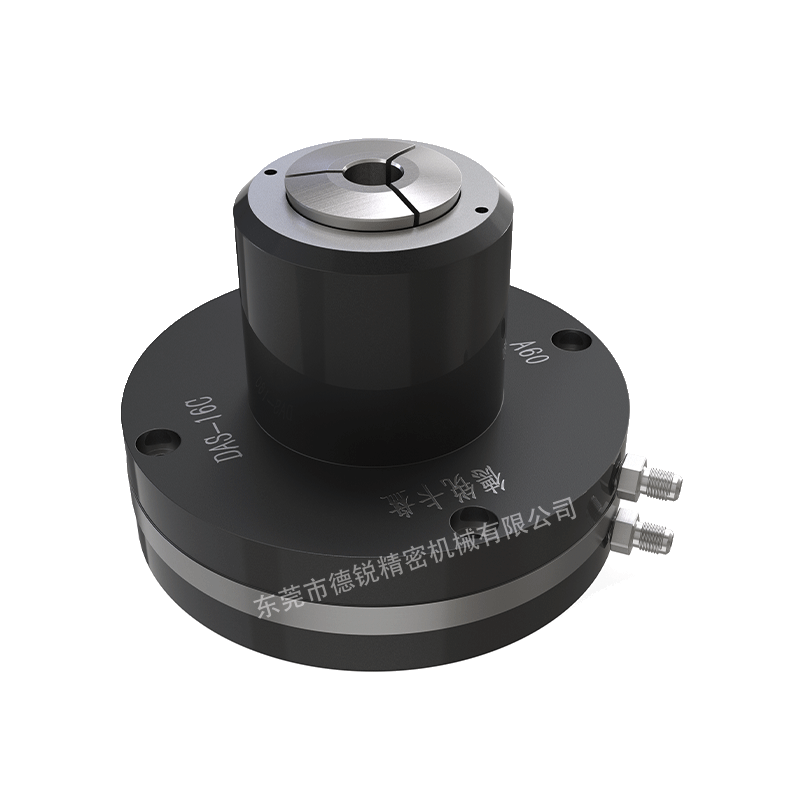

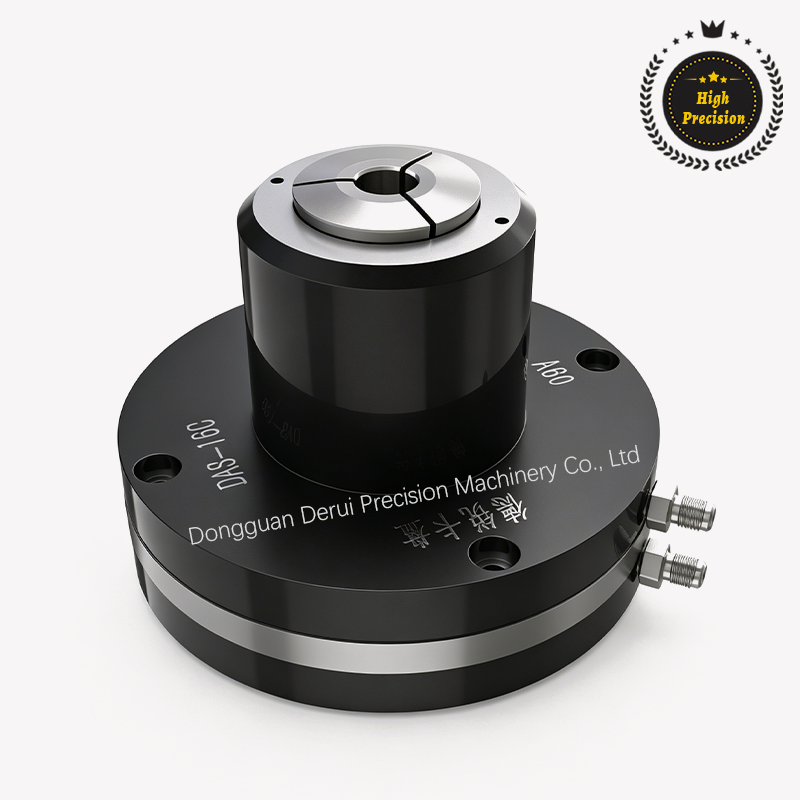

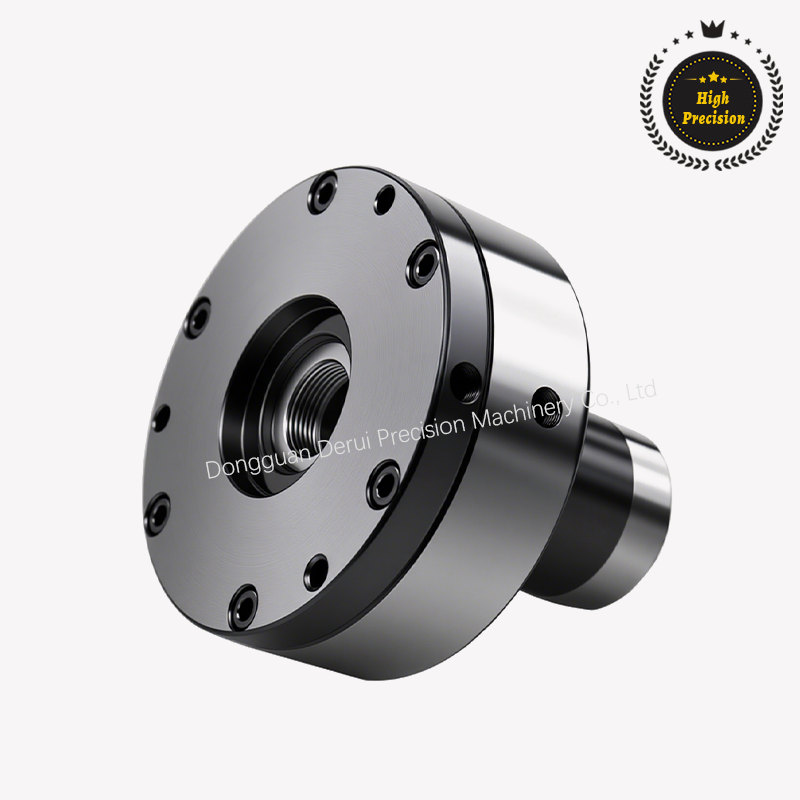

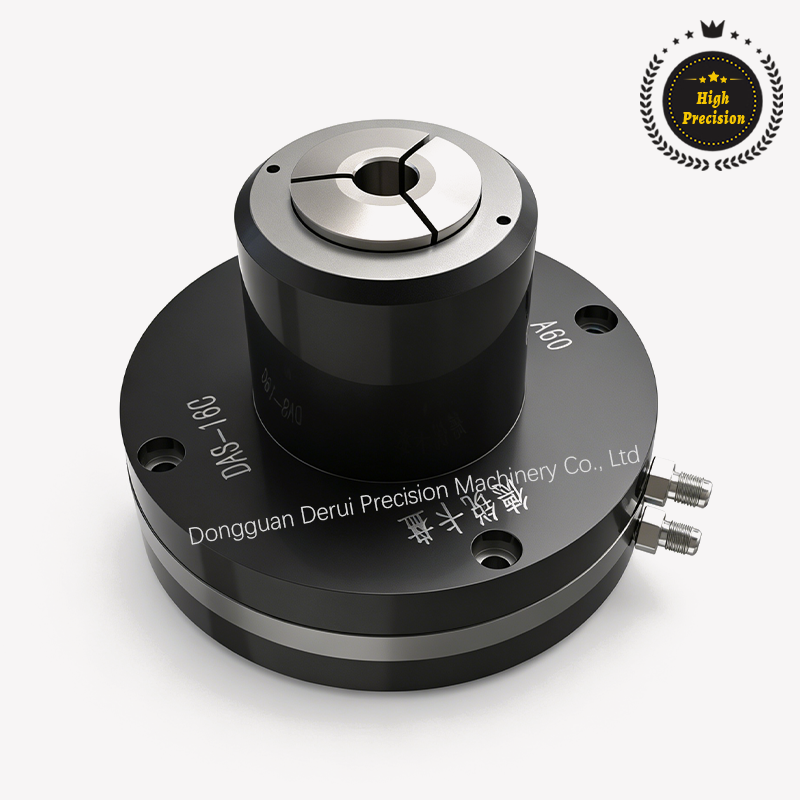

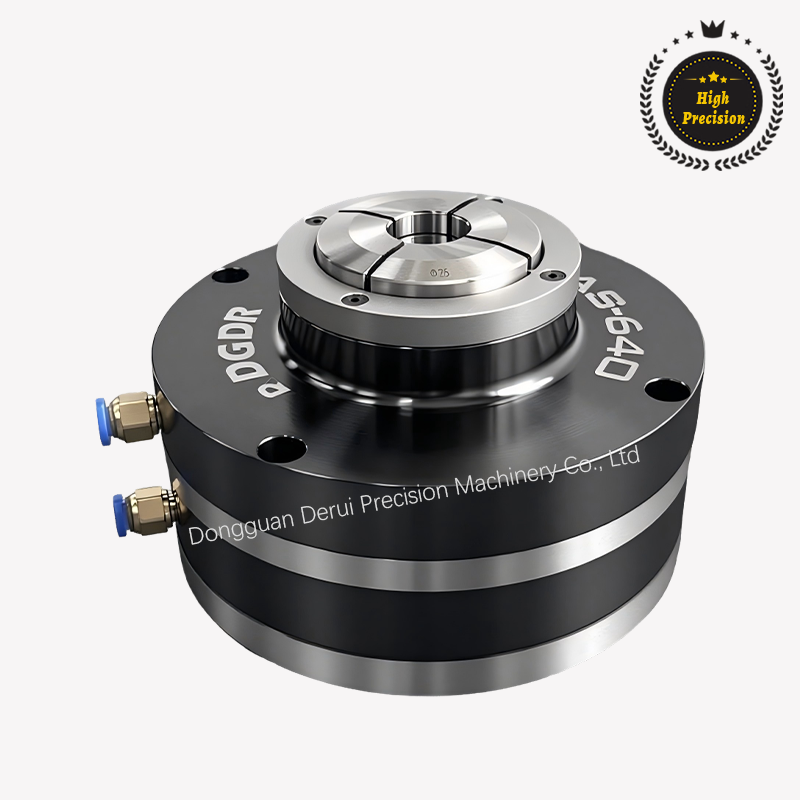

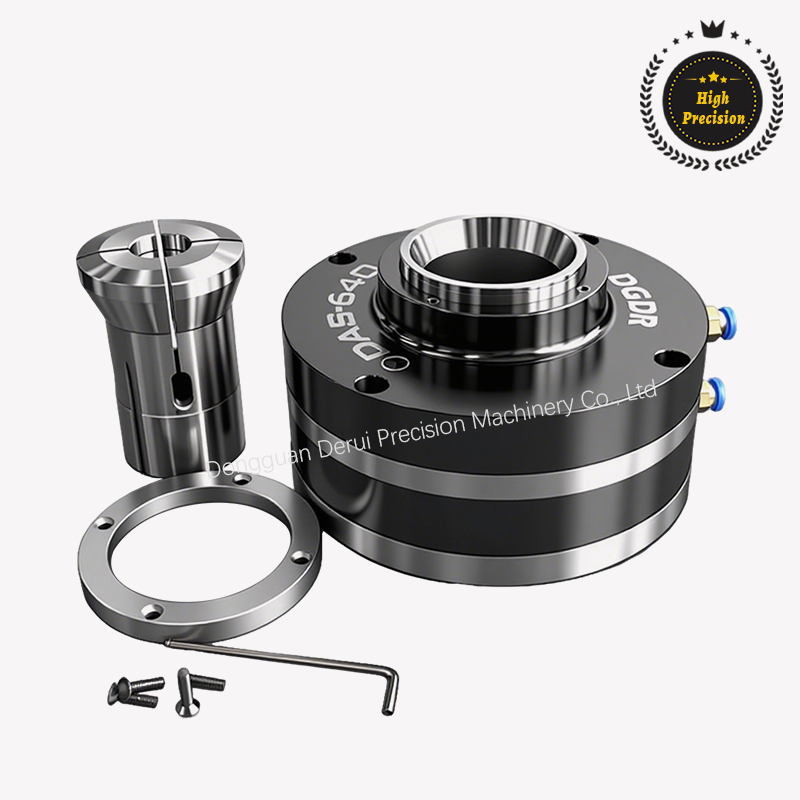

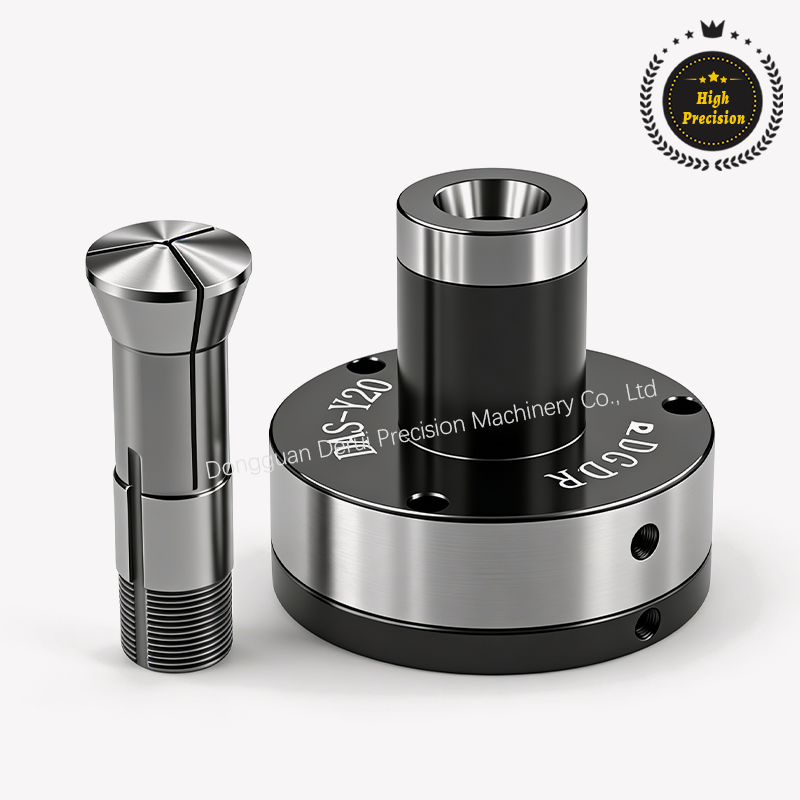

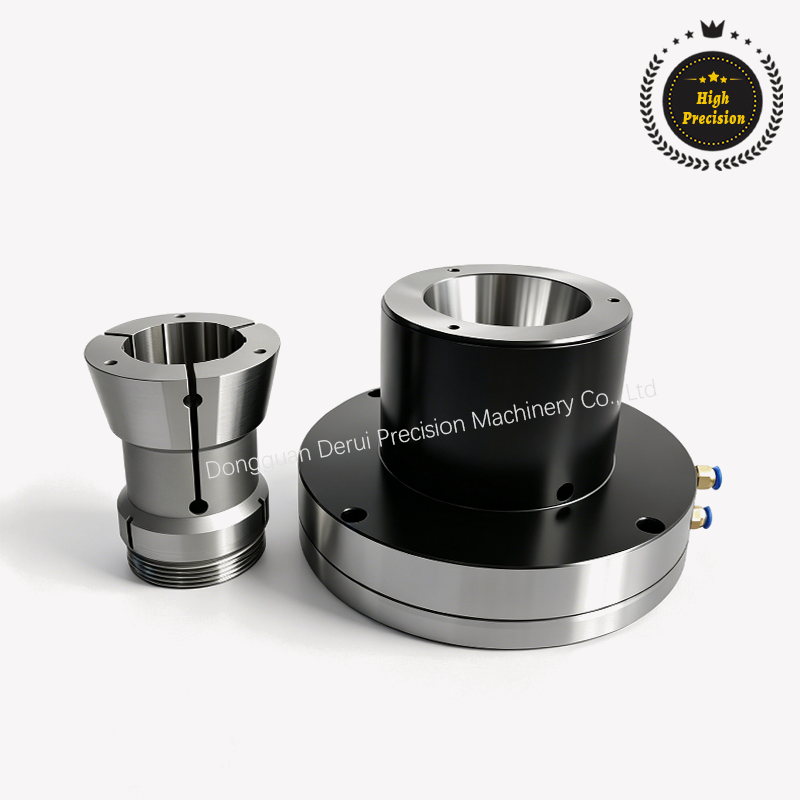

Fixed chuck (pull-back type)
Product characteristics

Center through hole, collet pull-back clamping, body accuracy 0.005mm,

clamping repeatability 0.01mm collet interchangeable for different workpieces

dustproof and waterproof, long service life applicable to various CNC machining

applications, including drilling and milling tables, drilling, tapping, welding

assembly, and other automated machining


Product advantages

· DGDR Independent Brand, Dongguan Source Manufacturer

· Custom Non-standard Sizes & Special Jaws Available

· Original Core Components from Taiwan Province for Consistent Precision

· One-year Warranty on Chucks with After-sales Technical Support

· Complete Range of Models Compatible with All Types of Machine Tools

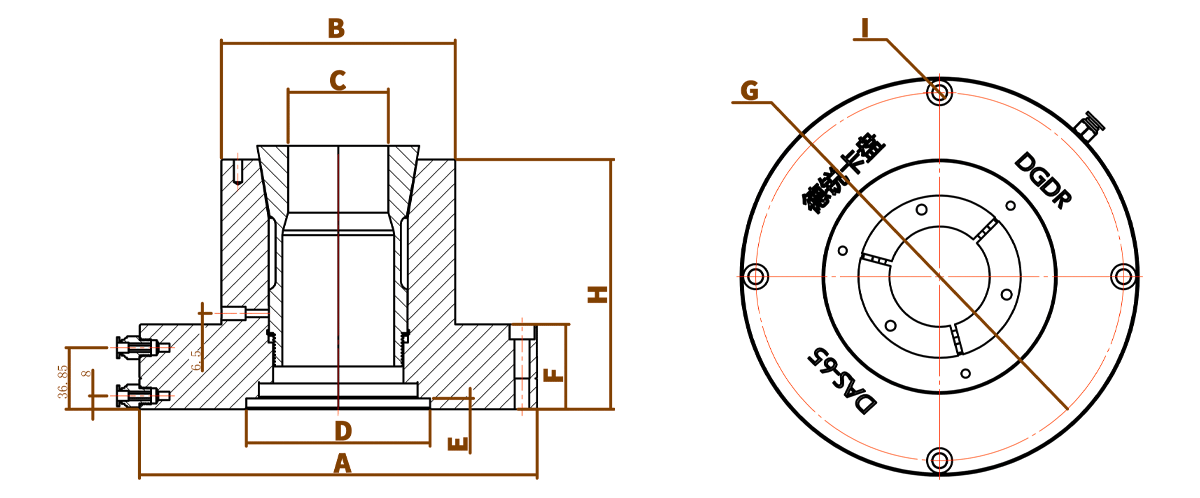

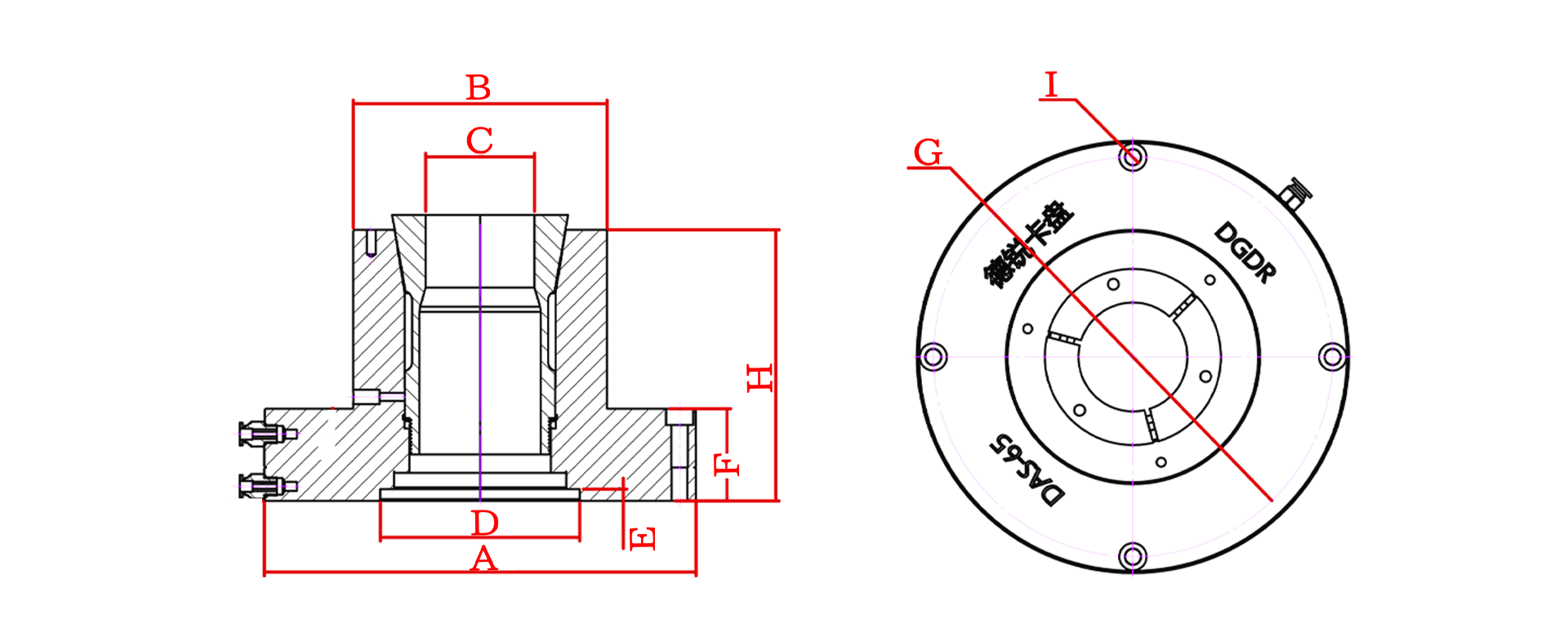

Plan

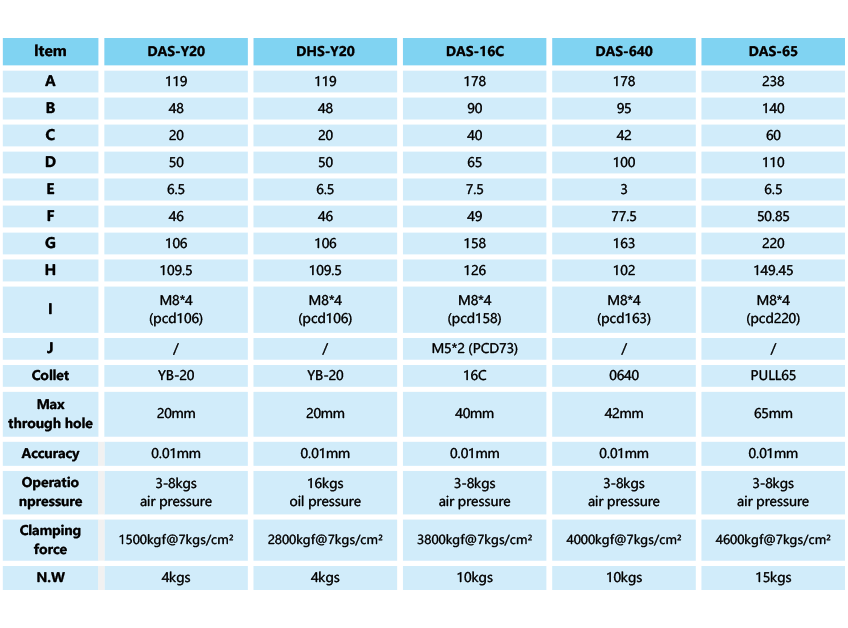

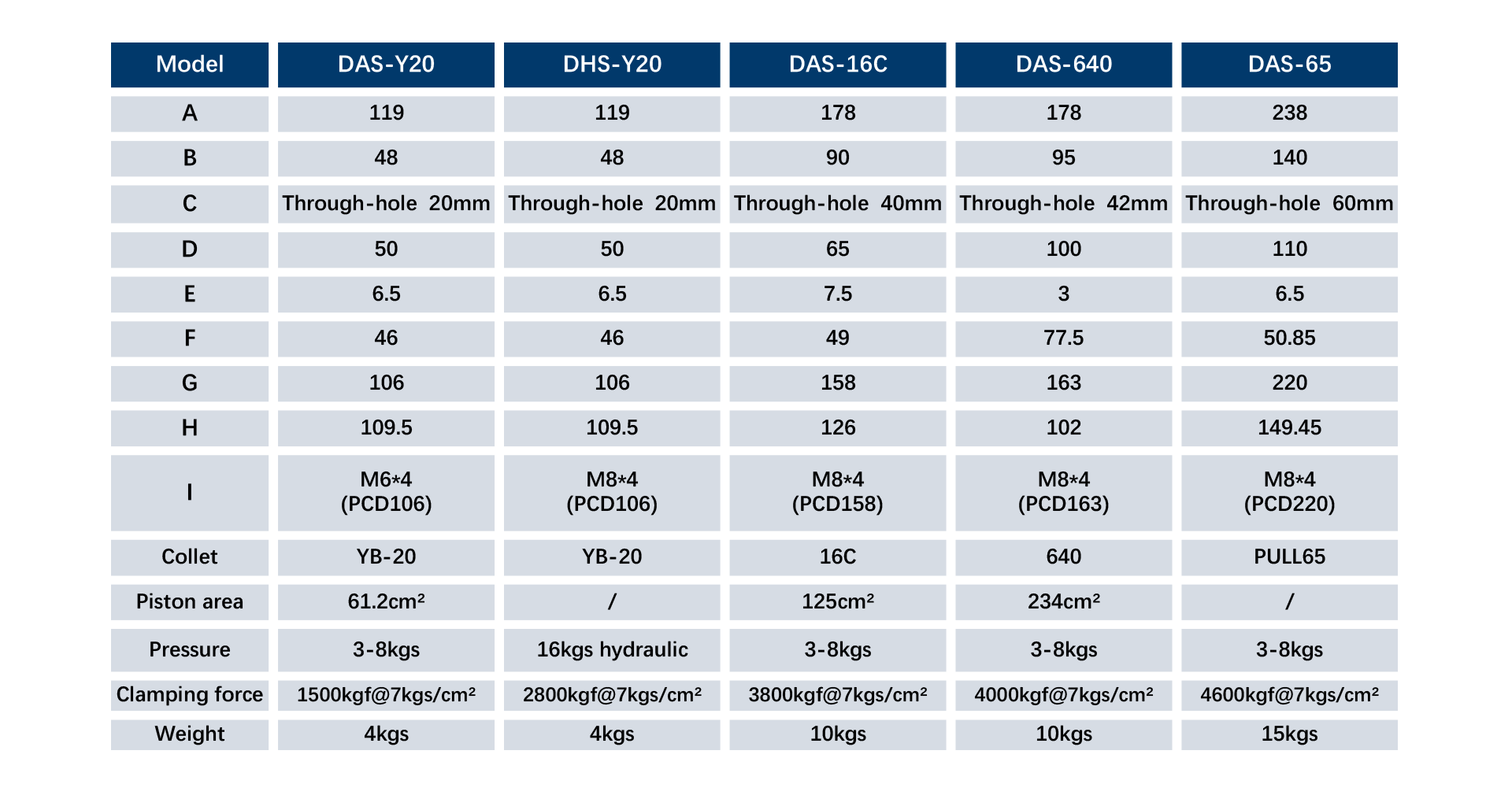

Specification and size

Related products
Specification
Three-dimensional model
💬
