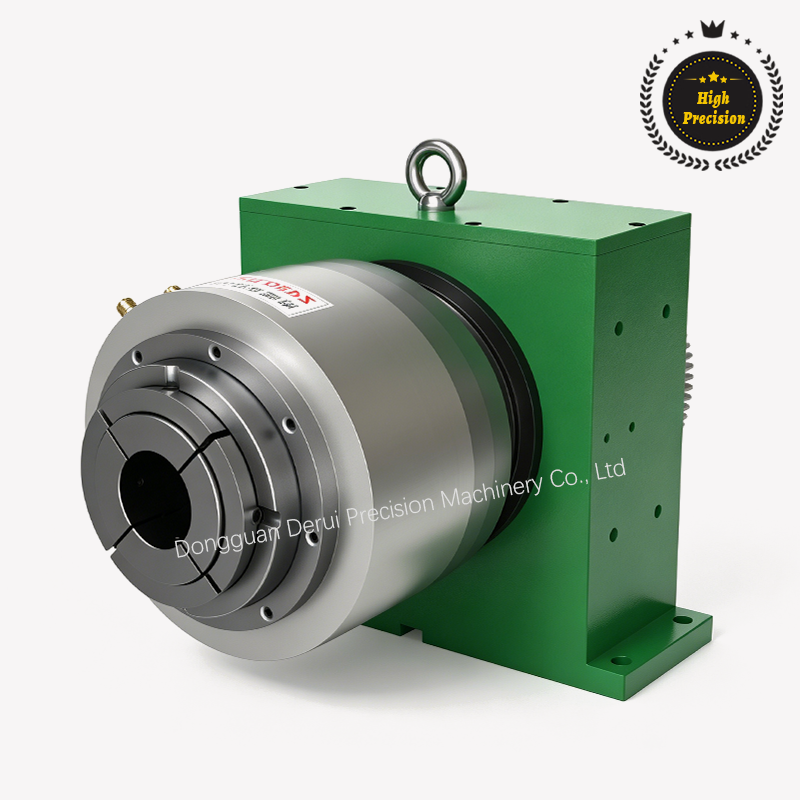

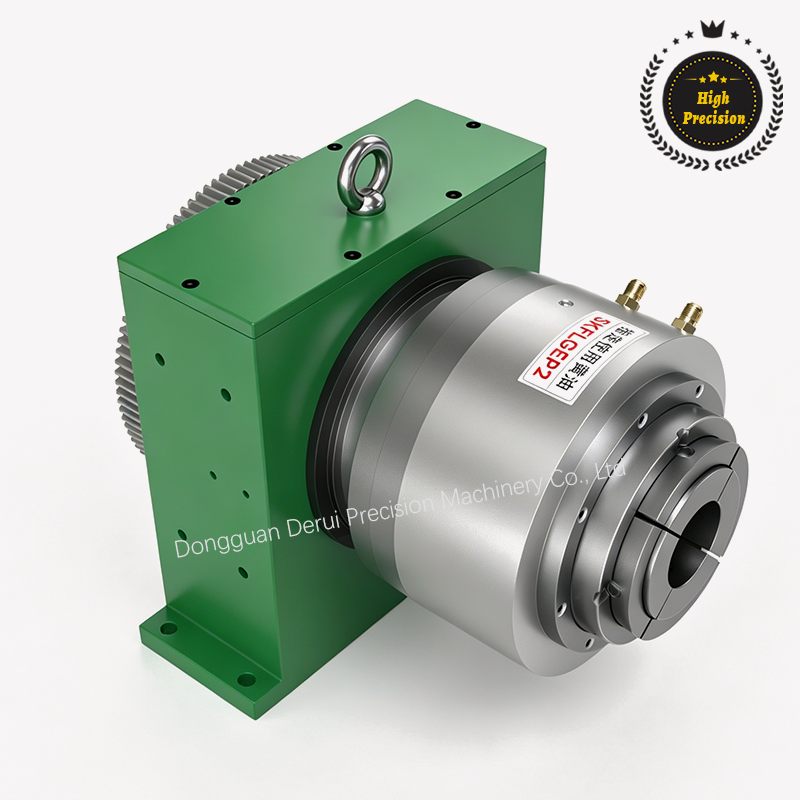

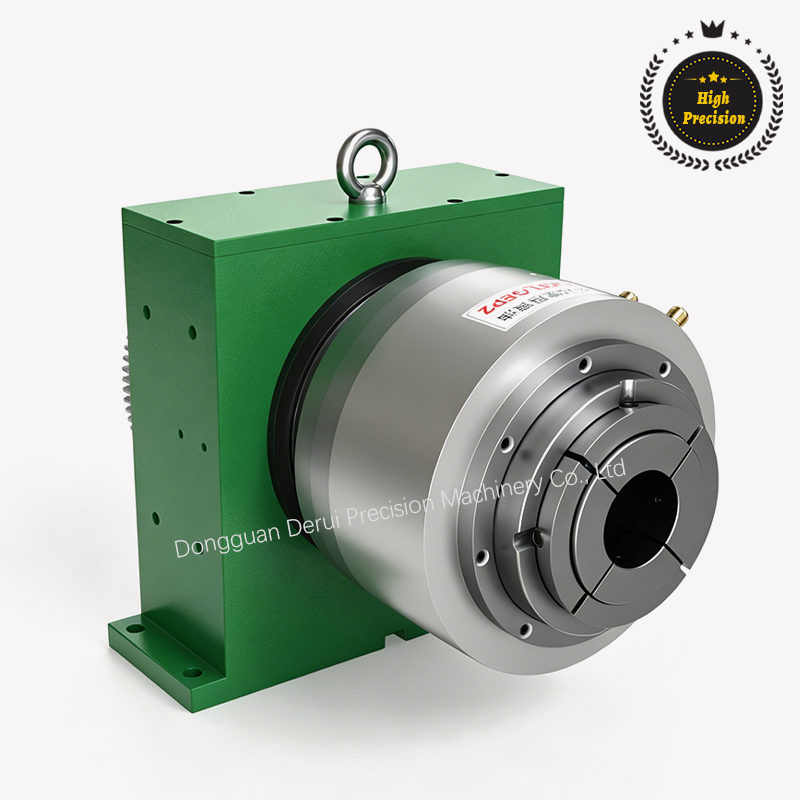

Hollow Rotary Spindle Chuck
Product characteristics

  • Front-Mounted Hydraulic/Pneumatic Cylinder Design

  • Through-hole maximum clamping capacity: 500 mm

  • Clamping Repeatability: 0.05 mm

  • Irregularly shaped workpieces can all be clamped

  • Opening stroke: 1–2.5 mm (customizable 50 mm)

  • Air Pressure: 3–8 kg/cm² / Oil Pressure: 16 kg/cm²

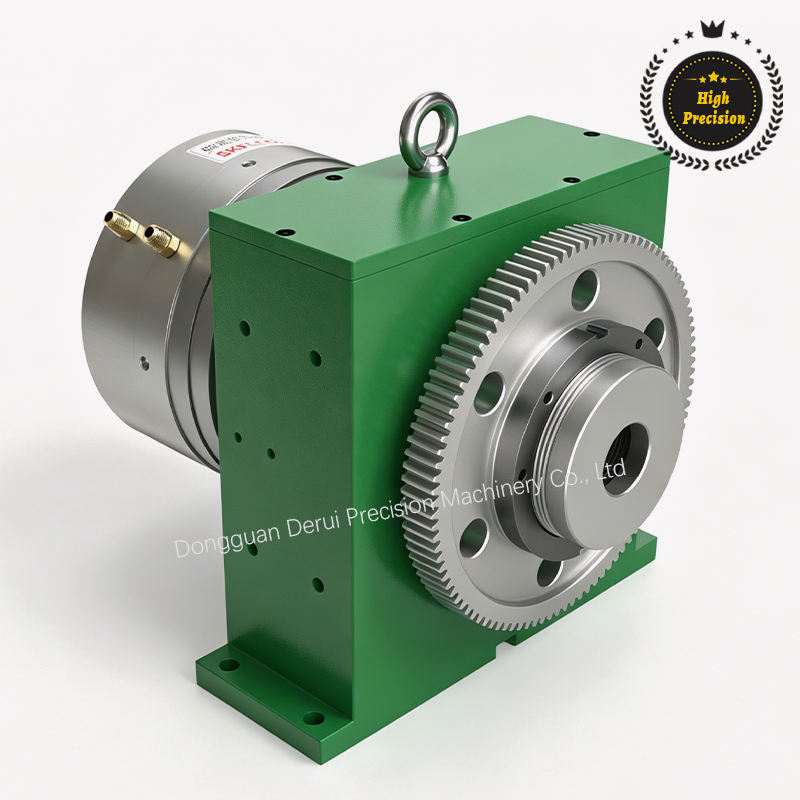

  • A timing pulley or gear may be fitted at the rear.

  • Cutting fluid must not be directed at the chuck.

Product advantages
This front-mounted chuck supports up to 500mm clamping capacity, accommodates irregular workpieces, and offers 0.05mm repeatability, with customizable stroke and rear pulley/gear options for versatile high-performance machining.
Business Consulting
Plan

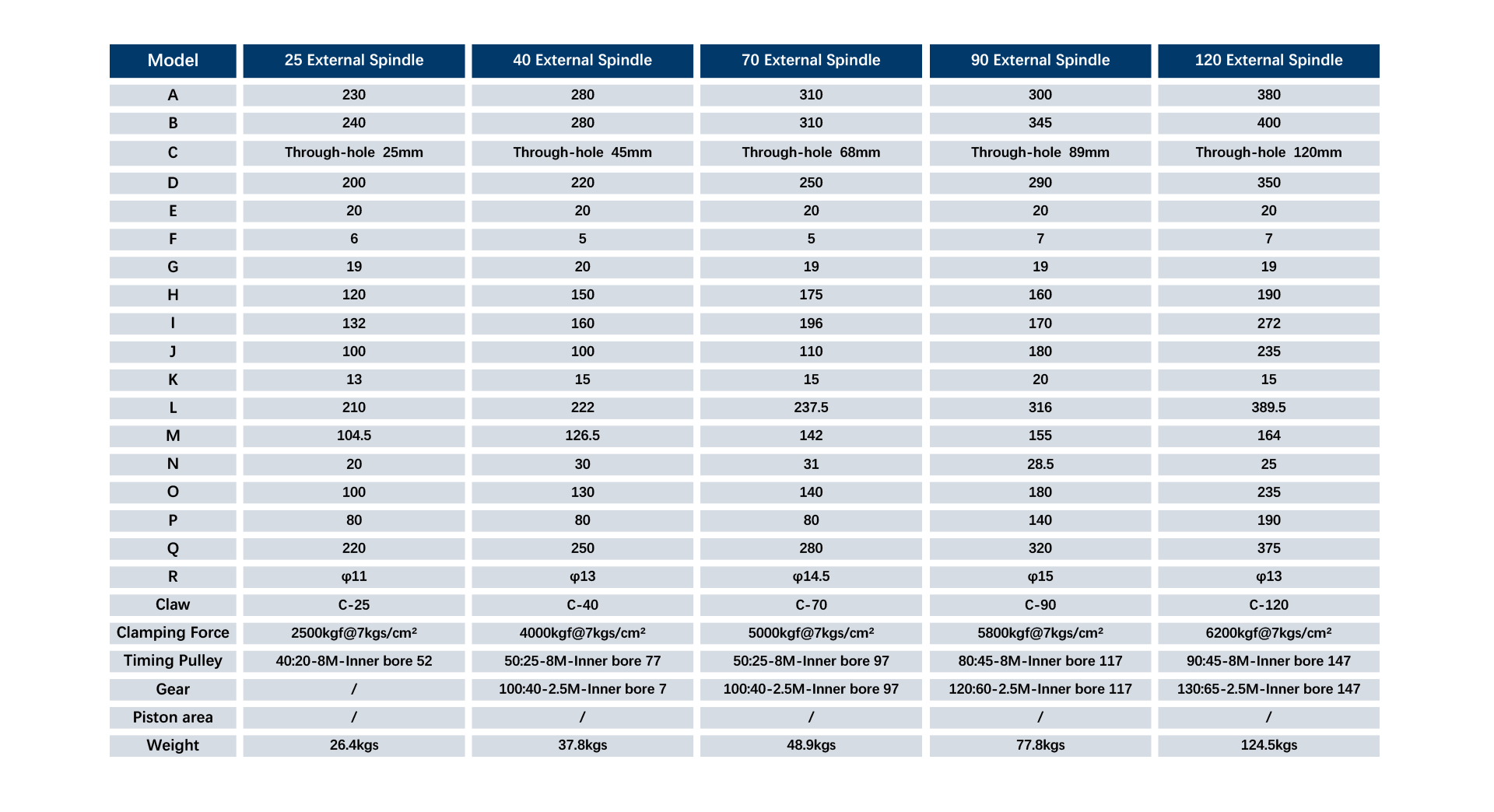

Specification and size
Related products
Specification

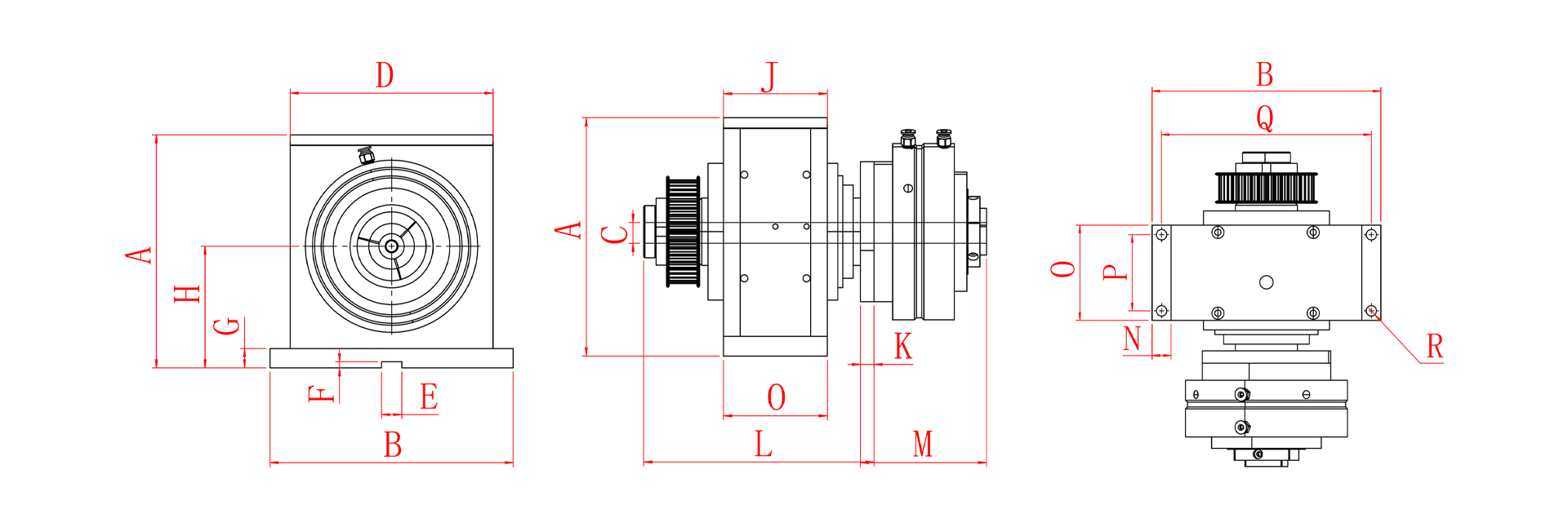

  • Flat：120Spindle-Mounted-Synchronous Pulley Type+GXL-120+C-120.pdf
    download
  • Flat：40 Spindle-Mounted+GXL-40.pdf
    download
Three-dimensional model
  • 3D Model -120External Spindle — Synchronous Pulley Model+GXL-120+C-120.STEP
    download
  • 3D Model -90External Spindle — Synchronous Pulley Model+DZ-90+C-90.STEP
    download
  • 3D Model -70External Spindle — Synchronous Pulley Model+GH70-3k+C-70.STEP
    download
  • 3D Model -40Externally Mounted TBL+GA40-3k.STEP
    download
  • 3D Model -25External Spindle — Synchronous Pulley Model+GA25S+C-25+1kw Motor Mount (Left).STEP
    download
