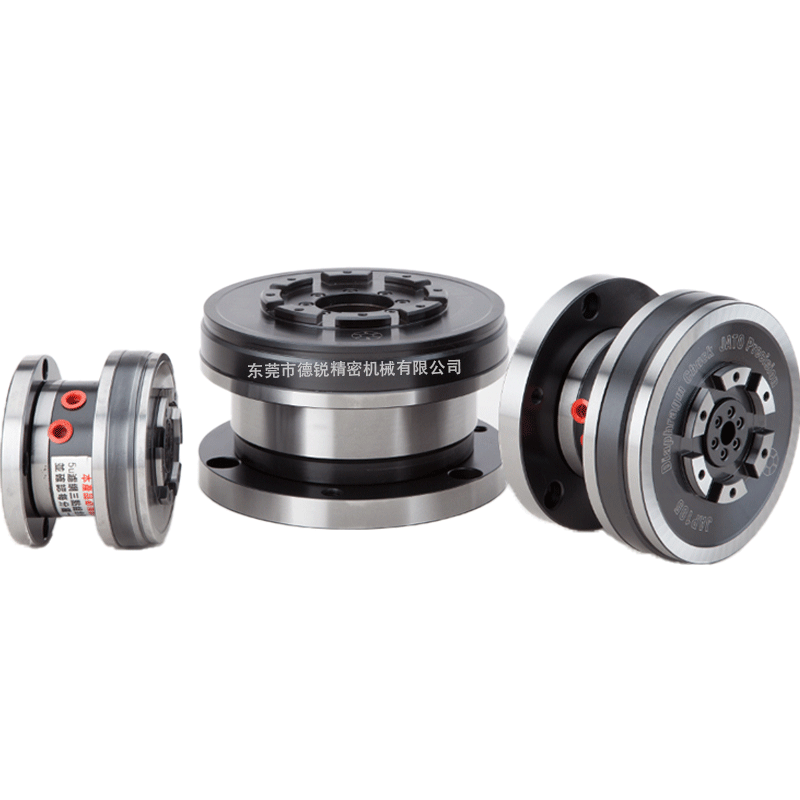

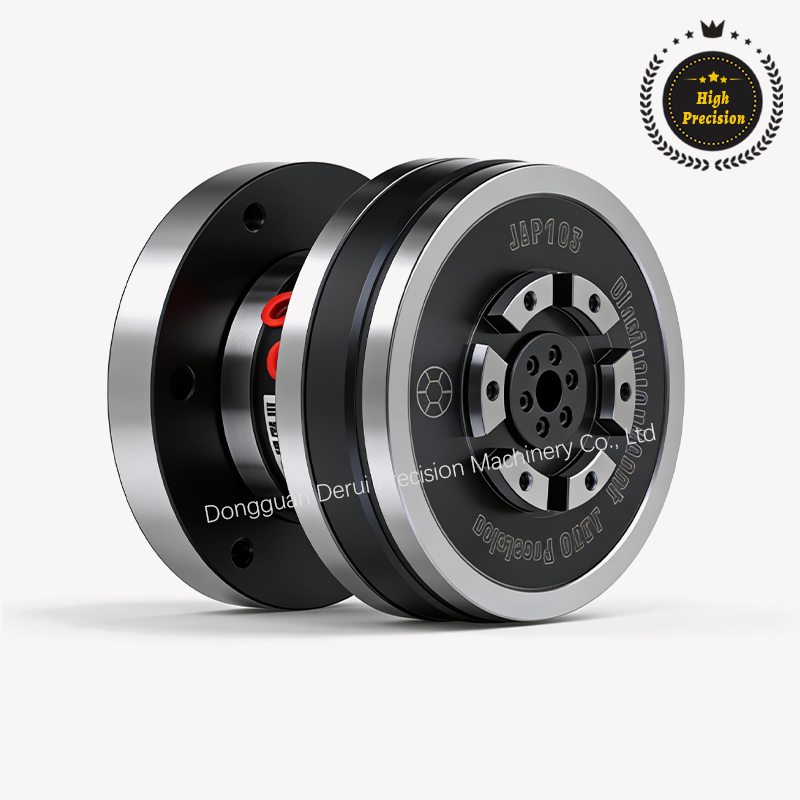

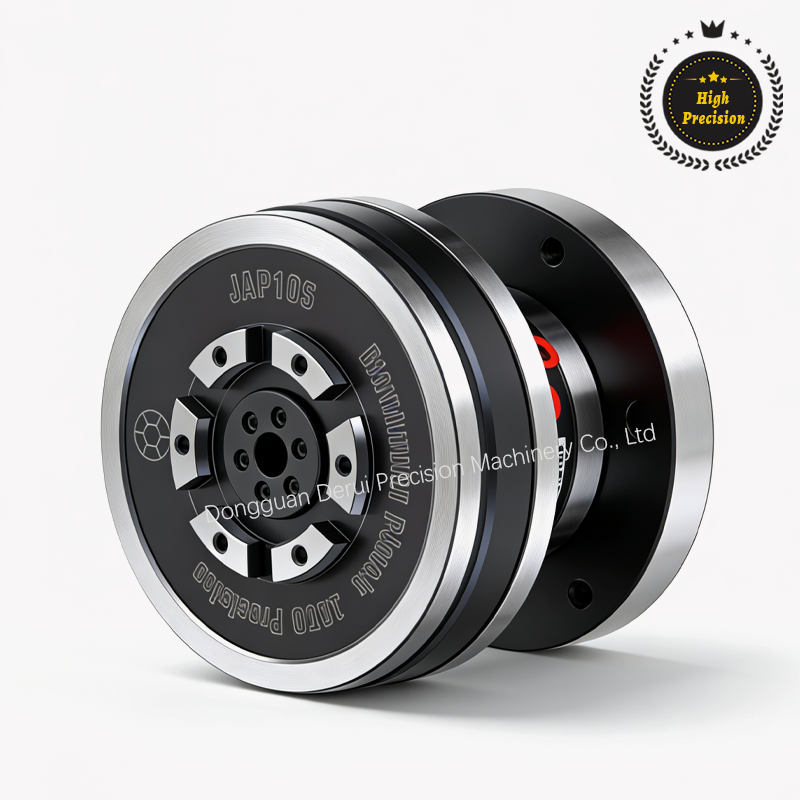

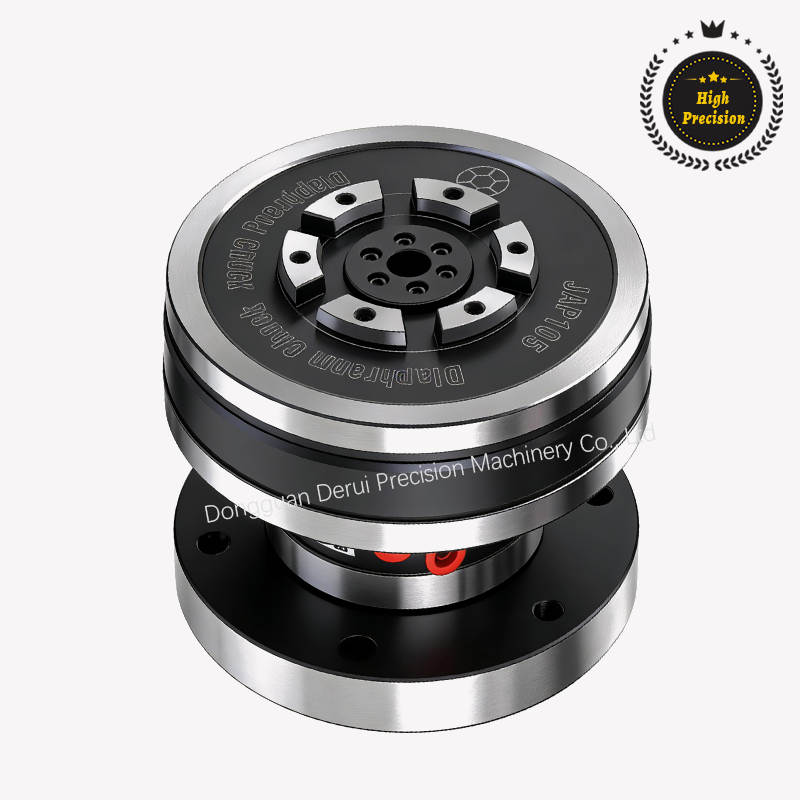

Rotary pneumatic diaphragm chuck
Product characteristics

  • Air cylinder intergrated, no rotary cylinderand draw bar required, Repeatability within 5um

    Center through hole design, allow to setair blow or stopper in axis way, Highly-sealed chuck

    body, helps protectcutting chips, dust or coolant fluid fromentering, Front-mount design make

    installation easy, Please use 5um filter in F.R.L units

Product advantages
This integrated diaphragm chuck requires no separate rotary cylinder or draw bar, offering exceptional 0.005mm clamping repeatability. Its center through-hole design supports air blow or stopper installation, while the highly sealed body protects against chips, dust, and coolant. The front-mount design ensures quick and easy installation.
Business Consulting
Plan

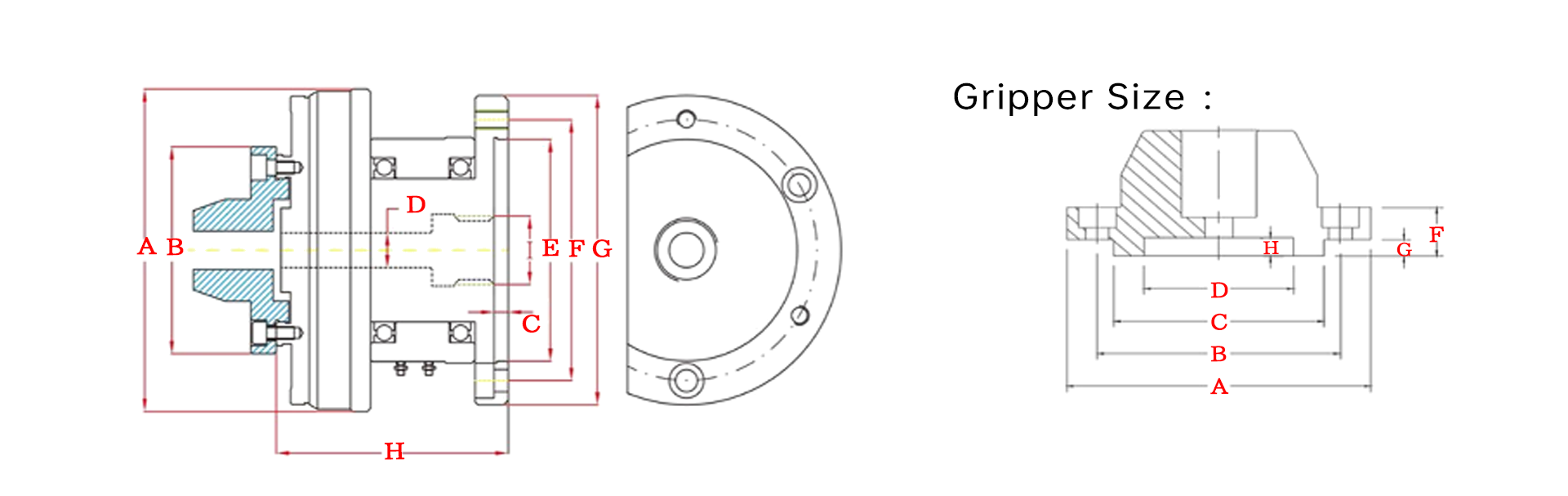

Specification and size
Related products

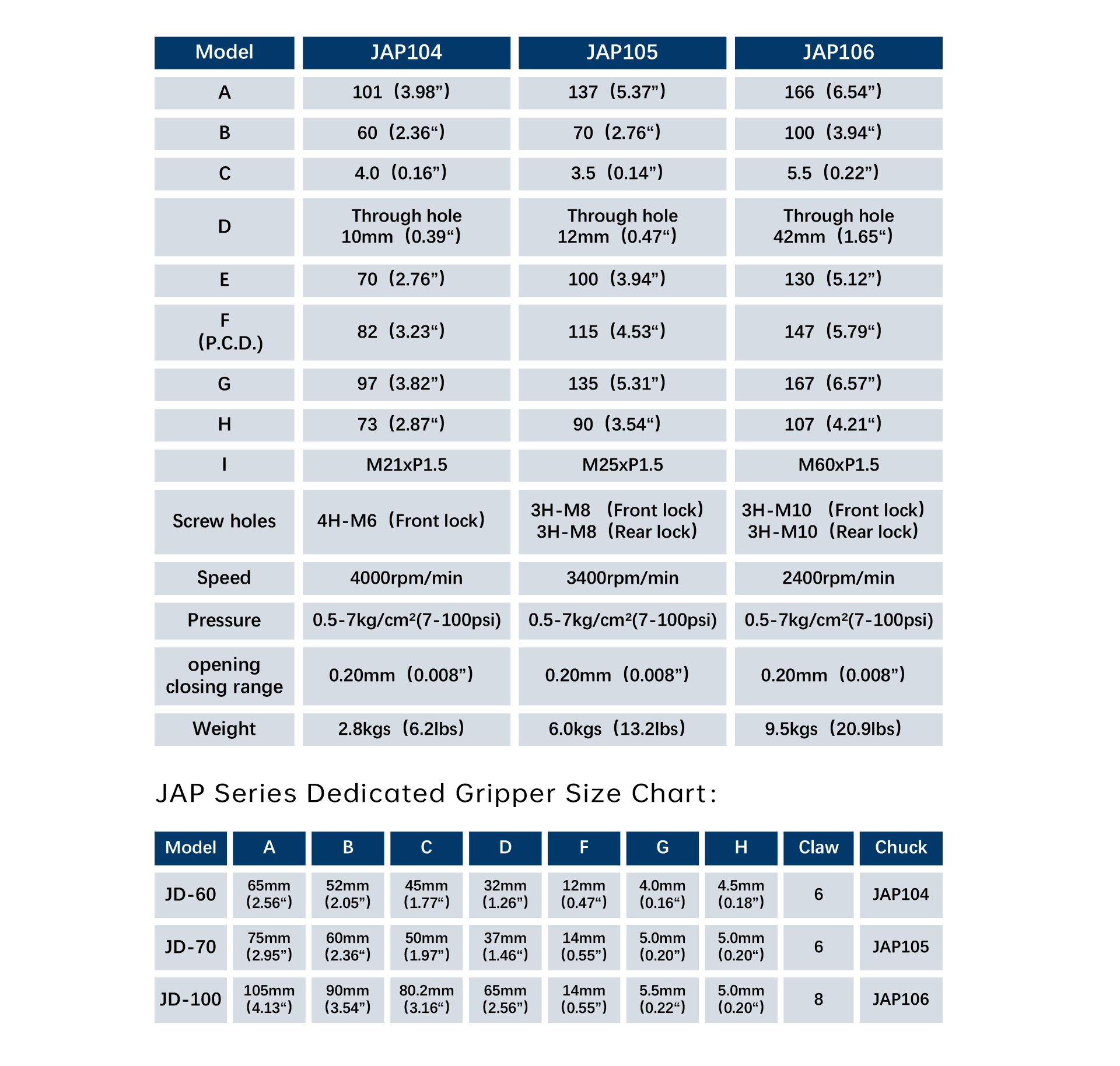

Specification
Three-dimensional model
