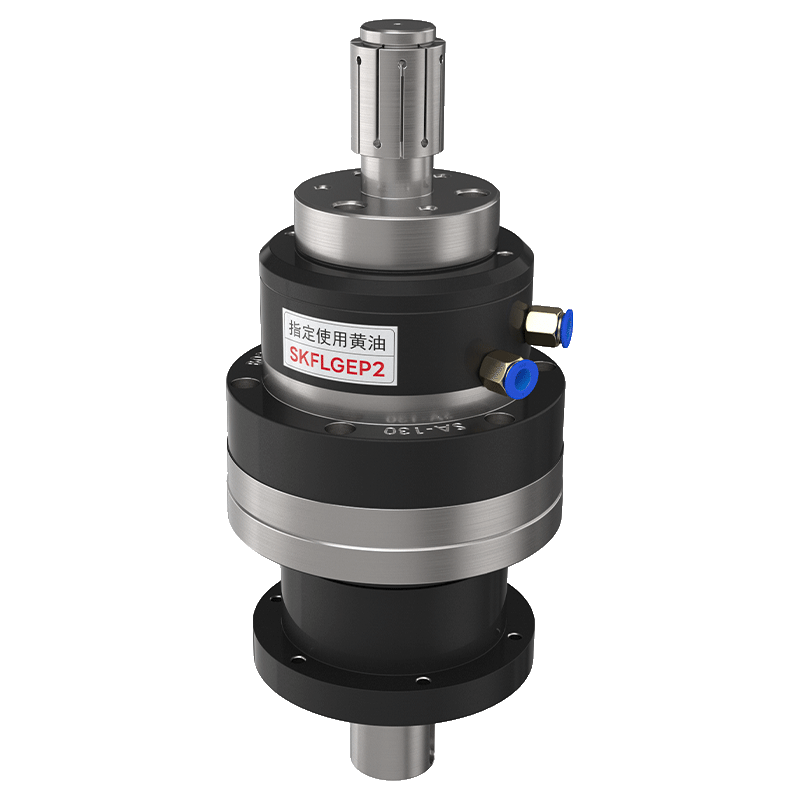

SA is paired with the DRS vertical internal expansion chuck spindle assembly.
The clamping accuracy can be selected within the range of 0.01mm to 0.002mm. The inner diameter collet can be customized according to the workpiece. There is no need for additional installation of a rotary cylinder.
GAL is paired with the S30 small high-speed spindle base.
High-precision clamping with an accuracy of 0.03mm. There is no displacement when pushing forward for clamping. Large through hole.

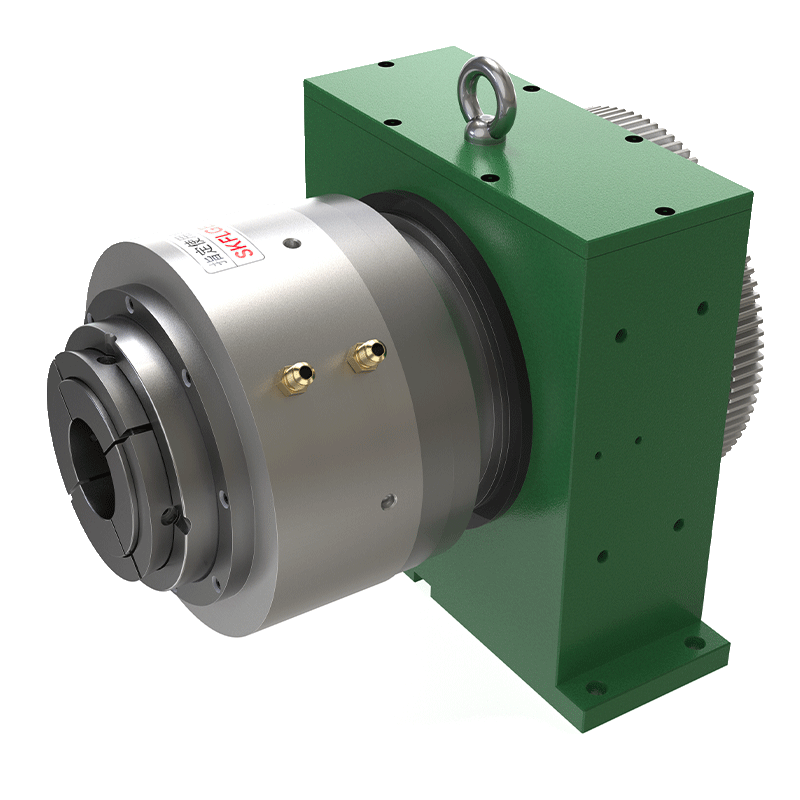

GAL-25 is paired with DR-25L spindle integration.
The clamping repeatability accuracy can be selected within the range of 0.01mm to 0.002mm. Both direct connection with the motor and driving by the synchronous pulley are available. Central through hole.

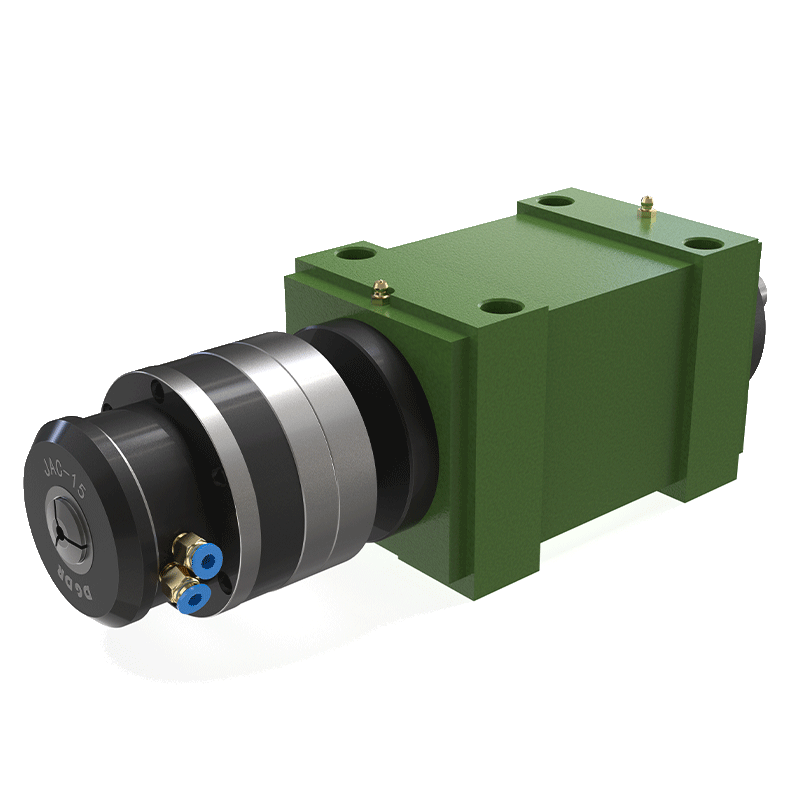

JAC+S Small High-speed Spindle
The clamping repeatability accuracy is within 0.03mm. The maximum diameter of the through hole is 65mm, and customization of larger through holes is supported.

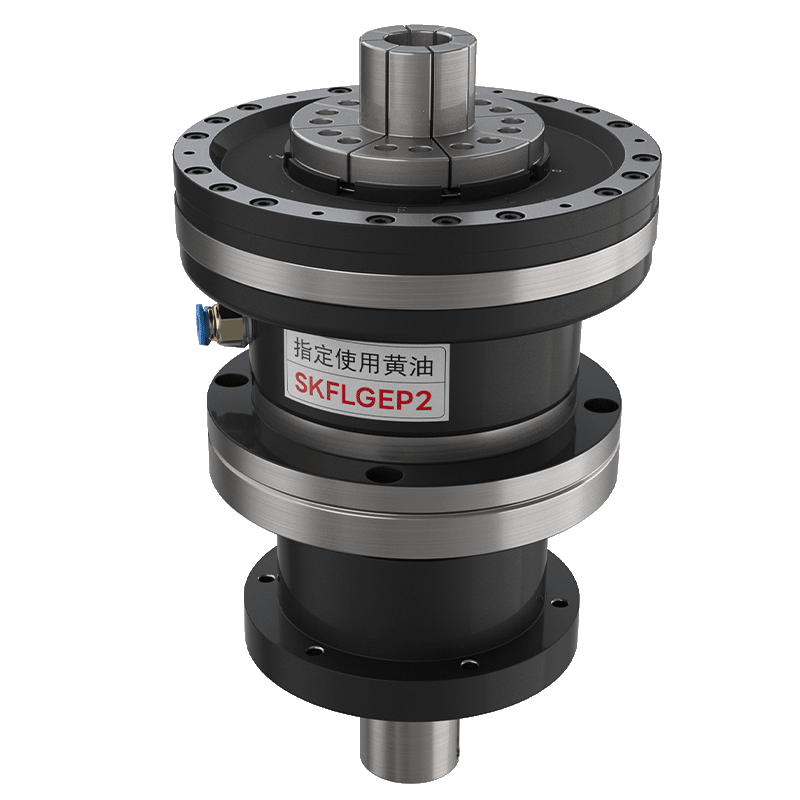

DRS High-precision Rotary Spindle Integration (Vertical Installation)
It is small in size and has a large through hole, with the maximum diameter of the through hole being 26mm. It has high precision, and the spindle rotation accuracy is within 0.005mm. It has a high rotational speed, and the maximum rotational speed i

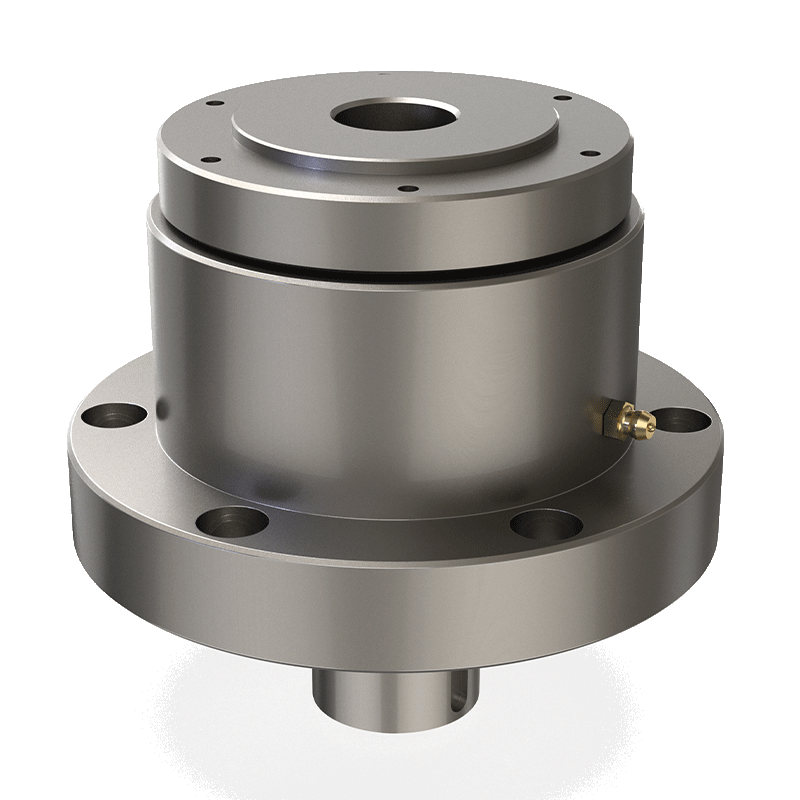

GD High-precision Spindle Integration - Vertical Installation
The clamping repeatability accuracy is within 0.005mm. The maximum rotational speed is 3,500 revolutions per minute.
DRS High-precision Rotary Spindle Integration (Vertical Installation)
It has a large through hole, with the maximum diameter of the through hole being 46mm. It is driven to rotate by being connected to a motor through synchronous pulley or gear transmission, which is convenient and simple.
Front-mounted Hollow Rotary Spindle Chuck Holder - External-mounted Type
The opening stroke is 2.5mm, and a 50mm opening stroke can be customized. It has a large through hole and can hold a maximum diameter of 500mm.
DAM Small Pneumatic Spindle Integration
It is small in size and can hold a maximum diameter of 25mm for the through hole. It has a high rotational speed, with the maximum rotational speed being 3,500 revolutions per minute. The clamping accuracy is within 0.03mm.

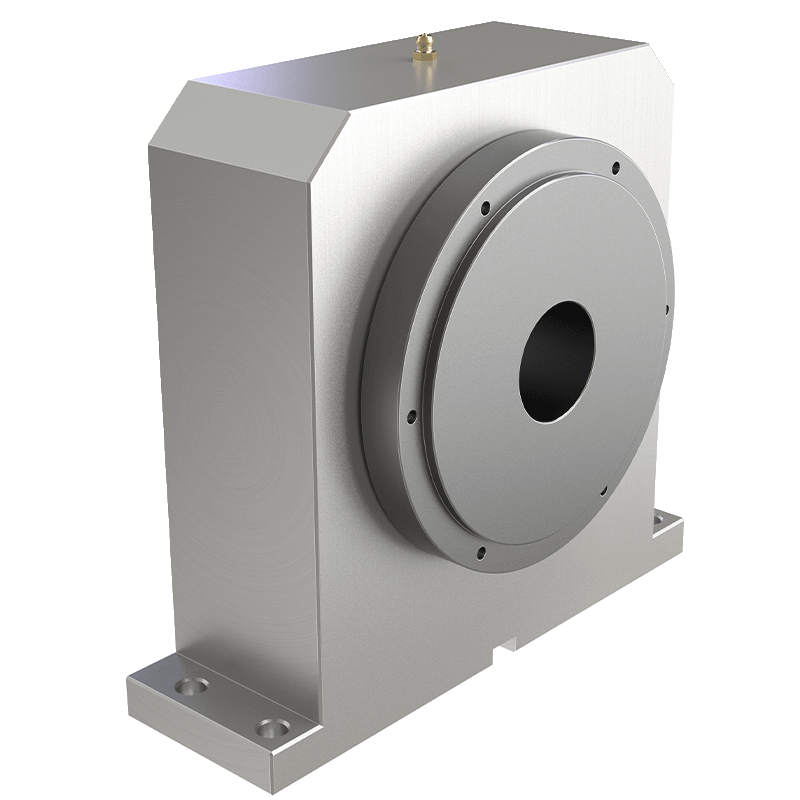

DR-L High-precision Rotary Spindle Integration (Horizontal Installation)
It features high precision, with the spindle rotation accuracy within 0.005mm. It has a high rotational speed, and the maximum rotational speed is 3,500 revolutions per minute. It has a large through hole, and the maximum diameter of the through hole

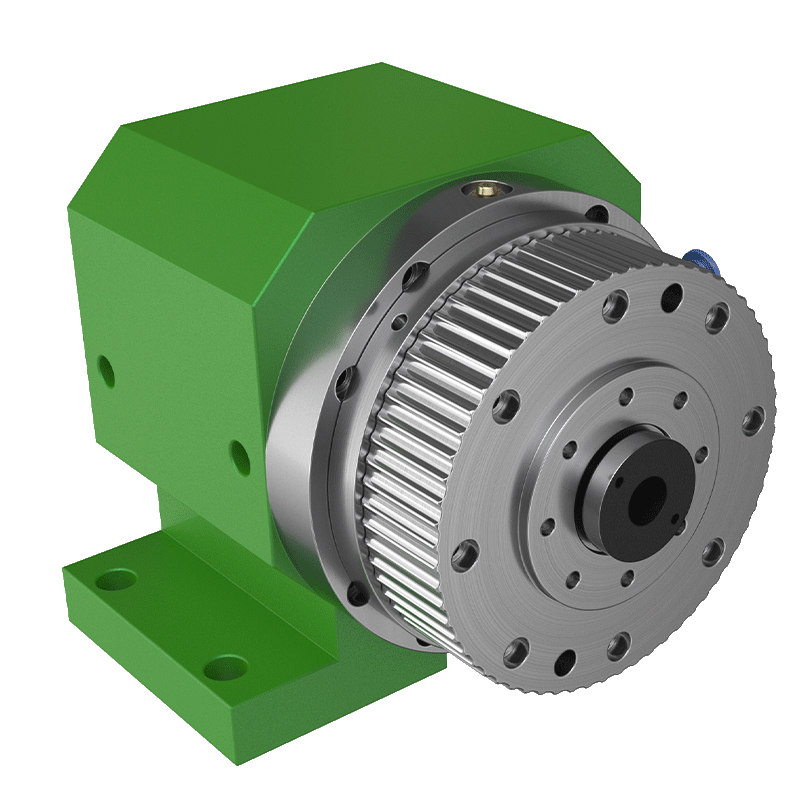

DR High-precision Rotary Spindle Integration (Horizontal Installation)
It is small in size but has a large through hole, with the maximum diameter of the through hole being 68mm. It features high precision, and the spindle rotation accuracy is within 0.005mm.
