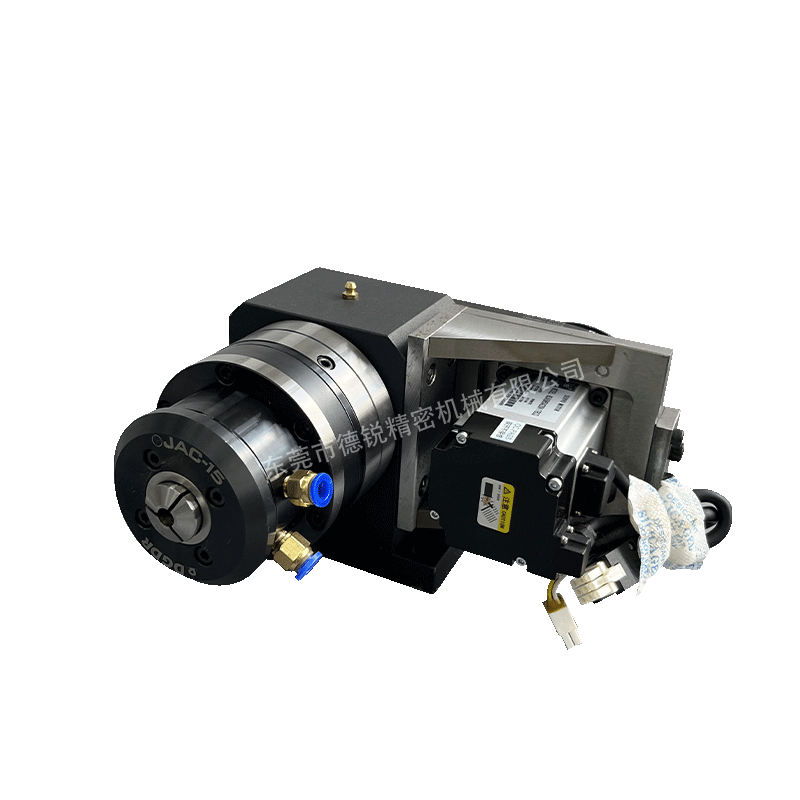

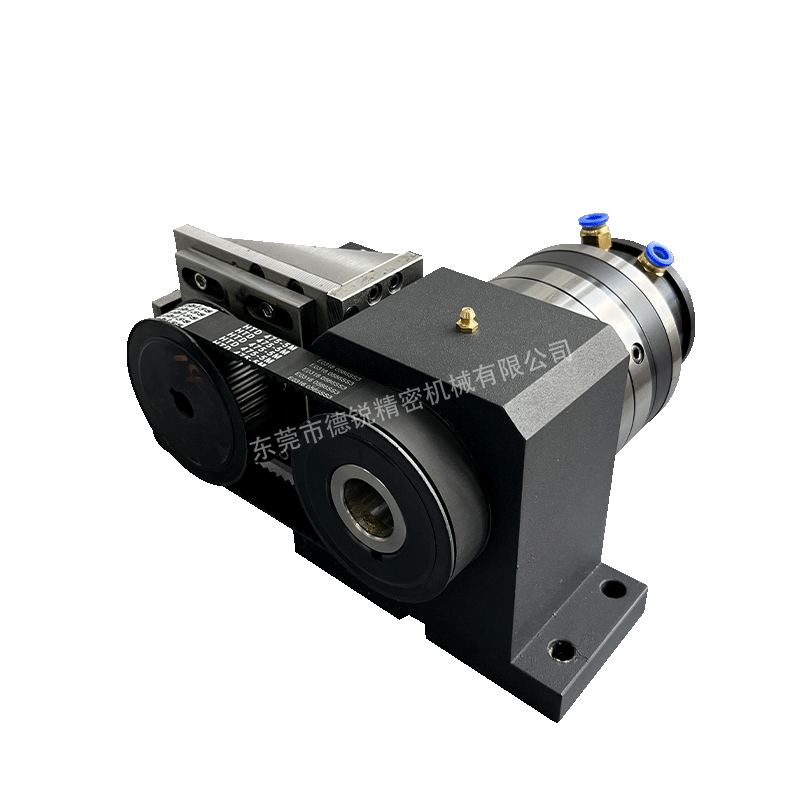

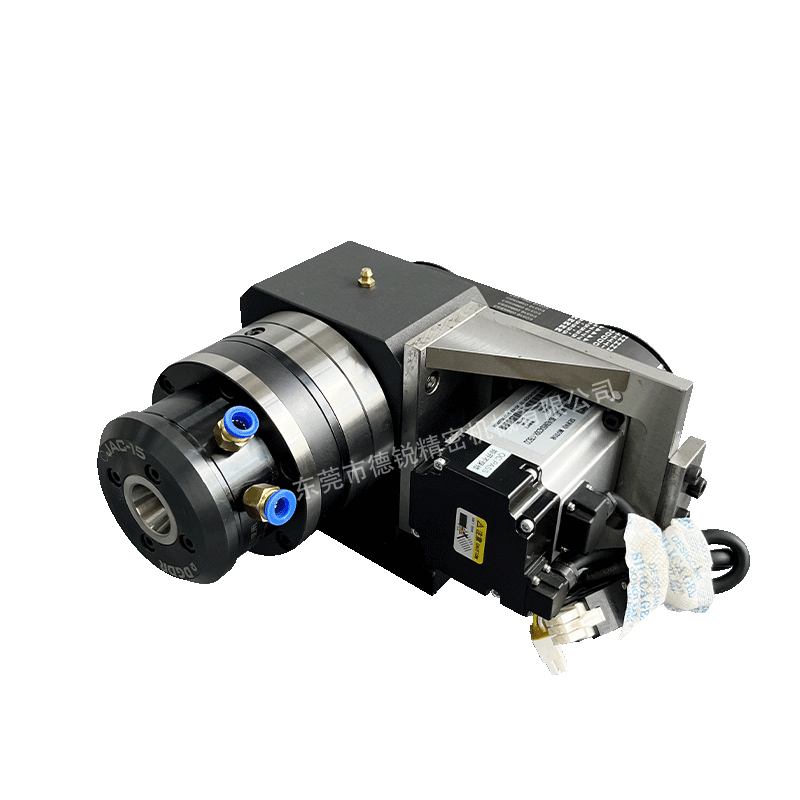

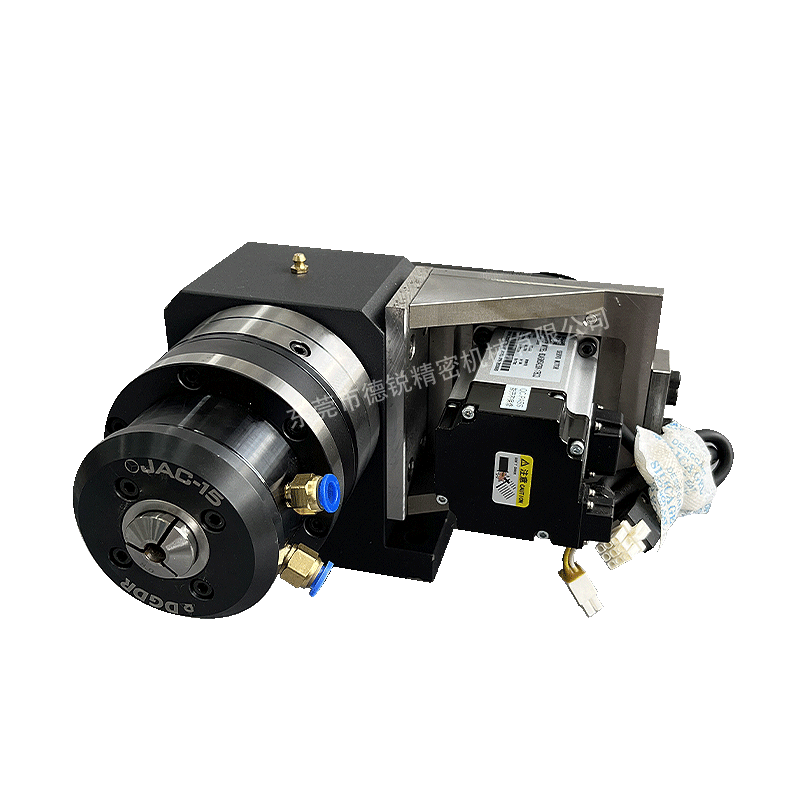

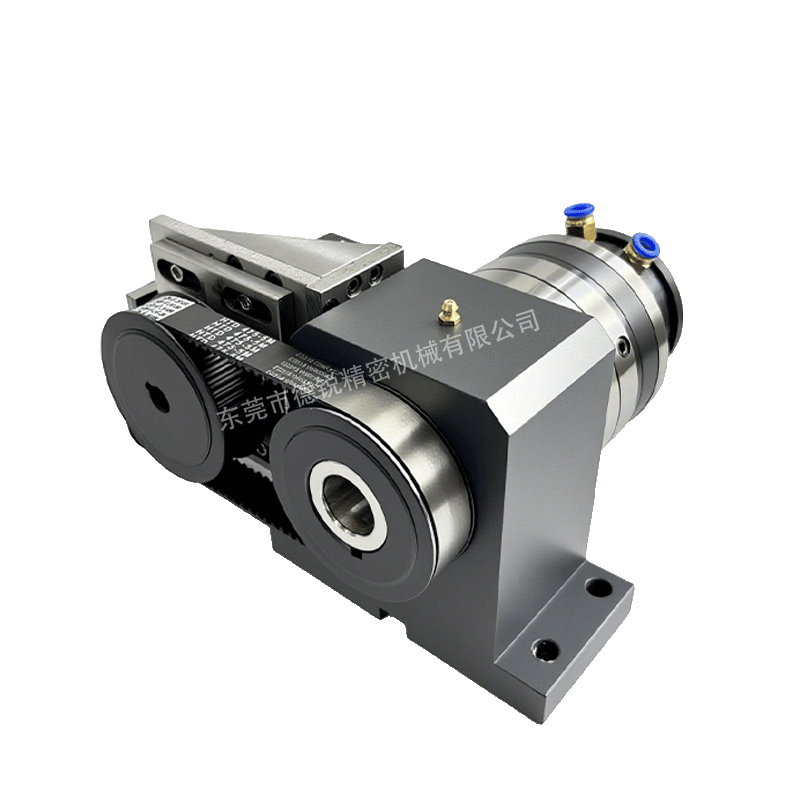

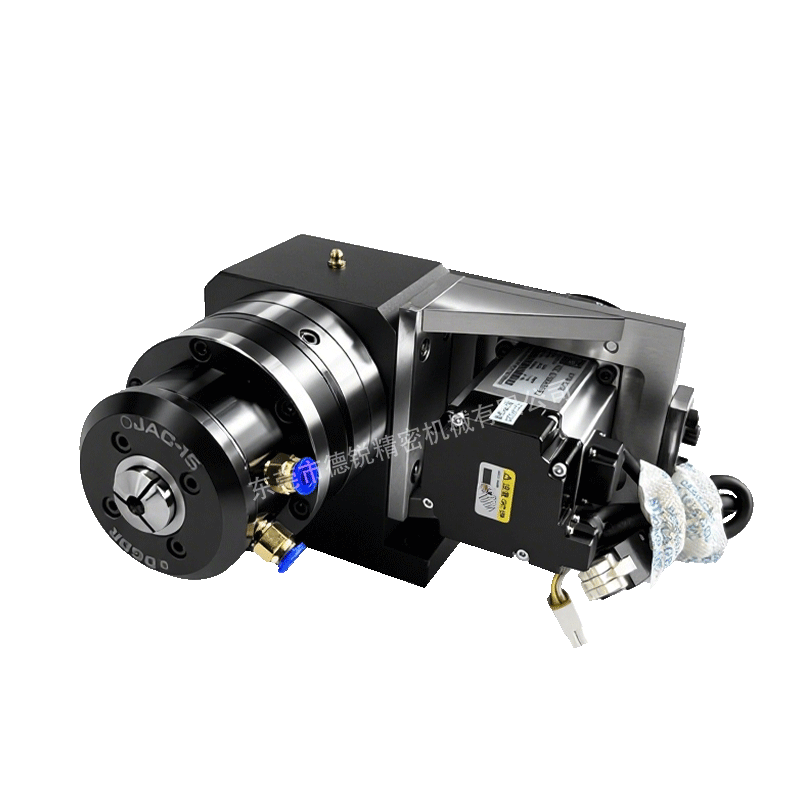

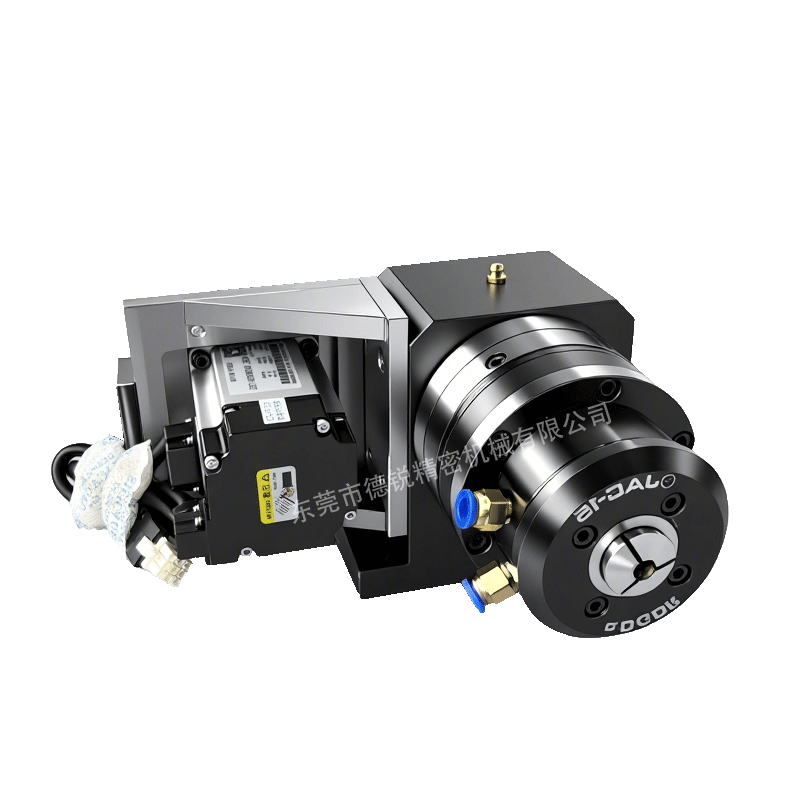

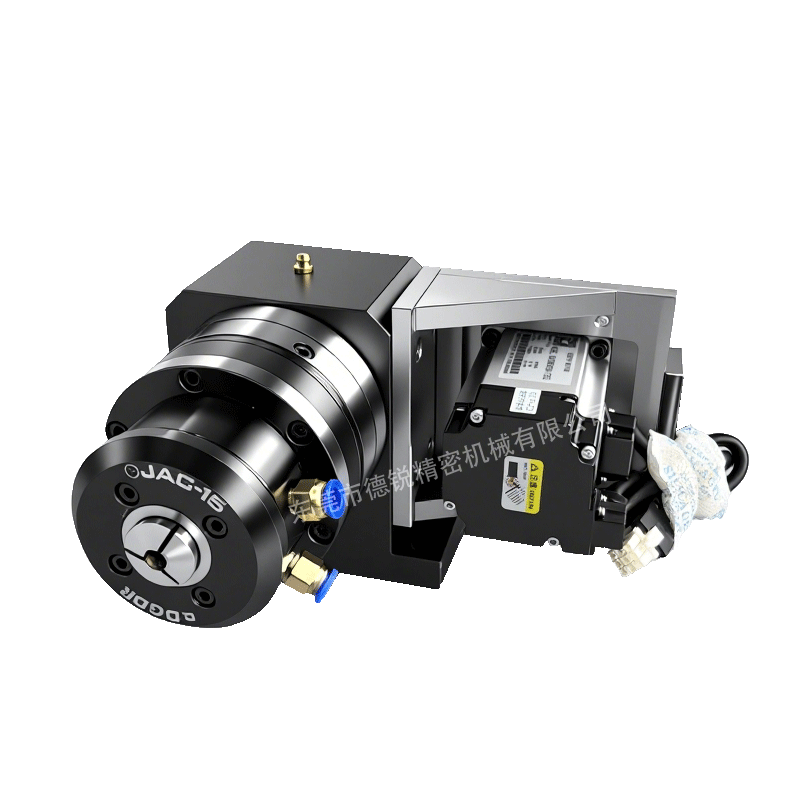

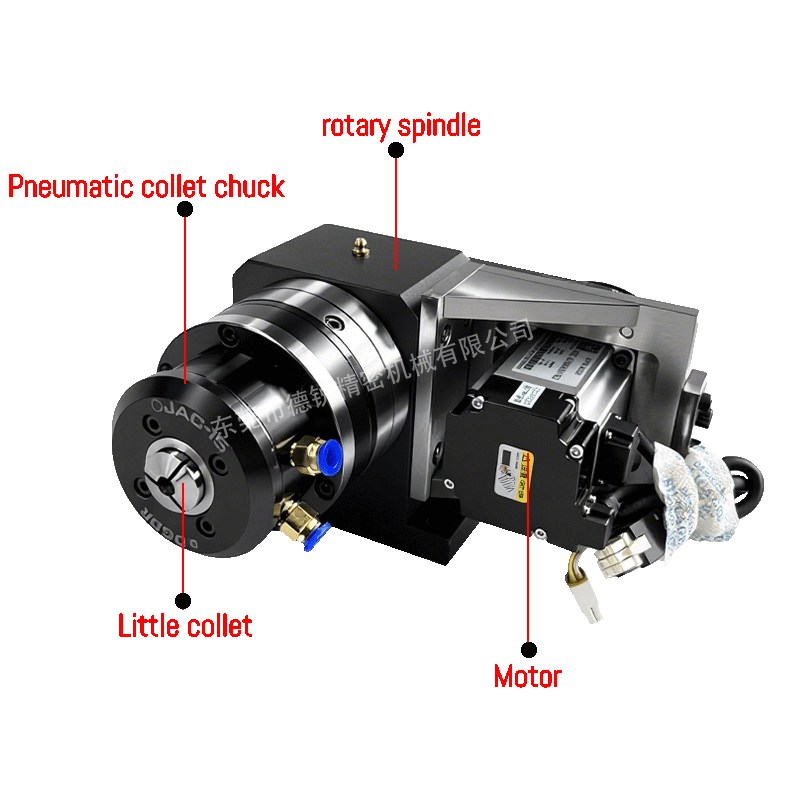

JAC-15 is paired with the DR-25 high-precision spindle integration.
Product characteristics
The chuck body is made of steel.There is a built-in rotary cylinder, eliminating the need for additional installation of a rotary cylinder (oil cylinder).The maximum diameter of the through hole in the JAC series is 40mm.The body has an accuracy of 0.01mm, and the clamping repeatability accuracy is within 0.025mm.The maximum rotational speed is 3,500 revolutions per minute.It pushes forward to clamp the workpiece, without getting jammed or having displacement.The chuck has airtight, dustproof and waterproof functions (under the inflated state).It is widely used in automated equipment such as precision lathes, grinding machines, laser cutting machines and robots.
Product advantages
Customization is supported.
One-year quality warranty.
Made in Taiwan, China.

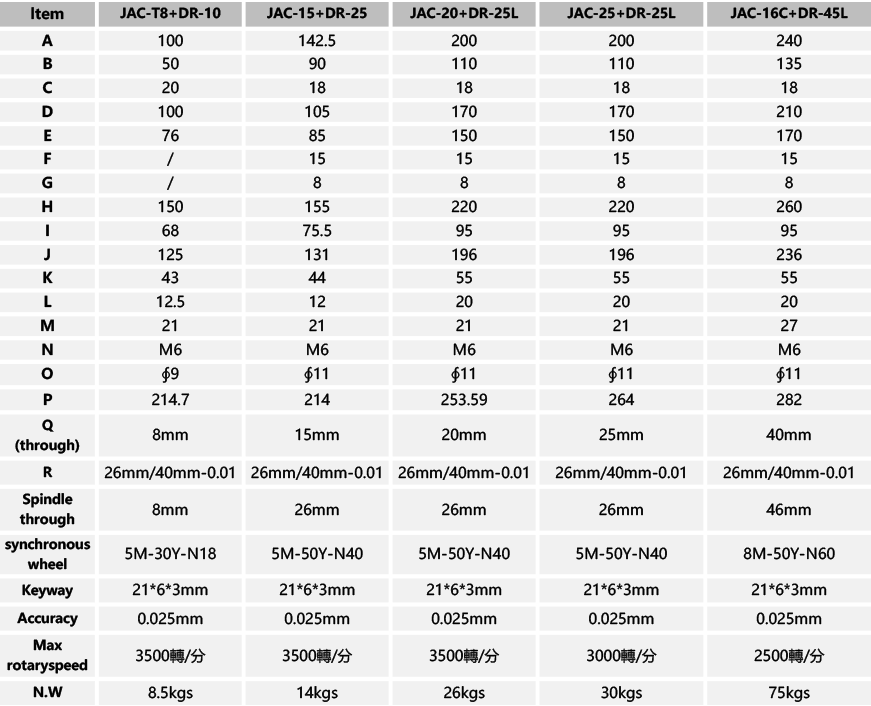

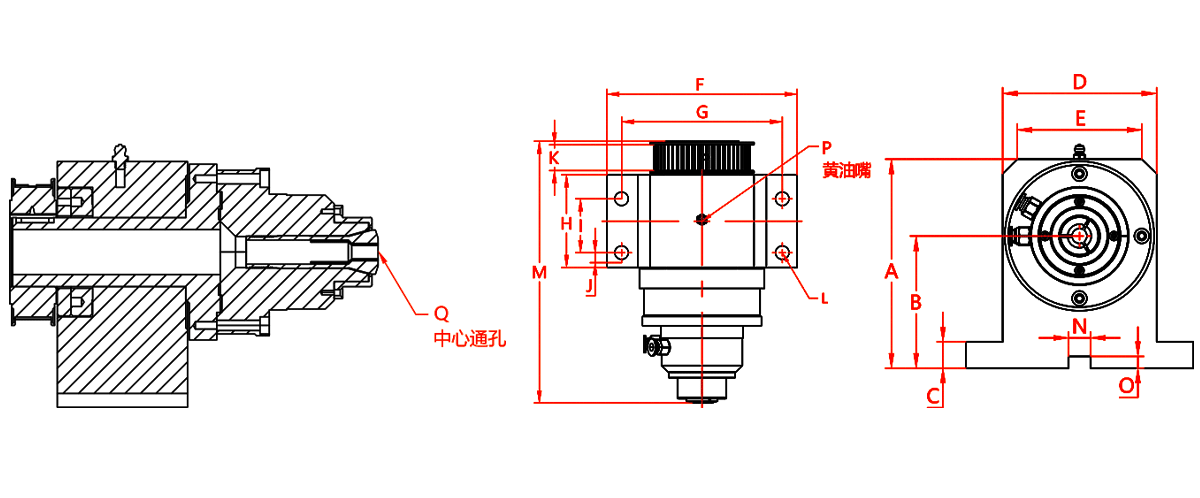

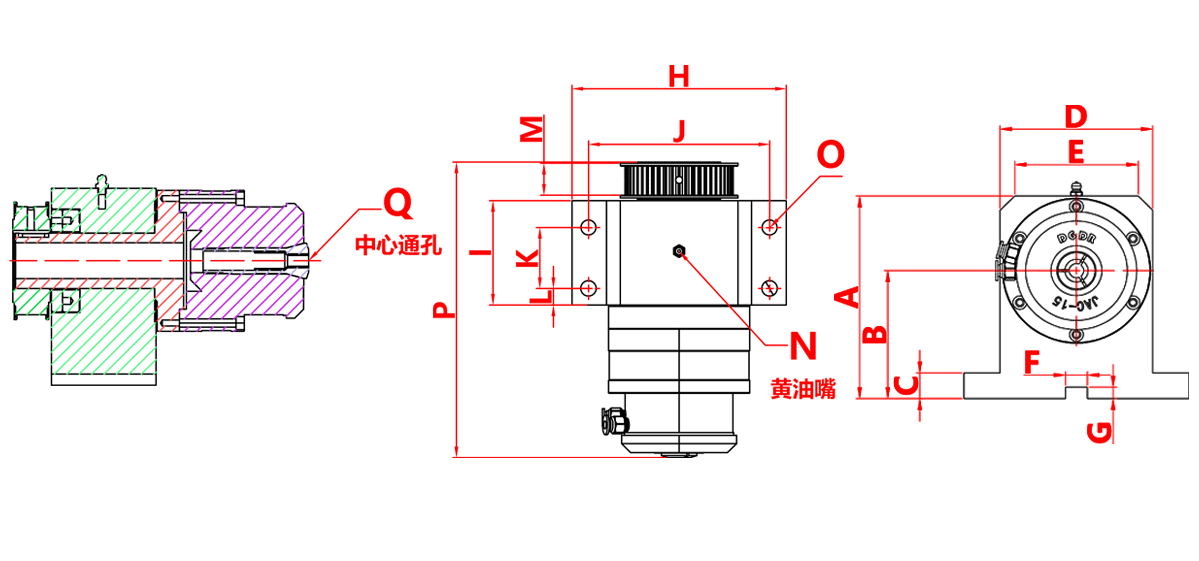

Specifications dimensions drawing 2
