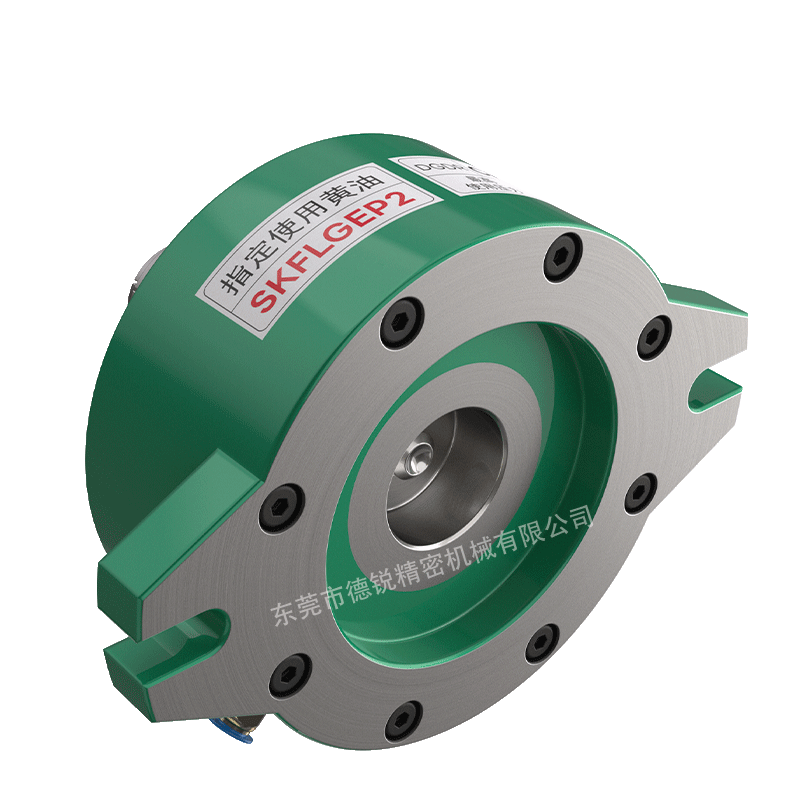

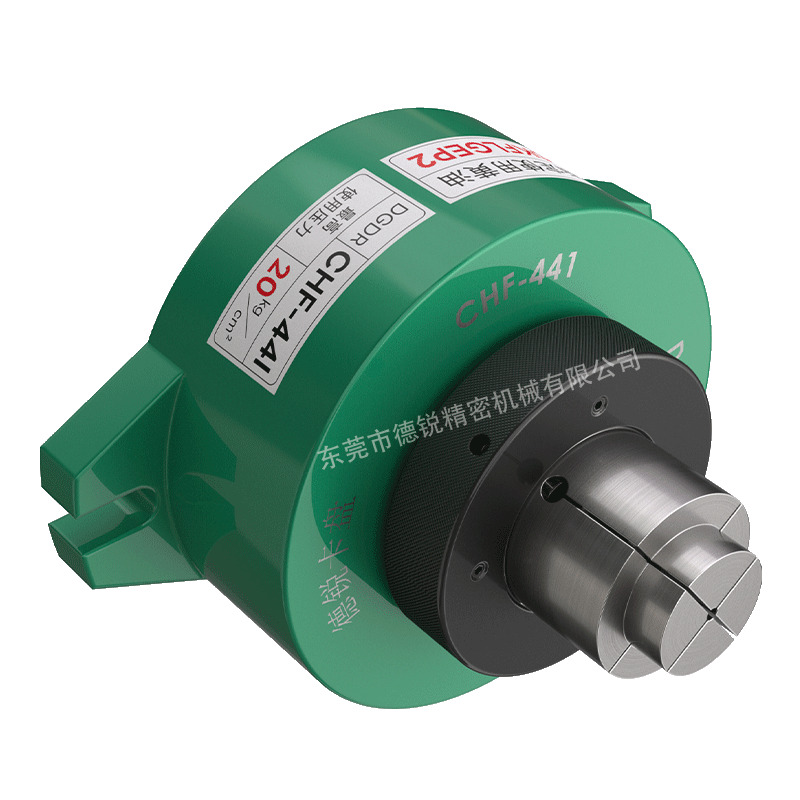

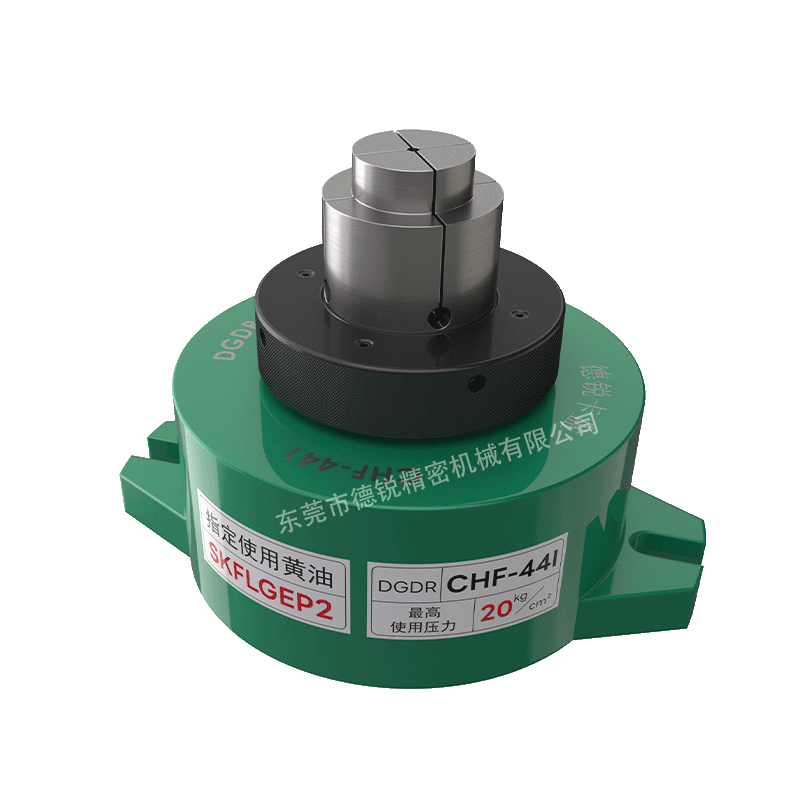

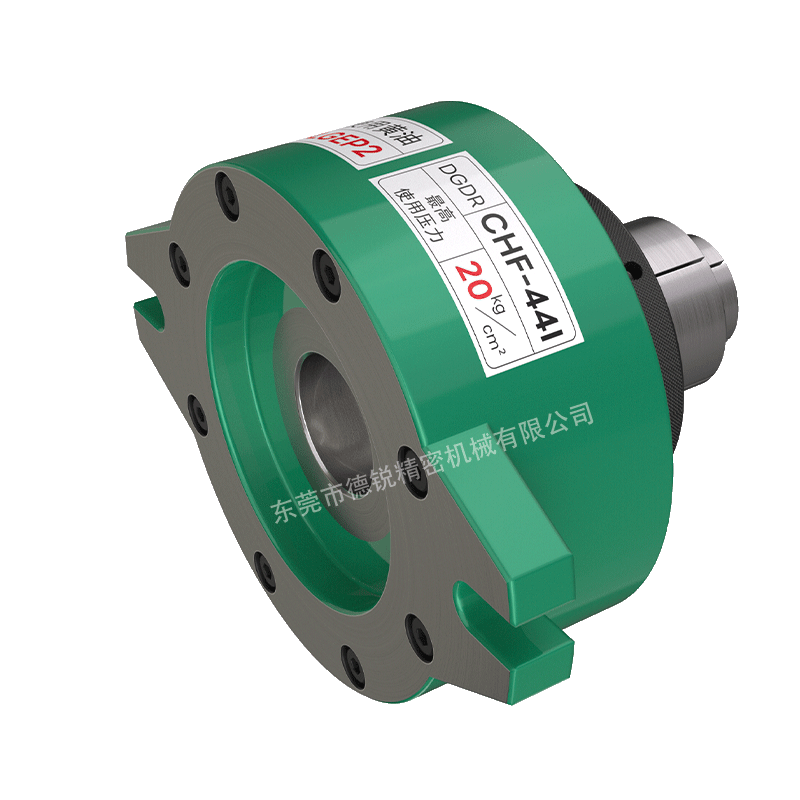

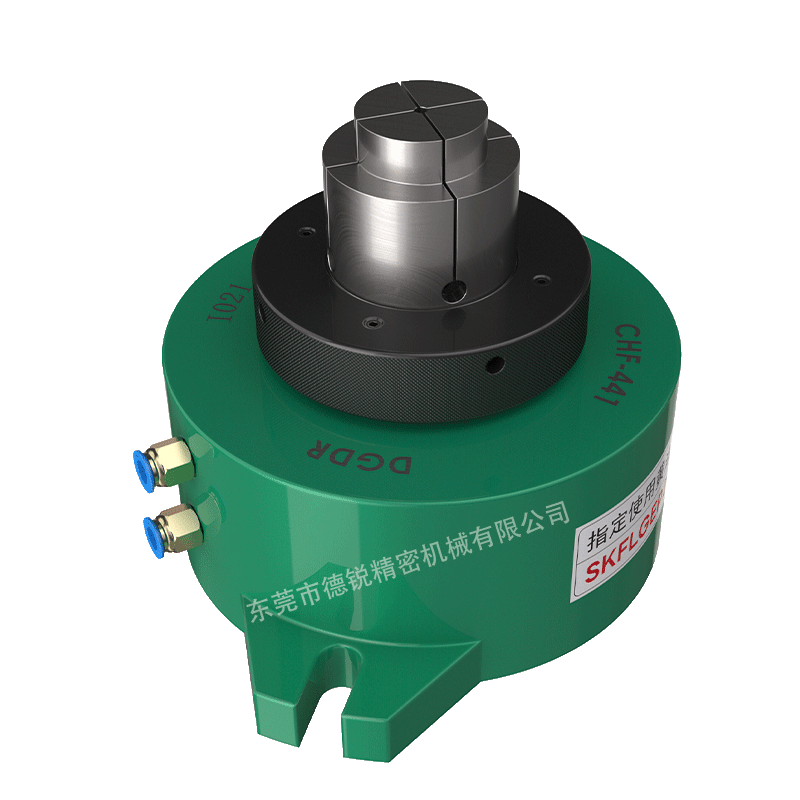

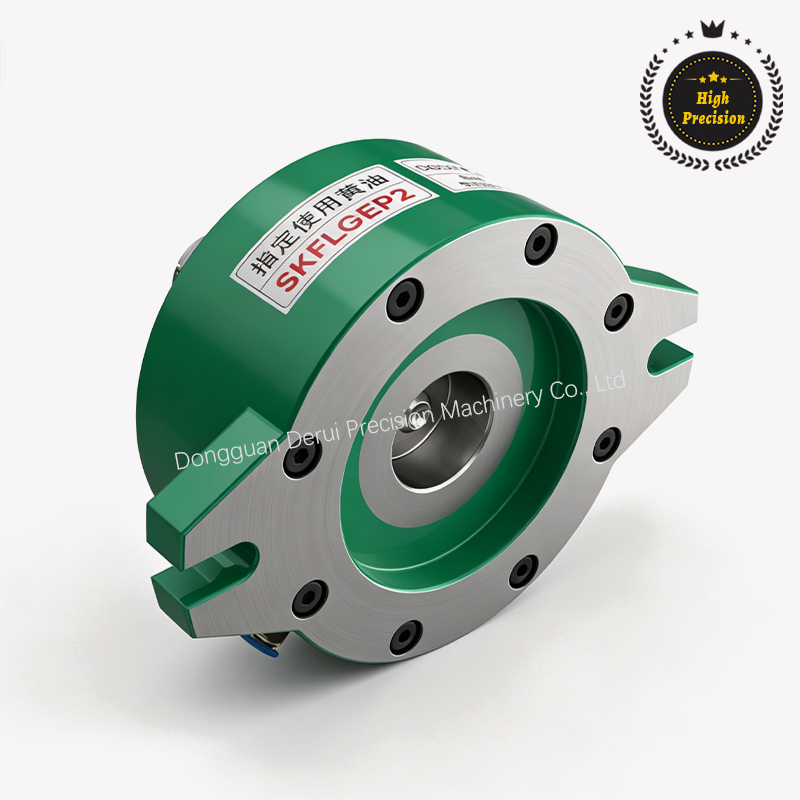

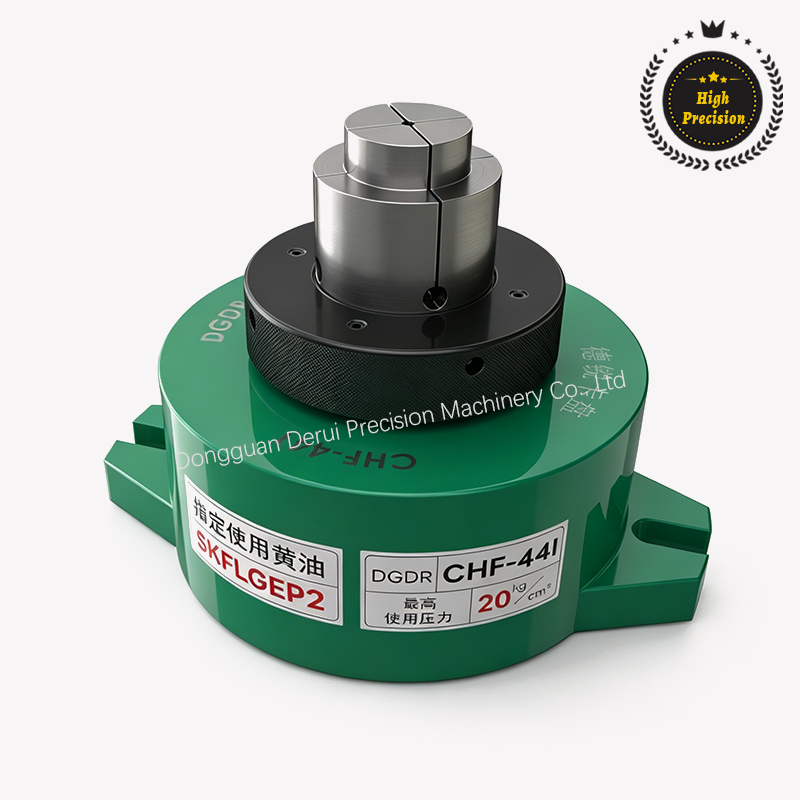

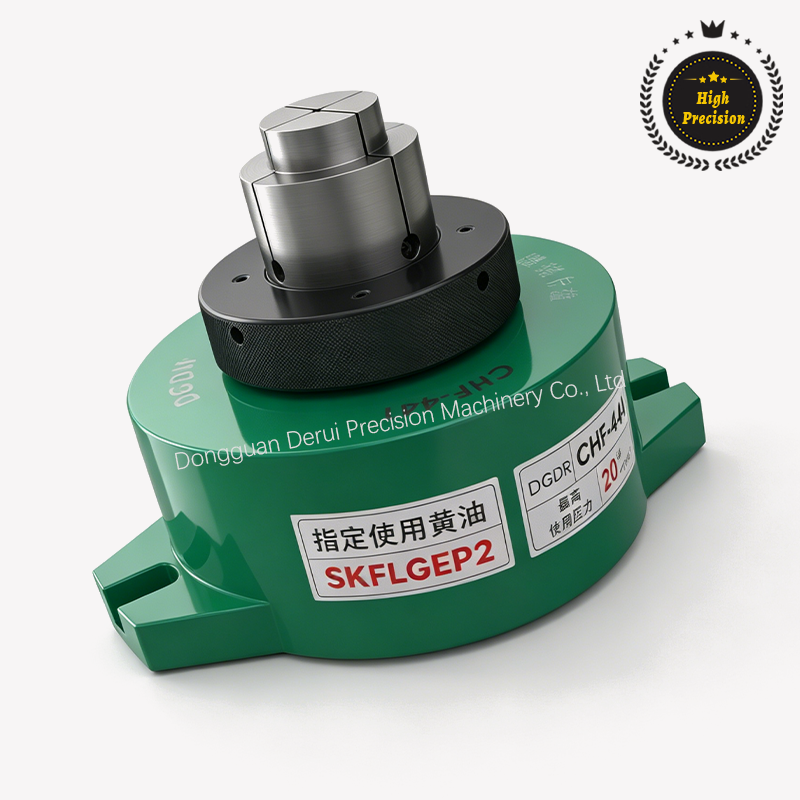

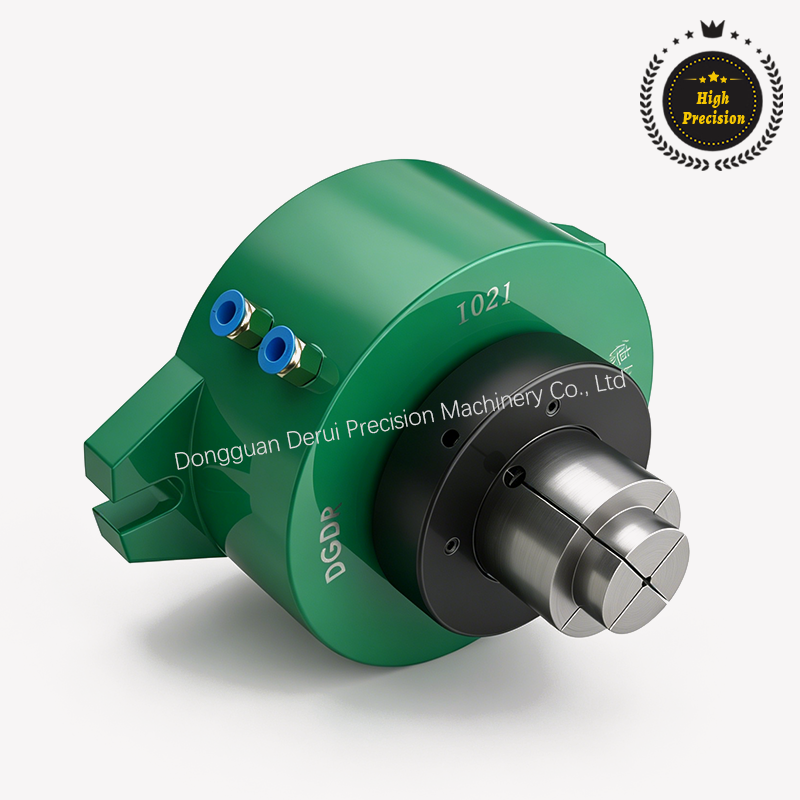

Fixed Internal Expansion Chuck

Product characteristics

Front-mounted cylinder; no installation required
Changing Internal Grippers for Different Workpieces
Repeat Clamping Accuracy: 0.03 mm
End-face locating hole; locating clamping length
One-to-one custom inner diameter clamp
Suitable for CNC machining centers drilling and milling tables, etc

Product advantages

Featuring 0.03mm repeat clamping accuracy, interchangeable internal grippers, and customizable inner diameter clamping, this front-mounted, cylinder-free chuck is ideal for CNC machining centers and drilling/milling applications.

Business Consulting

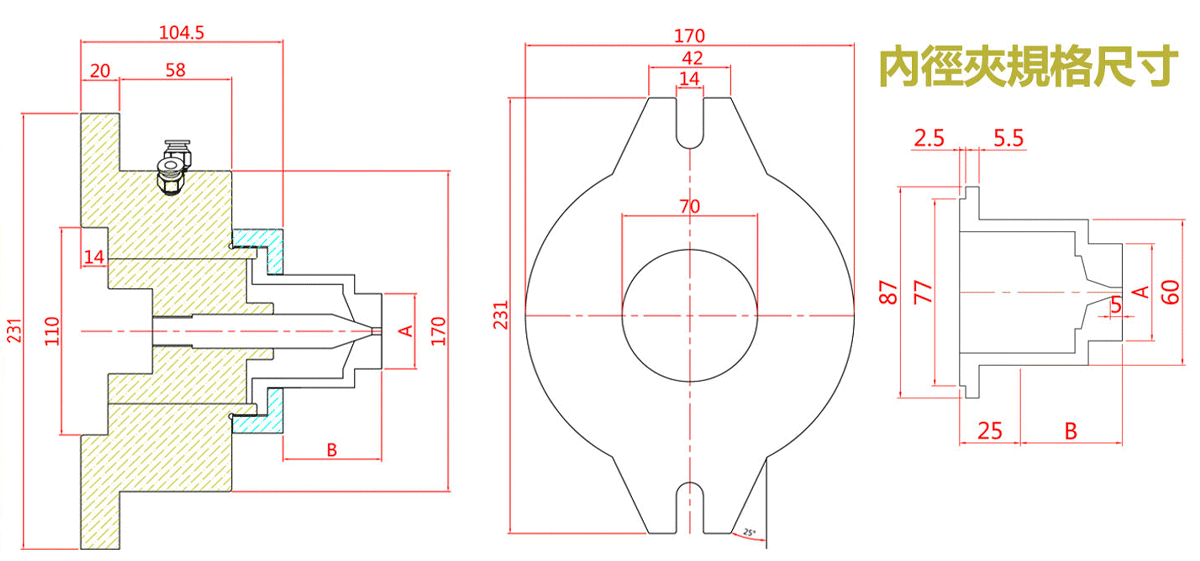

Plan

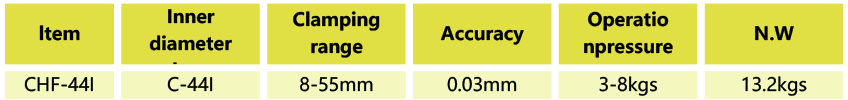

Specification and size
