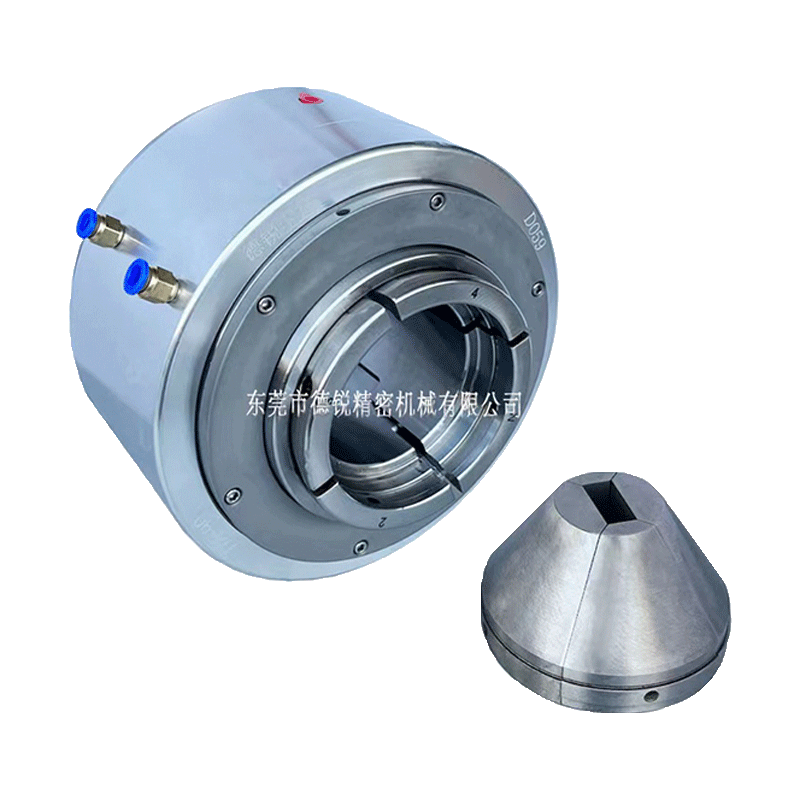

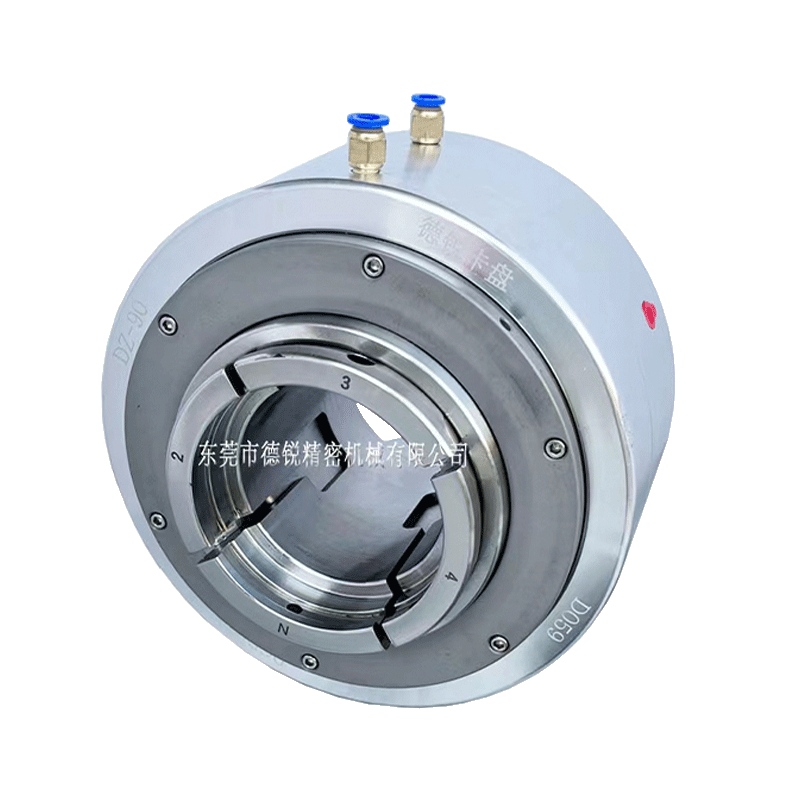

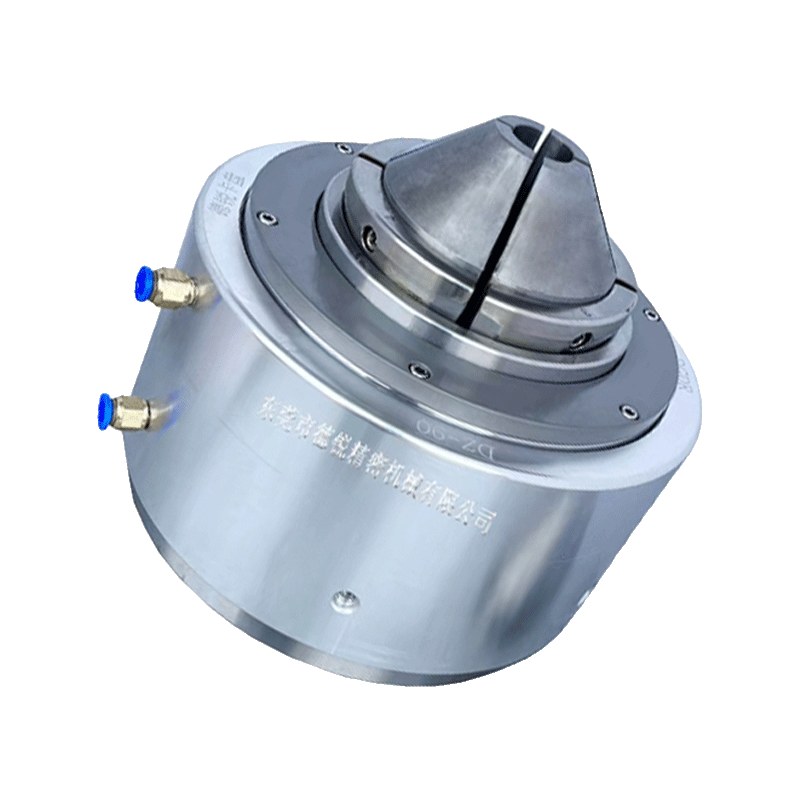

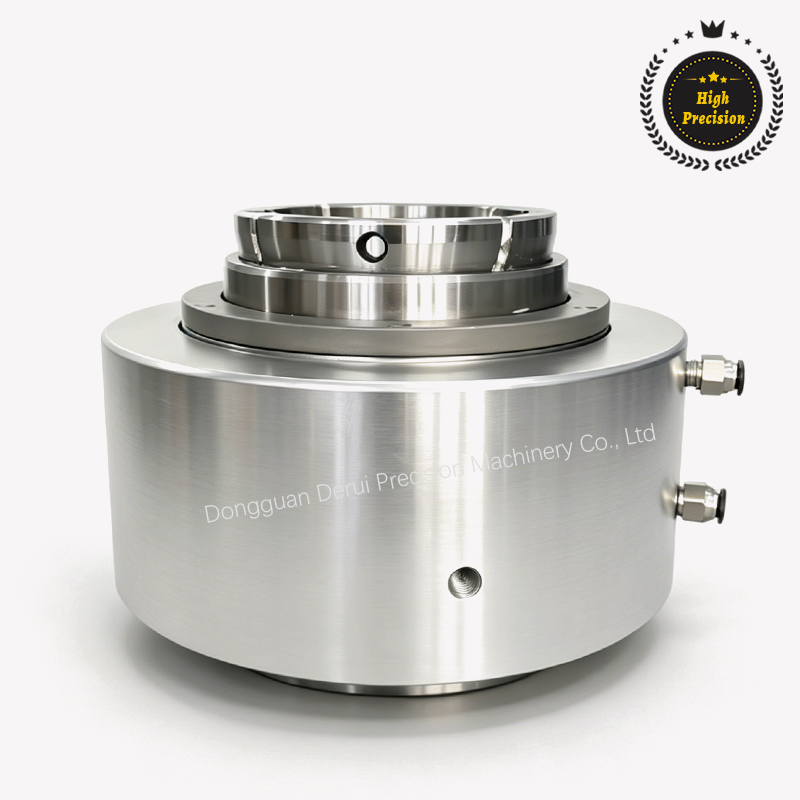

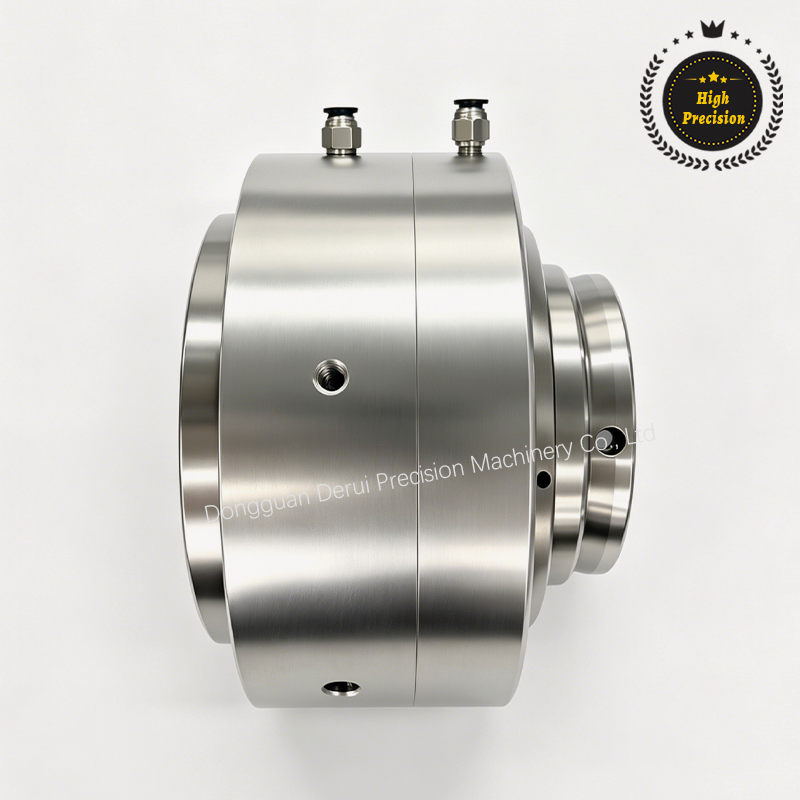

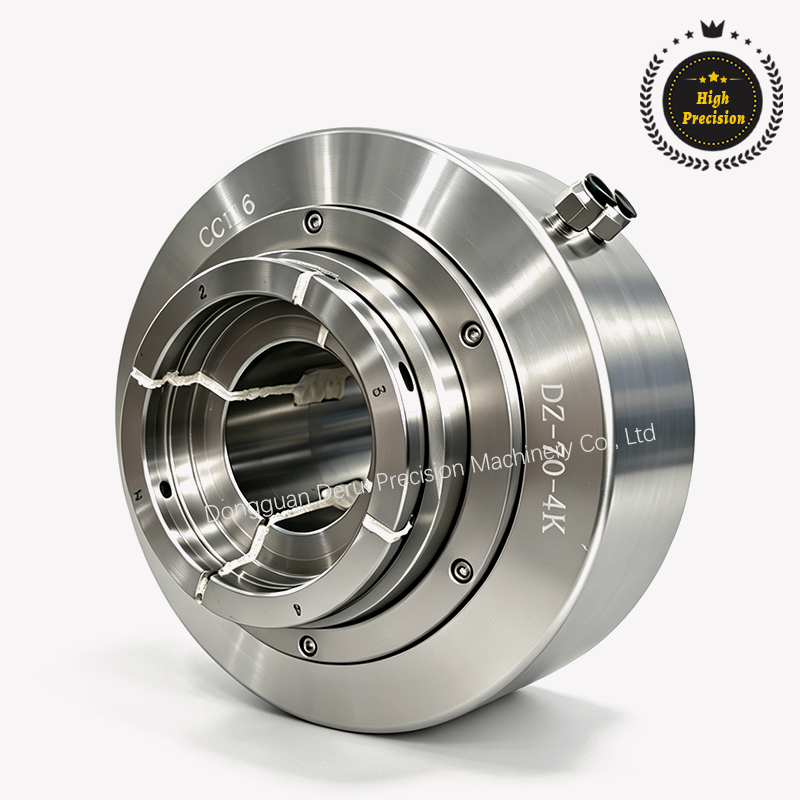

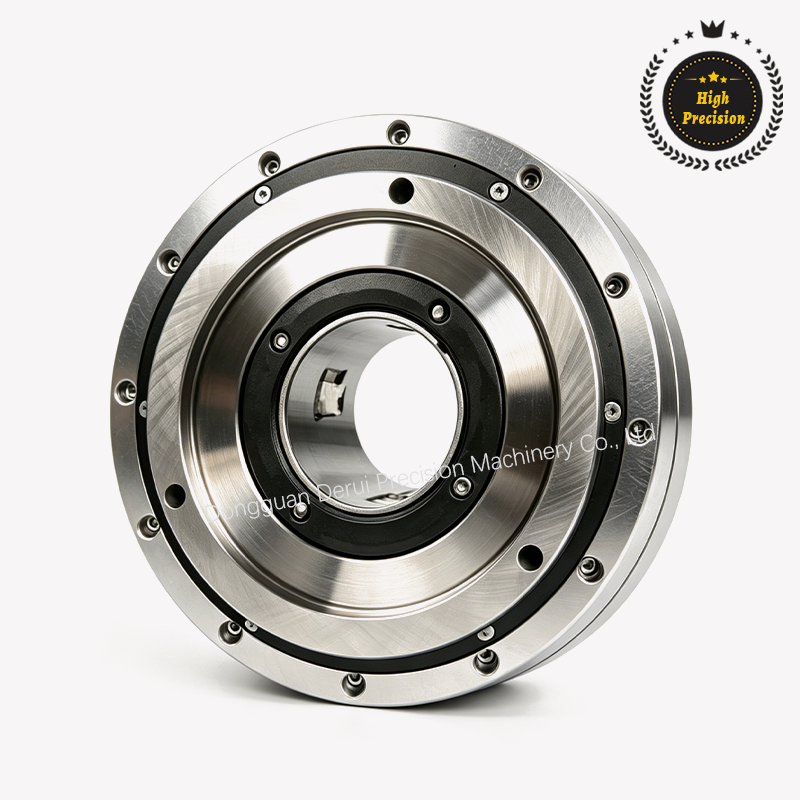

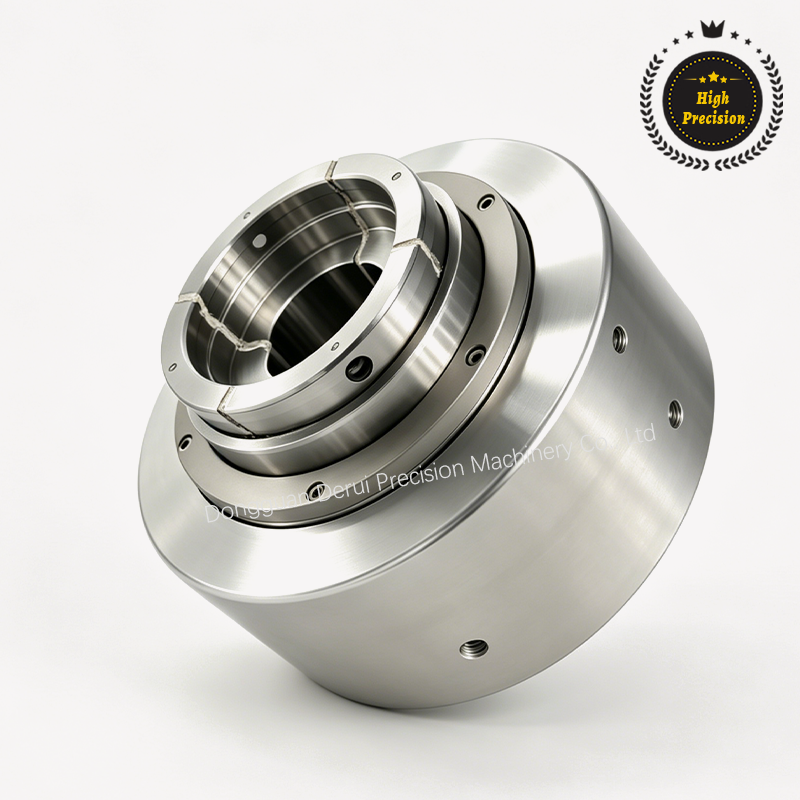

Laser Cutting Rotary Chuck
Product characteristics

  • A rotary chuck specifically developed for laser tube cutting machines.The through-hole

    diameter is customizable up to 800 mm, with an operating air pressure range of 3–15 kg/cm²

    Auxiliary jaws can be interchanged to accommodate different workpieces,and the

    jaw opening stroke is customizable from 2.5 mm to 100 mm.Suitable for processing

    various tube profiles, including square round, oval, and other irregular shapes


Product advantages
Specifically designed for laser tube cutting machines, this chuck features customizable through-hole diameter (up to 800mm) and jaw stroke (2.5–100mm), interchangeable jaws for square, round, oval and irregular tubes, and reliable performance under 3–15 kg/cm² air pressure.

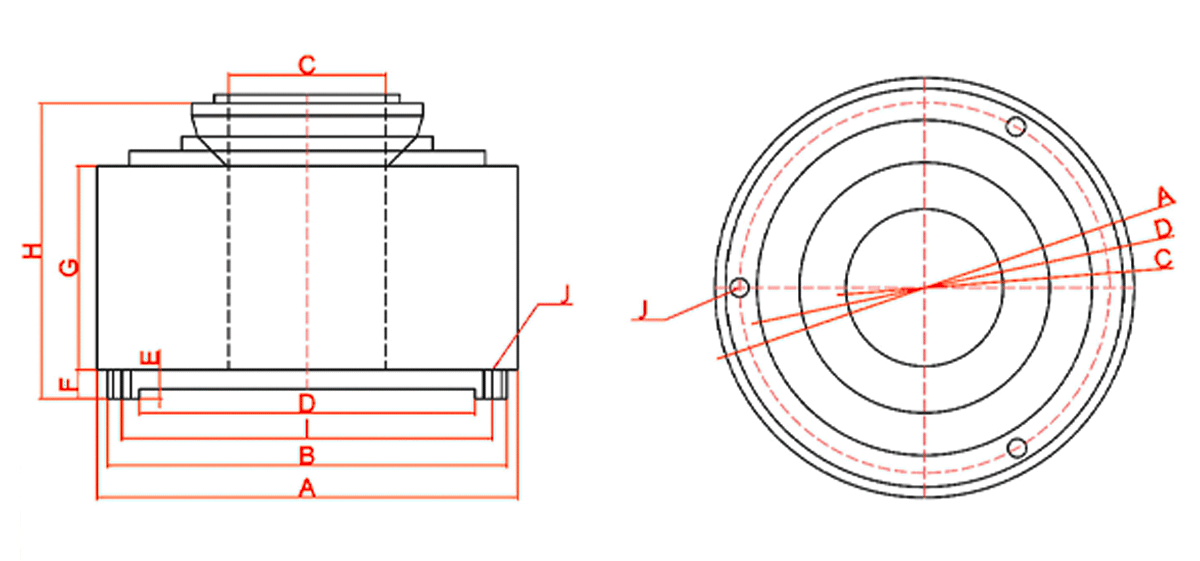

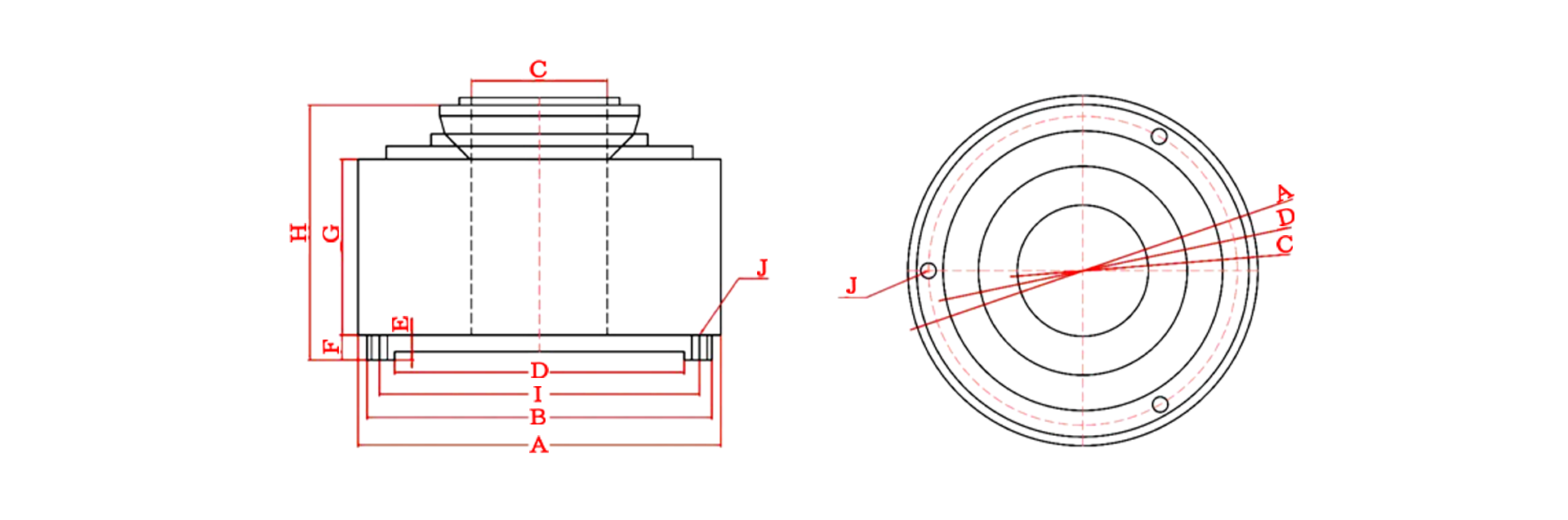

Plan

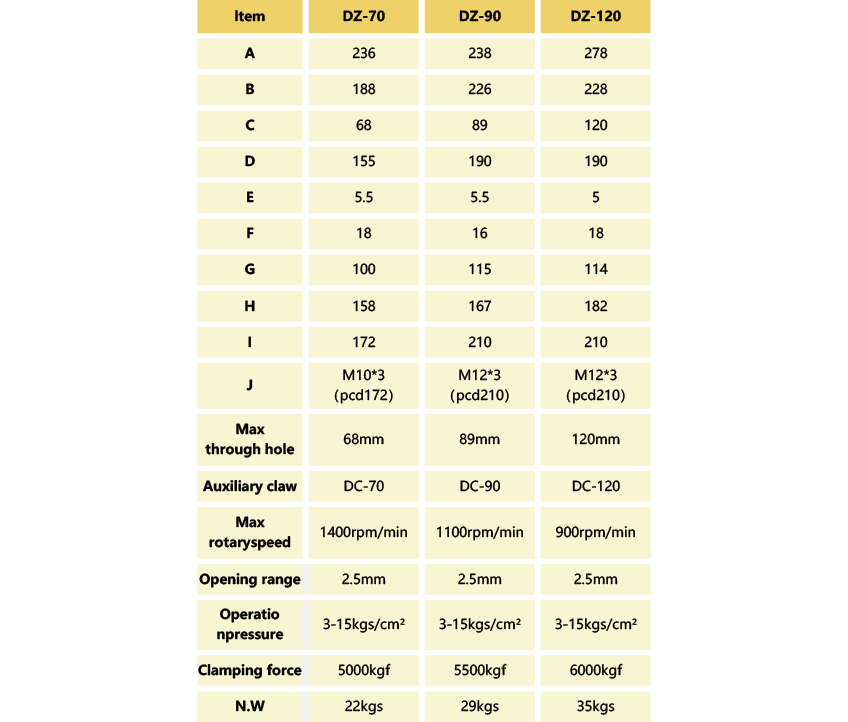

Specification and size

Related products

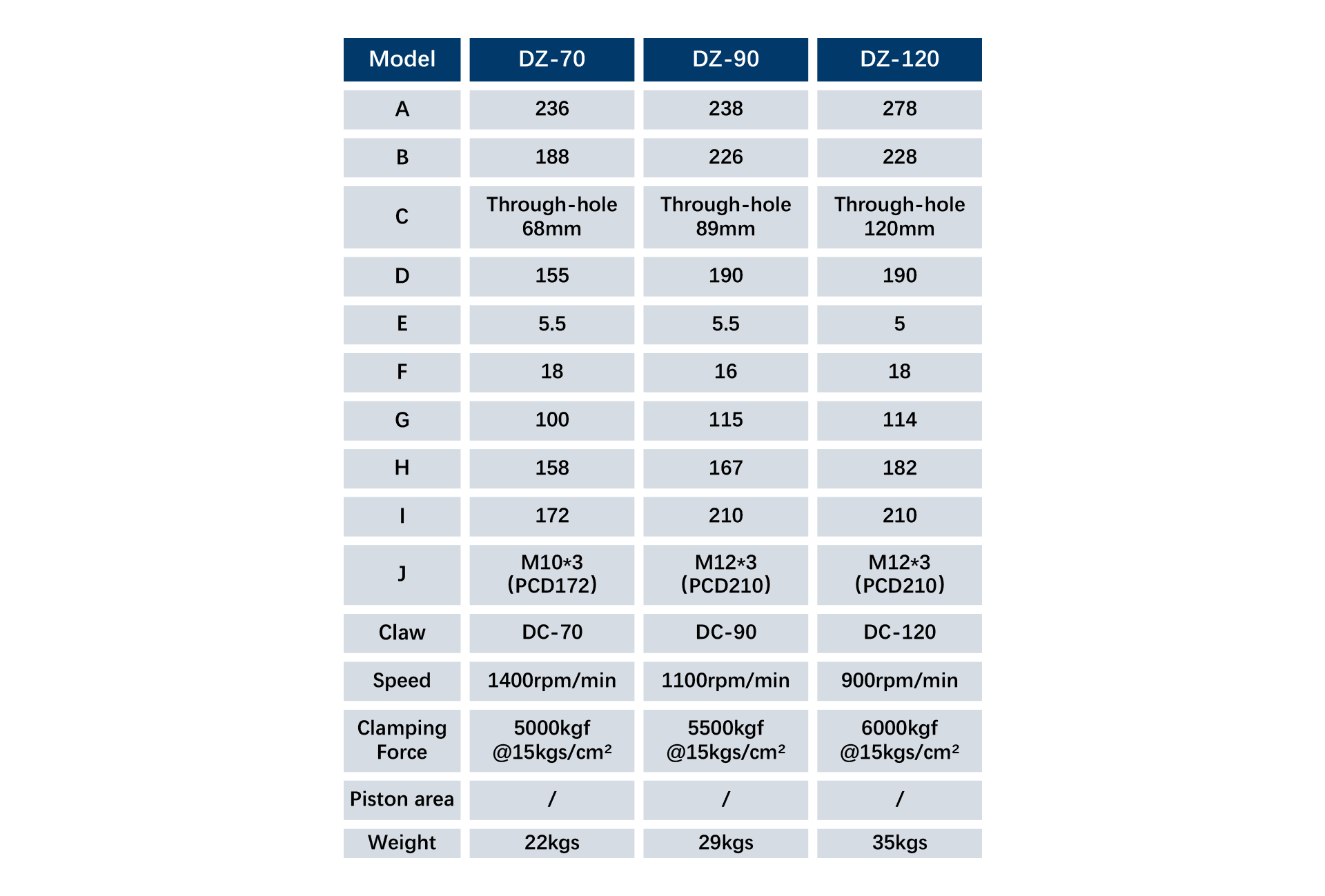

Specification
Three-dimensional model
