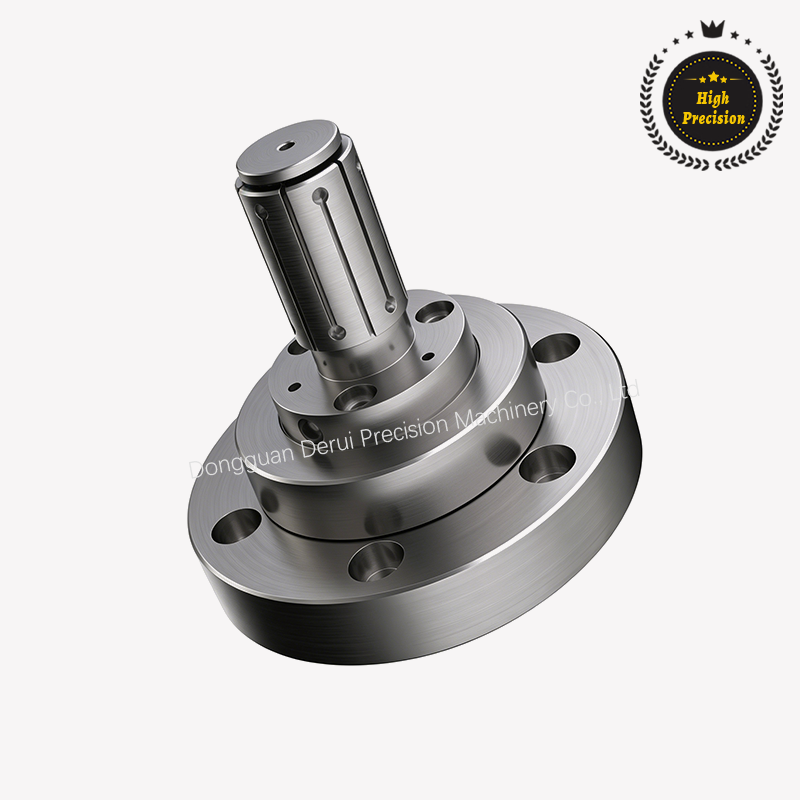

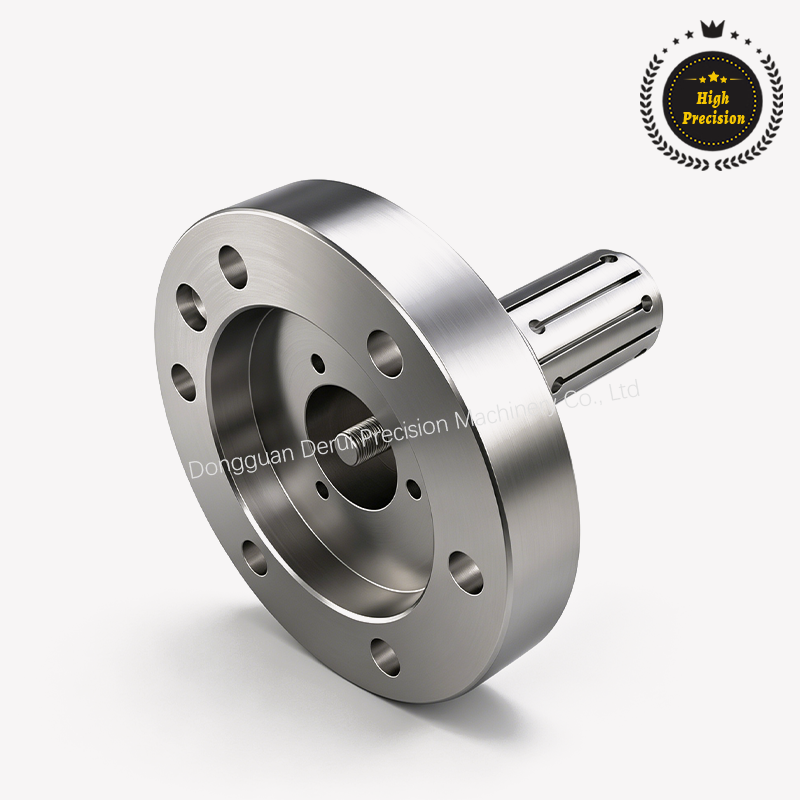

Double-Taper Internal Clamping Fixture
Product characteristics
  • Single-side stroke of 0.8 mm; repeat clamping accuracy within 0.015 mm

    (or customizable to within 0.002 mm)

    Suitable for various special-purpose machines, CNC lathes, grinding machines, and other high-precision

    automated equipment—such as for expanding the inner bores of stators and rotors, or chamfering

    motor housings

Product advantages
With a 0.8mm single-side stroke and repeat accuracy as low as 0.002mm, this fixture is ideal for high-precision automated equipment, perfectly suited for expanding inner bores and chamfering in stators, rotors, and motor housings.

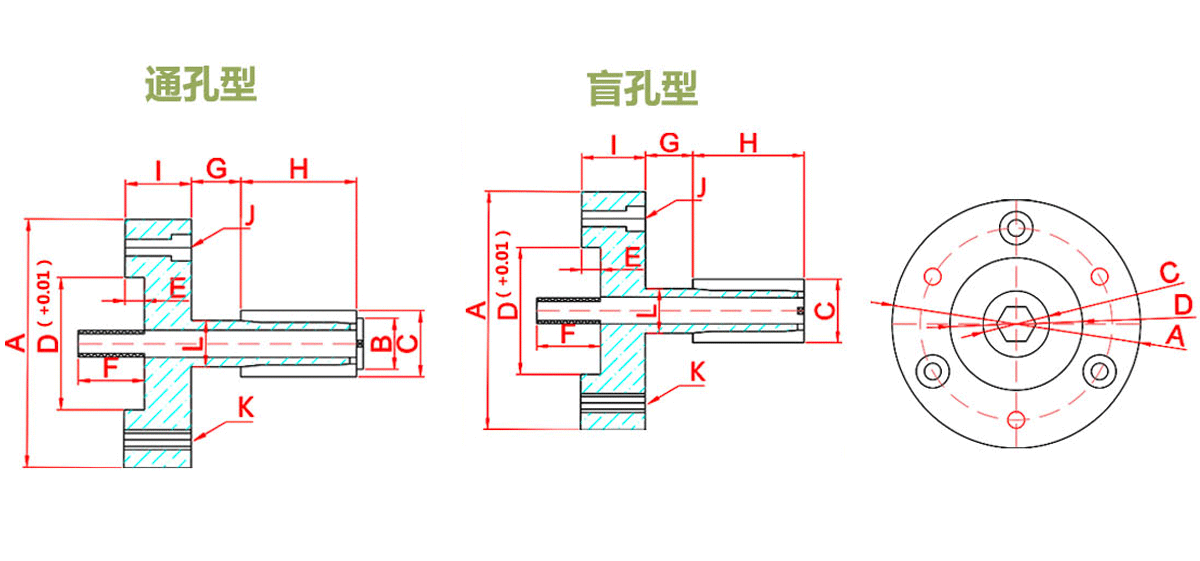

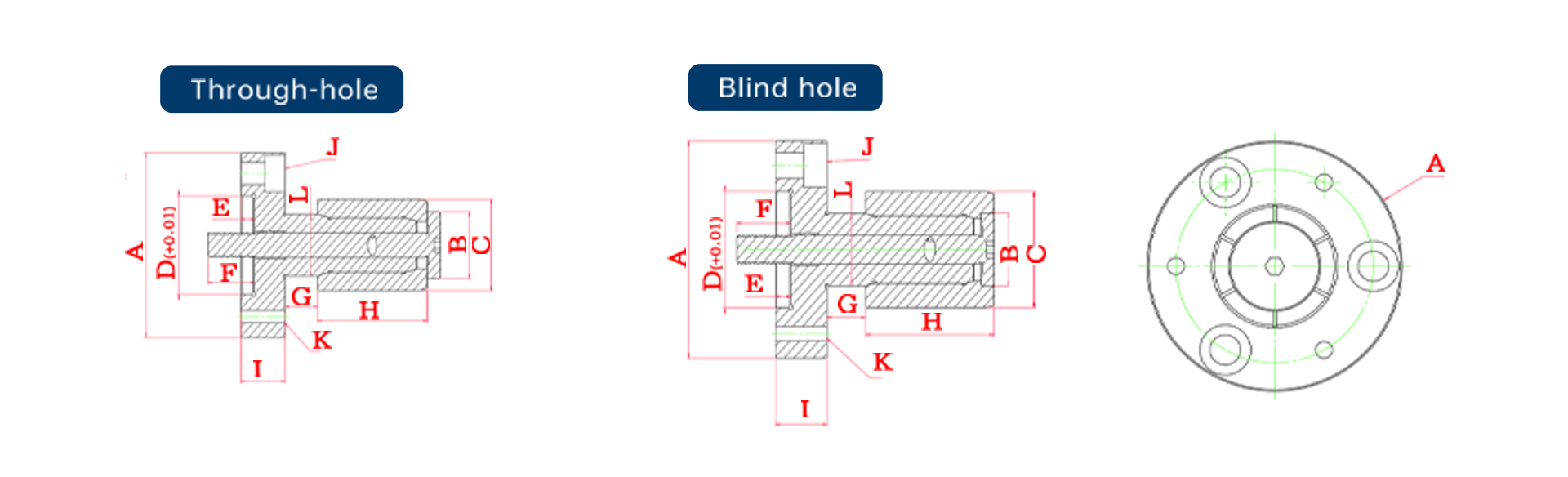

Plan

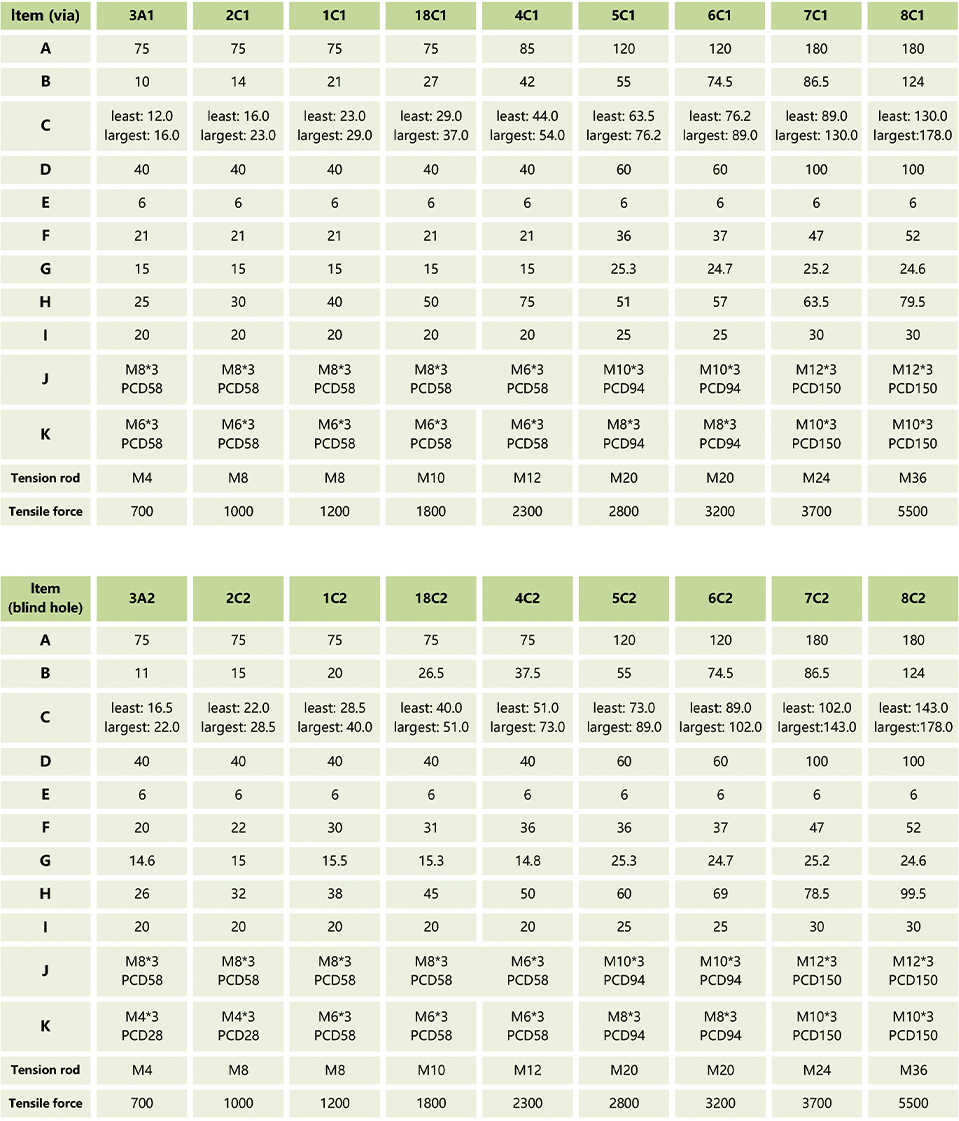

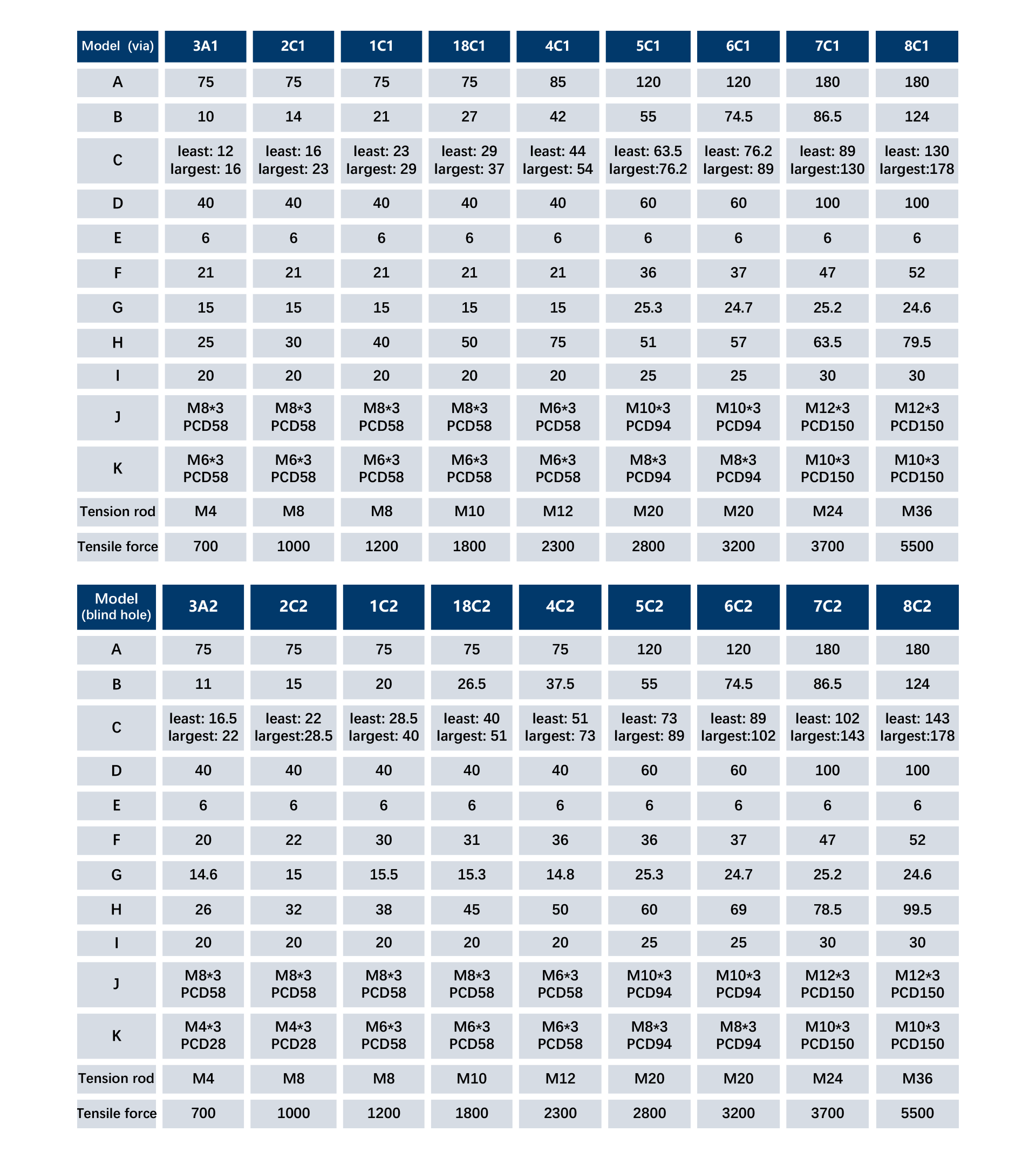

Specification and size

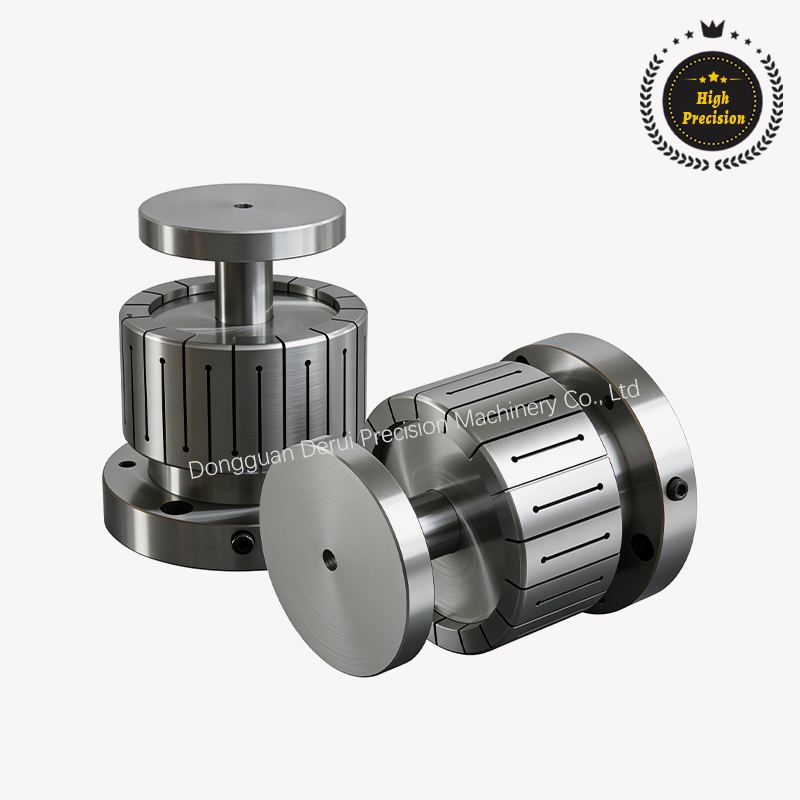

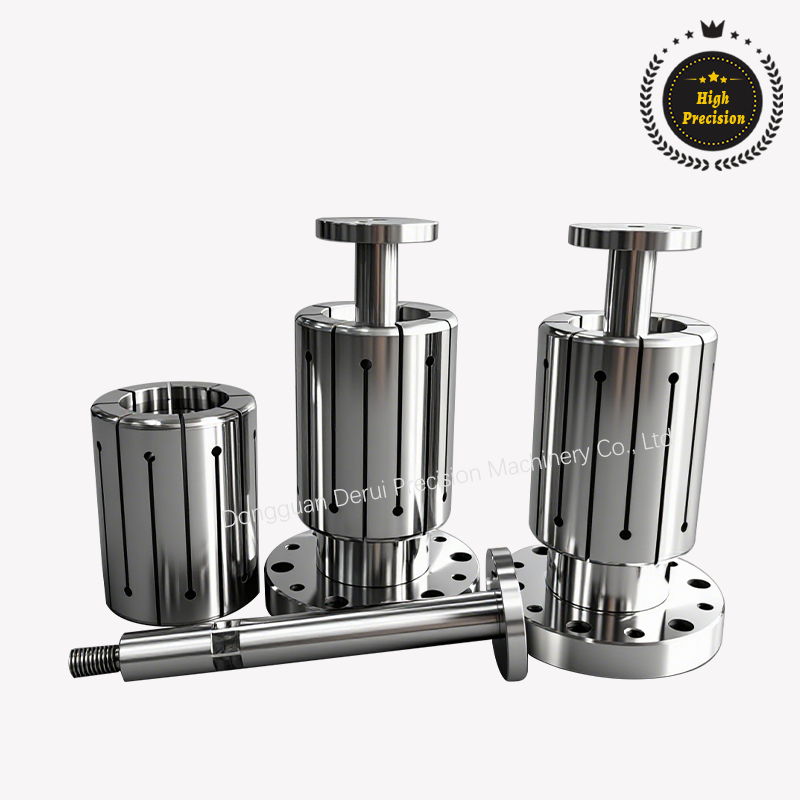

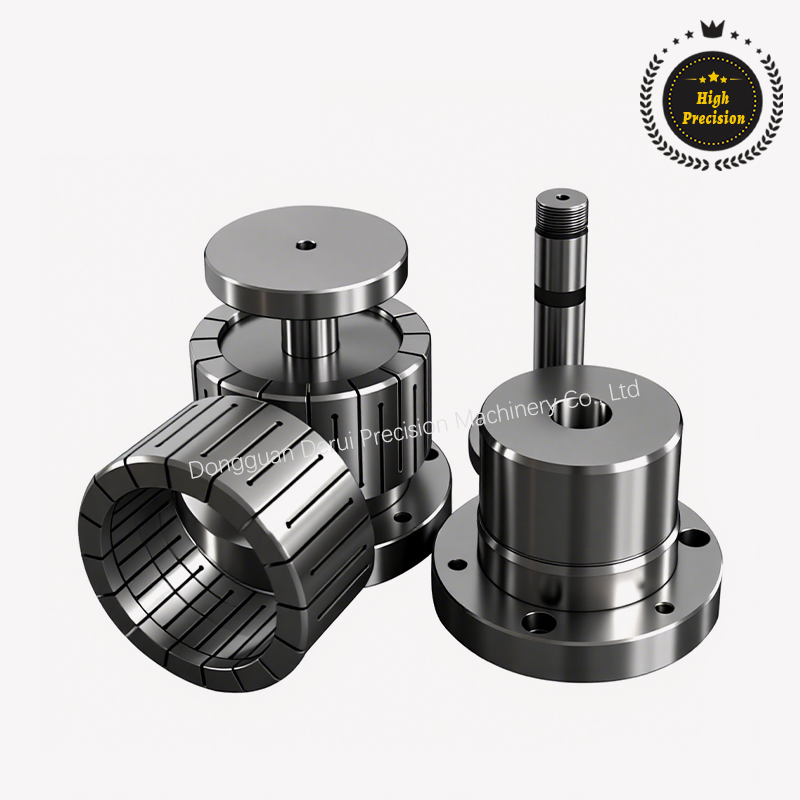

Related products
Specification

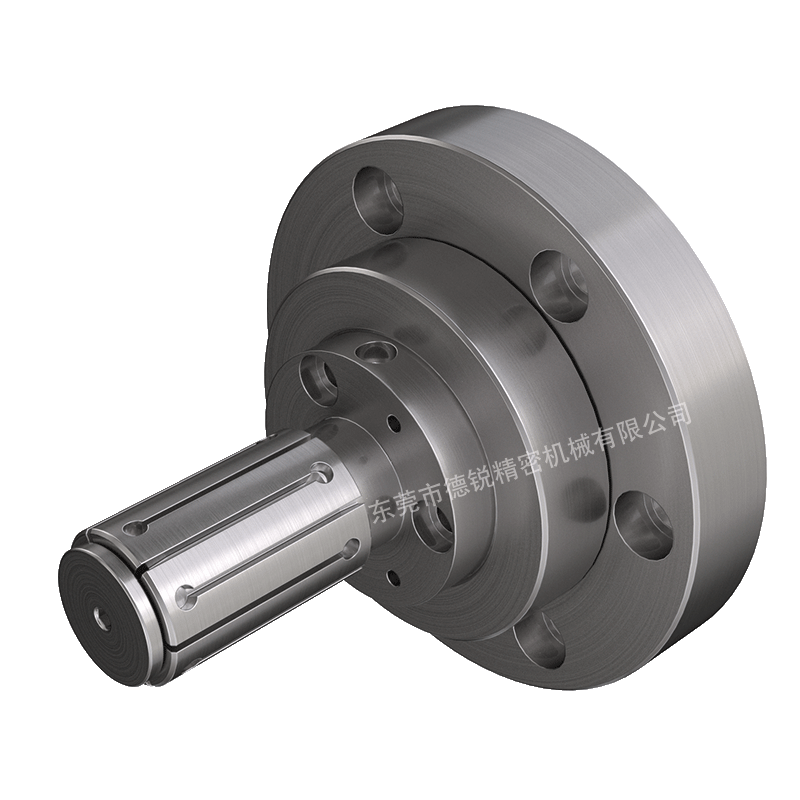

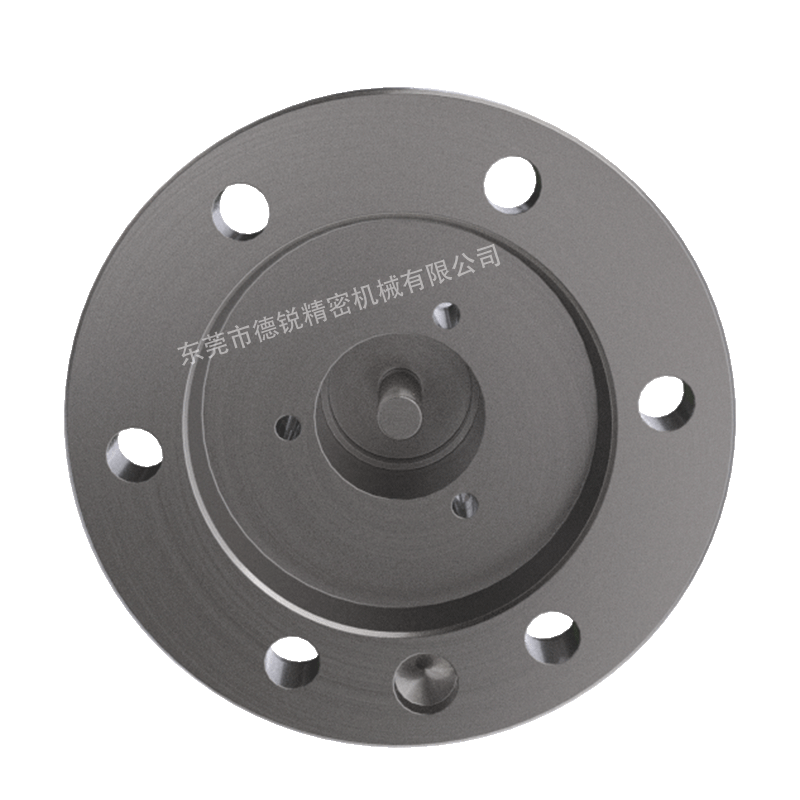

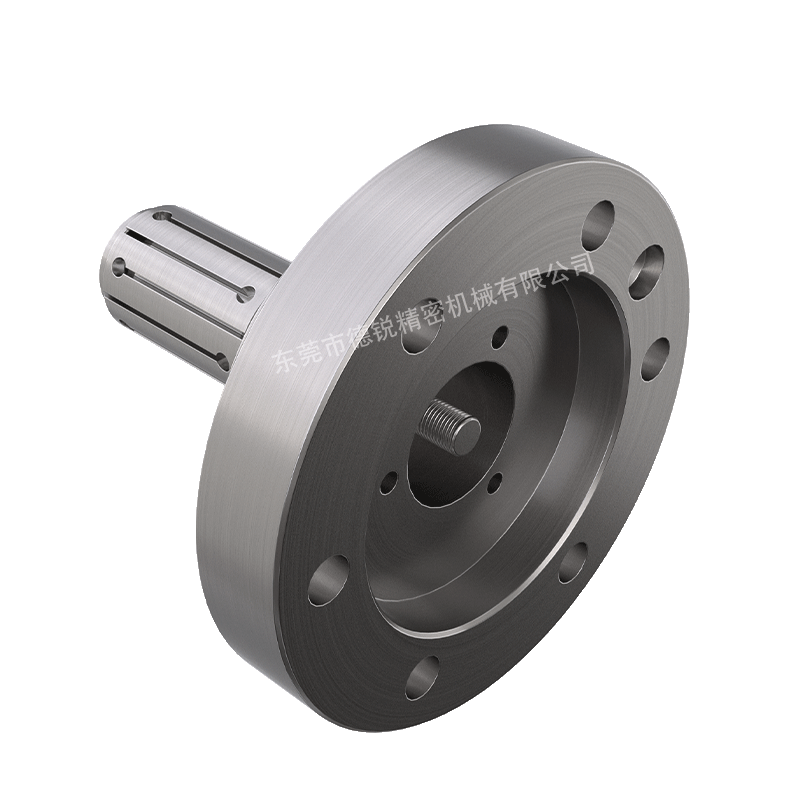

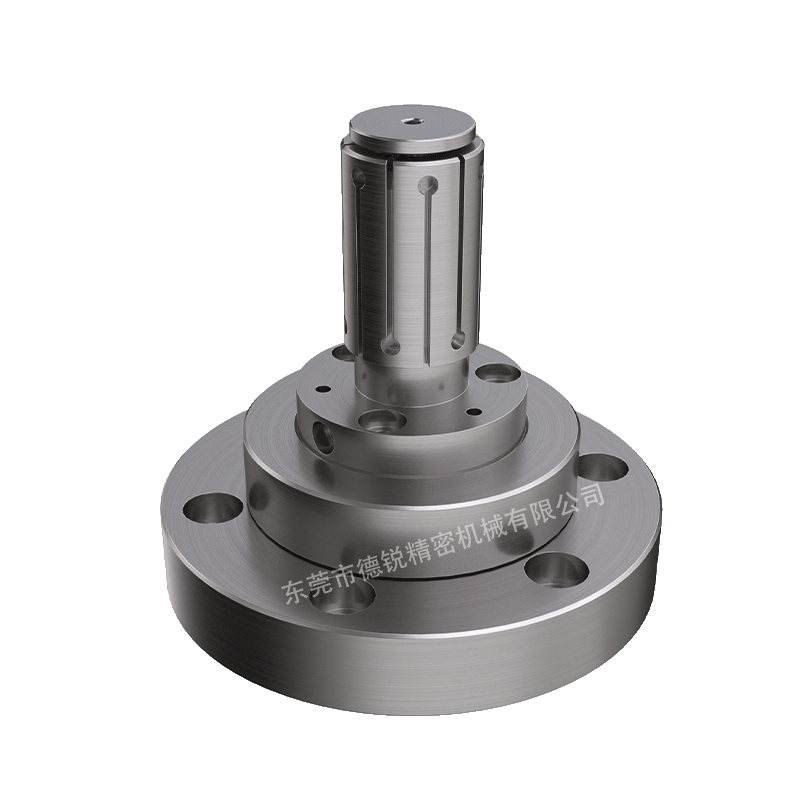

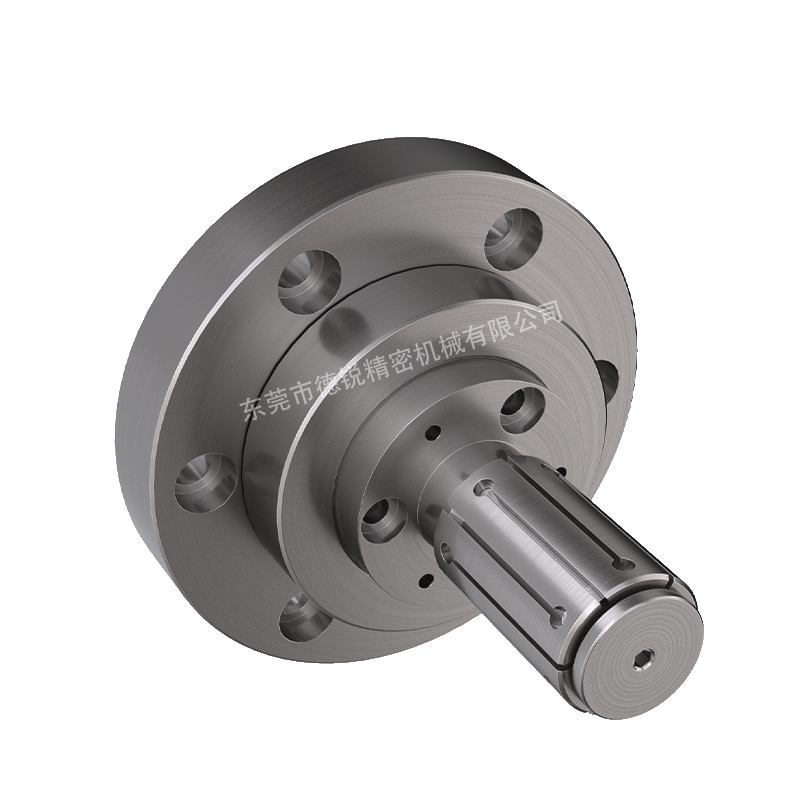

Three-dimensional model
💬
