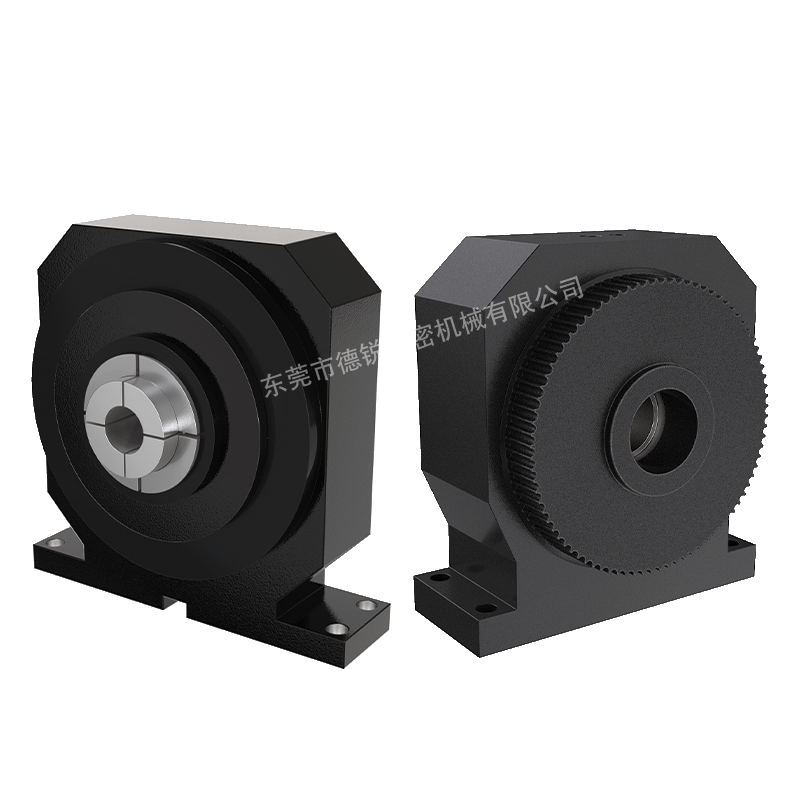

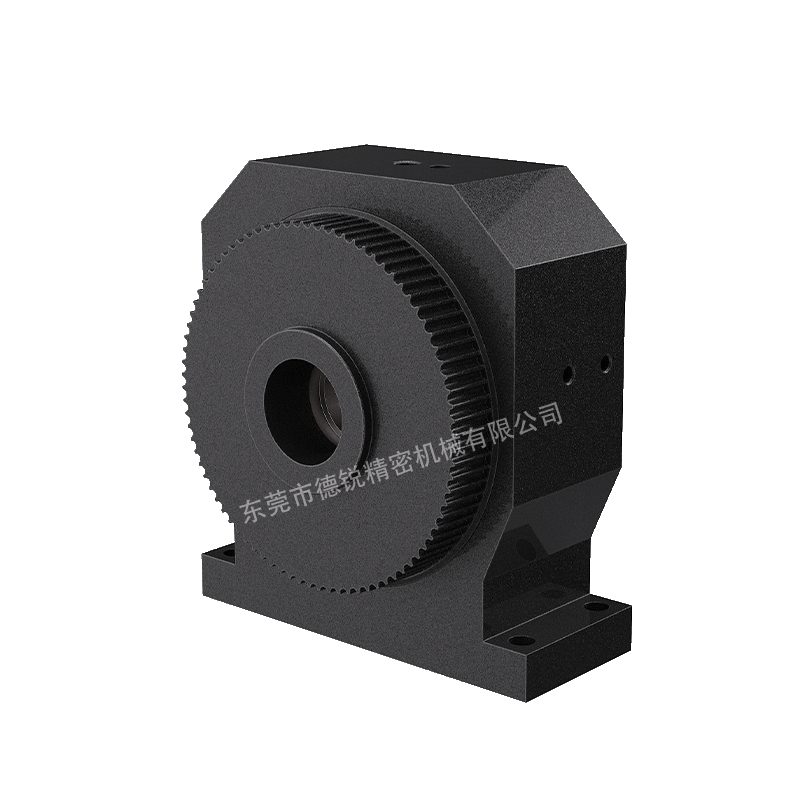

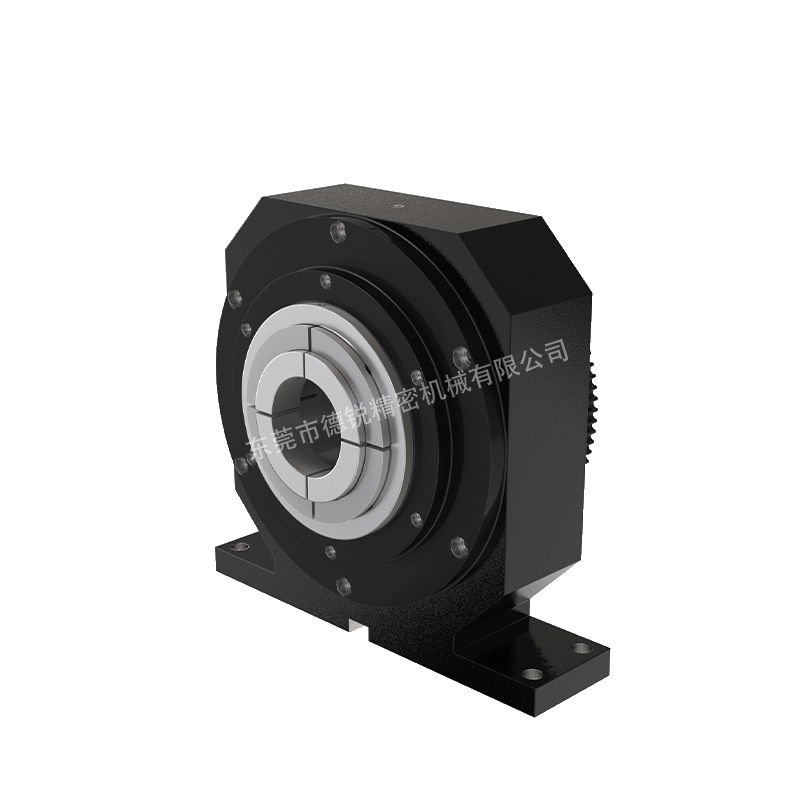

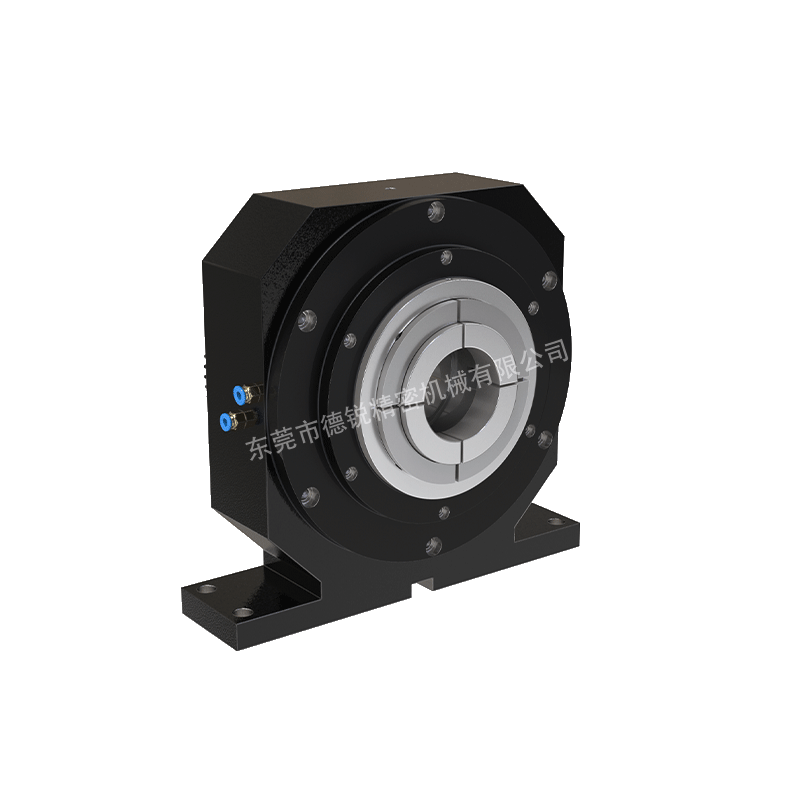

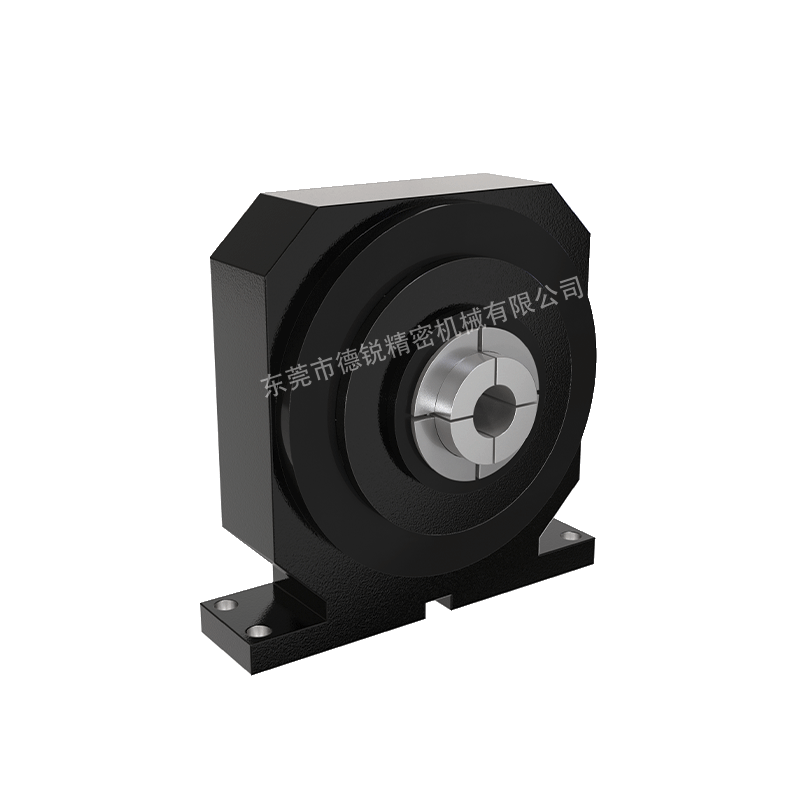

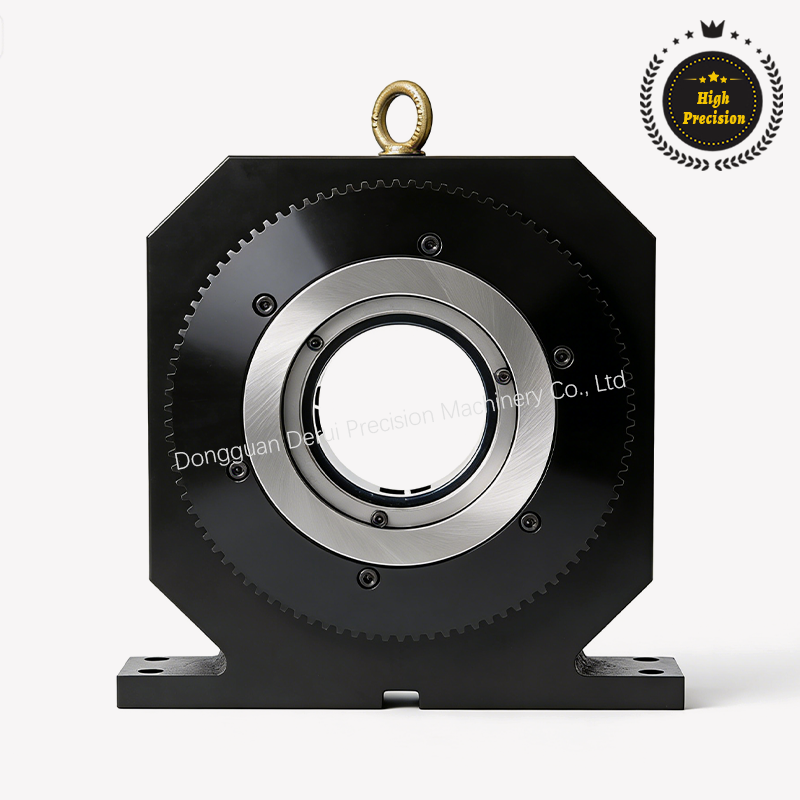

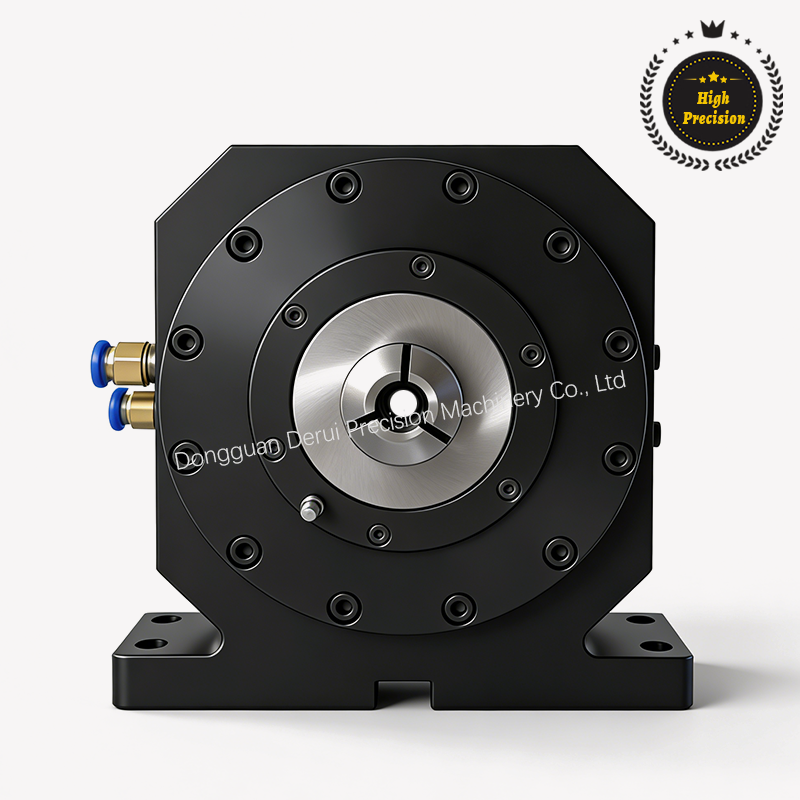

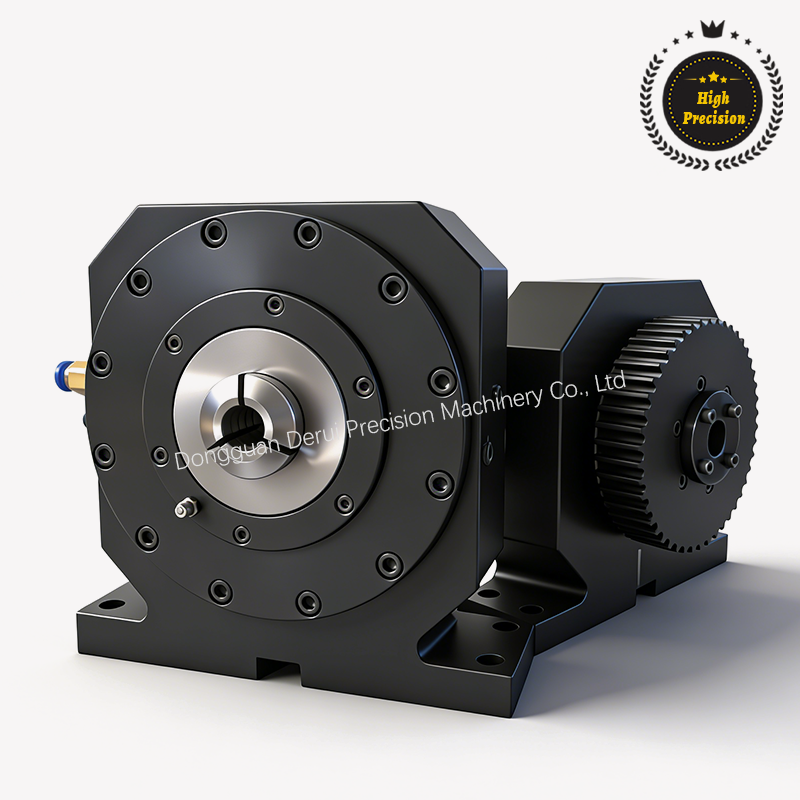

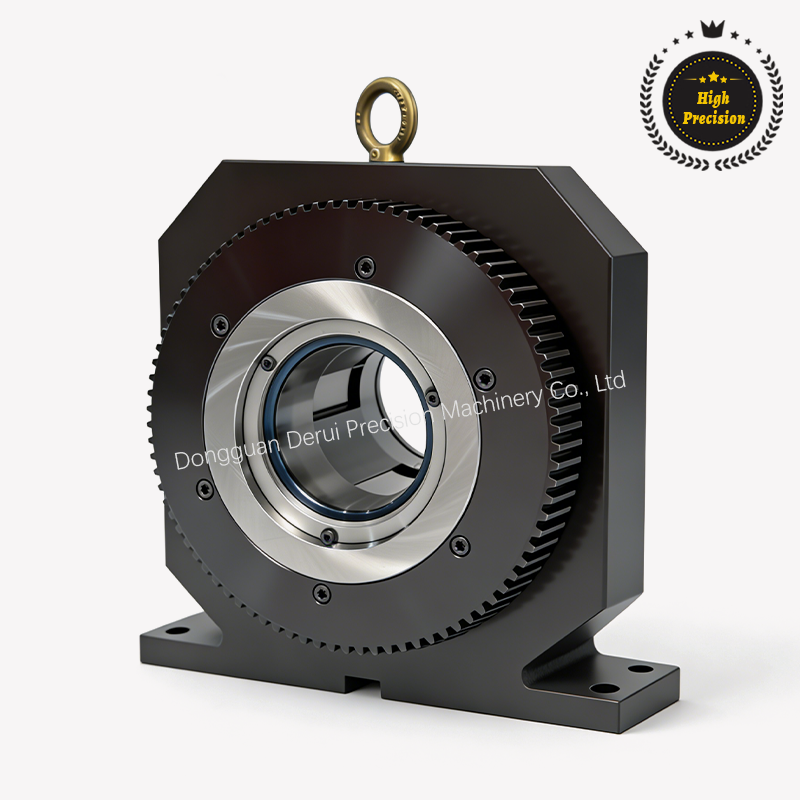

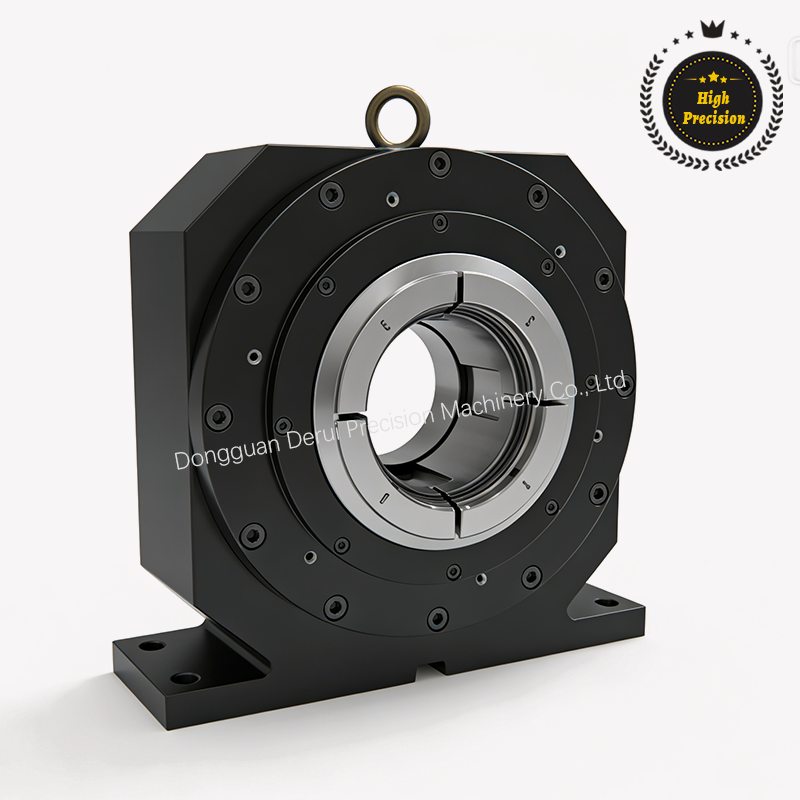

Spindle Housing (Cartidge clip)
Product characteristics
The spindle width can be customized according to the
workpiece length, with a clamping repeatability within
0.025mm.A precision of 0.005mm can be customized
rotation is driven by a motor and synchronous pulley
high-speed spindle can be customized, with air pressure
of 3-8 kgs/cm2. Suitable for various high-precision lathe
machining and special-purpose machining applications

Product advantages
Delivers 0.025mm clamping repeatability (customizable to 0.005mm precision), with workpiece-length customization and motor-driven synchronous pulley rotation, ideal for high-precision lathe and specialized machining applications.

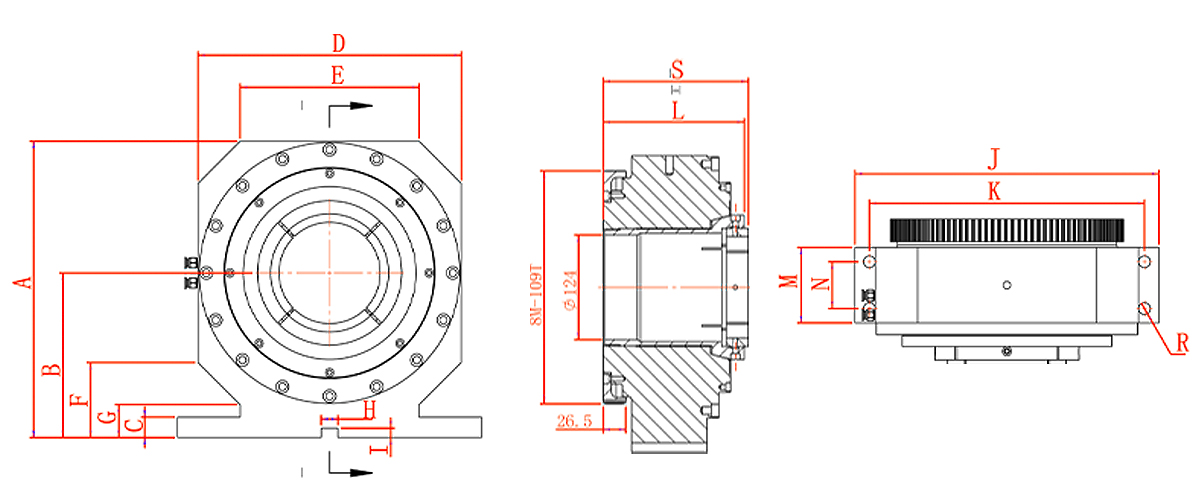

Plan

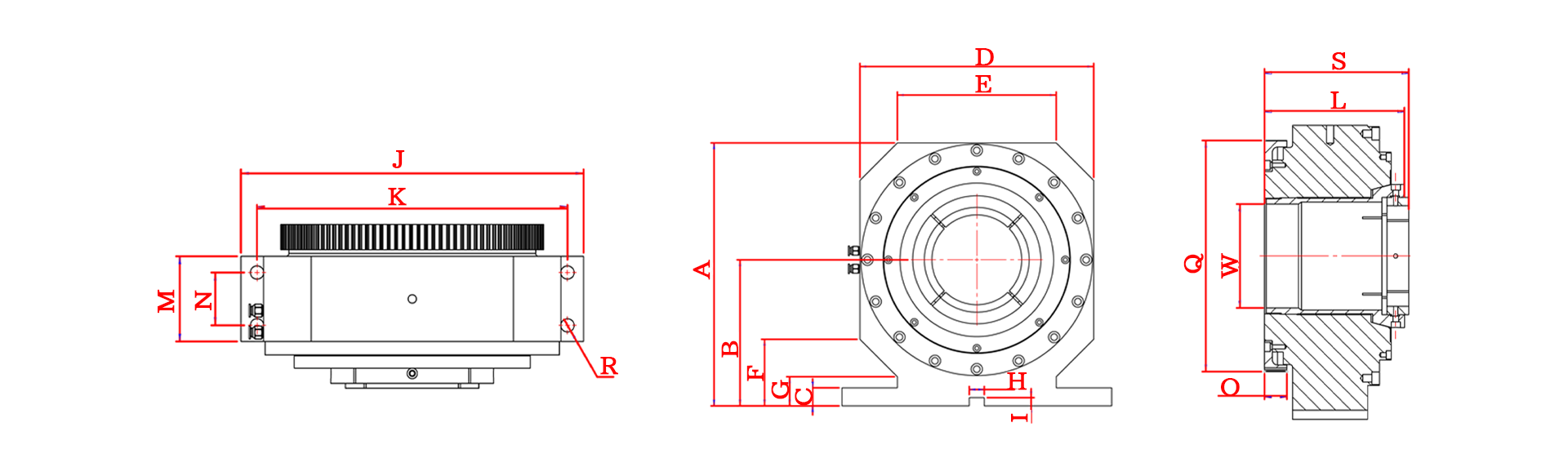

Specification and size

Related products

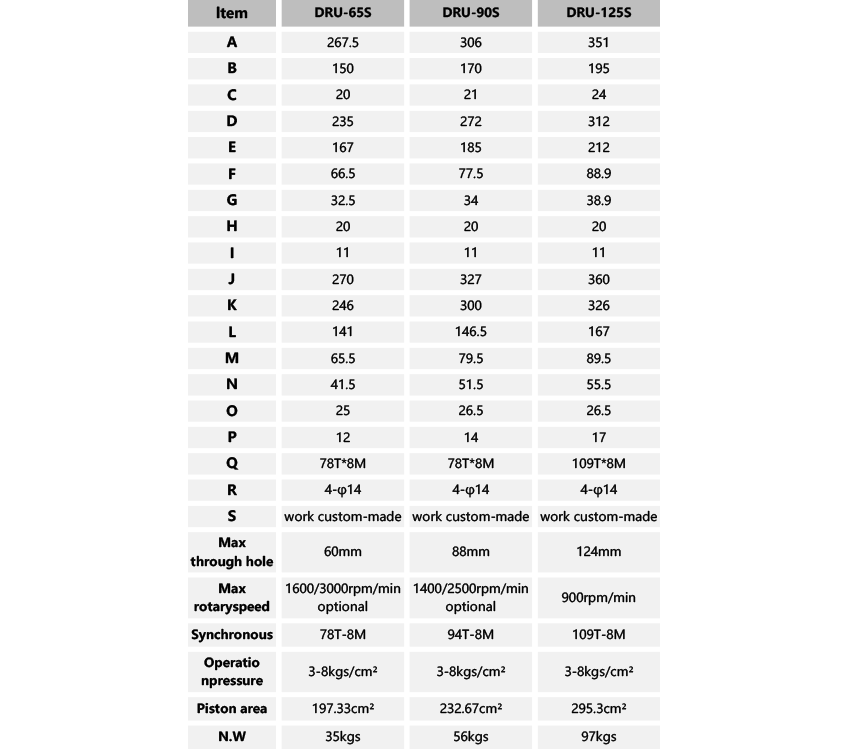

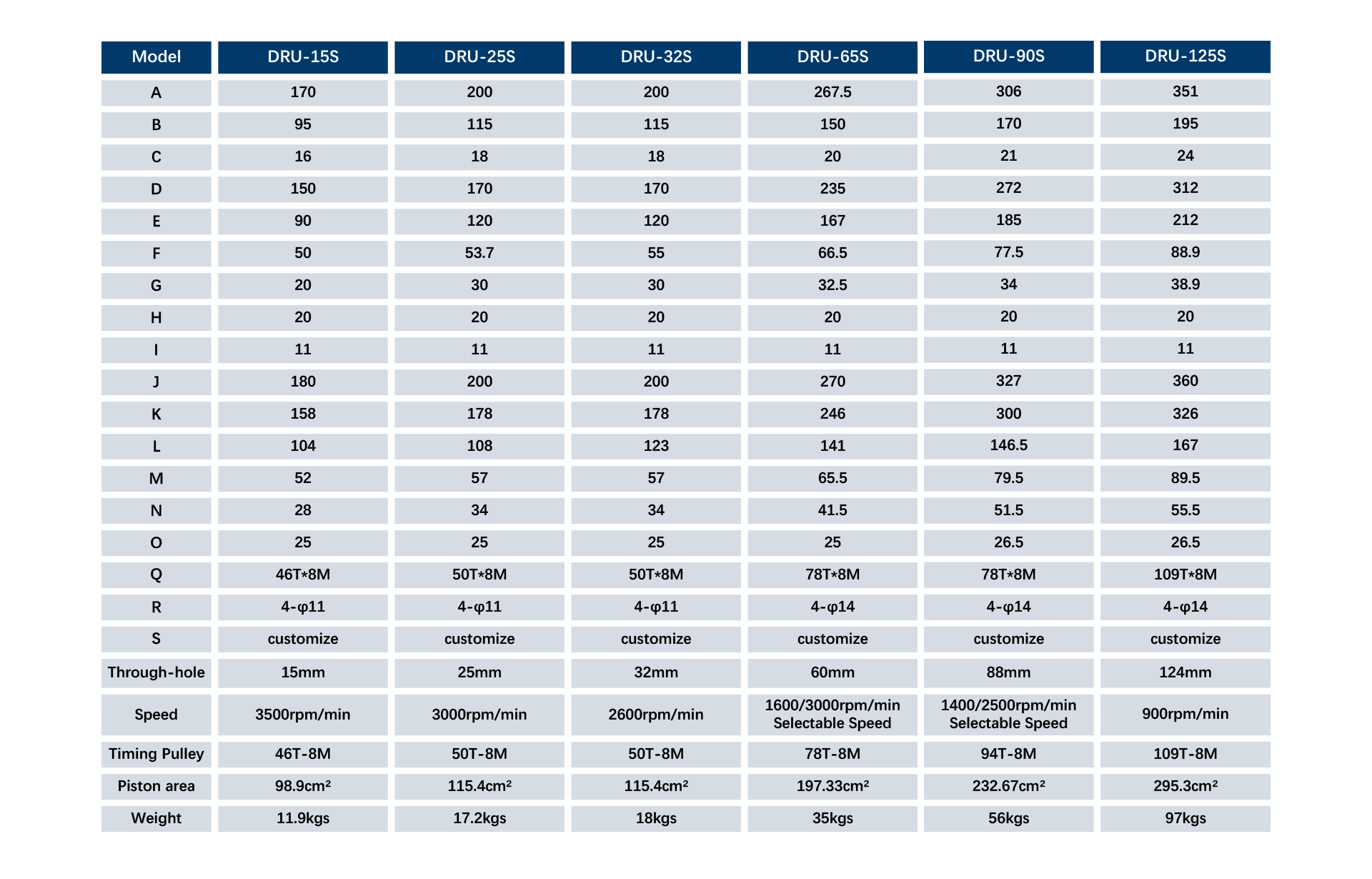

Specification
Three-dimensional model
💬
