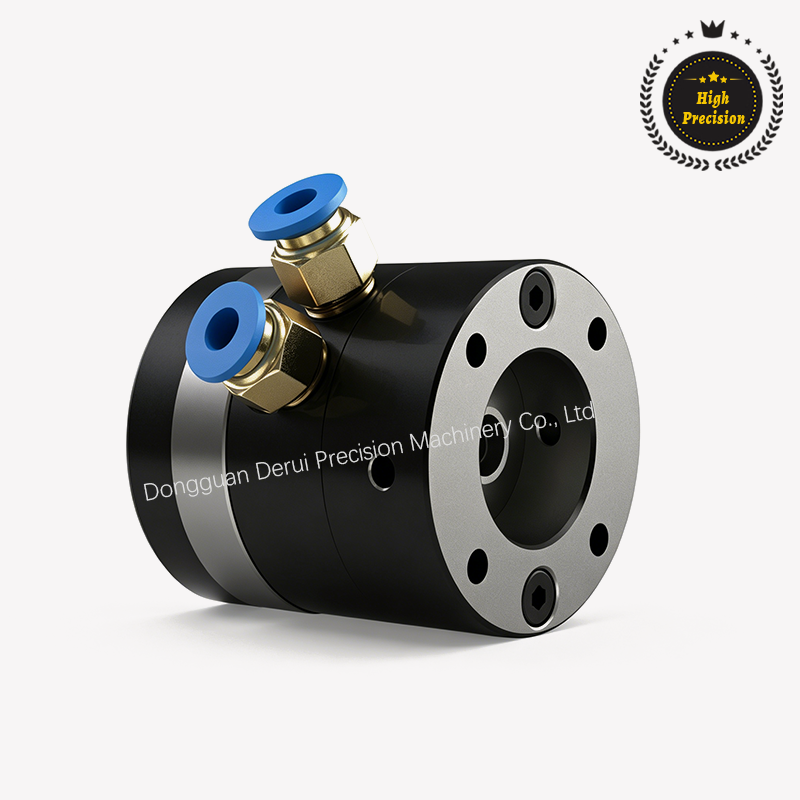

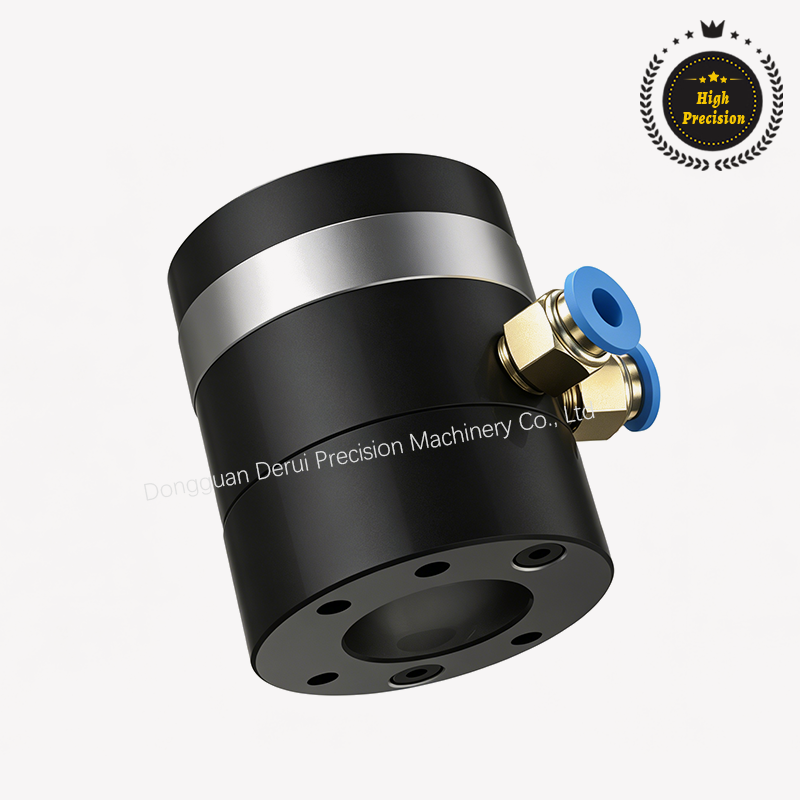

No additional cylinder/hydraulic cylinder installationrequired;

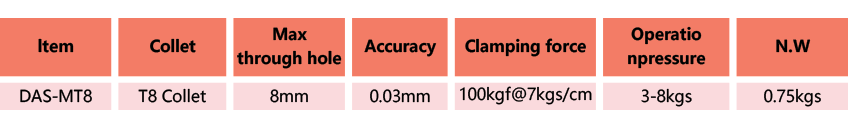

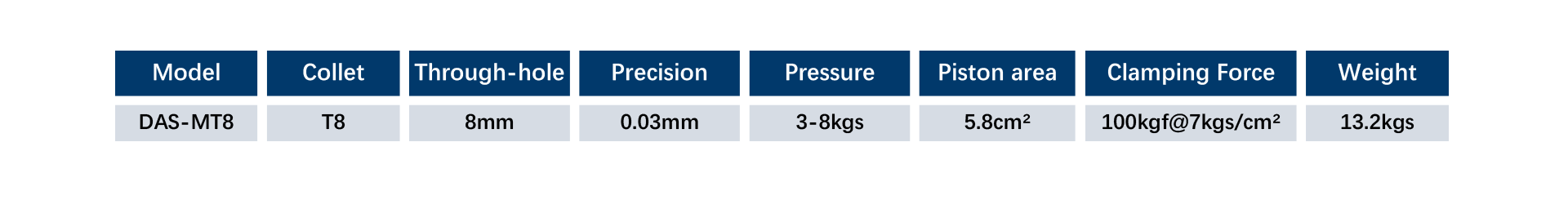

body accuracy within 0.01mm; clamping repeatability within 0.03mm; sliding sleeve

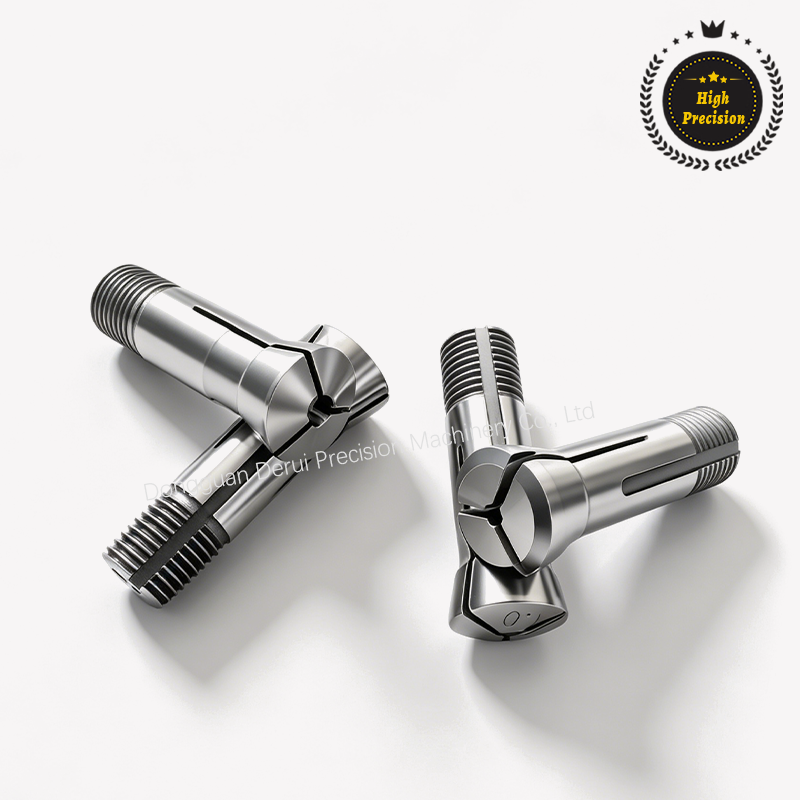

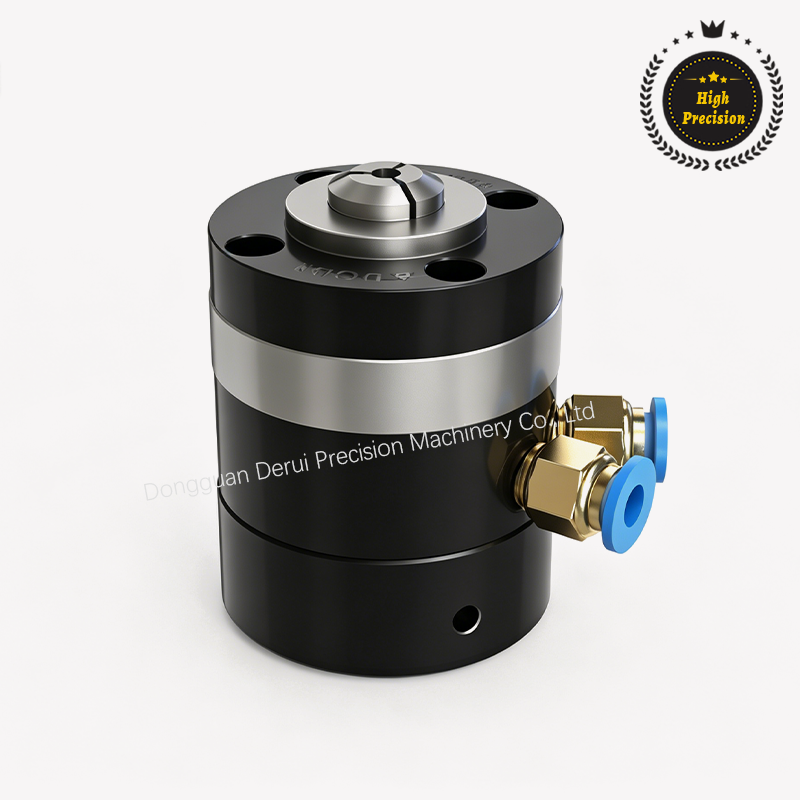

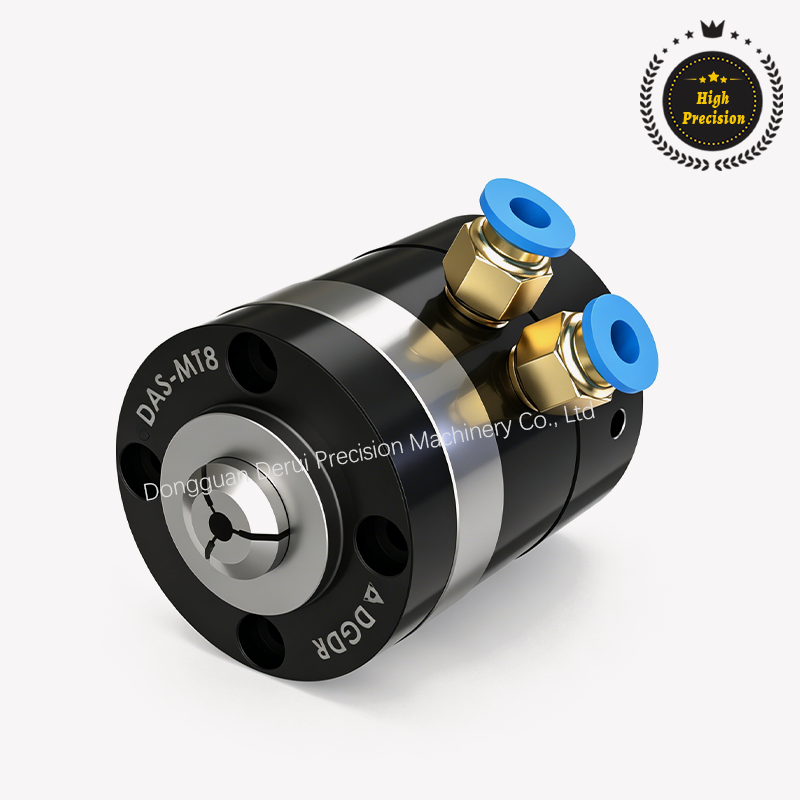

pushes forward to lock the workpiece; equipped with T8 collet;

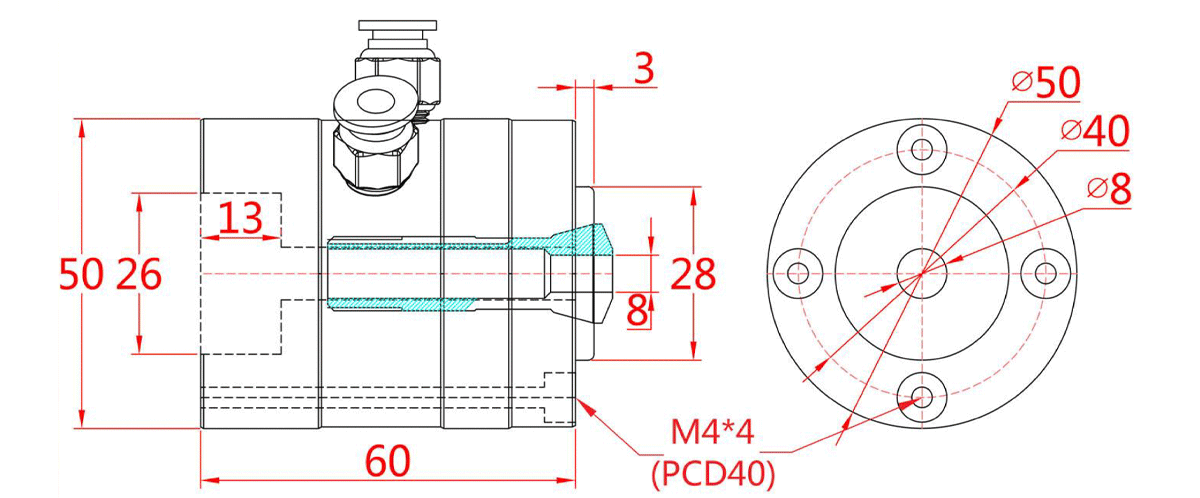

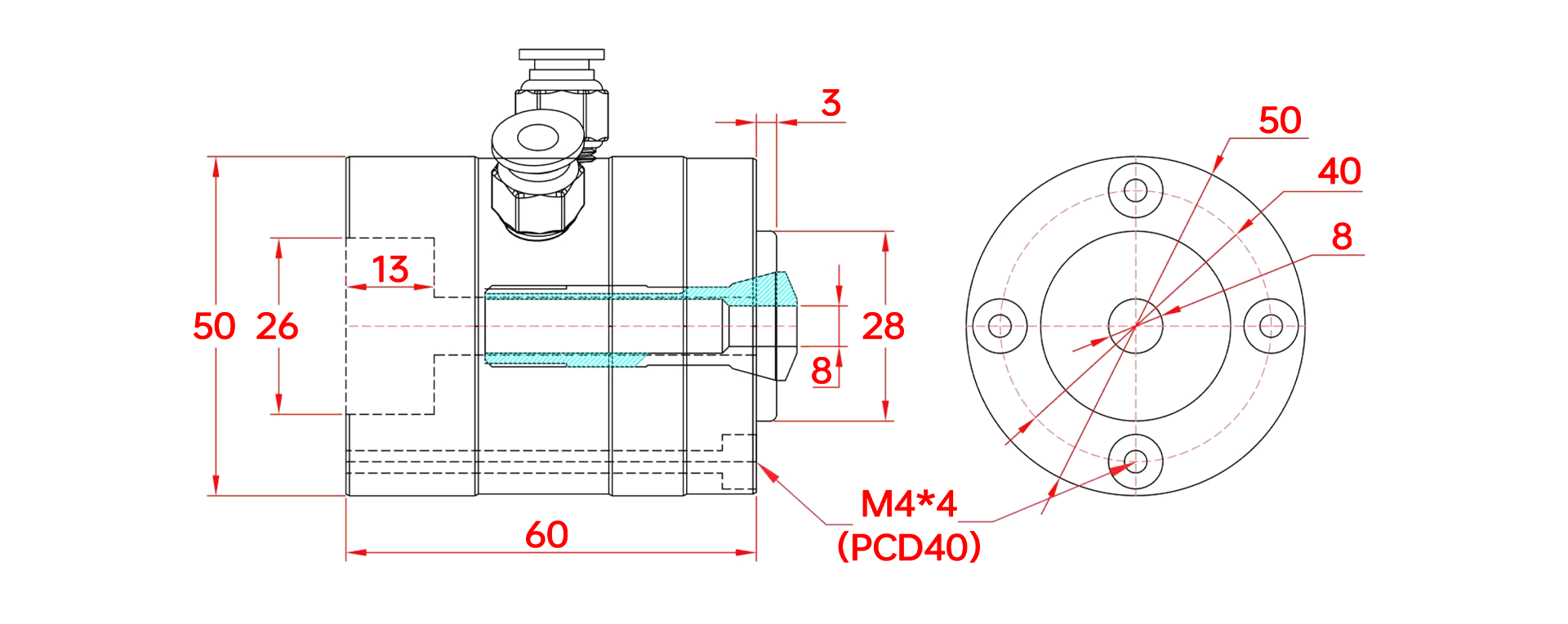

through-hole clamping up to 8mm compact size;

one worktable can accommodate multiple small fixed chucks;

suitable for multi-station tooling, clamping micro-sized workpieces for drilling/tapping/welding, etc
