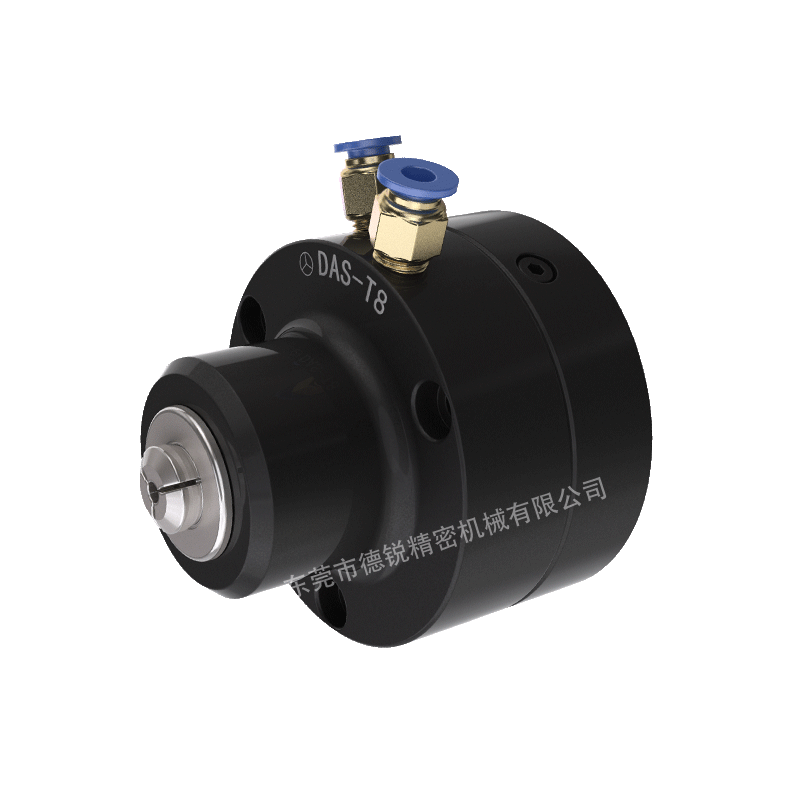

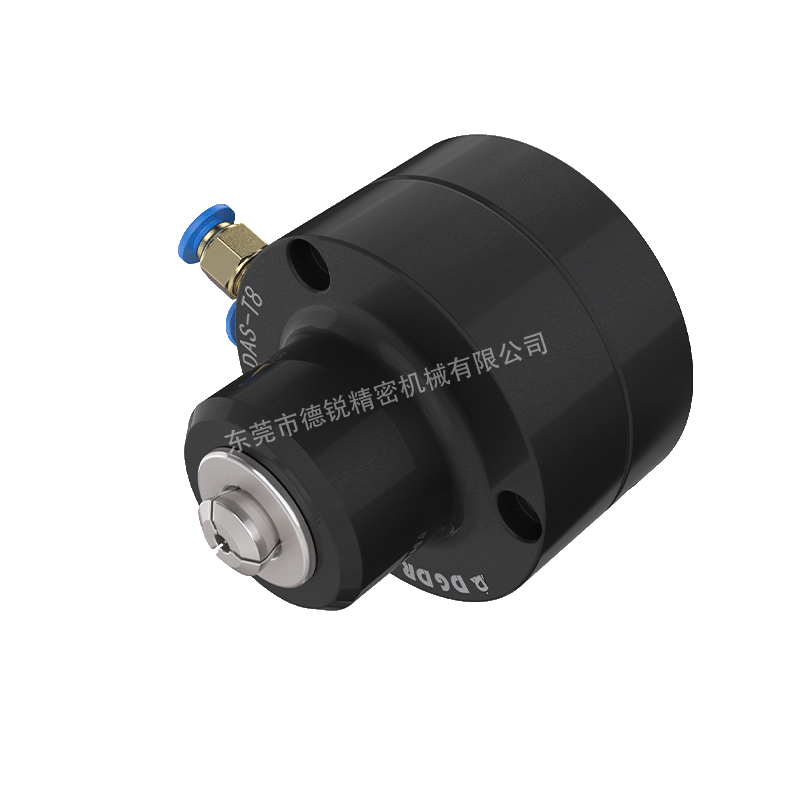

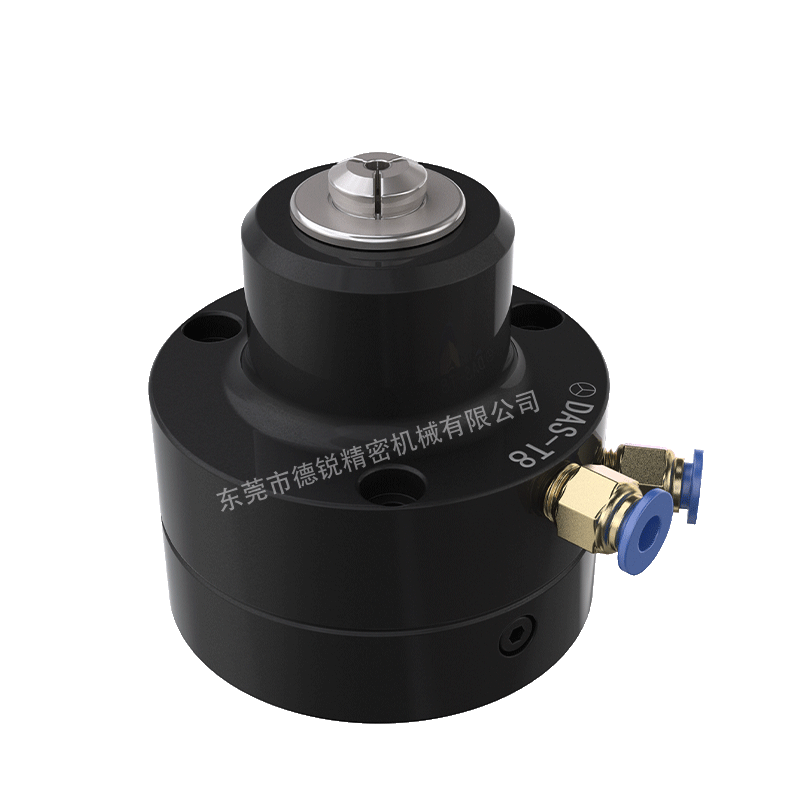

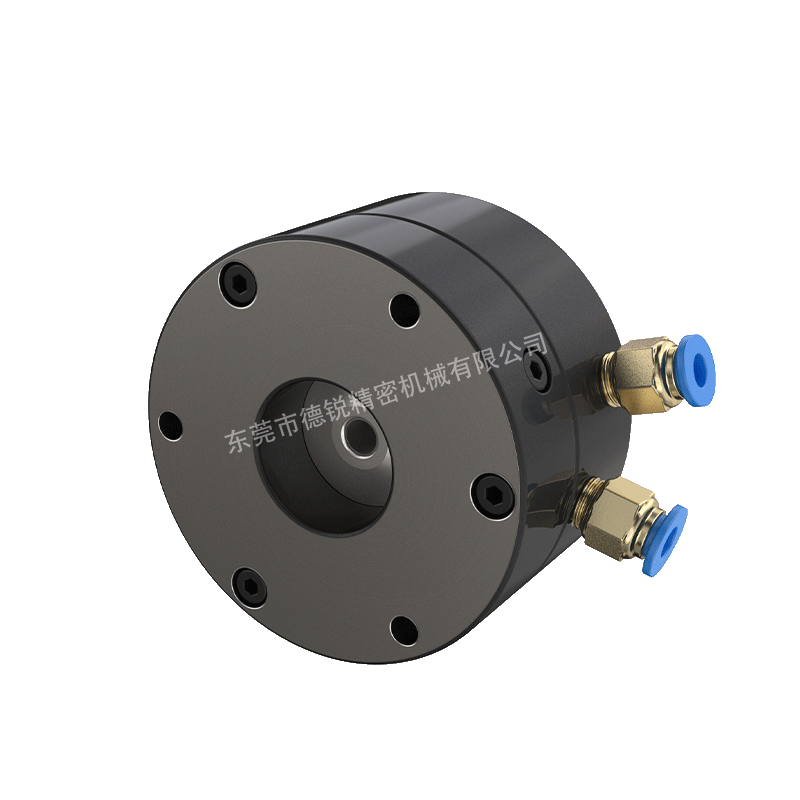

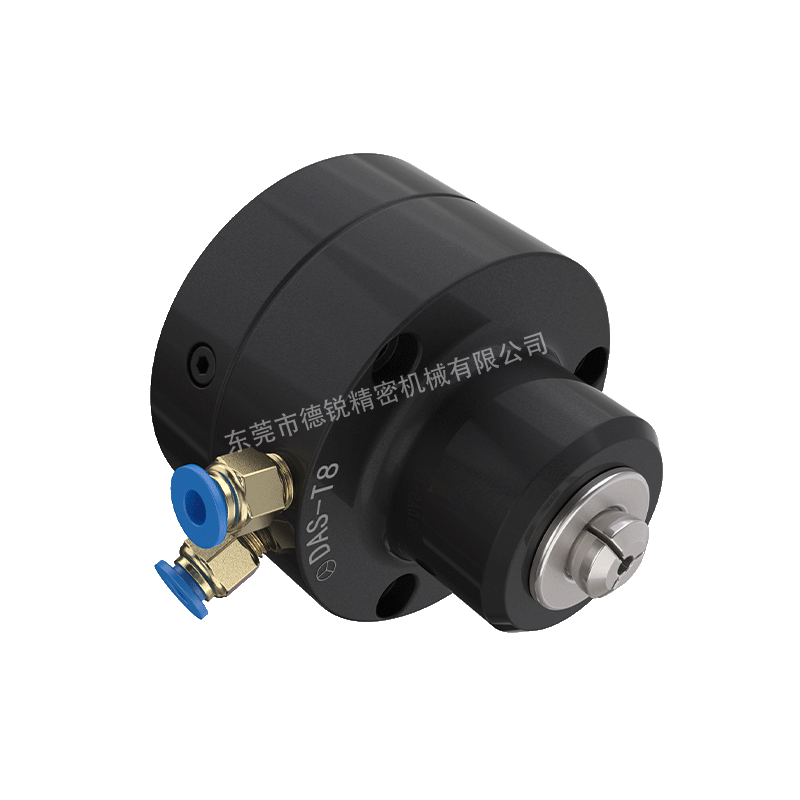

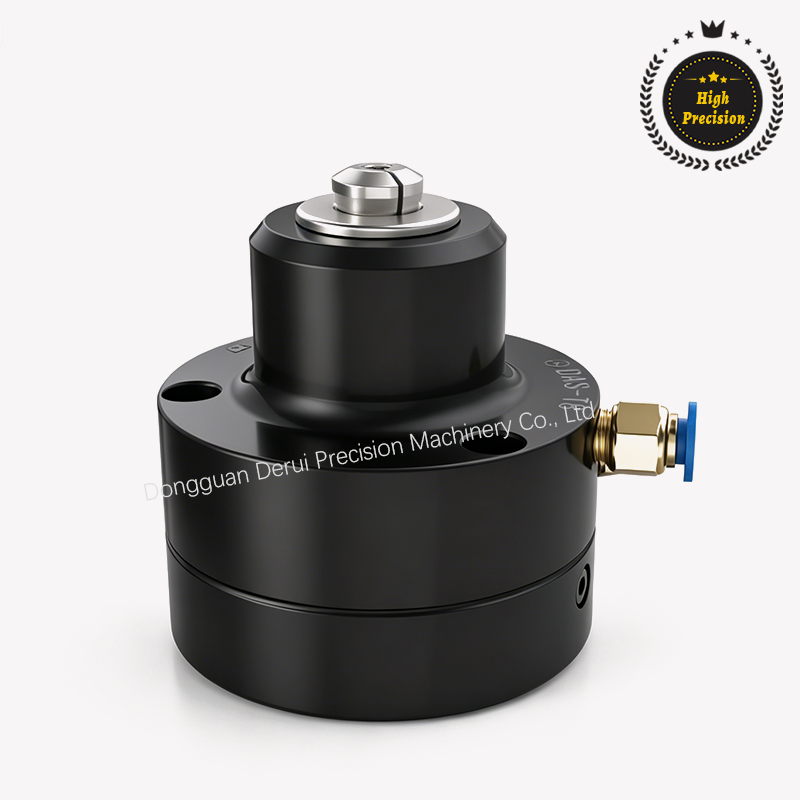

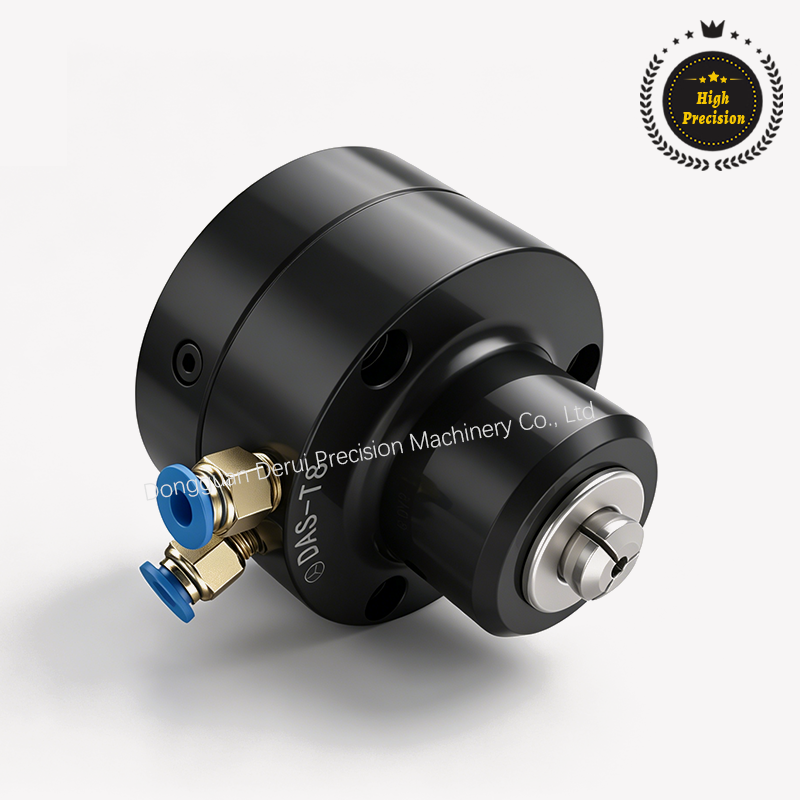

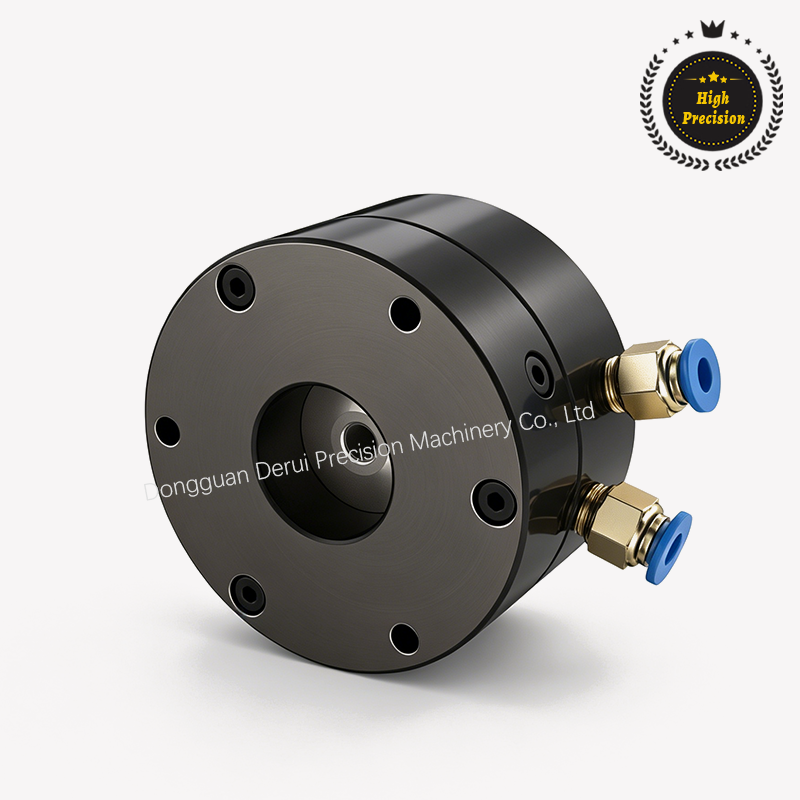

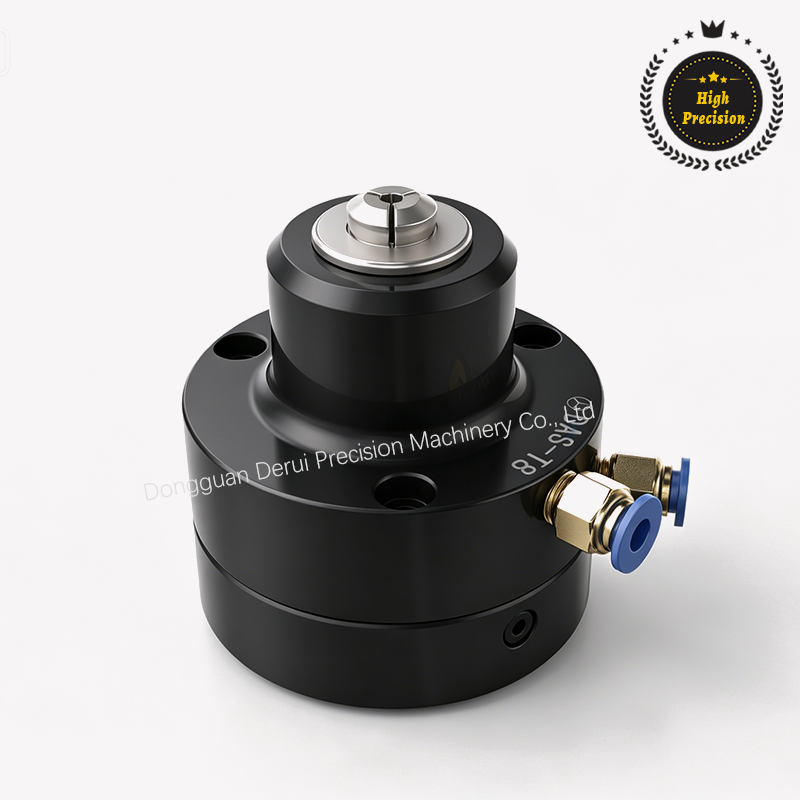

Miniature Pneumatic Chuck (fixed type)
Product characteristics

One worktable can accommodate multiple small chuckimproving production efficiency.

The chucks feature a forward-pushing design, with the sliding sleeves

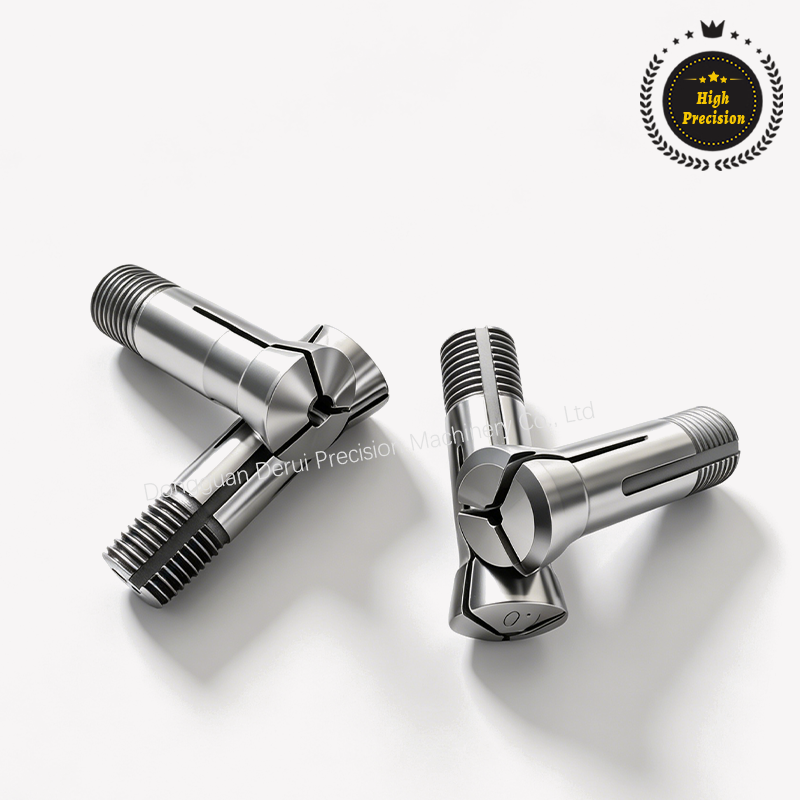

pushing forward to lock the workpiece. It is used with T8 collets, offering a

clamping range of 0.35-8mm and a clamping repeatability of 0.03mm.

Air pressure is 3-8 kgs/cm. Dustproof and waterproof it is suitable for various

drilling and milling worktables (CNC machining centers)

Product advantages
Compact and efficient, this chuck supports multiple installations on a single worktable for high productivity, delivers 0.03mm repeatability with T8 collets, and features a dustproof/waterproof design ideal for CNC drilling and milling applications.
Plan

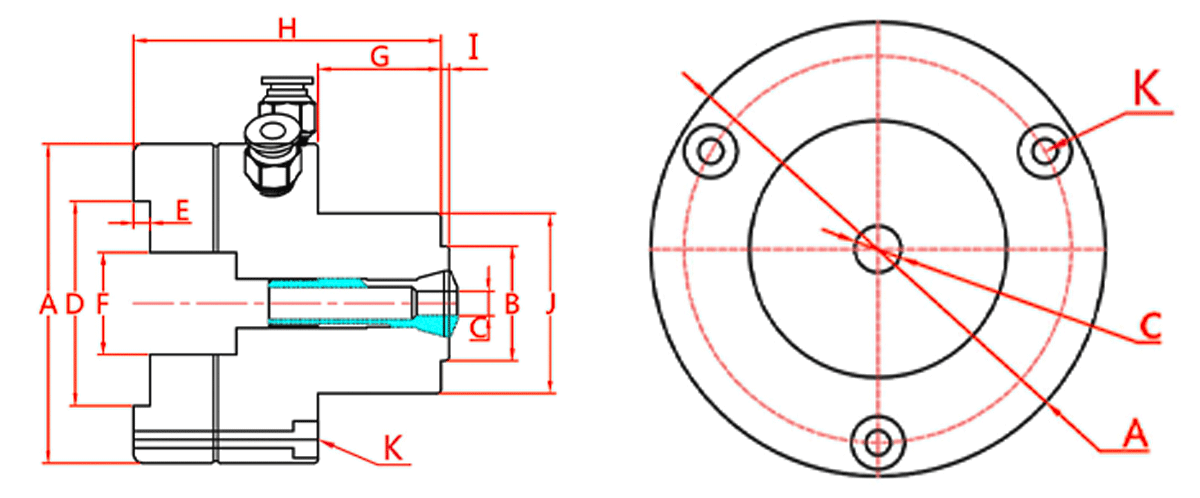

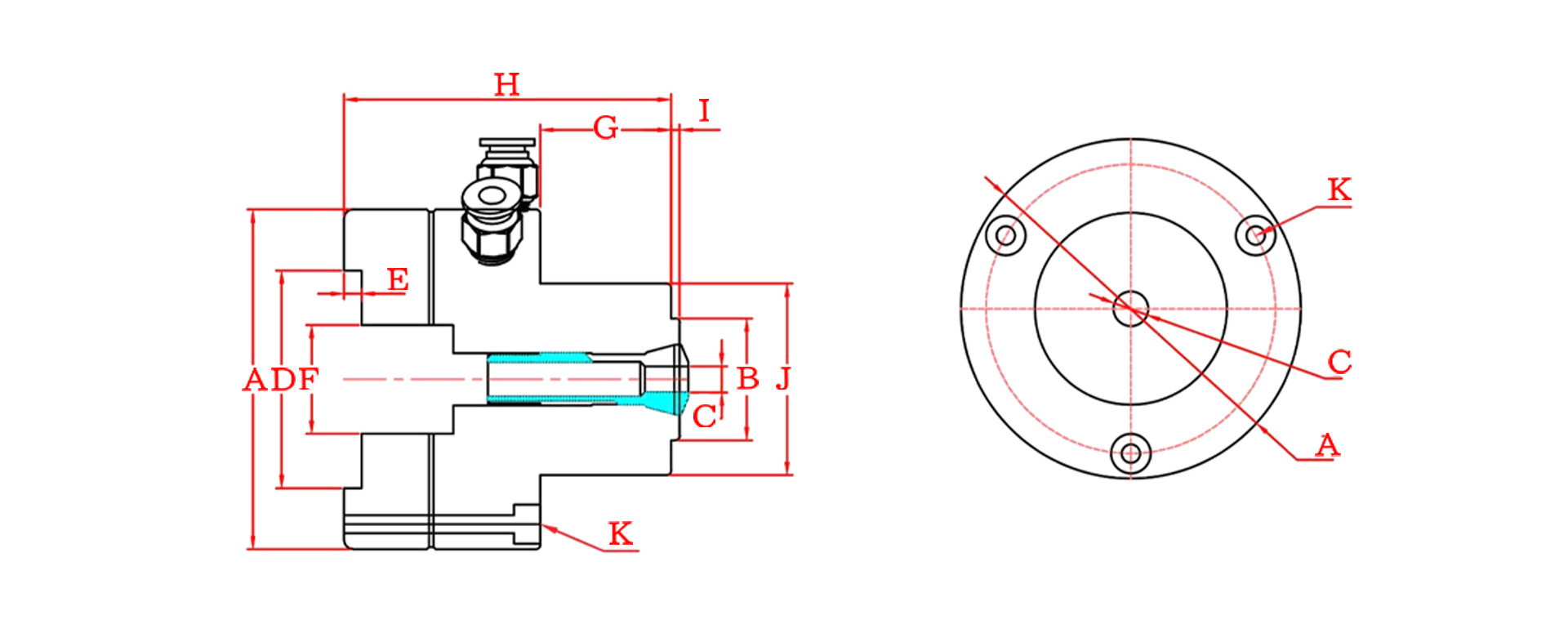

Specification and size

Related products

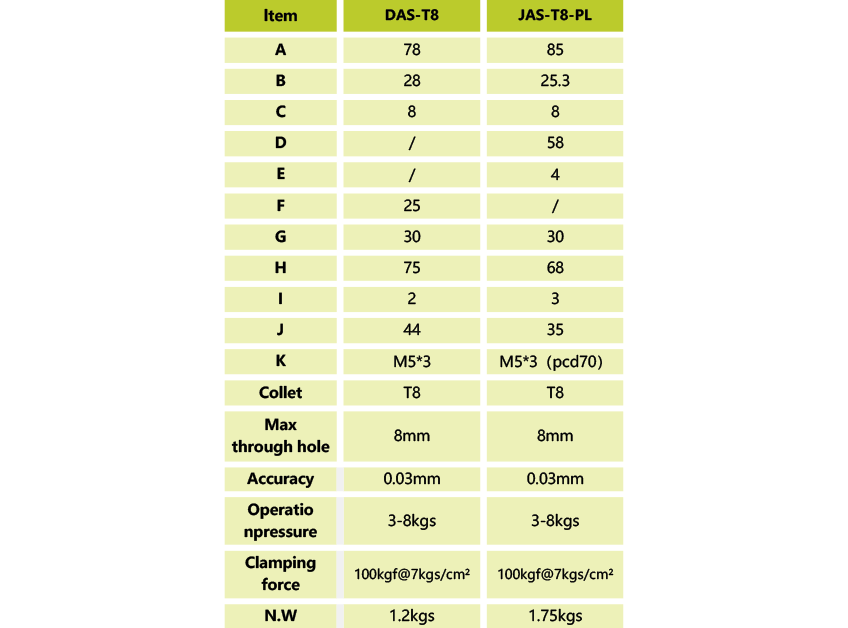

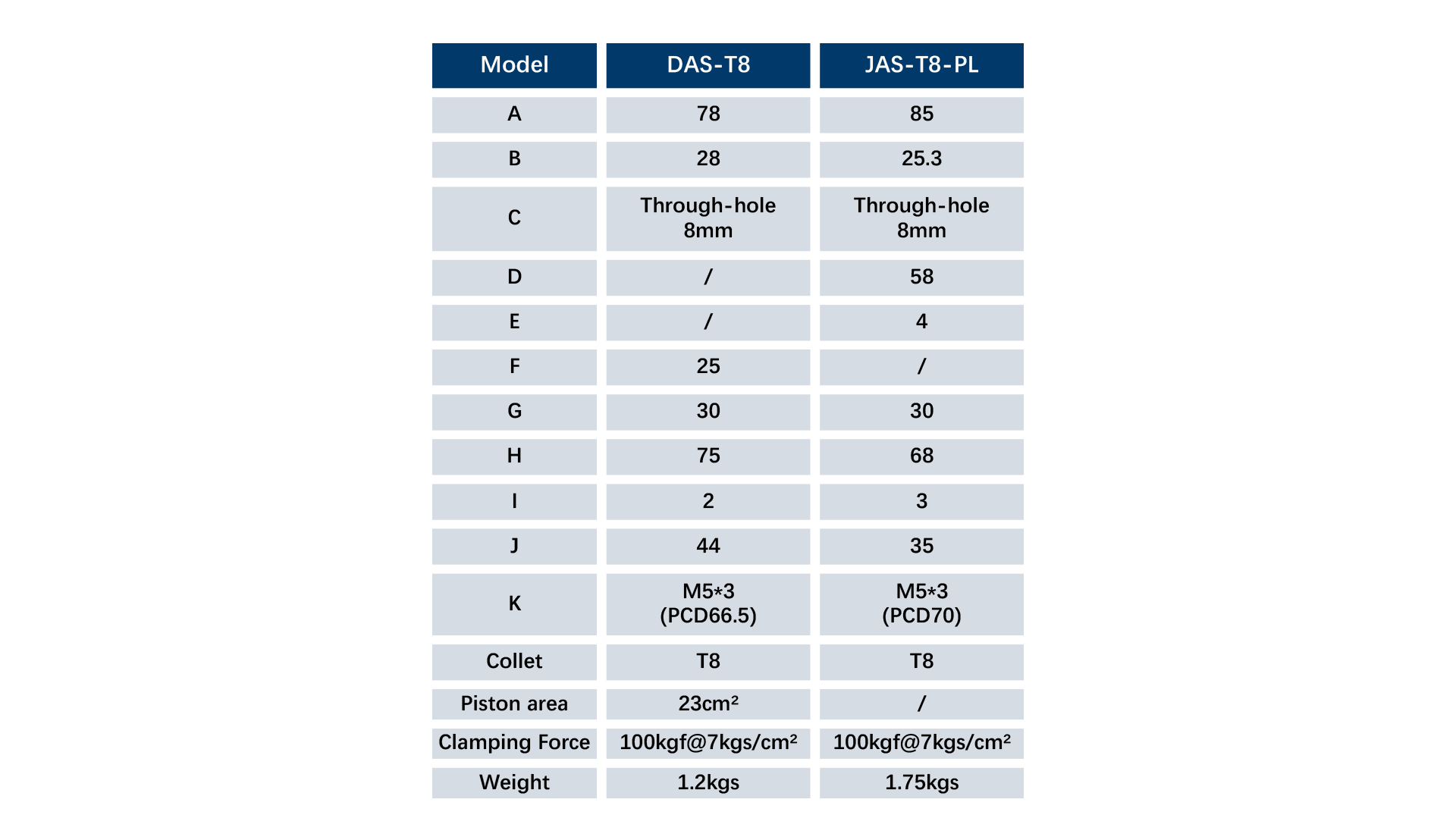

Specification
Three-dimensional model
