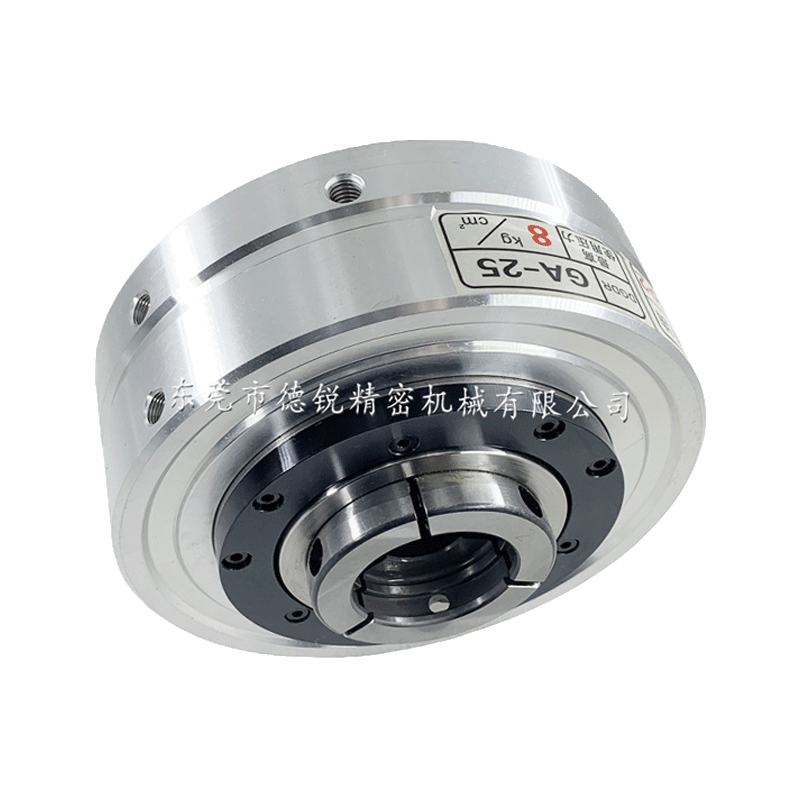

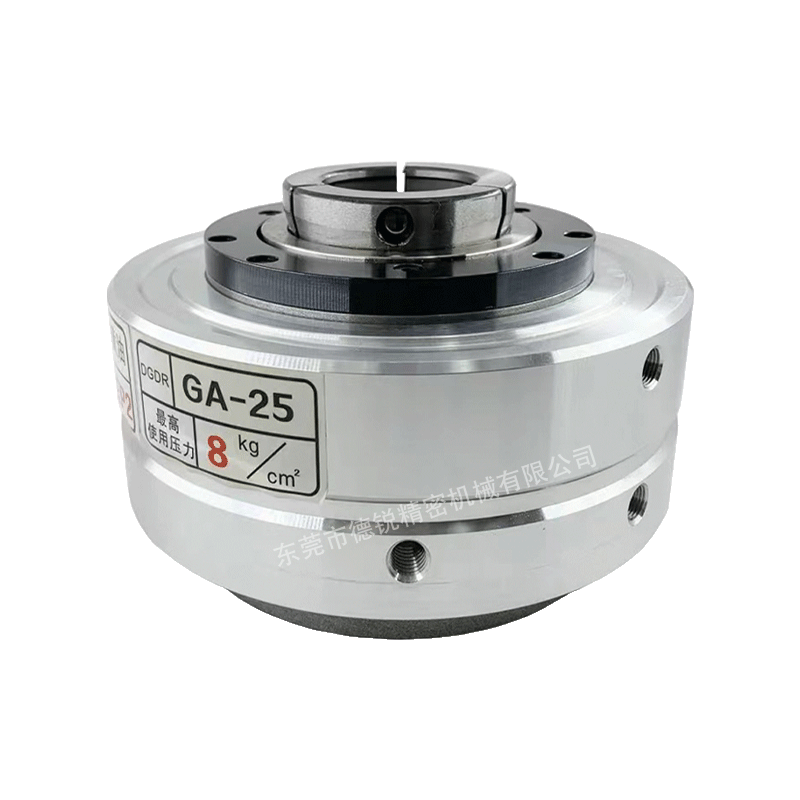

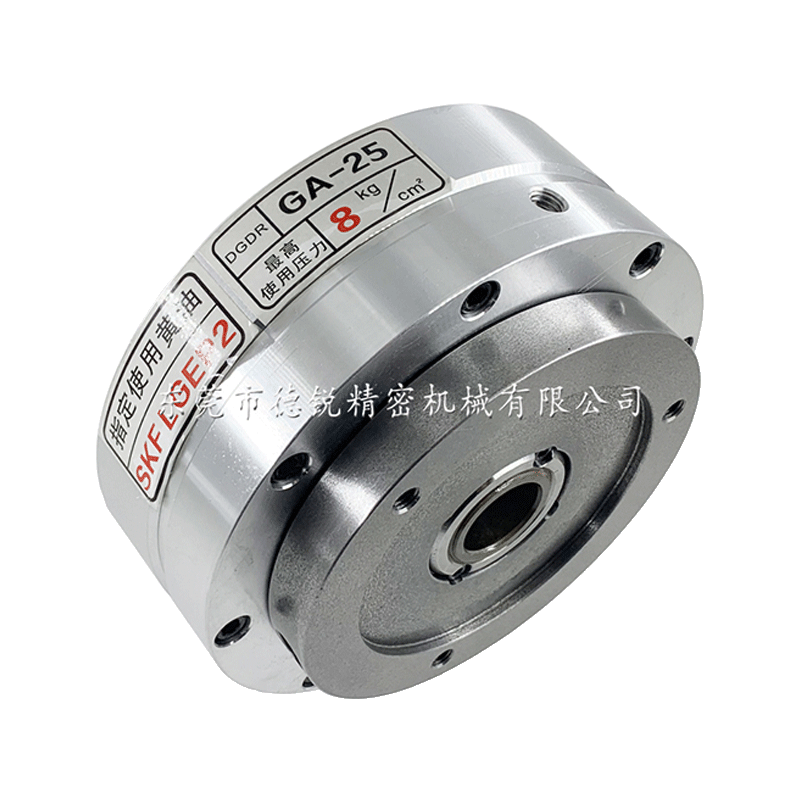

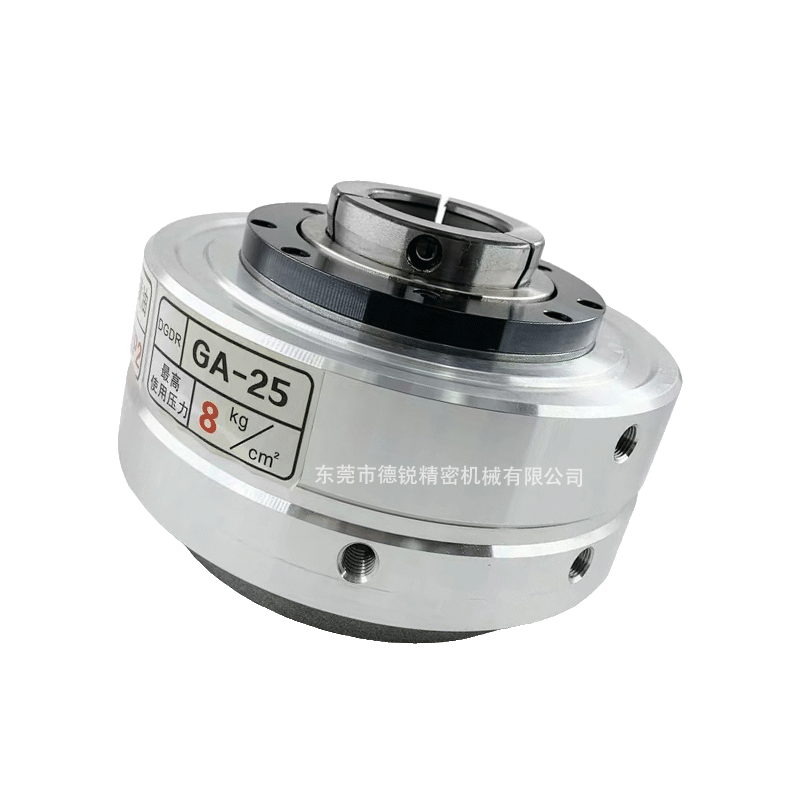

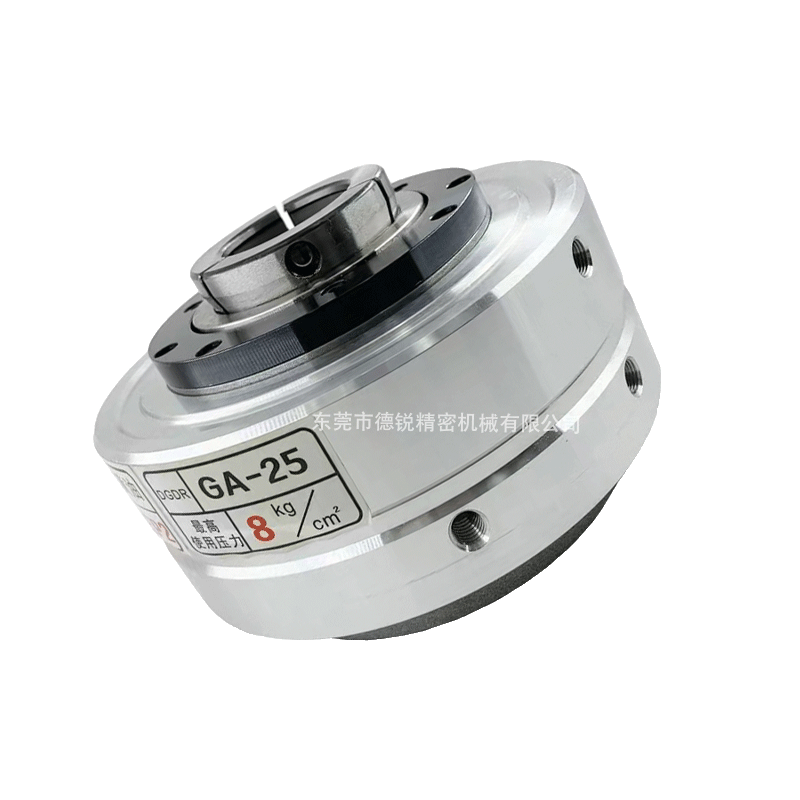

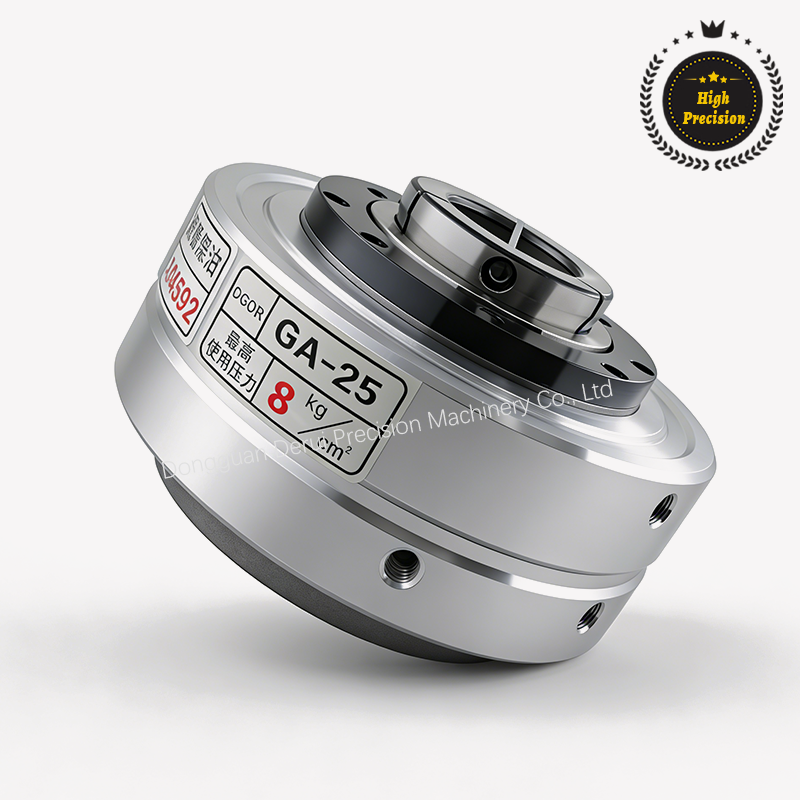

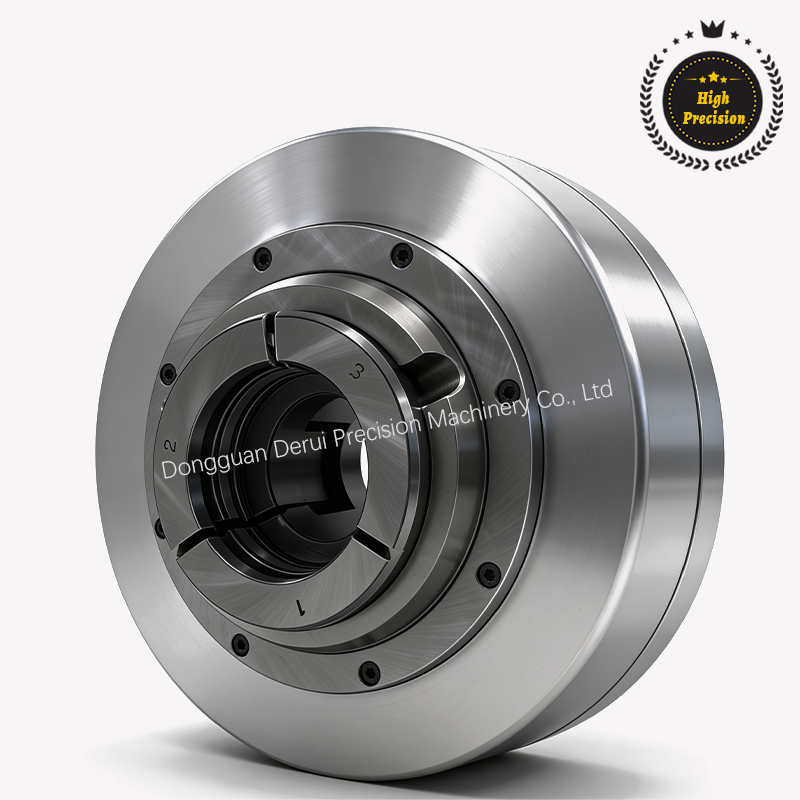

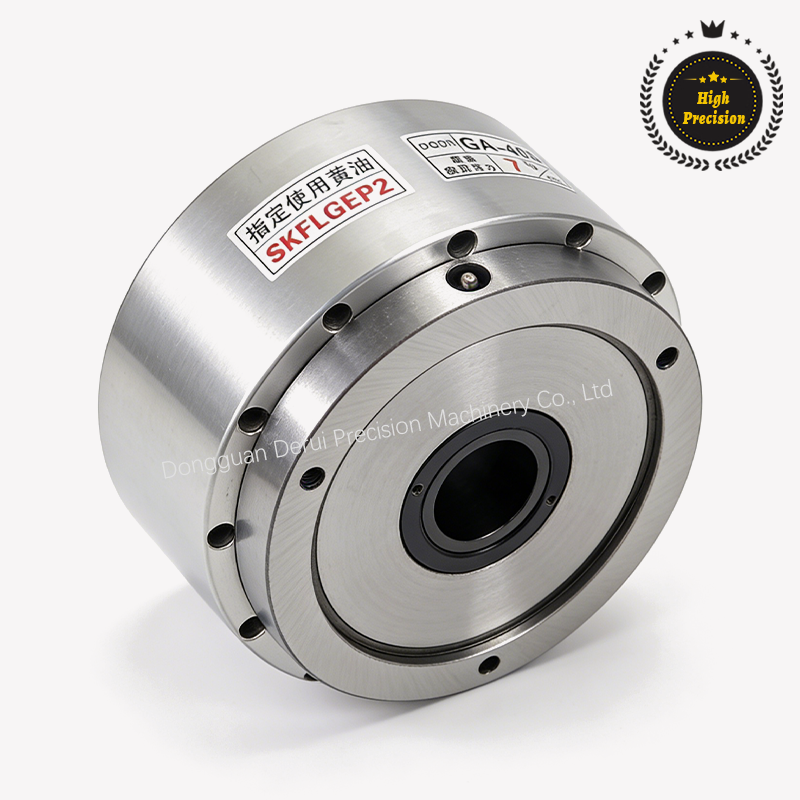

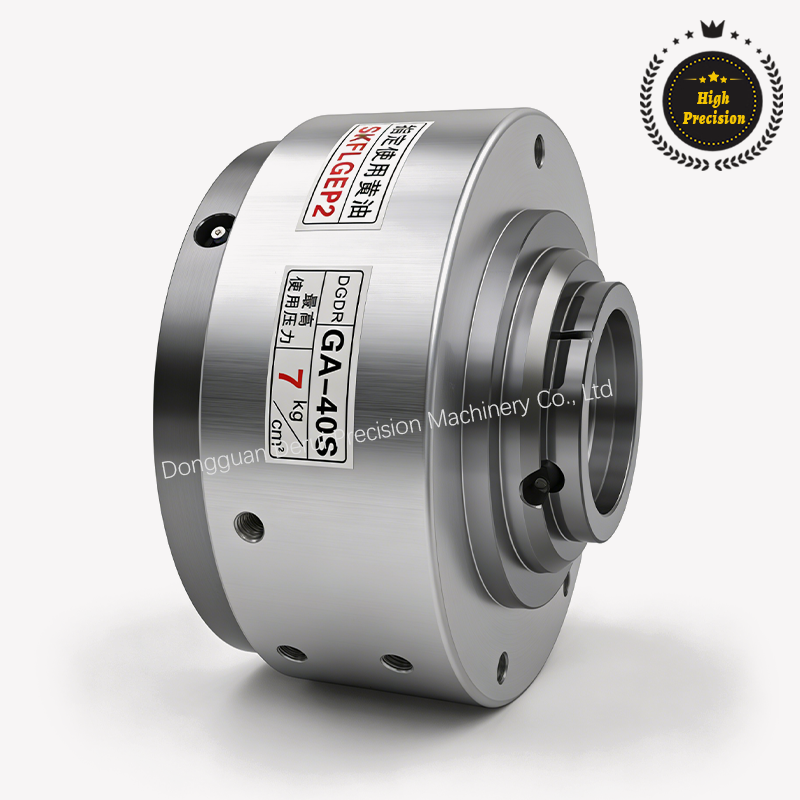

Pneumatic Rotary Chuck
Product characteristics
  • No additional cylinders required

  • Working air pressure 3-8 kgs

  • Quick Change of Auxiliary Jaws

  • Supports rear feeding without jamming

  • Clamping repeatability within 0.05 mm

  • lathes for automation or semi-automation

  • Cutting fluid must not be directed at the chuck

Product advantages

· DGDR Independent Brand, Dongguan Source Manufacturer

· Custom Non-standard Sizes & Special Jaws Available

· Original Core Components from Taiwan Province for Consistent Precision

· One-year Warranty on Chucks with After-sales Technical Support

· Complete Range of Models Compatible with All Types of Machine Tools


Plan

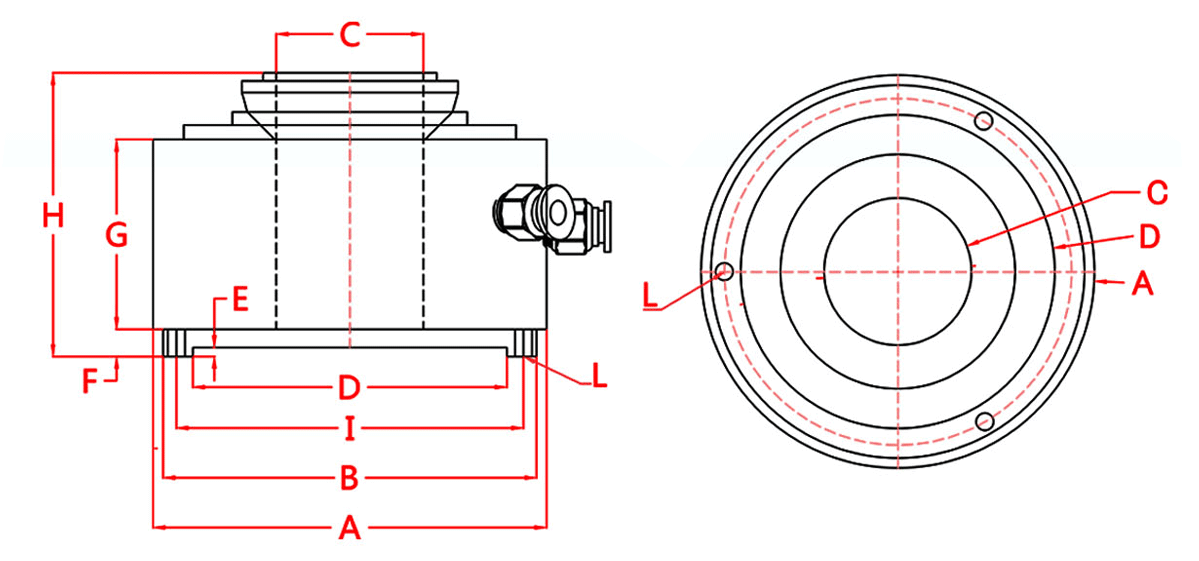

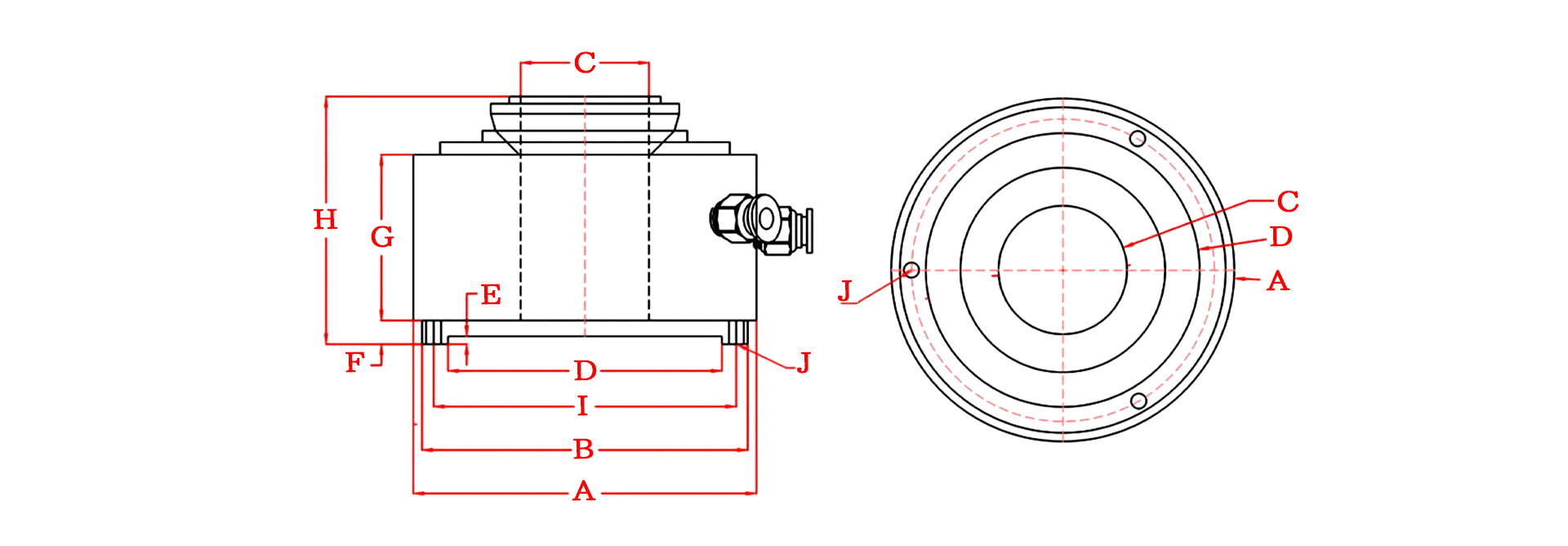

Specification and size

Related products

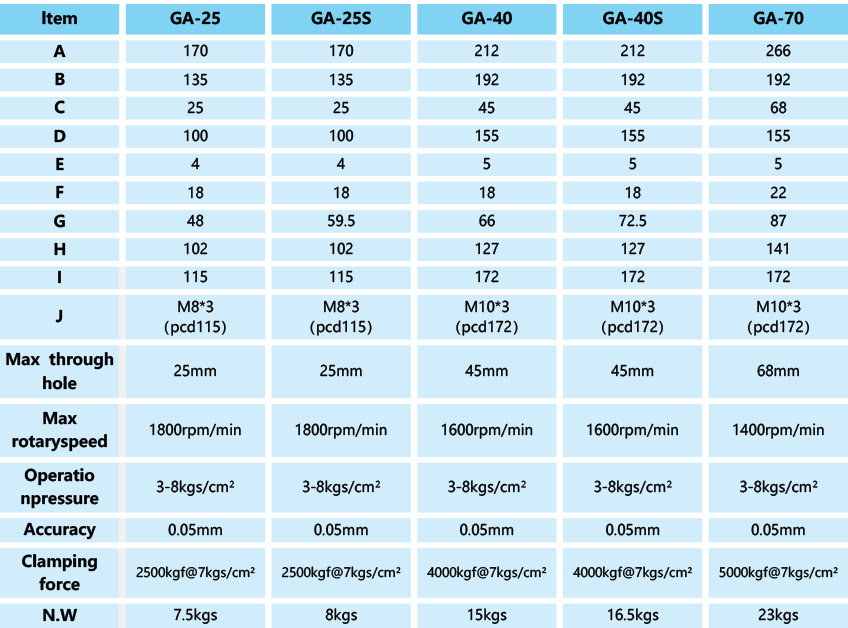

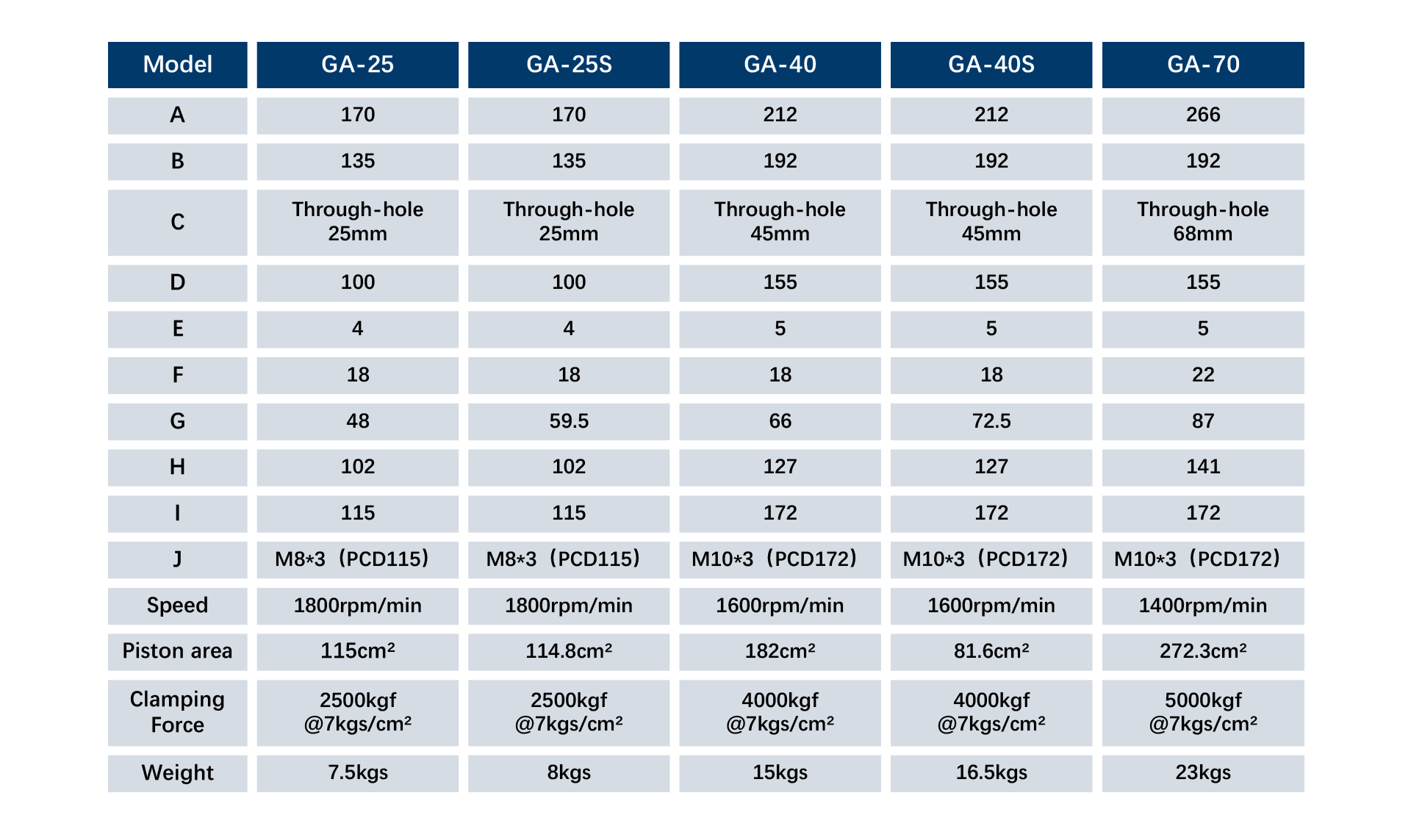

Specification
Three-dimensional model
💬
