JAP207-42BZI

Return to List

OVERVIEW

GALLERY
VIDEO

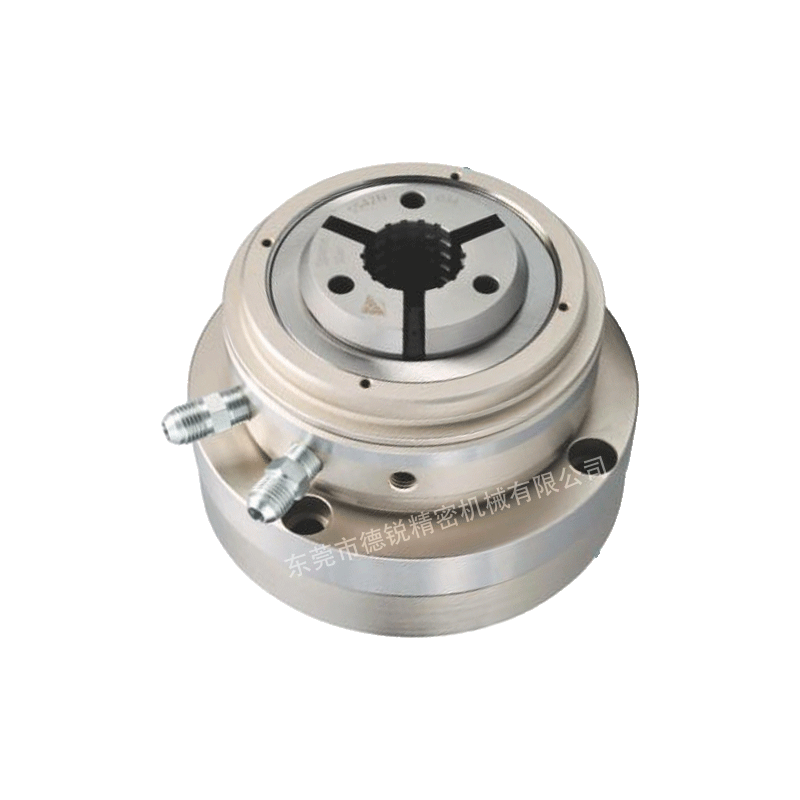

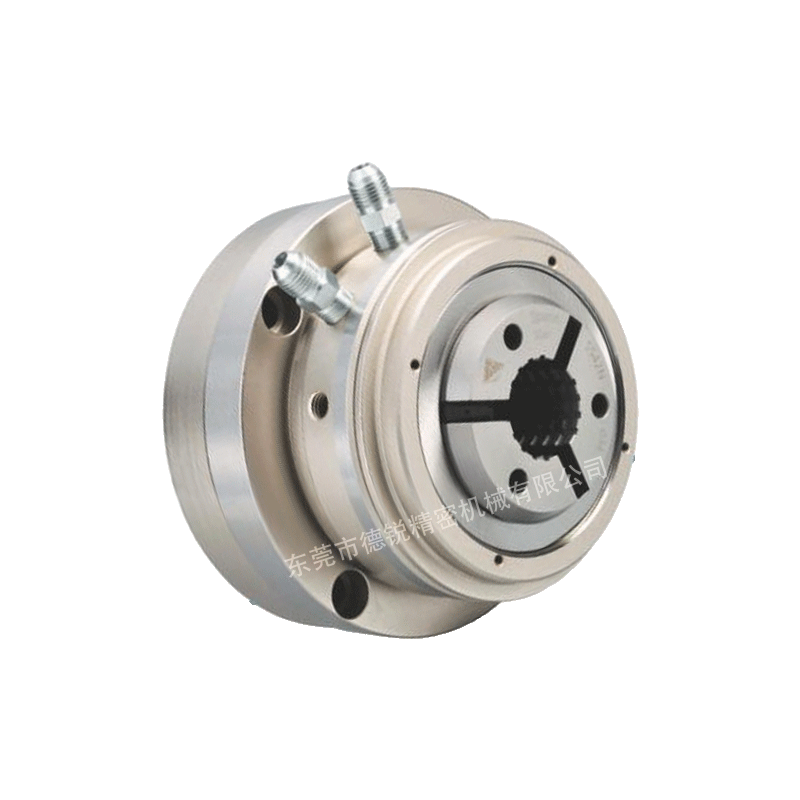

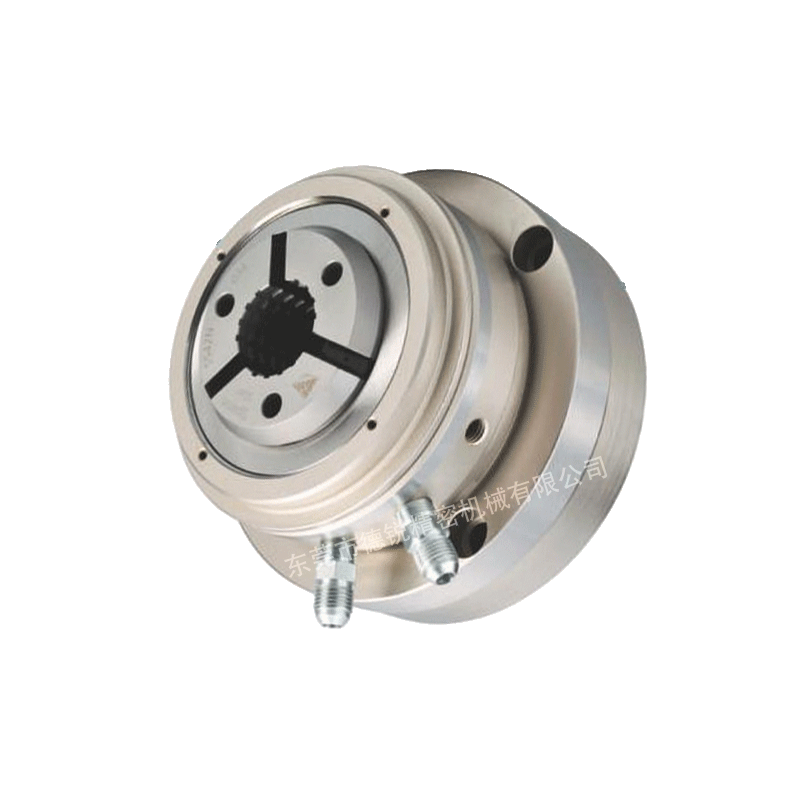

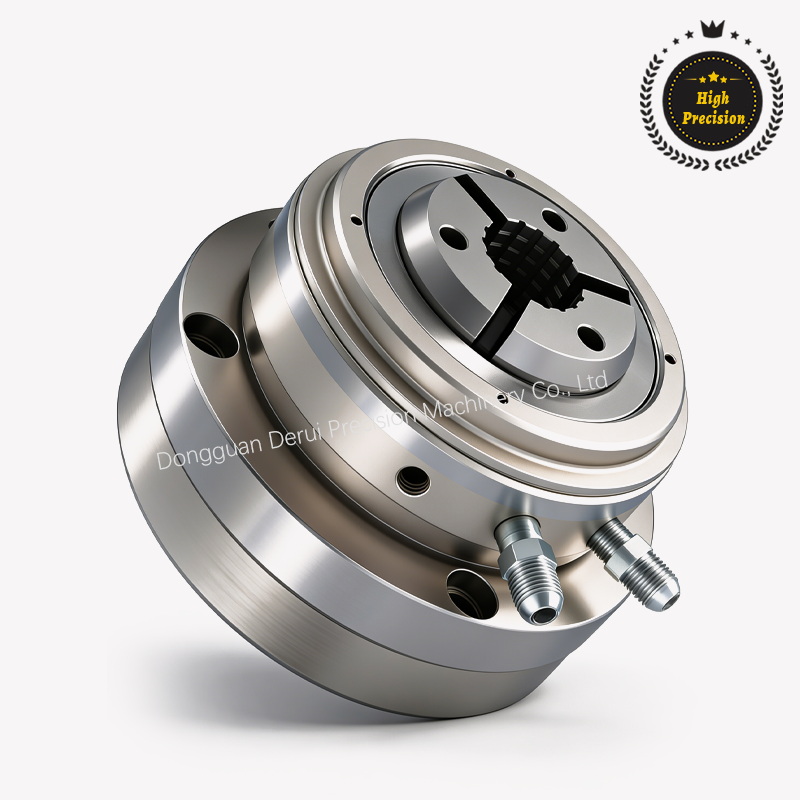

Air Collet Chuck

Product characteristics

Uses original German rubber
Built-in rotary cylinder
Parallel Clamp with over 1.5mm range
Really fast collet change with wrench
Dual pistons strong clamping force.
Imported deep groove ball bearings
Highly waterproof and dustproof
Cutting fluid must not sprayed chuck

Product advantages

This high-performance pneumatic chuck features original German rubber for reliable clamping, with a built-in rotary cylinder eliminating the need for additional components. It offers a parallel clamp range over 1.5mm, quick wrench-based collet changes, and dual pistons for strong clamping force. Imported deep groove ball bearings ensure smooth operation, while its highly waterproof and dustproof design protects against harsh machining environments.

Business Consulting

Plan

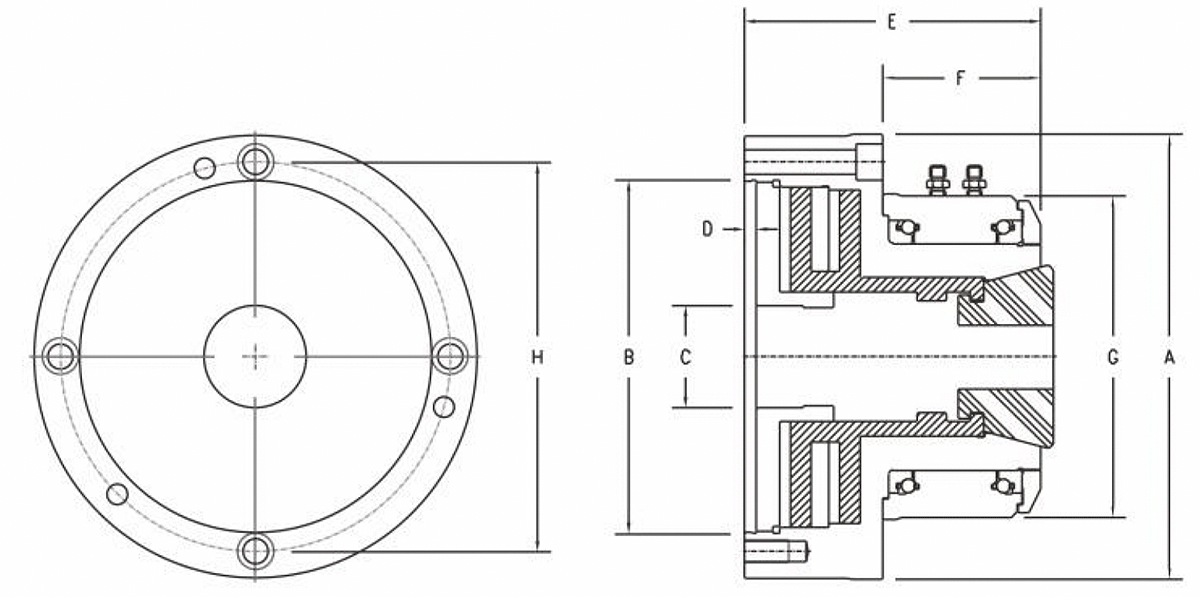

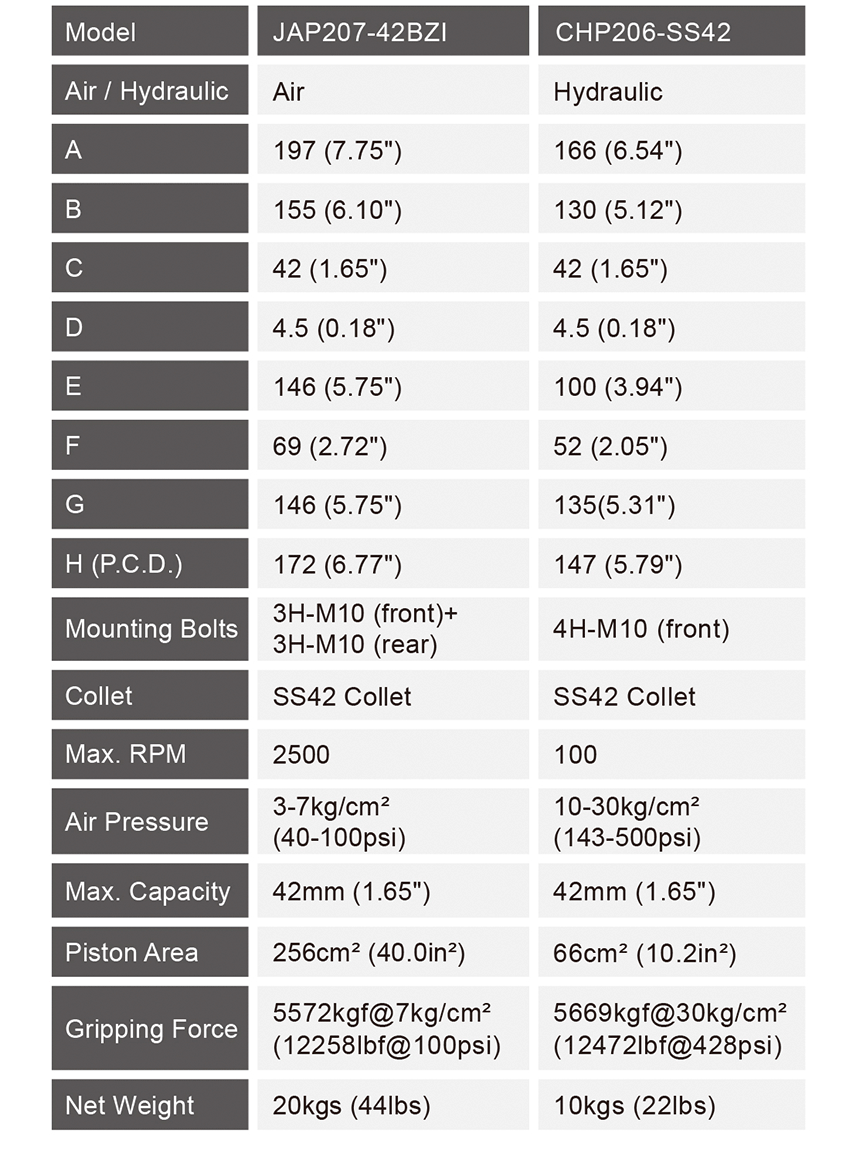

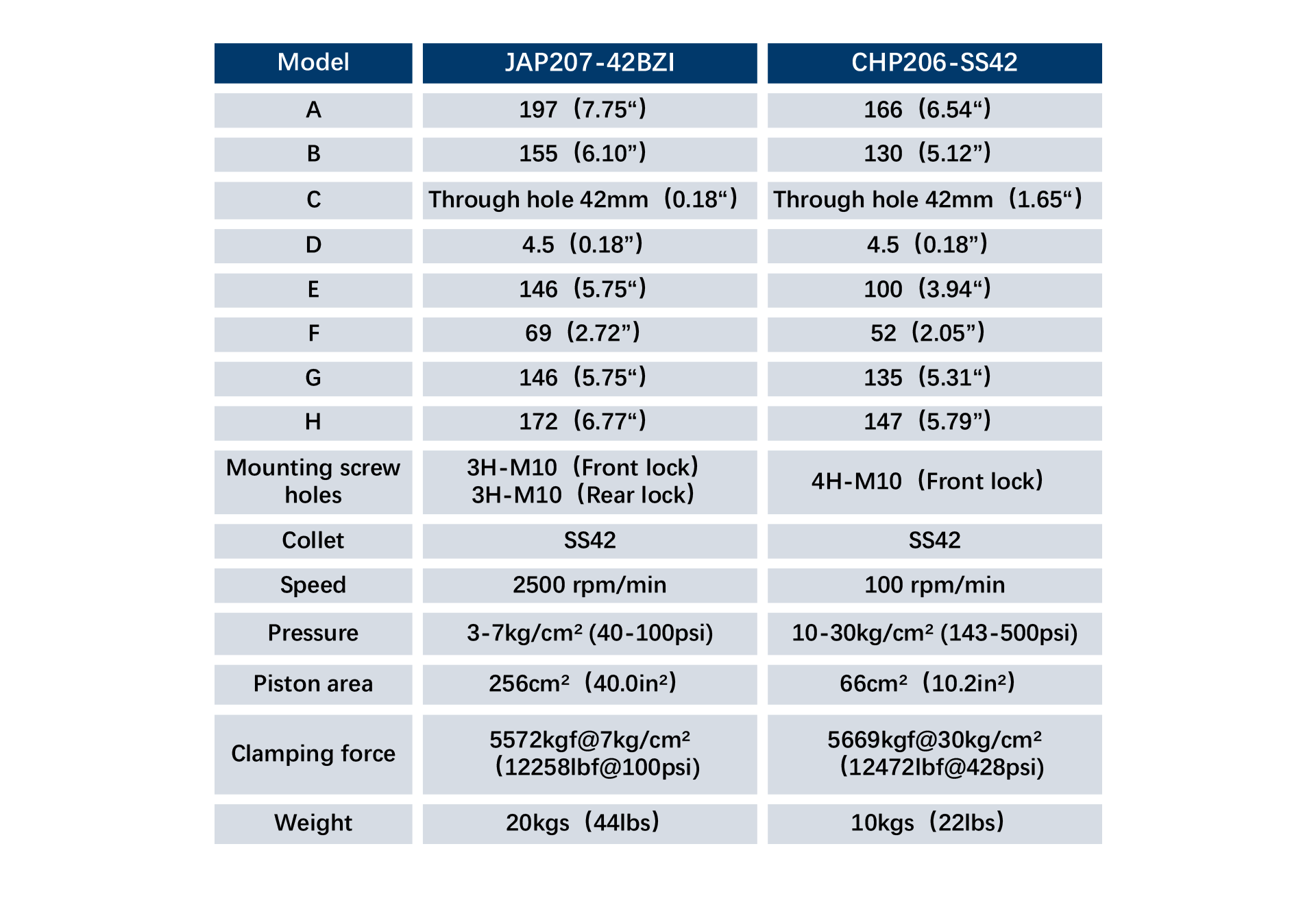

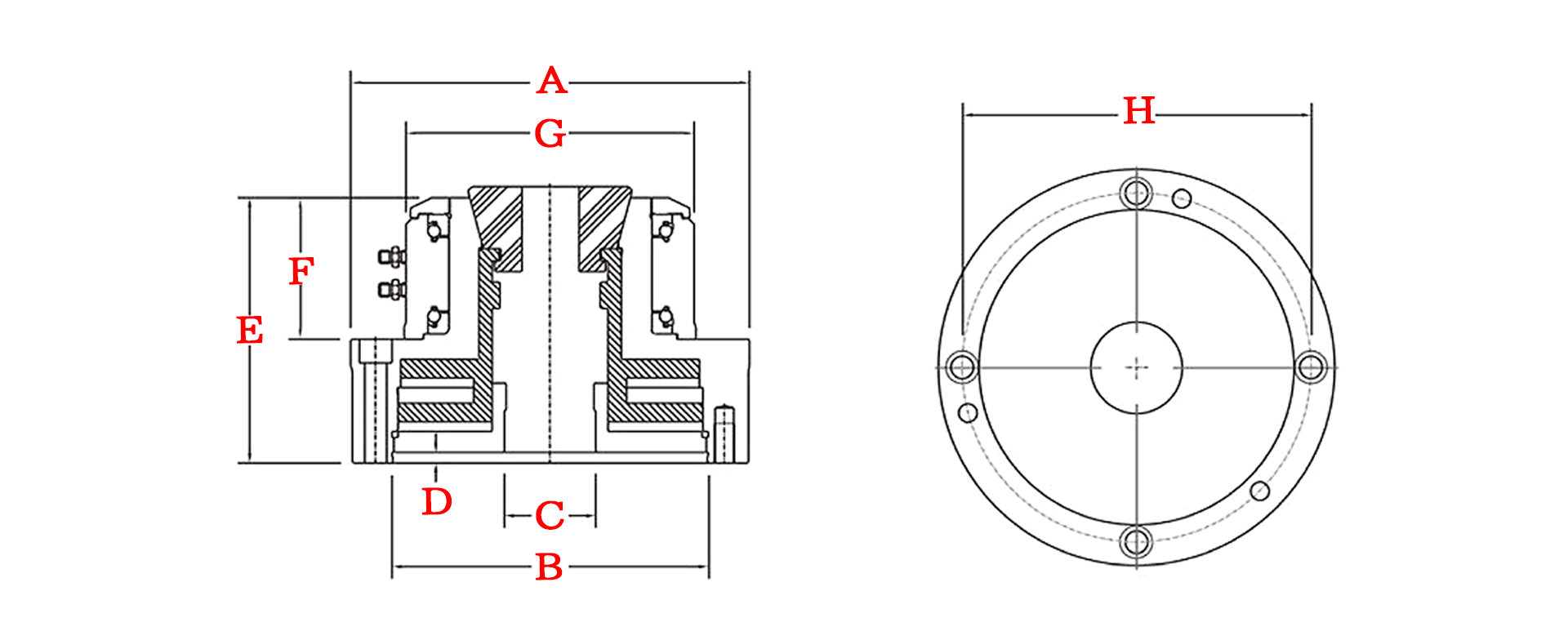

Specification and size
