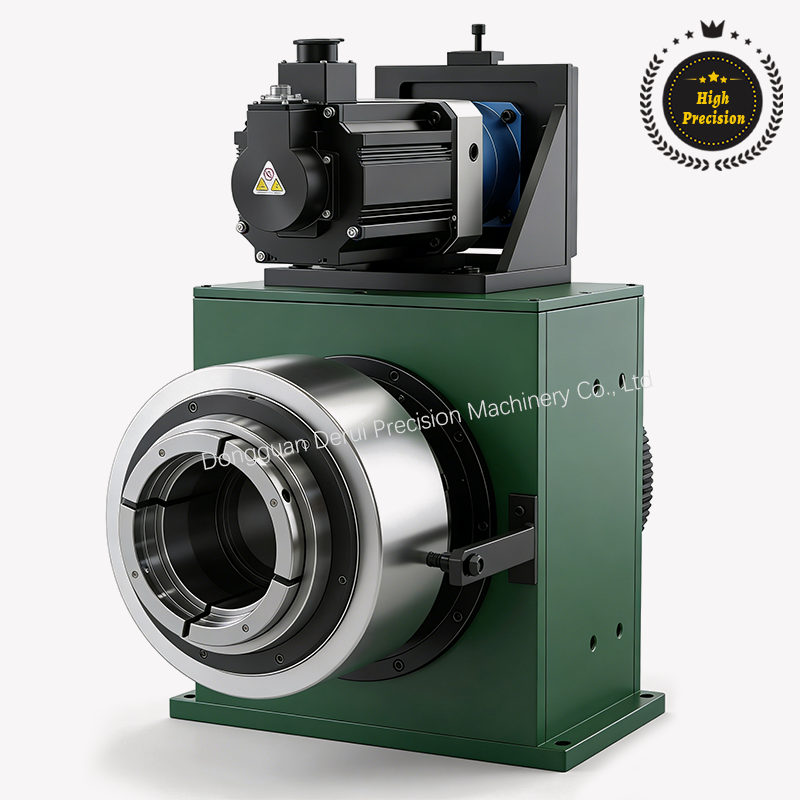

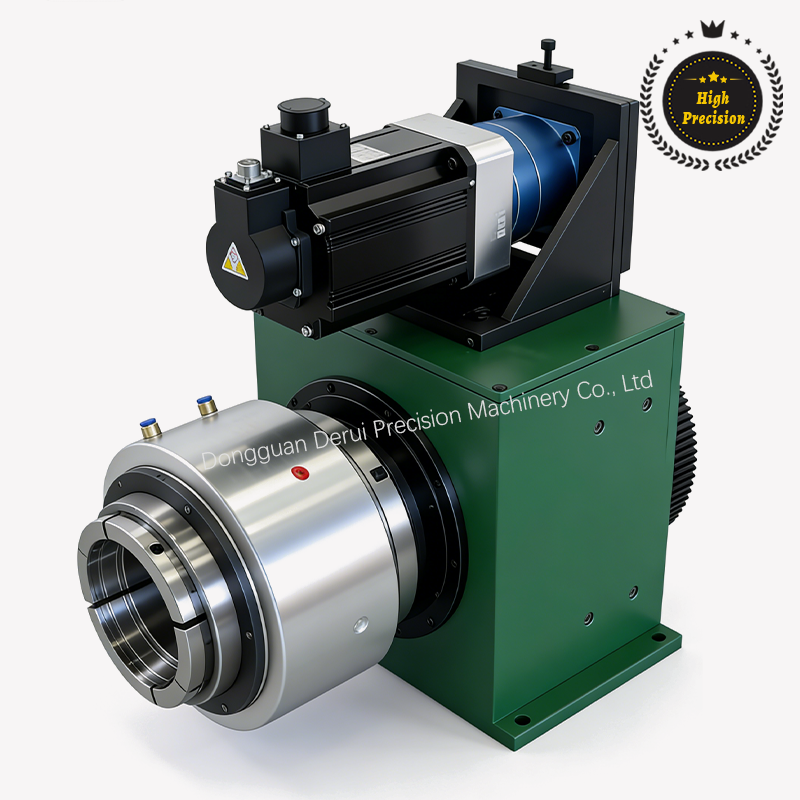

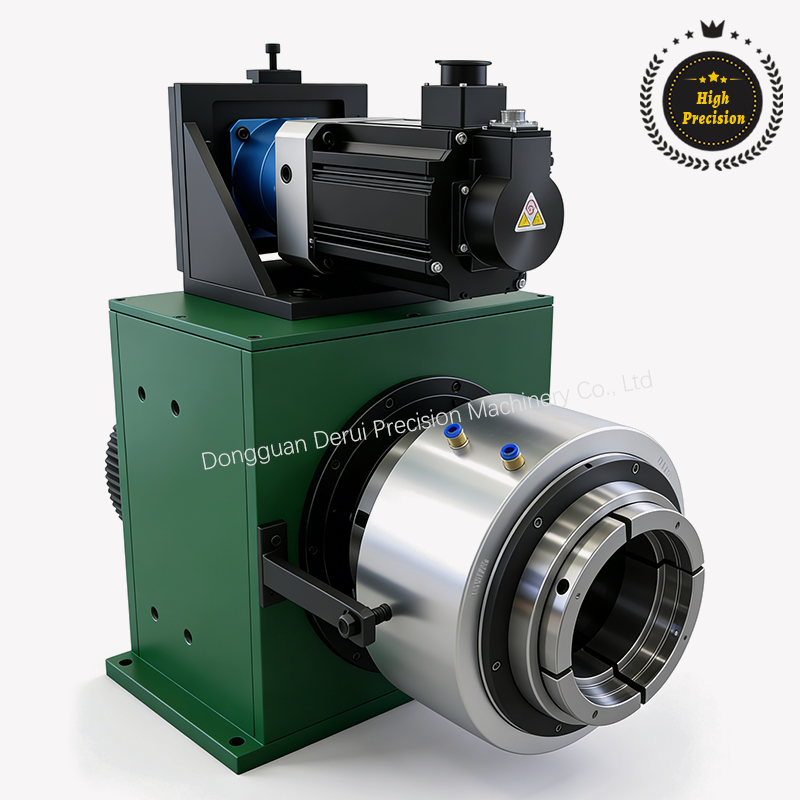

Front-Mounted Hydraulic/Pneumatic Cylinder Design
Through-hole maximum clamping capacity: 500 mm
Clamping Repeatability: 0.05 mm
Irregularly shaped workpieces can all be clamped
Opening stroke: 1–2.5 mm (customizable 50 mm)
Air Pressure: 3–8 kg/cm² / Oil Pressure: 16 kg/cm²

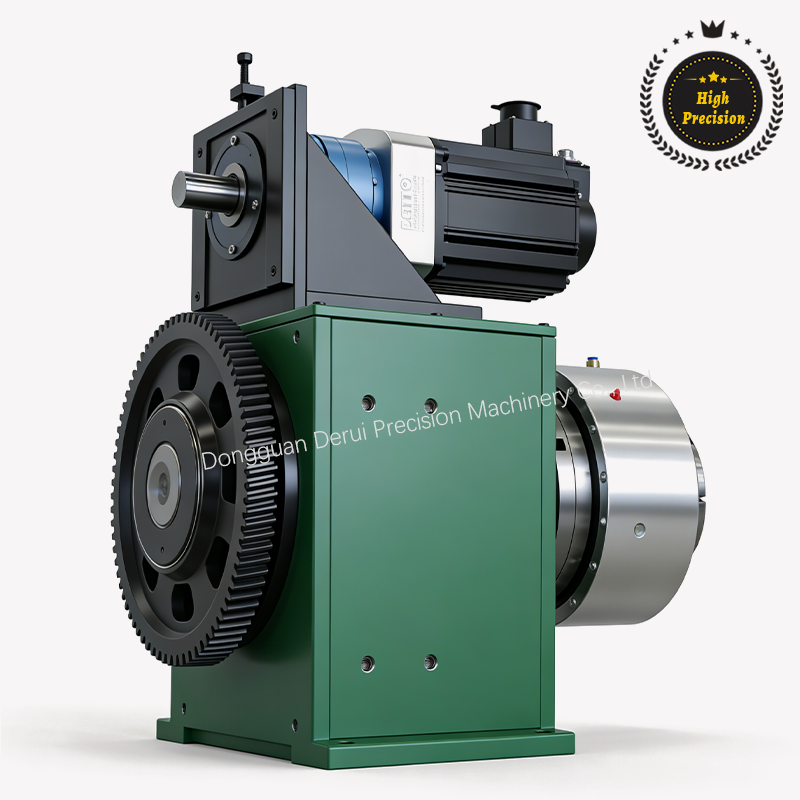

A timing pulley or gear may be fitted at the rear.
Cutting fluid must not be directed at the chuck.
