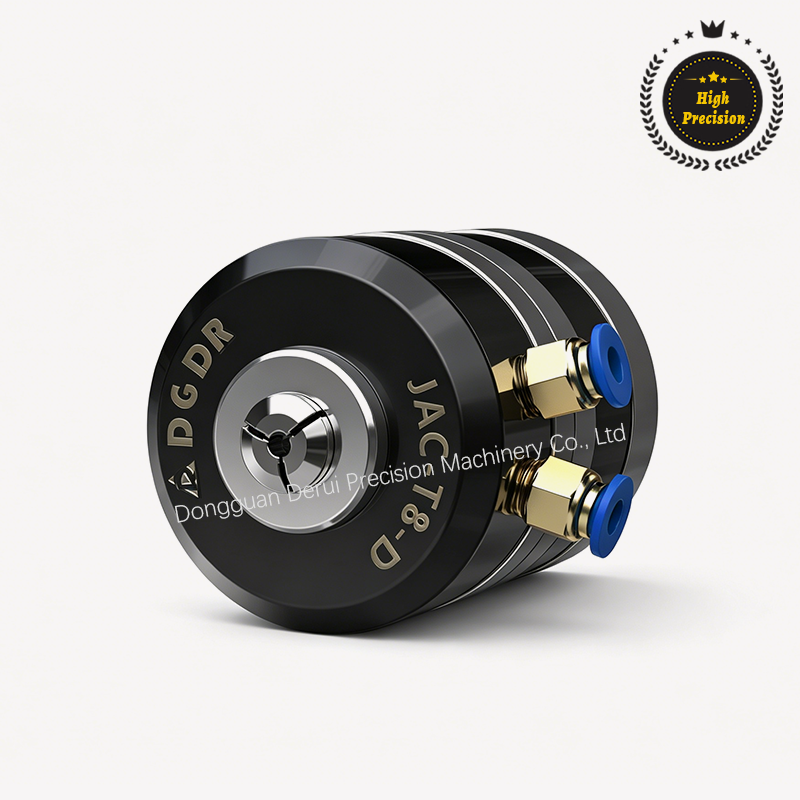

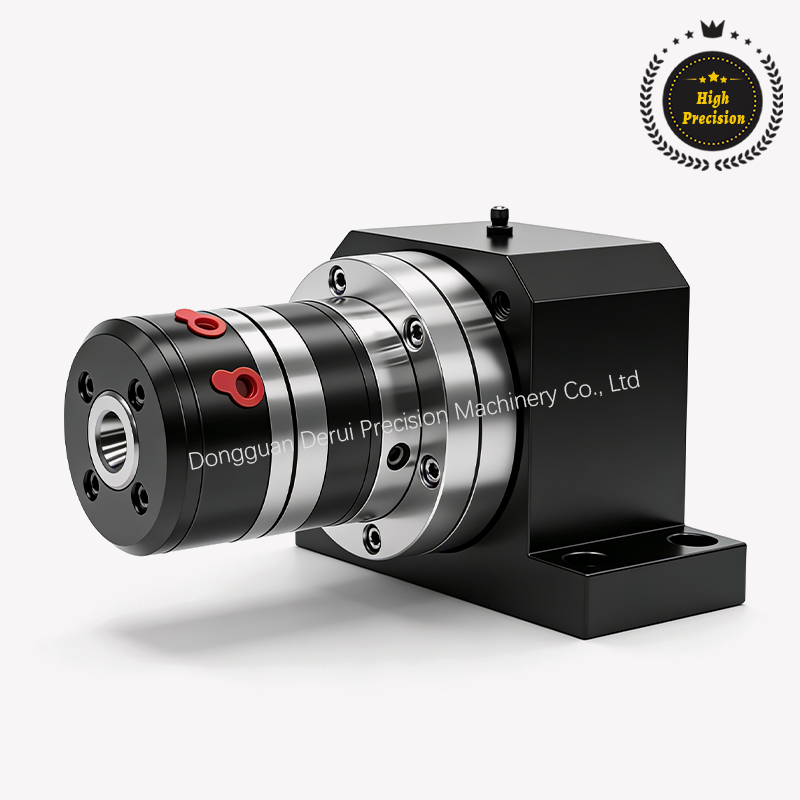

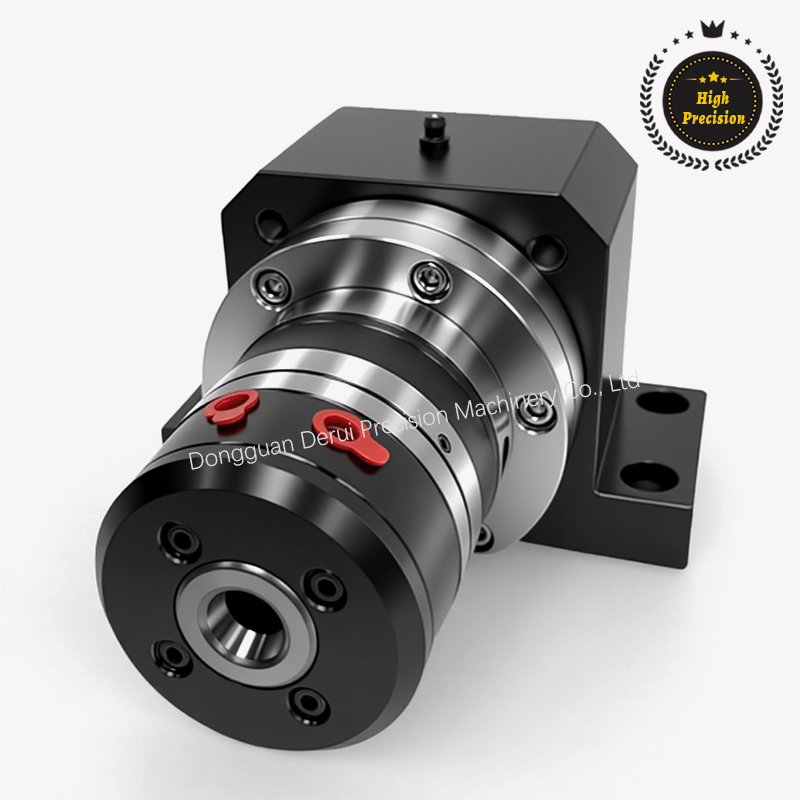

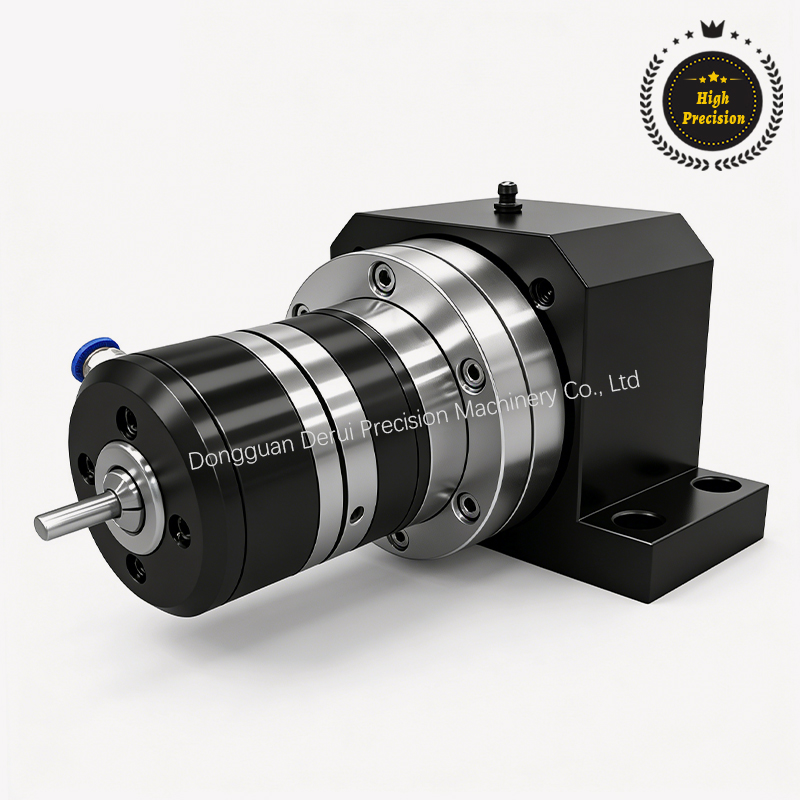

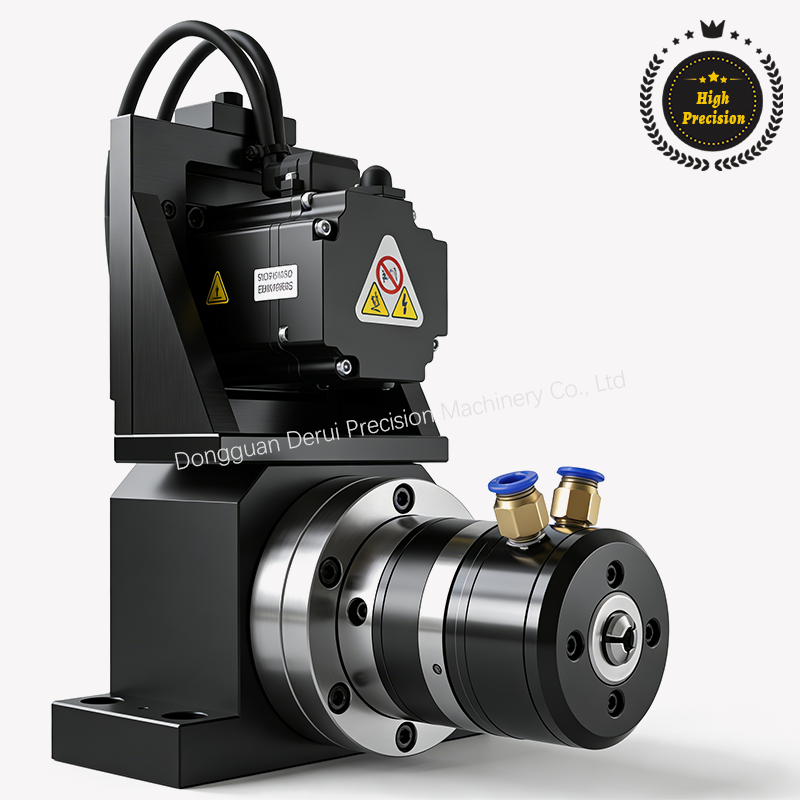

Small Rotary Chuck Spindle
Product characteristics
Small installation outer diameter; steel body
Repeat Clamping Accuracy: 0.03 mm
Installation-Free - Hydraulic/Pneumatic Cylinder

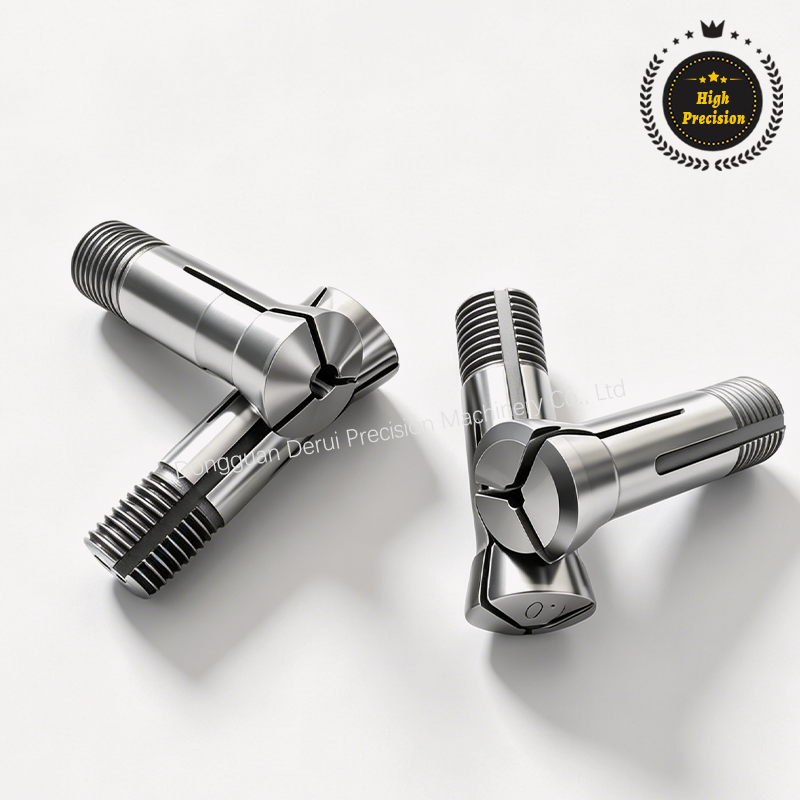

Changing Collets for Different Workpieces
Air pressure: 3–7 kg/cm²; dustproof and waterproof
Widely used various specialized automated machines

Quality Assurance
ISO 9001 Quality Certification
12-month warranty, lifetime maintenance
Product advantages

· DGDR Independent Brand, Dongguan Source Manufacturer

· Custom Non-standard Sizes & Special Jaws Available

· Original Core Components from Taiwan Province for Consistent Precision

· One-year Warranty on Chucks with After-sales Technical Support

· Complete Range of Models Compatible with All Types of Machine Tools

Business Consulting
Plan

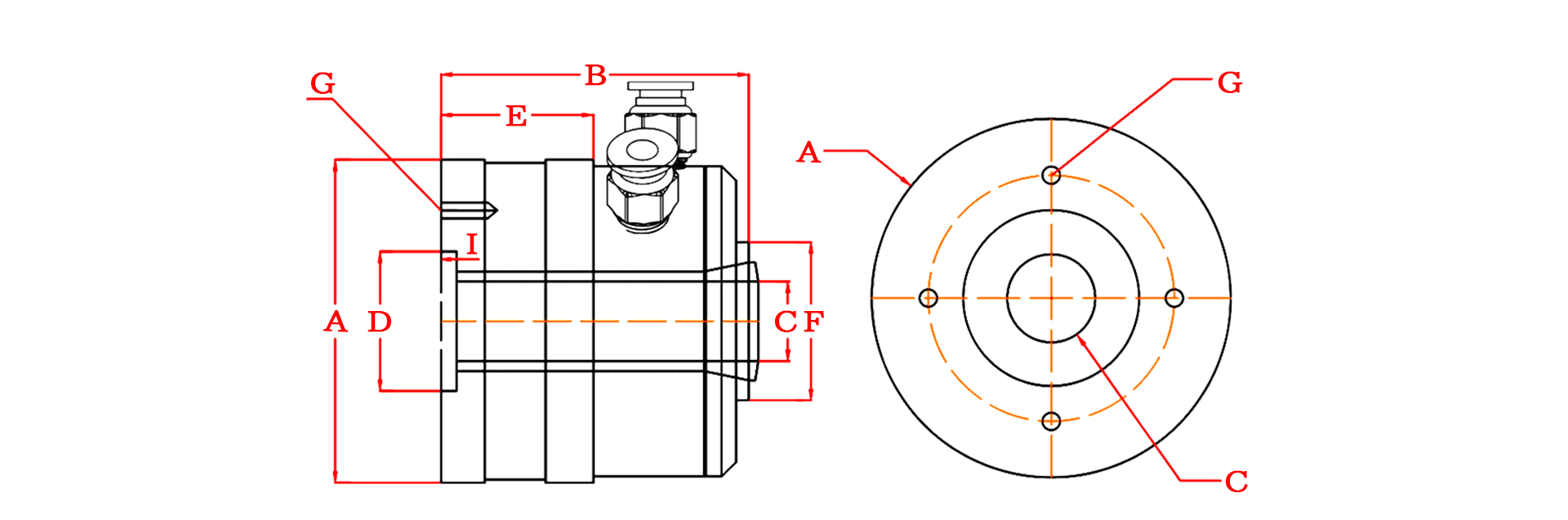

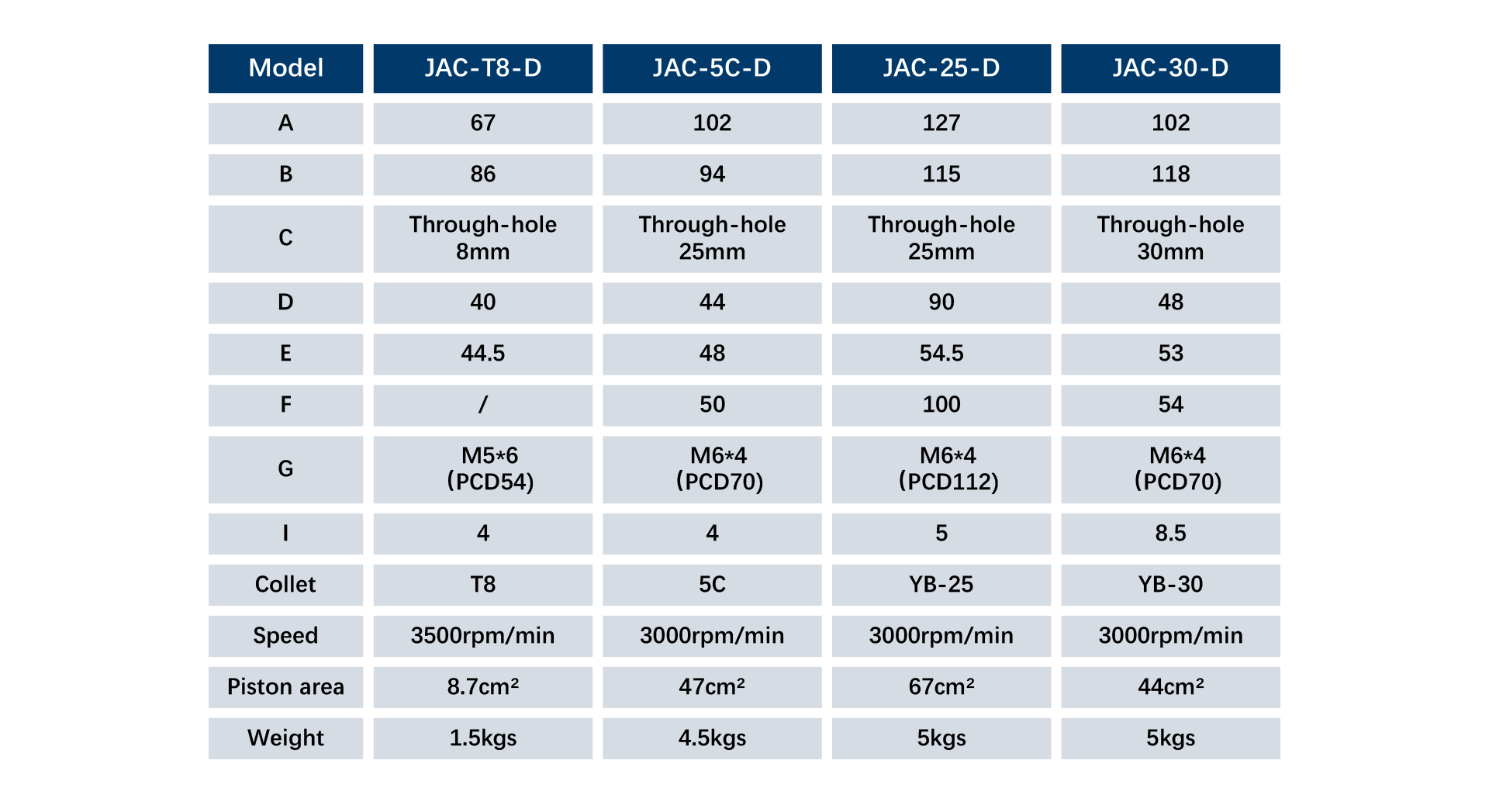

Specification and size
Related products
Specification
Three-dimensional model

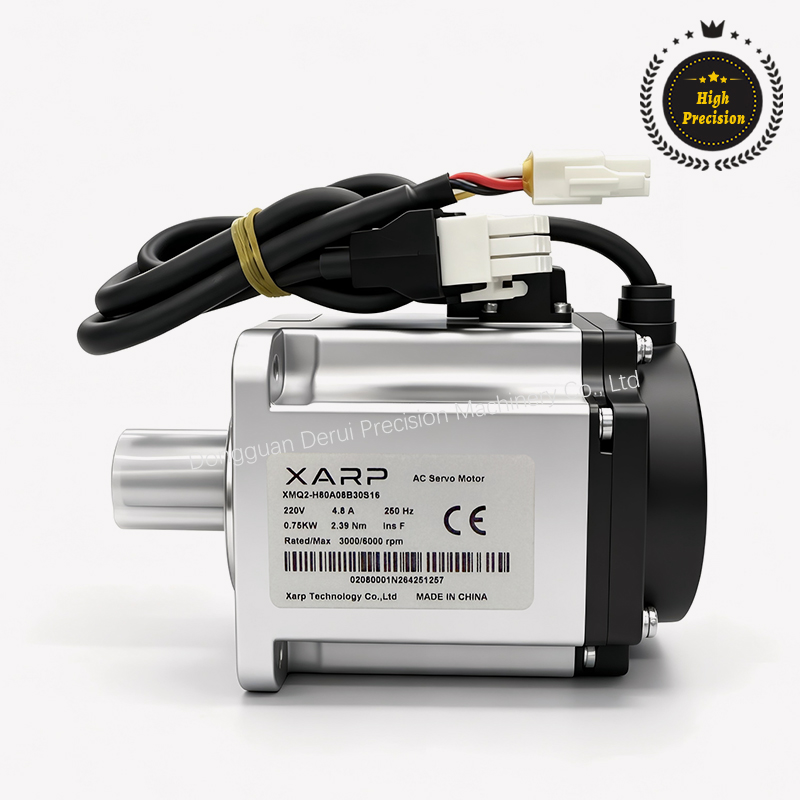

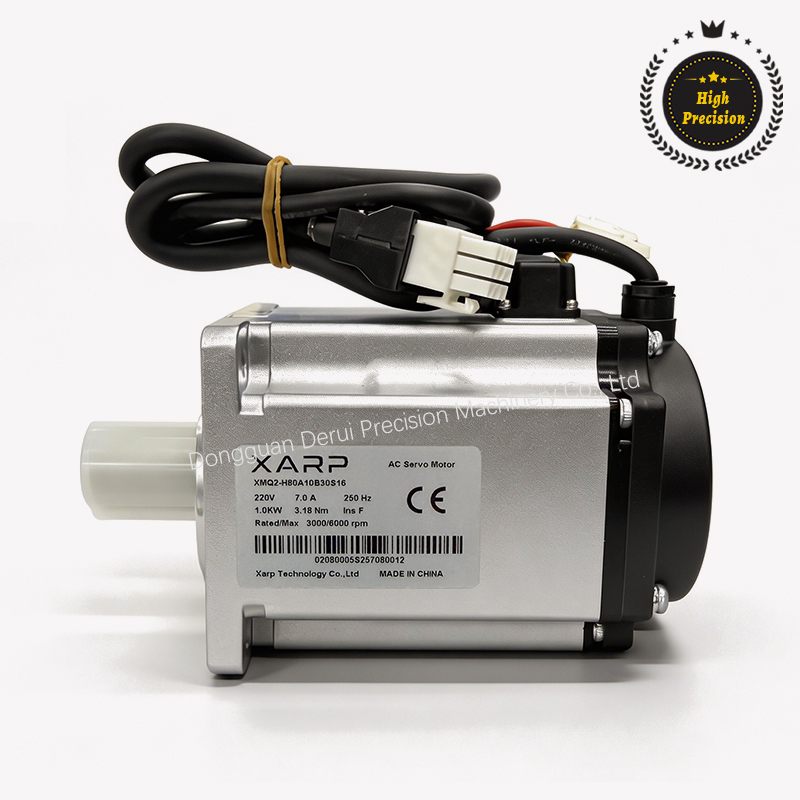

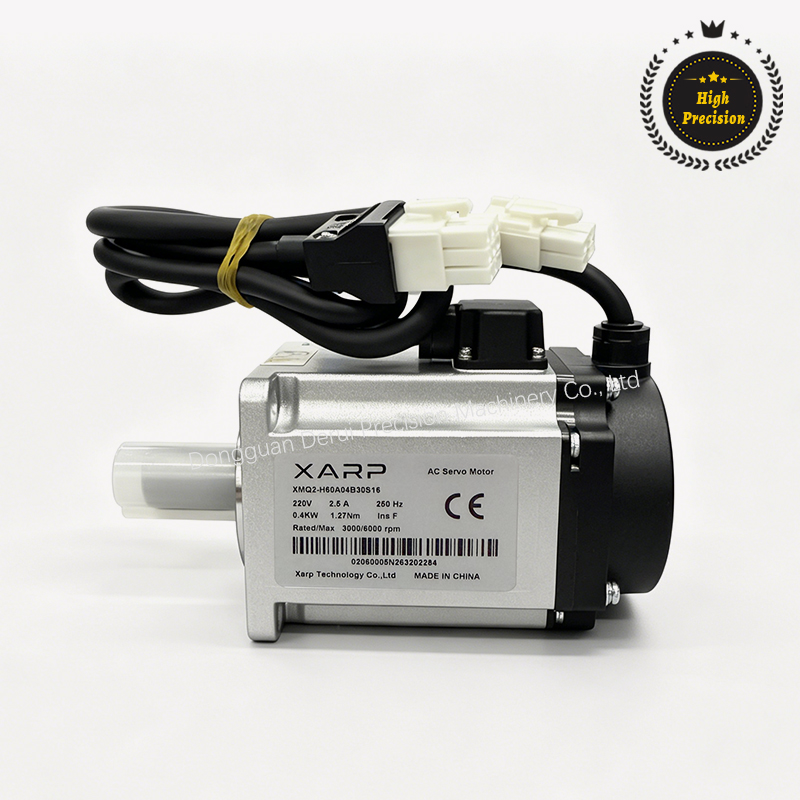

  • 3D model：DR10+JAC-T8-D+400w Motor + Bracket (Upper).STEP
    download
  • 3D model：DR10+JAC-T8-D+400w Motor + Bracket (Right).STEP
    download
  • 3D model：DR10+JAC-T8-D+400w Motor + Bracket (Left).STEP
    download
