CHP206-SS42

Return to List

OVERVIEW

GALLERY
VIDEO

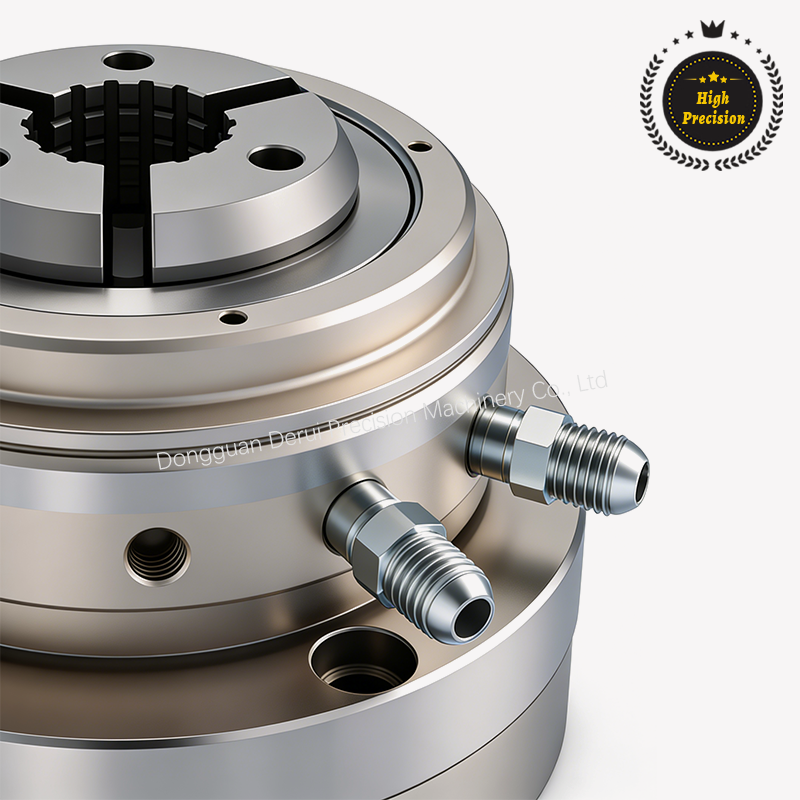

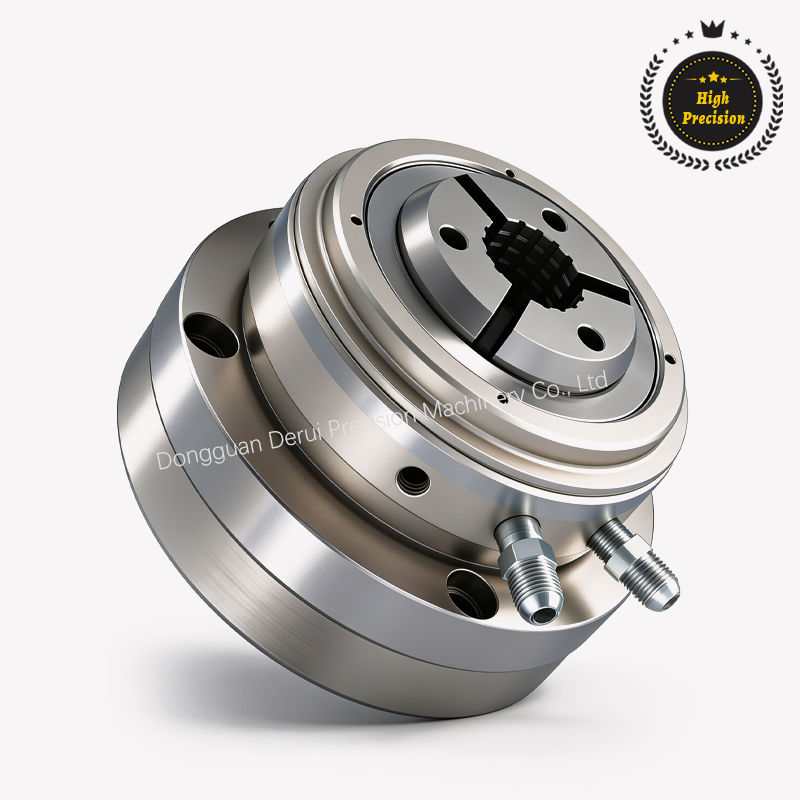

Hydro Collet Chuck

Product characteristics

Uses original German rubber collet
Use Special O-ring from Trelleborg
Parallel Clamp with over 1.5mm range
Really fast collet change with wrench
Pull-back clamping clamping stability
Rotating disk oscillation does not interfere
Hydraulic drive, large clamping force
Indexing plate, rotary table

Product advantages

Built with original German rubber collets and Trelleborg O-rings, this hydraulic chuck delivers stable pull-back clamping. It features a parallel clamp range over 1.5mm, fast wrench-based collet changes, and a rotating disk oscillation-free design for precision. With hydraulic drive providing large clamping force, it is ideal for use with indexing plates and rotary tables.

Business Consulting

Plan

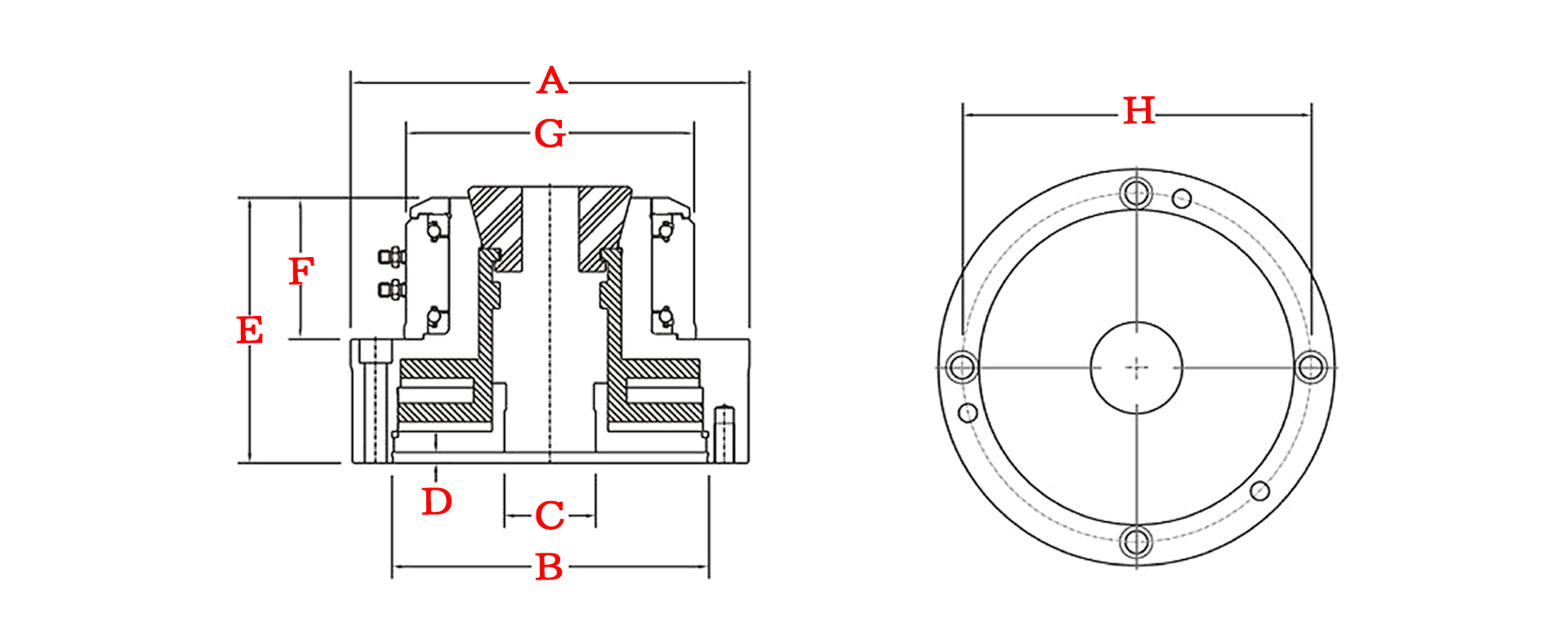

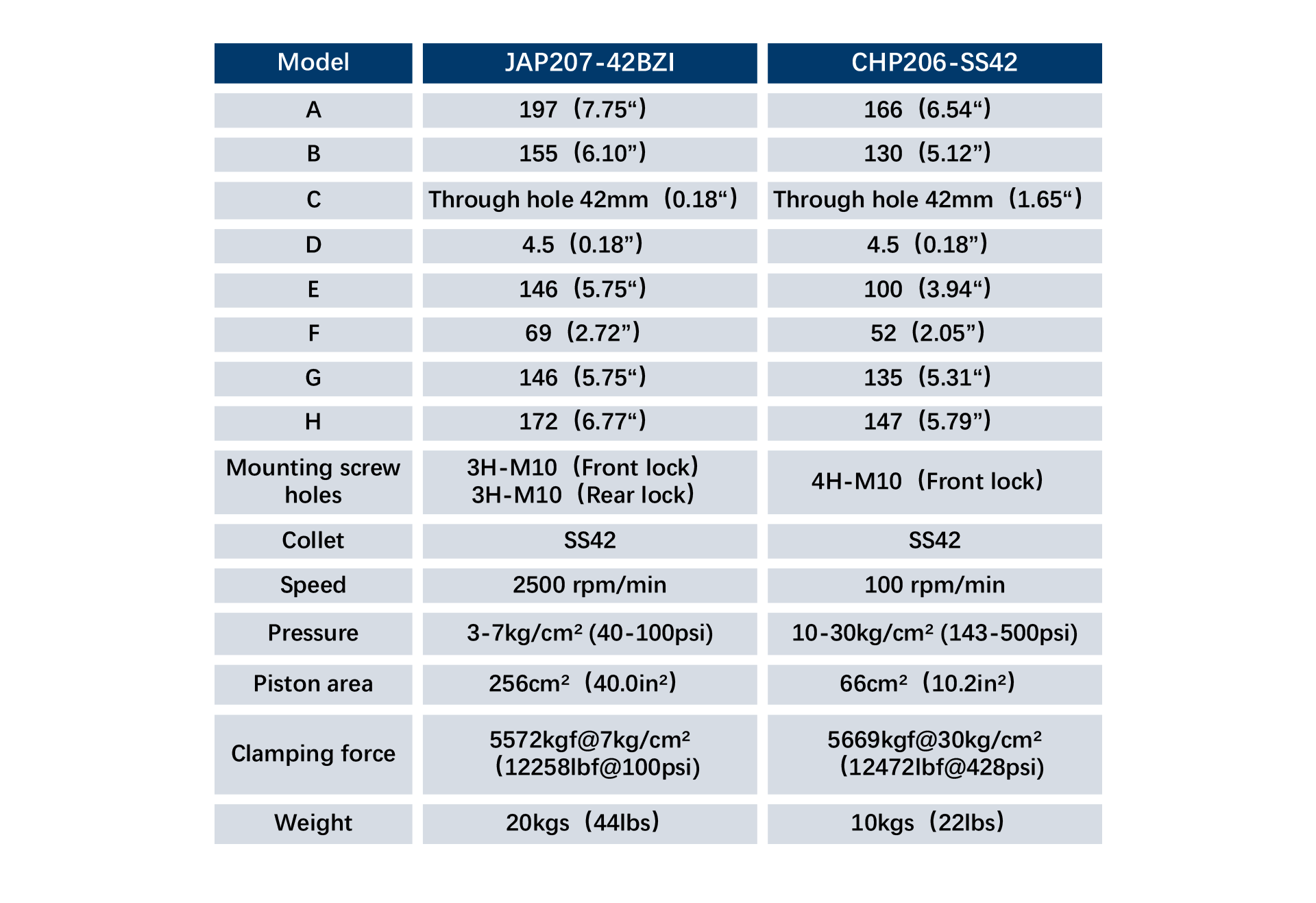

Specification and size
