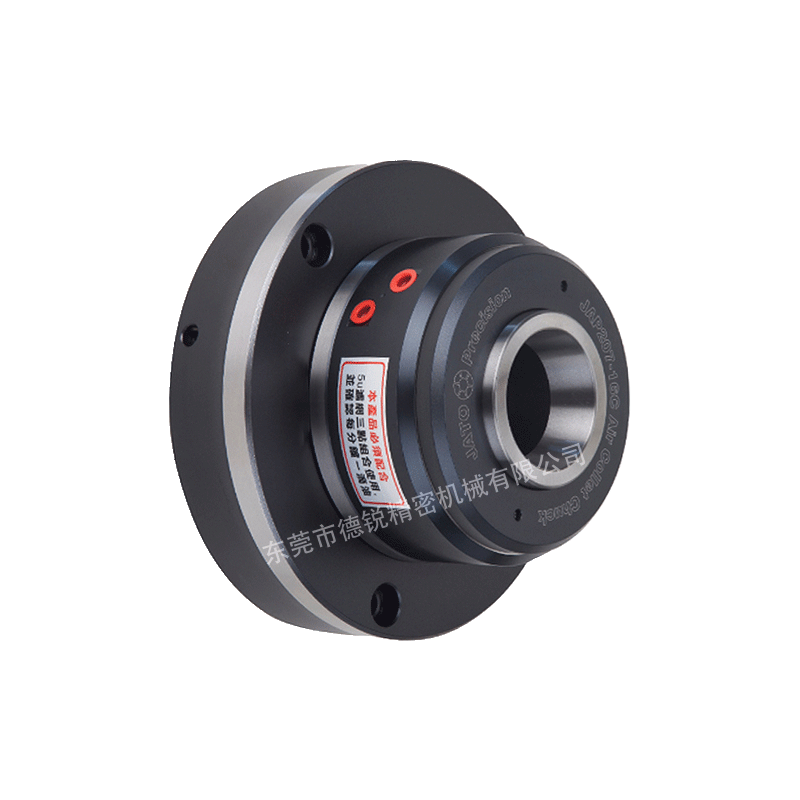

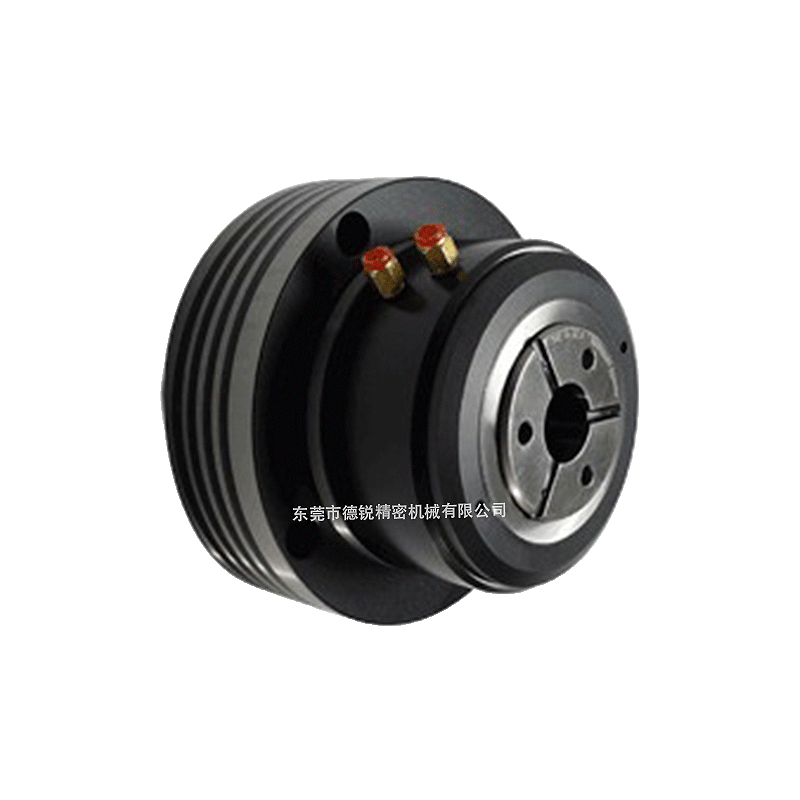

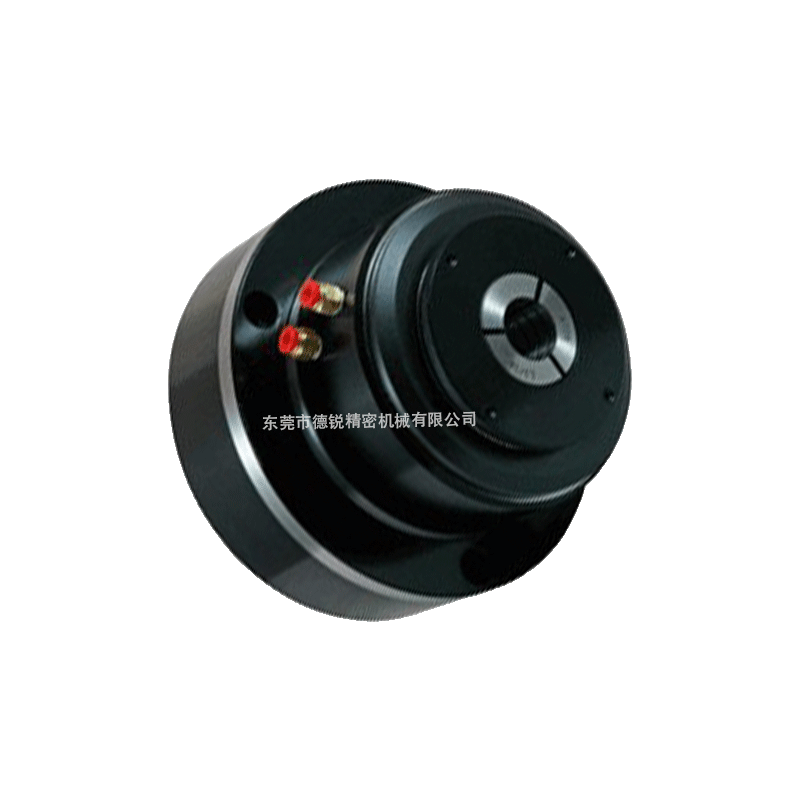

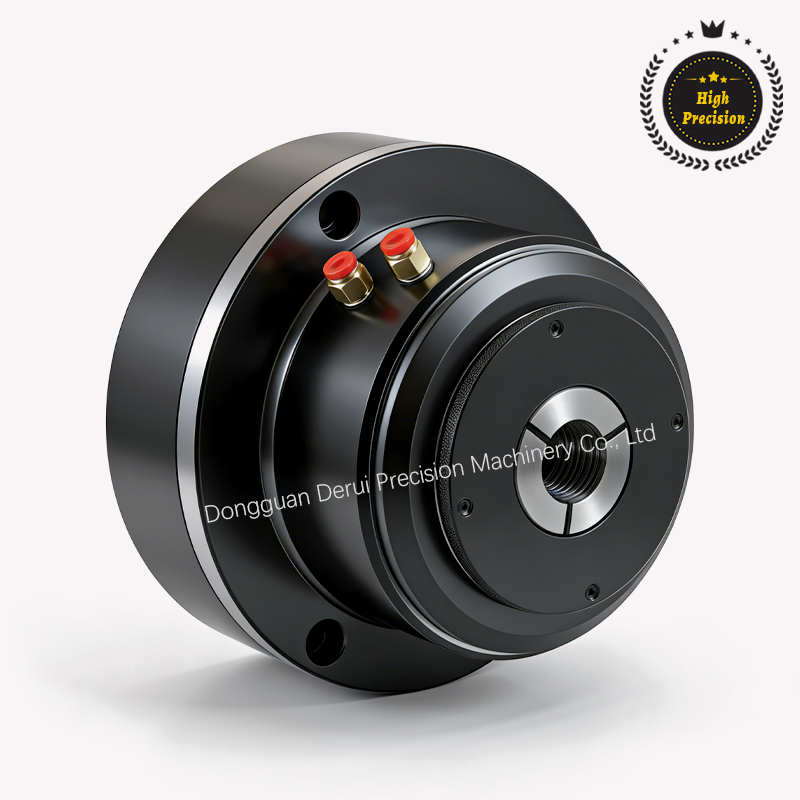

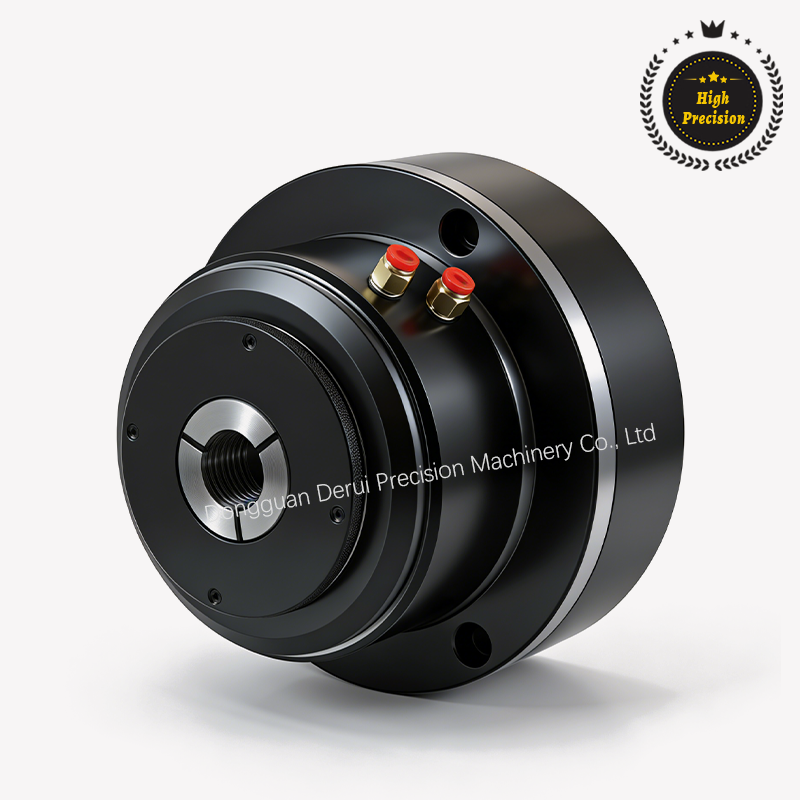

Rotary pneumatic collet chuck

Product characteristics

Built in rotary cylinder, free from draw bar and rotary cylinderEasy installation,

no specialist required，Work with most popular collet, easy to find replacement

orrepair in local.Double piston, provide more clamping force in limited O.D,

Import selected deep groove ball bearing, stable and tough，Self-lock design on

the close side to offer higher safety，High resistance to coolant fluid and cutting chips

Product advantages

Featuring a built-in rotary cylinder, this chuck eliminates the need for a draw bar and separate cylinder, enabling easy installation without specialist support. It works with common, readily available collets, while the double-piston design delivers powerful clamping force within a compact outer diameter. Equipped with high-quality deep groove ball bearings for stability, a self-locking safety mechanism, and excellent resistance to coolant and cutting chips, it is built for reliable, low-maintenance operation.

Business Consulting

Plan

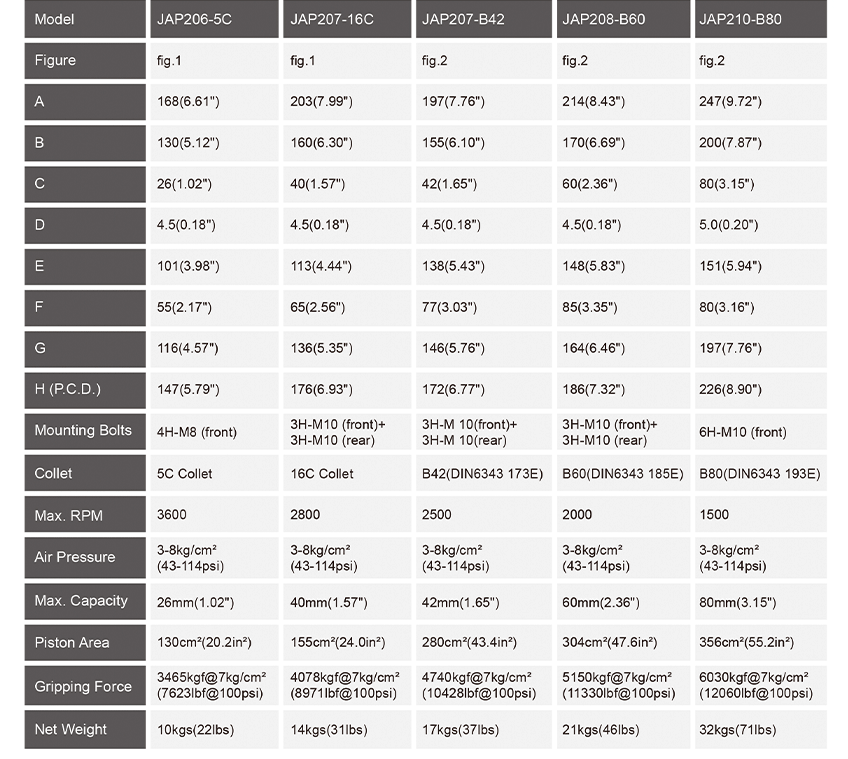

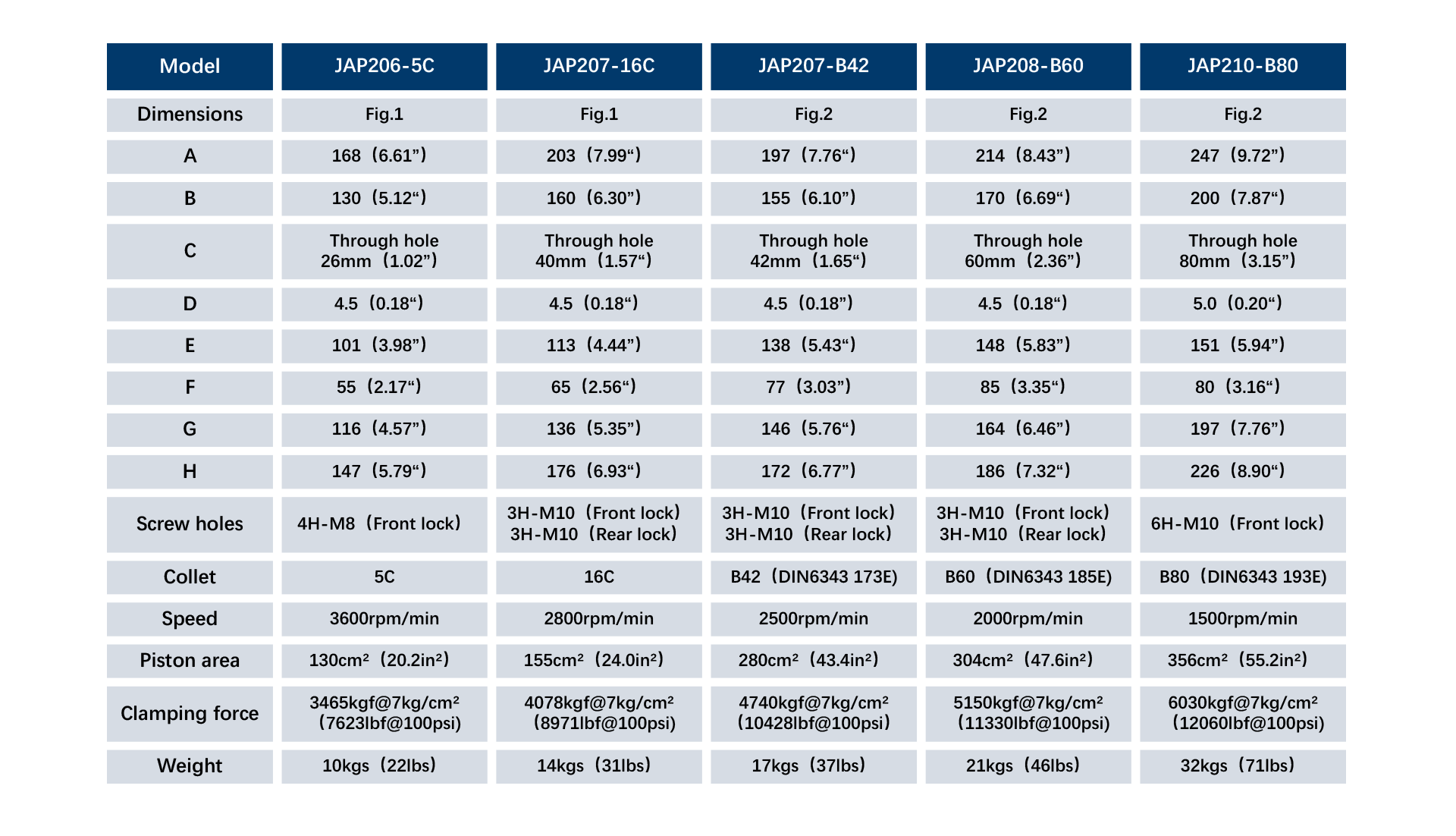

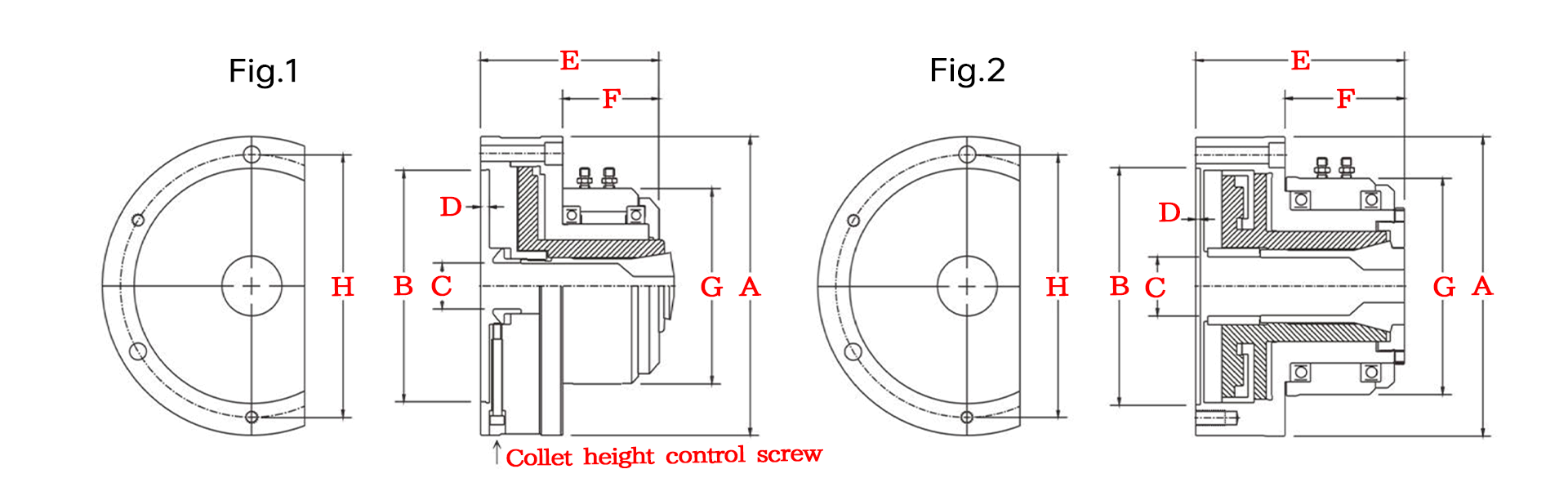

Specification and size
