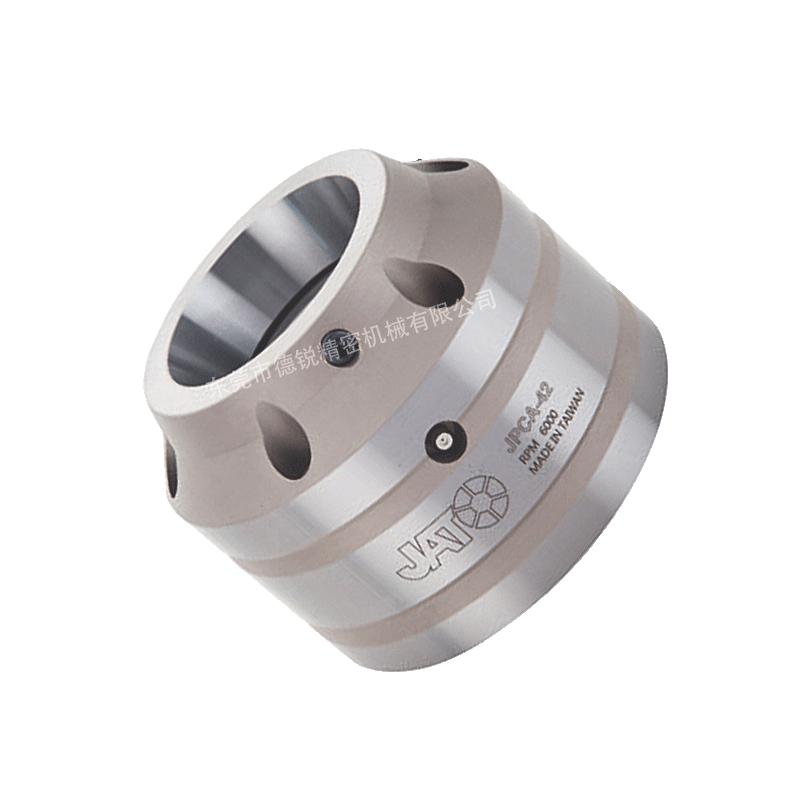

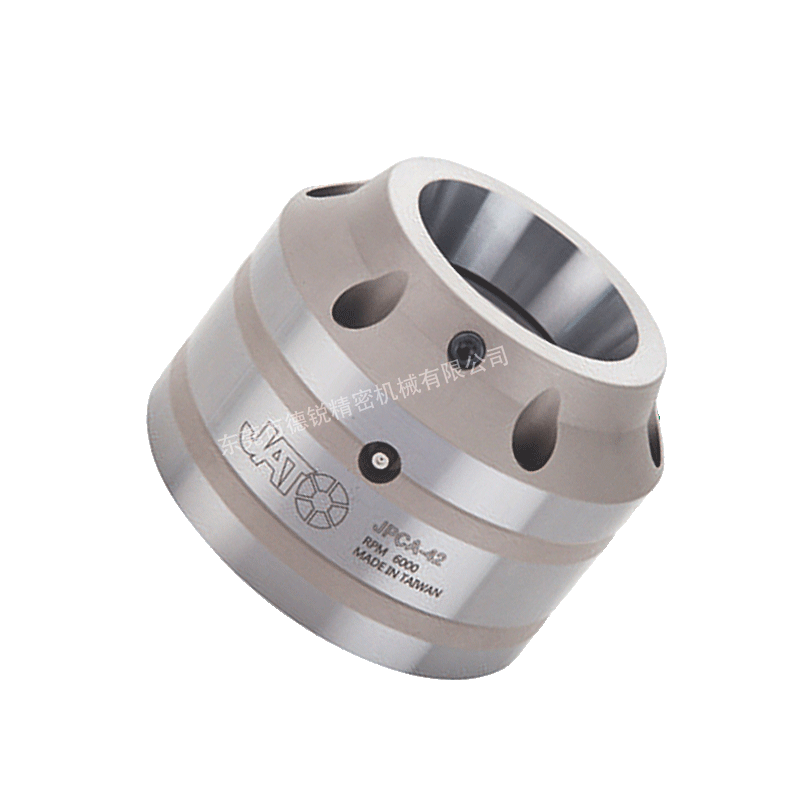

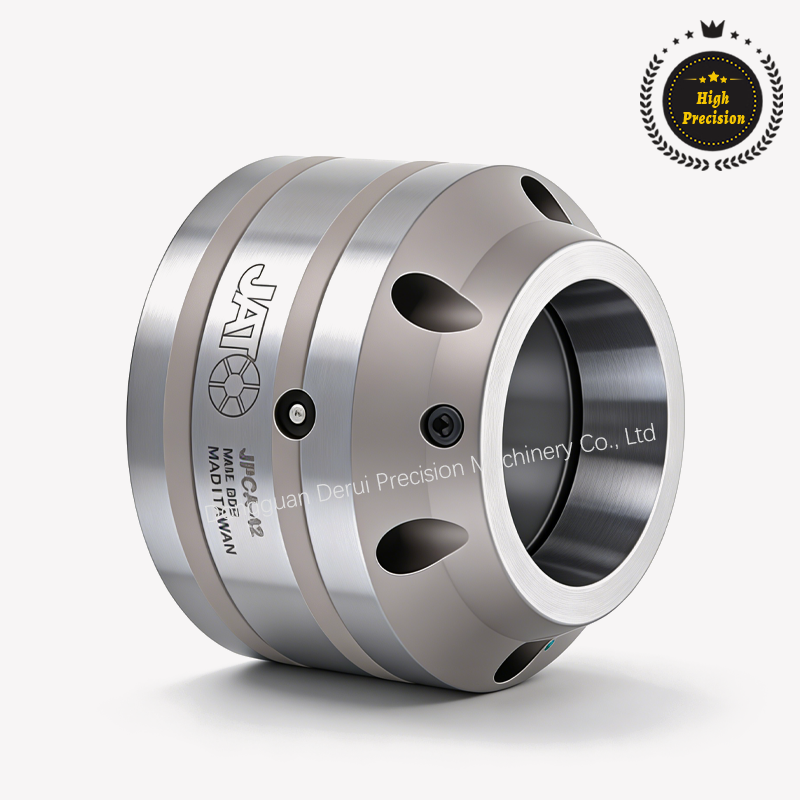

Pull Back Collet Chuck-Axial Stopper

Product characteristics

Work with rubber collet
Parallel Clamp with over 1.5mm range
Really fast collet change with wrench
Adjustable/Removable stopper can alter to air blow, sensing device
Capable to handle heavy duty work

Product advantages

Designed for heavy-duty applications, this chuck pairs with rubber collets to deliver parallel clamping with over 1.5mm range. It features quick wrench-based collet changes, and an adjustable/removable axial stopper that can be modified for air blow or sensing devices, ensuring versatile, reliable performance.

Business Consulting

Plan

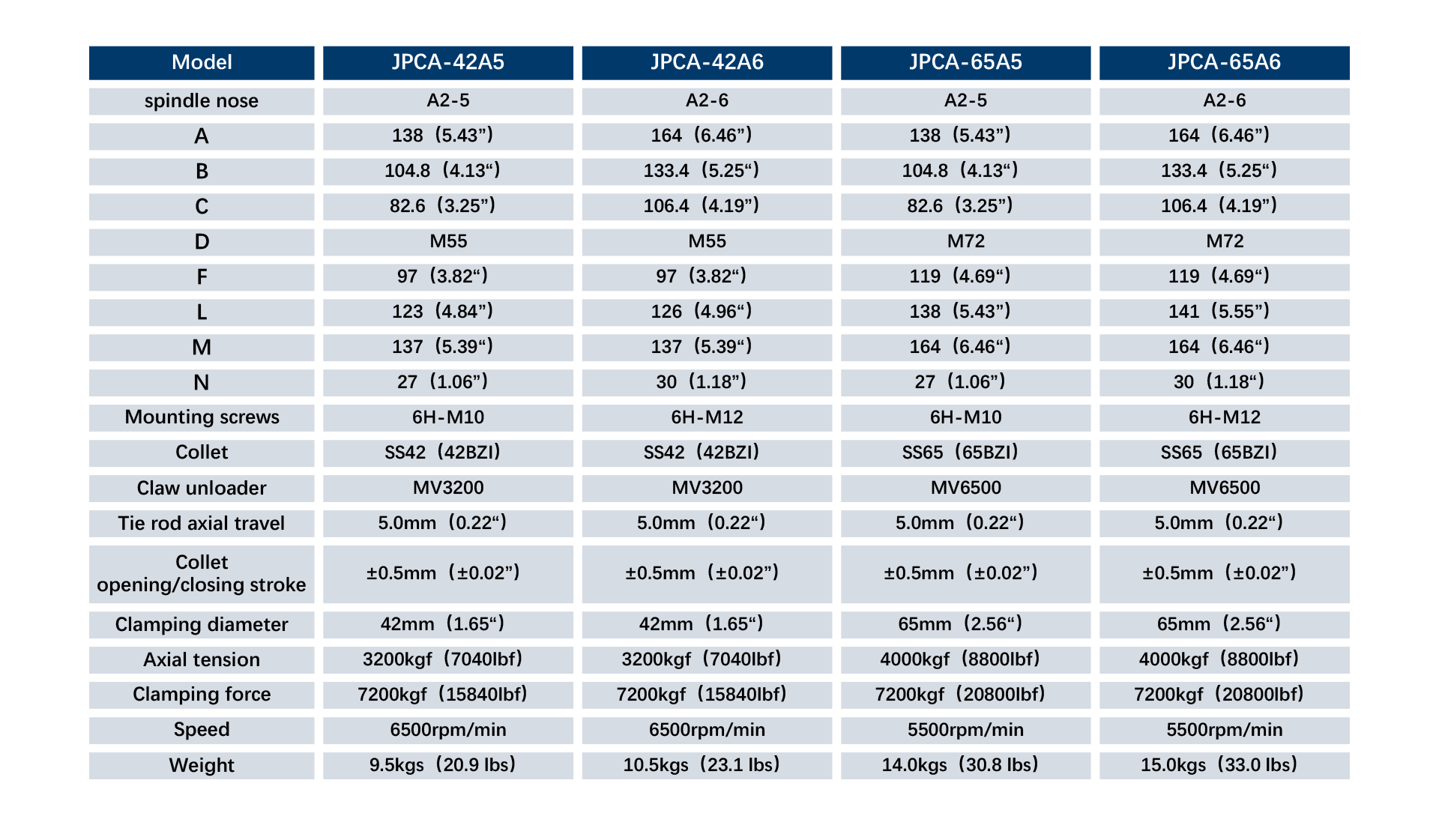

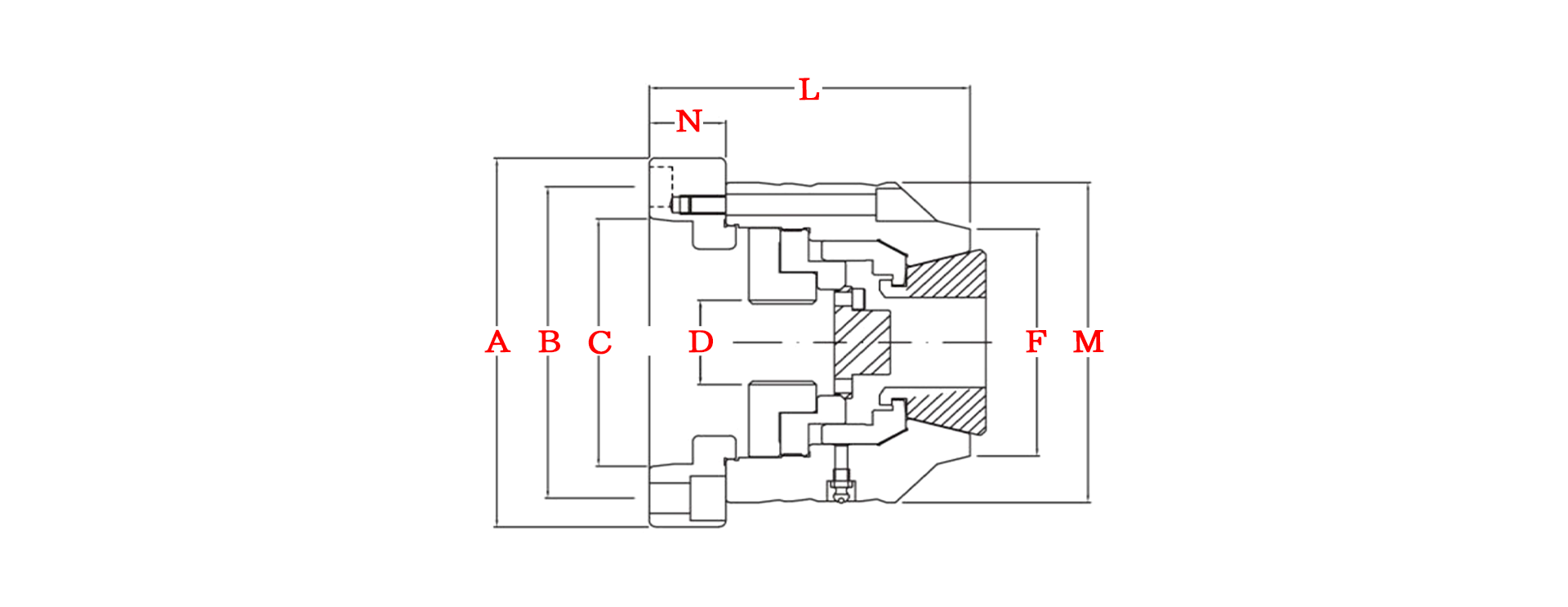

Specification and size
