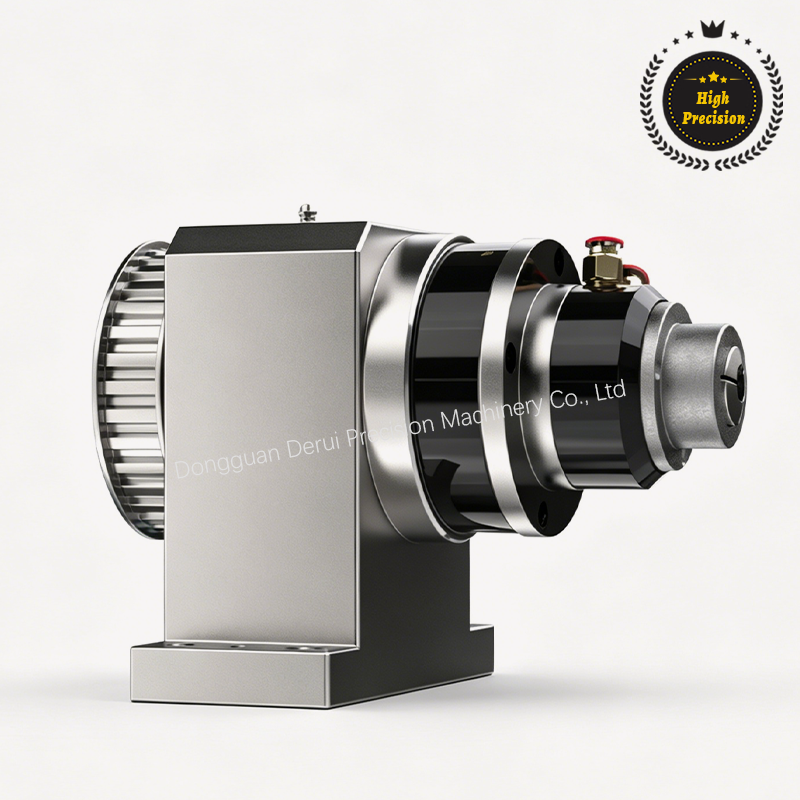

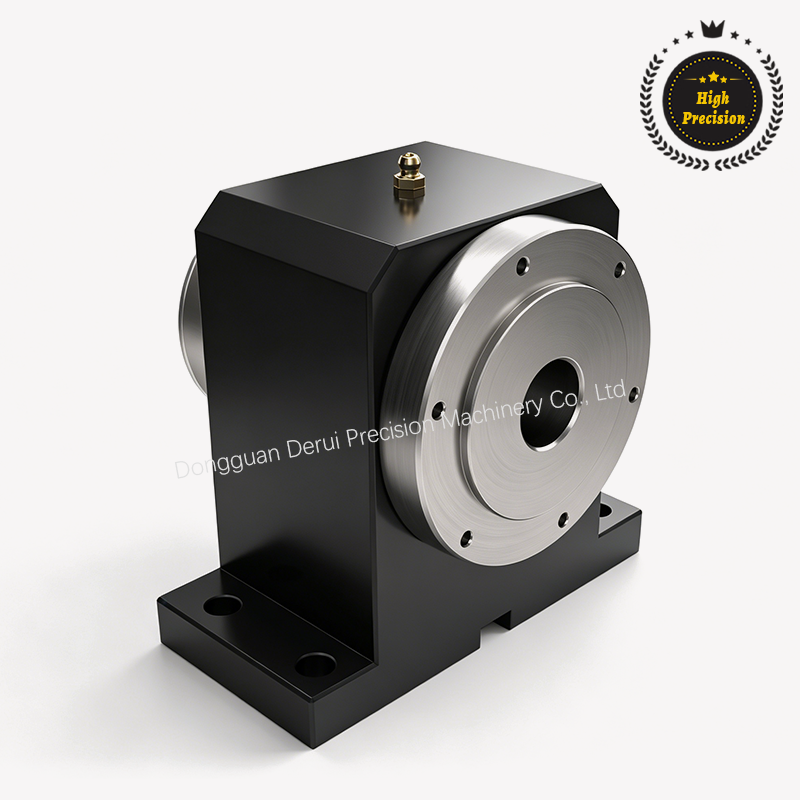

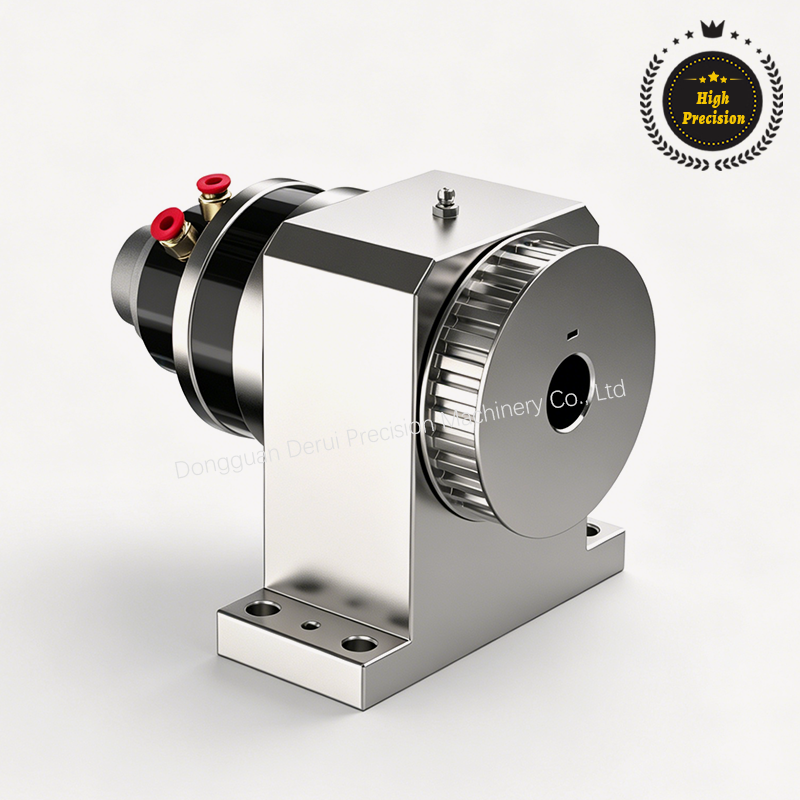

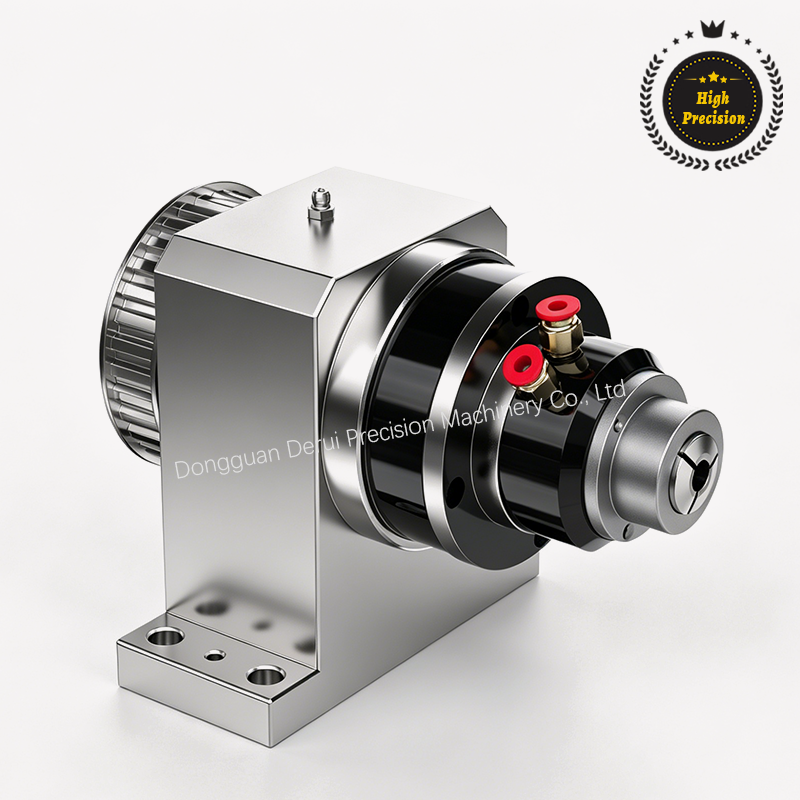

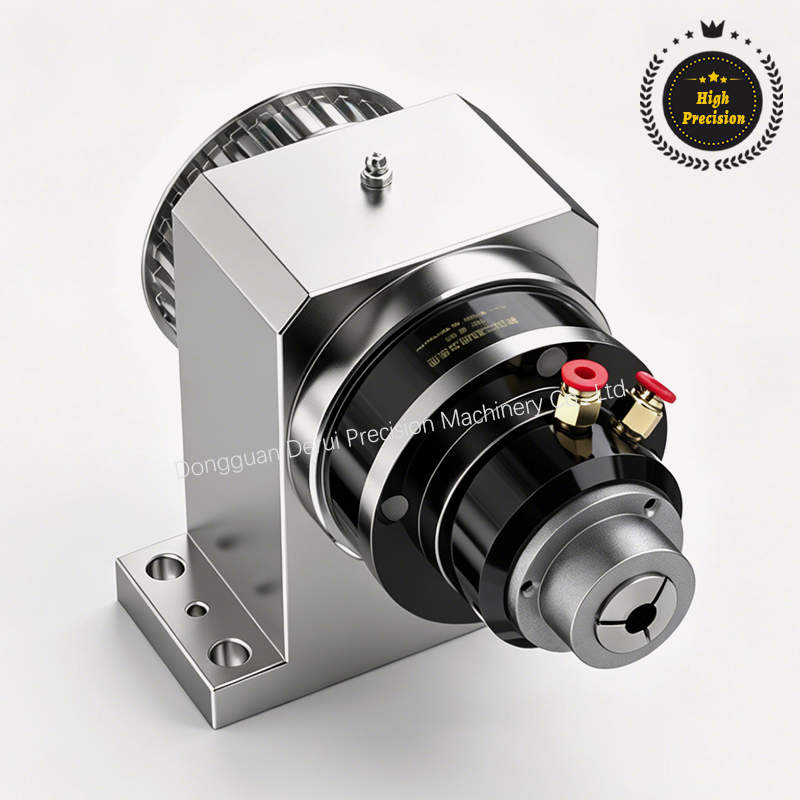

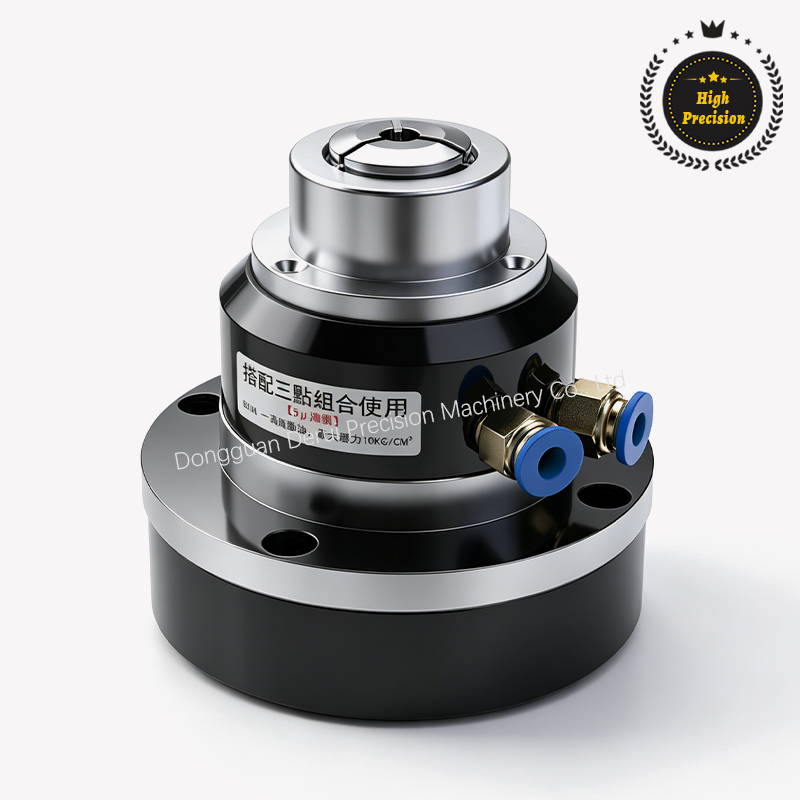

Small Spindle Integration
Product characteristics

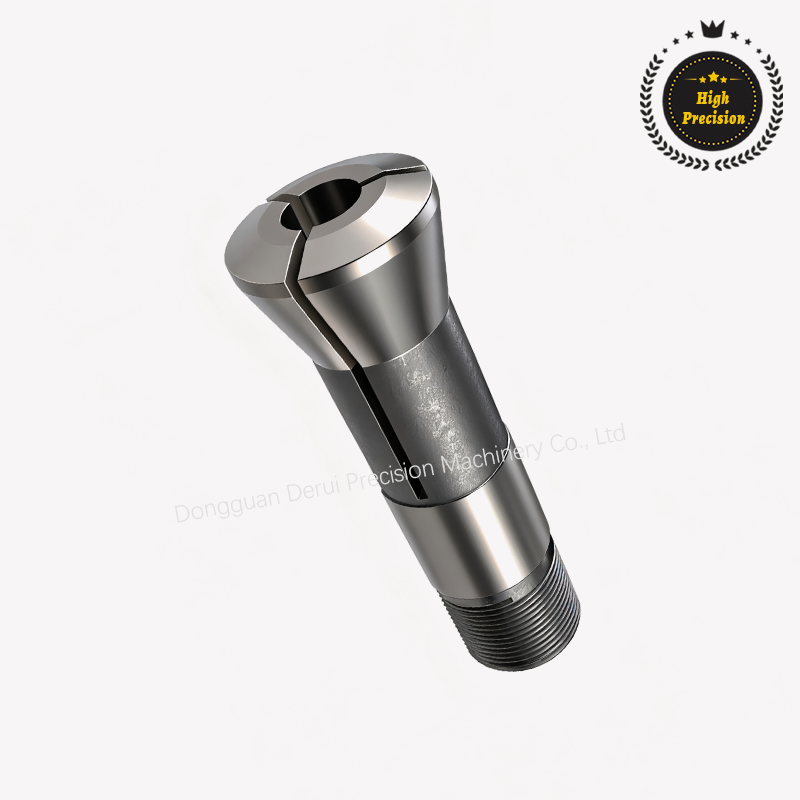

o Changing Collets for Different Workpieces
o Pulls back clamp workpiece, preventing jamming
o Installation-Free Cylinder (Hydraulic Cylinder)
o Accuracy: 0.005 mm (customizable to 0.002 mm)
o The rear drive can be connected via a direct motor
coupling, synchronous pulley and belt, or gears
o Used in automated equipment such as precision lathes
grinding machines, laser cutters, and robots

Product advantages
Featuring 0.005mm accuracy (customizable to 0.002mm), collet-change versatility, and jamming-preventing pull-back clamping, this cylinder-free spindle is ideal for precision lathes, grinders, and automated equipment applications.

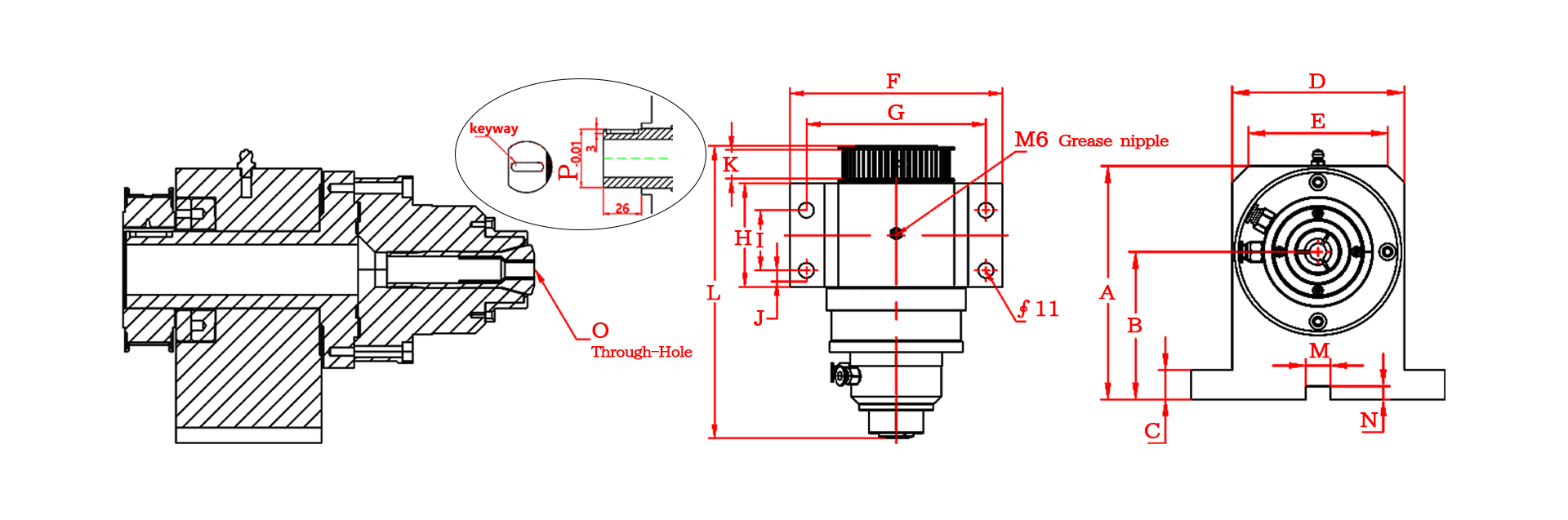

Plan

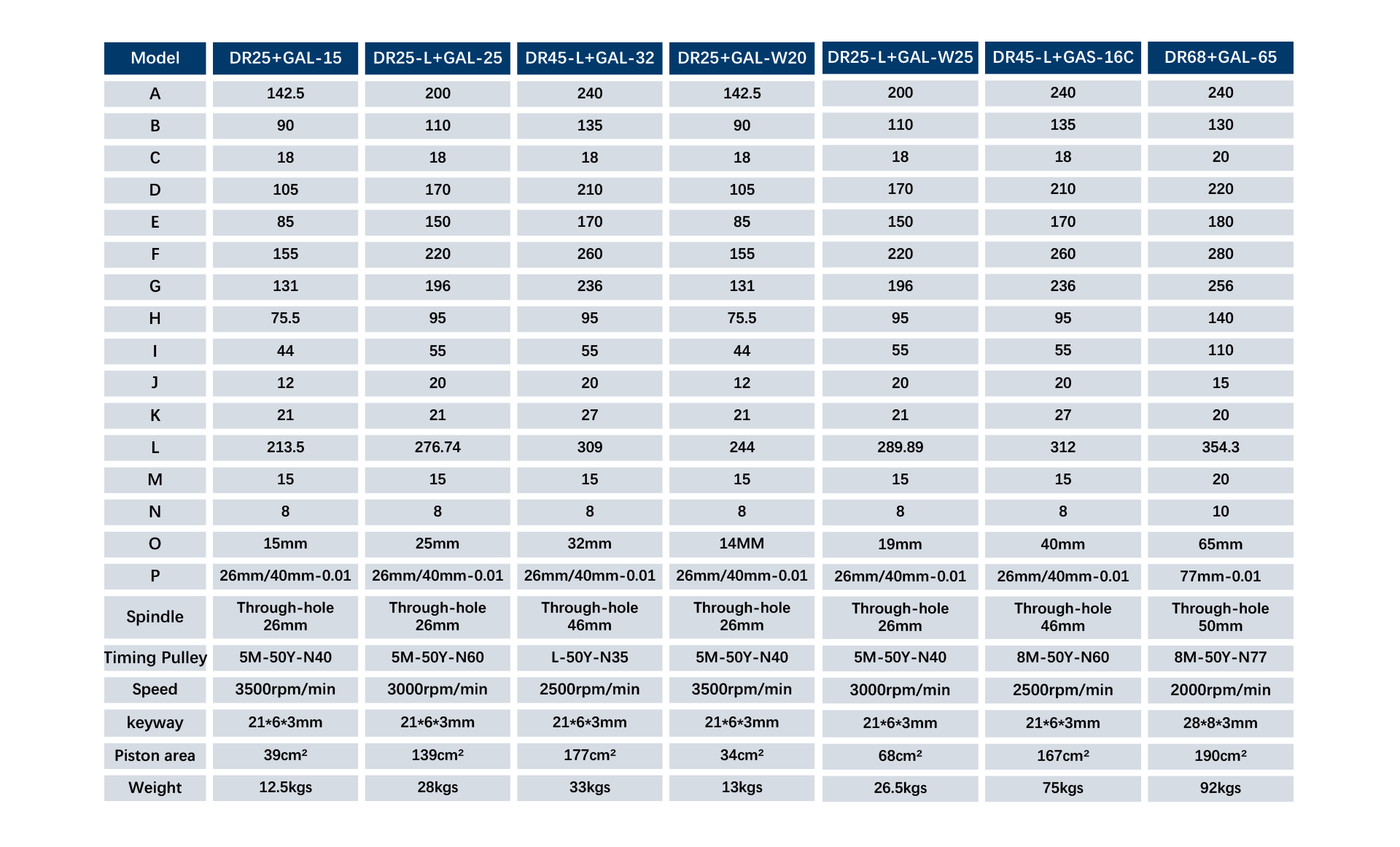

Specification and size
Related products
Specification
  • Flat-DR-68+GAL-65+65C(20).PDF
  • Flat-DR-25-L+GAL-W20+W20.pdf
  • Flat-DR-25-L+GAL-15.pdf
  • Flat-DR25+GAL-W25+750W Motor + Motor Mount (Left).pdf
  • Flat-DR25+GAL-15+750W Motor + Motor Mount (Upper).pdf
Three-dimensional model
  • 3D Model-DR-68+GAS-16C+1kw+Motor Mount (Right).STEP
  • 3D Model-DR-68+GAL-65+65C(20).STEP
  • 3D Model-DR-45-L+GAL-32.STEP
  • 3D Model-DR-25-L+GAL-W20+W20.STEP
  • 3D Model-DR25+GAL-W25.STEP
  • 3D Model-DR25+GAL-15+750W Motor + Motor Mount.STEP
