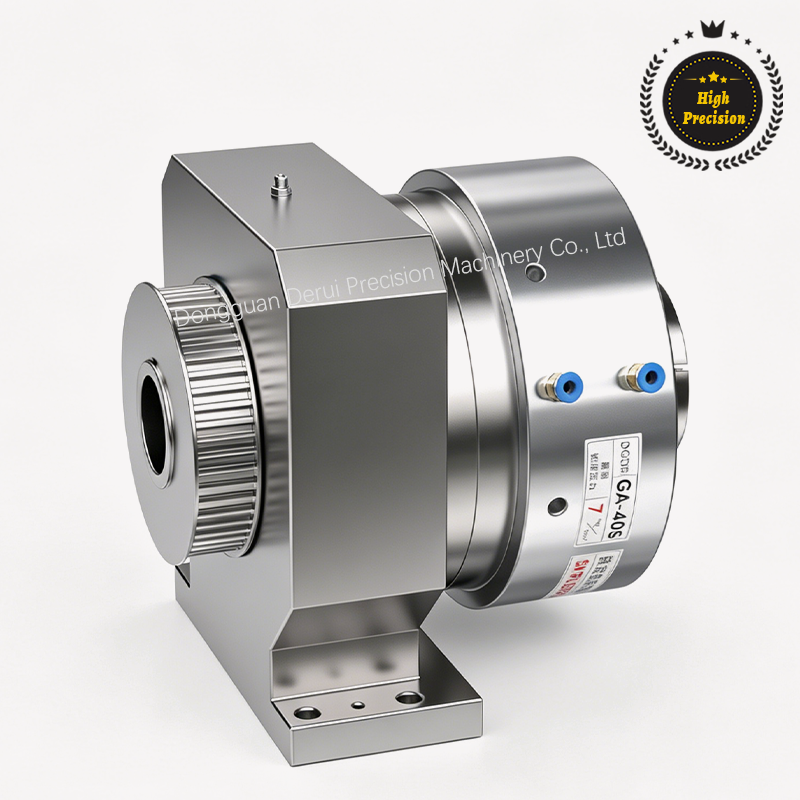

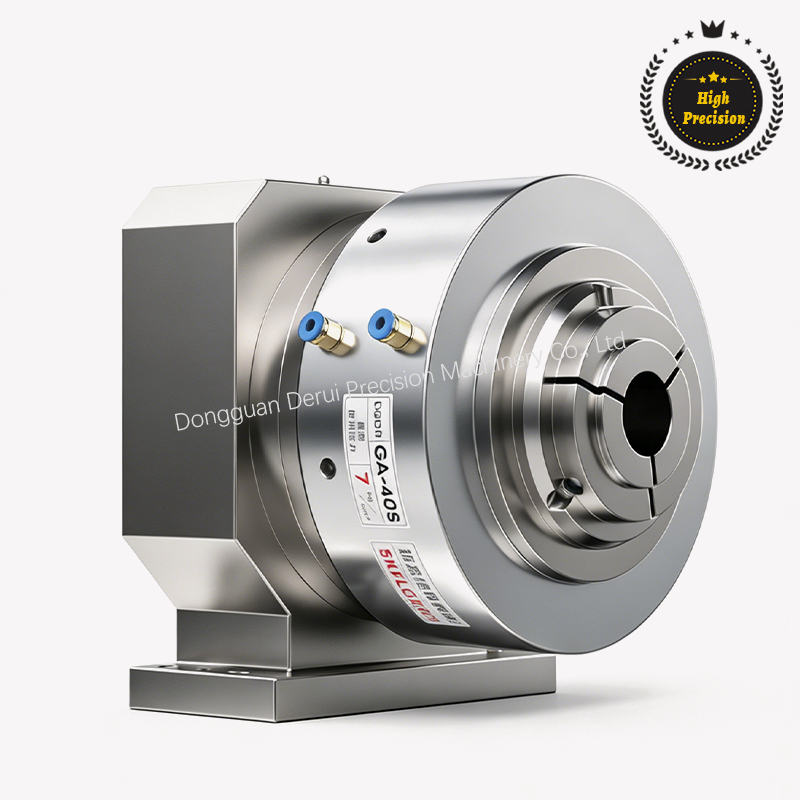

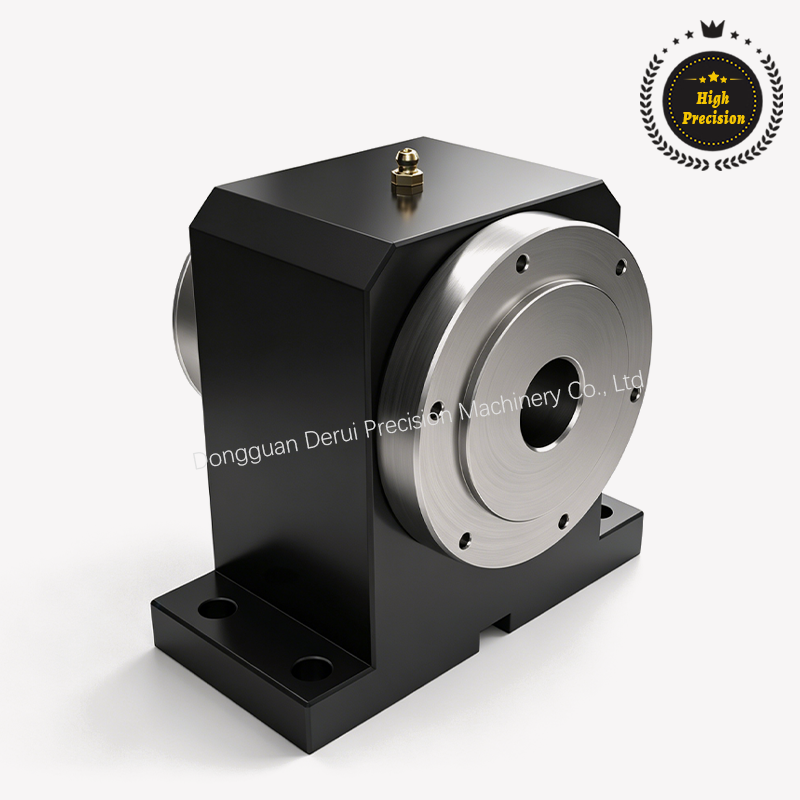

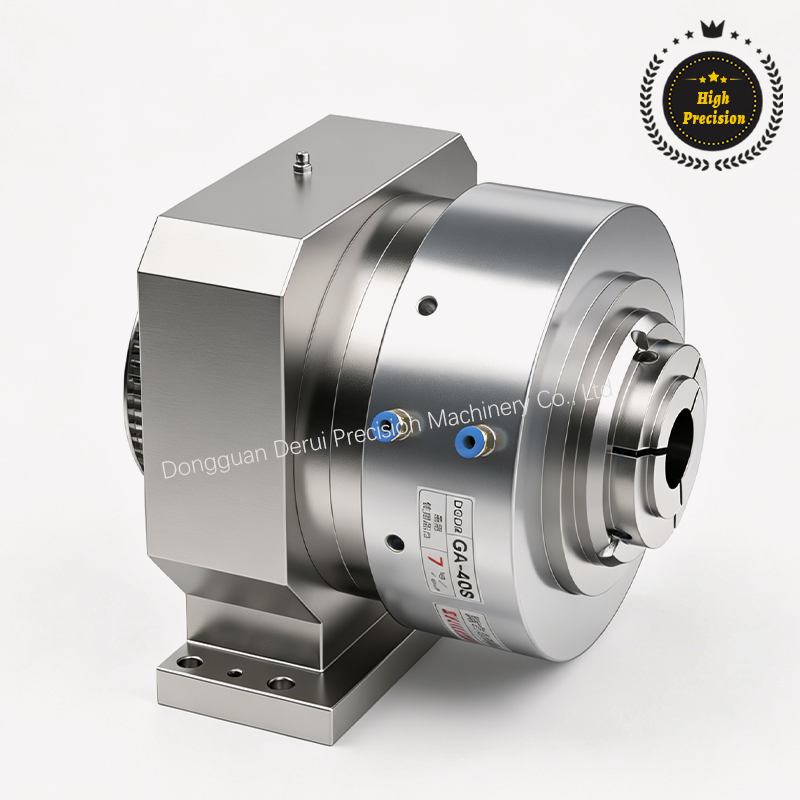

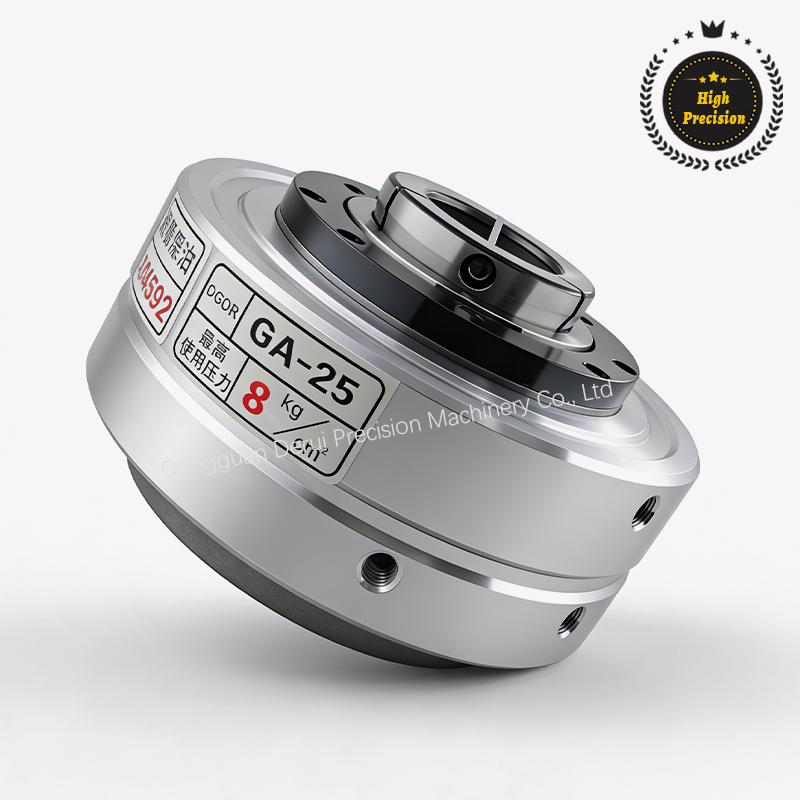

High-Precision Rotary Spindle
Product characteristics
No additional cylinders required o
Enables rapid setup of workholding systems o
Central through-hole, supports rear feeding o
Clamping repeatability within 0.05 mm o
Suitable for retrofitting traditional o
lathes for automation or semi-automation o
High Flexibility, Rapid Auxiliary Jaw Replacement o
Cutting fluid must not be directed at the chuck o

Product advantages
Requiring no additional cylinders, it offers rapid setup, rear feeding capability, 0.05mm clamping repeatability, and flexible jaw replacement for seamless retrofitting of traditional lathes into automated operations.

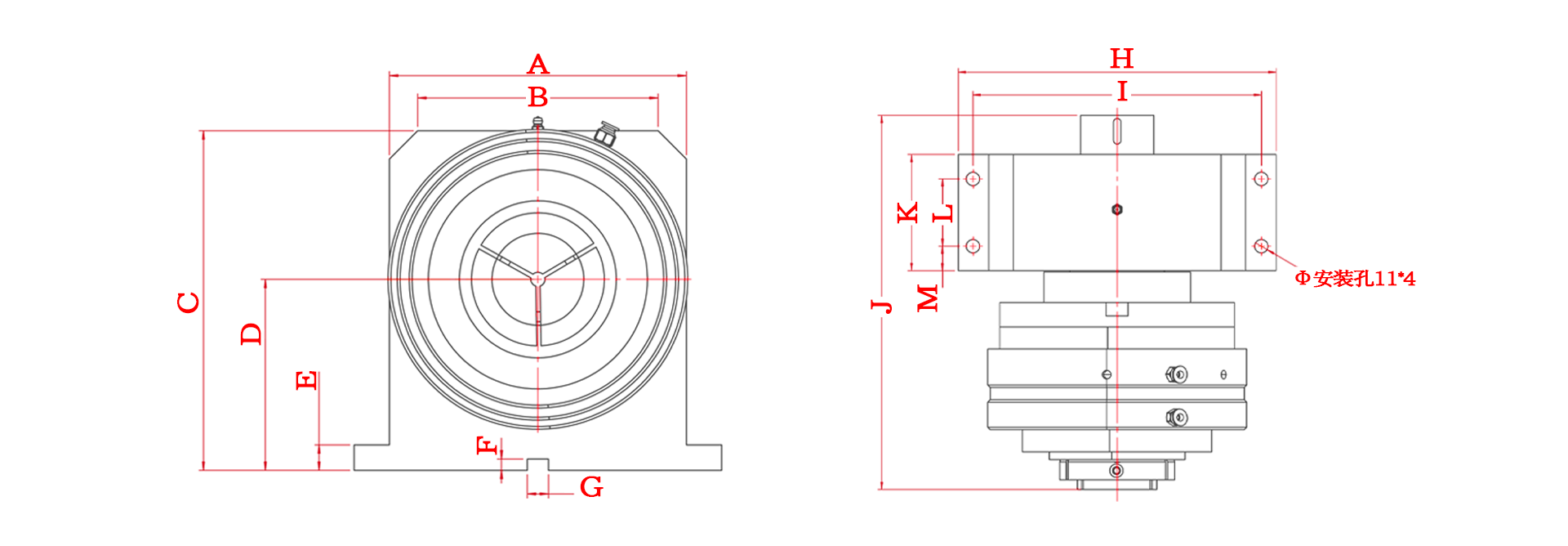

Plan

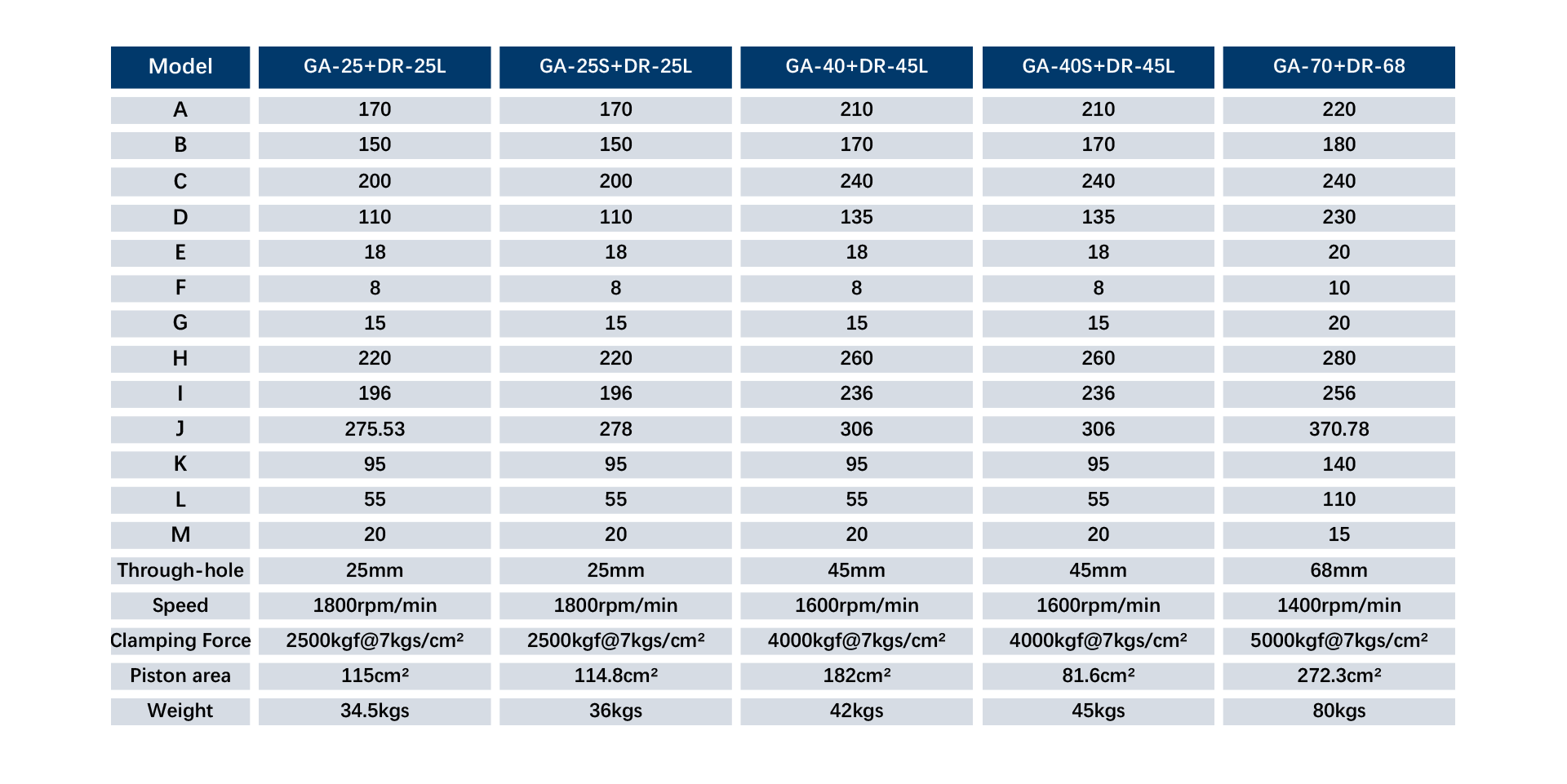

Specification and size
Related products
Specification
  • Flat-DR68+GA-70-3k+C-70.pdf
  • Flat-DR25+GA-25S+750WMotor + Motor Mount (Left).pdf
  • Flat-DR25+GA-25+750W Motor + Motor Mount (Left).pdf
Three-dimensional model
  • 3D Model-DR68+GA-70-3k+C-70.STEP
  • 3D Model-DR-45-L+GA40S-3k+C-40+750w Motor + Motor Mount.STEP
  • 3D Model-DR25+GA-25S+750W Motor + Motor Mount.STEP
  • 3D Model-DR25+GA-25+750W Motor + Motor Mount.STEP
