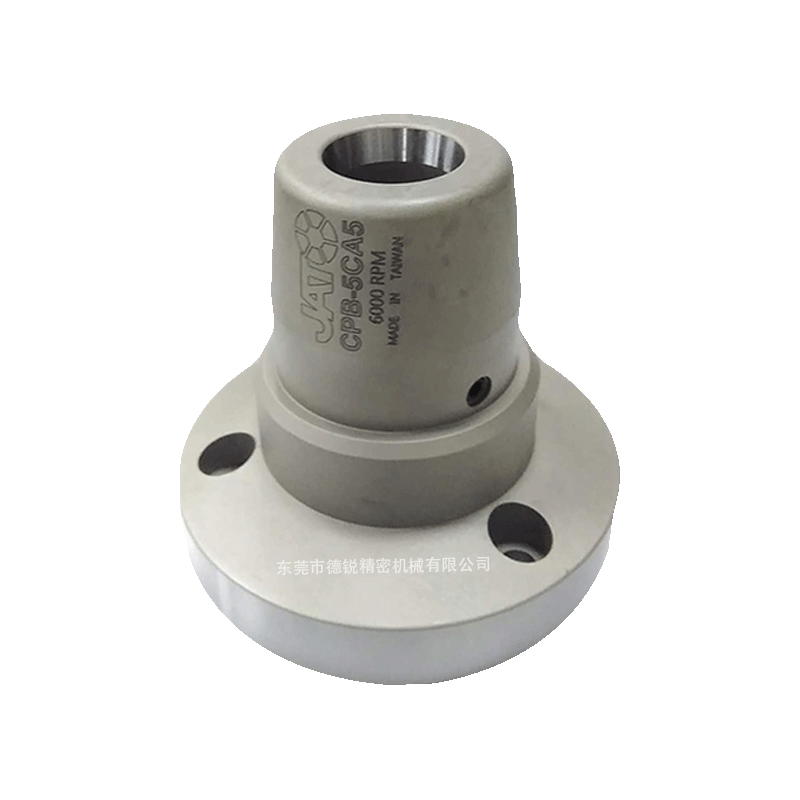

US standard 5C/16C (pull-back type) CPB
-
Product characteristics
Adops 5C/16C collet
5C Collet max.capacity 26mm
16C Collet max.capacity 40mm
Pull back design. High accuracy
-
Product advantages
The streamlined, low-profile design reduces interference with tool paths, making it especially suitable for compact installation environments on main or sub-spindles. This significantly improves the utilization of your machine’s working envelope.
