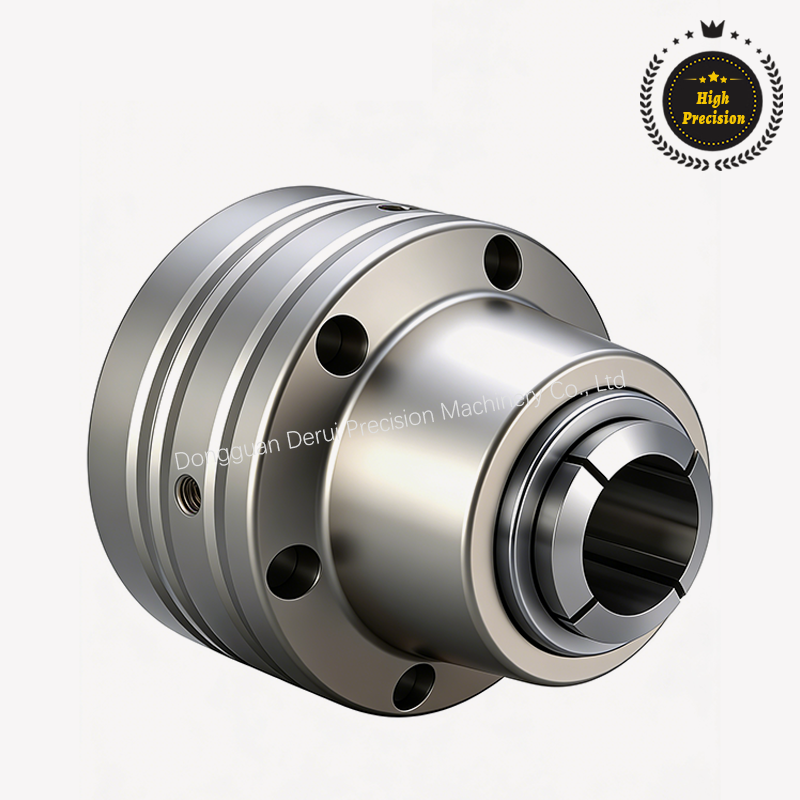

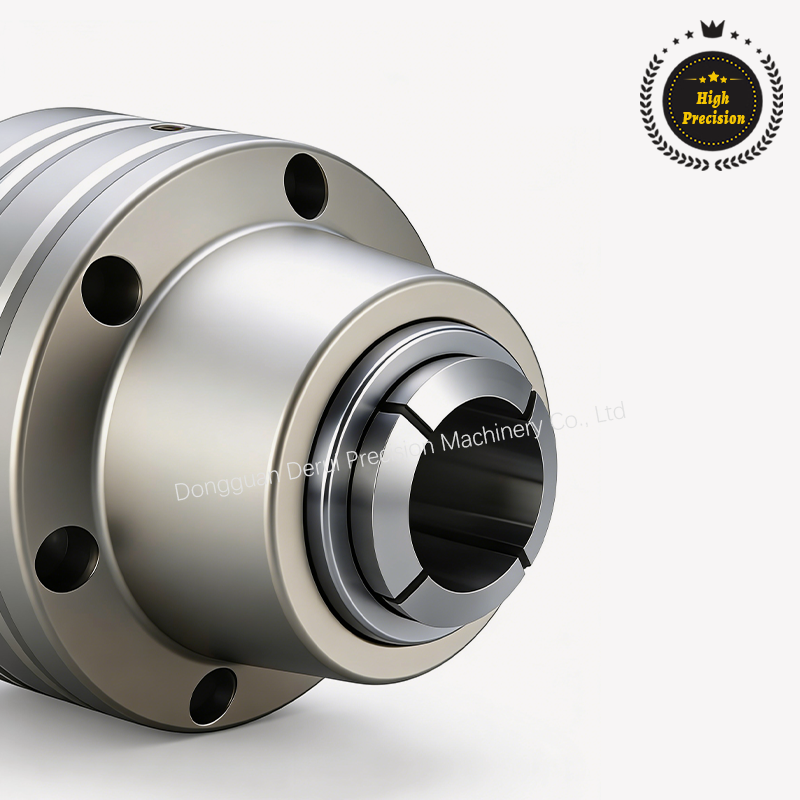

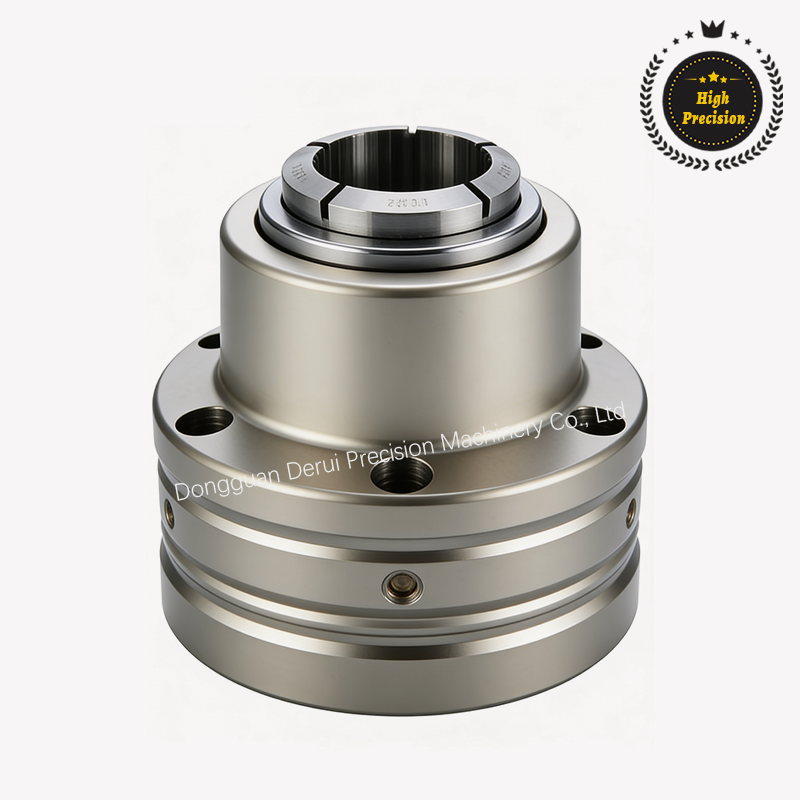

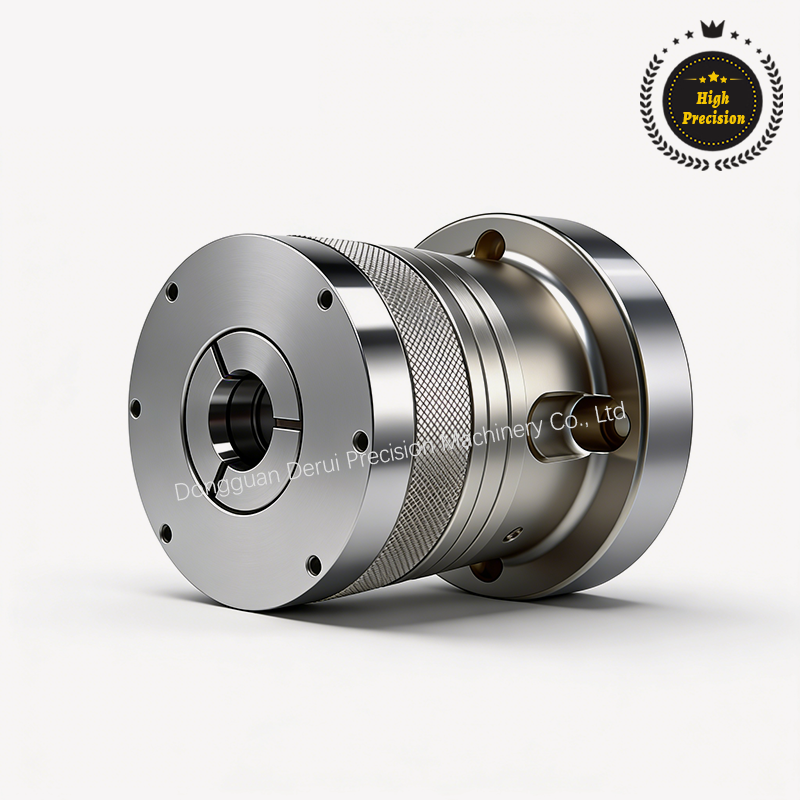

US standard 5C/16C (push-out type) CPD
-
Product characteristics
Adops 5C/16C collet5C Collet max.capacity 26mm16C Collet max.capacity 40mm
-
Product advantages
This US-standard 5C/16C push-out chuck supports 26mm (5C) to 40mm (16C) clamping, with a blank draw nut for custom threading to fit any machine drawtube. It delivers high-speed stability up to 6000 RPM and strong, reliable thrust for consistent precision.
